| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
336209-13-0200CBL ASSY UMCC-TNC 7.874 |
248 | 34.64 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874 (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
095-850-131-018CBL ASSY HD-BNC PLUG-PLUG 18 |
114 | 35.56 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 18.00 (457.20mm) | Belden 1694A | - | - | 75 Ohms | 3 GHz | Black | Shielded | 0°C ~ 50°C |
|

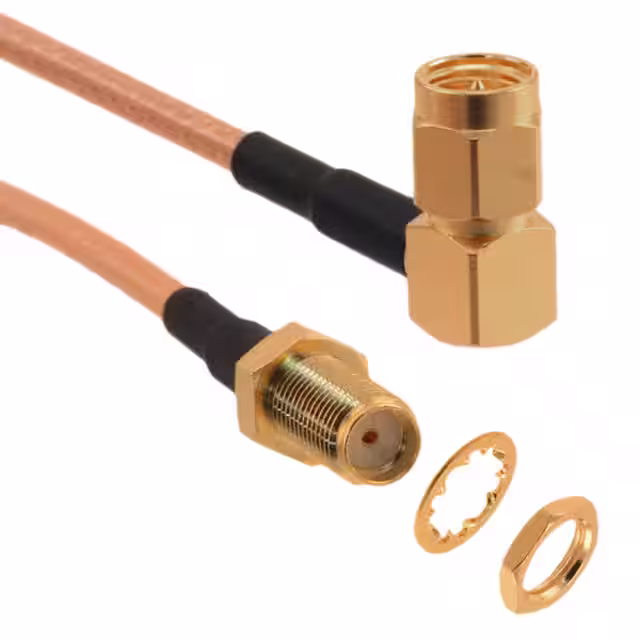

135111-03-M0.75CBL ASSY SMA RG316 DS 29.53 |
170 | 36.83 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
095-902-451-006CBL ASSY SMA PLUG TFLEX-405 6 |
132 | 39.05 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000 (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | - |
|
|
095-902-450-012CBL ASSY SMA PLUG-PLUG .141 12 |
2,450 | 41.33 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - |
|

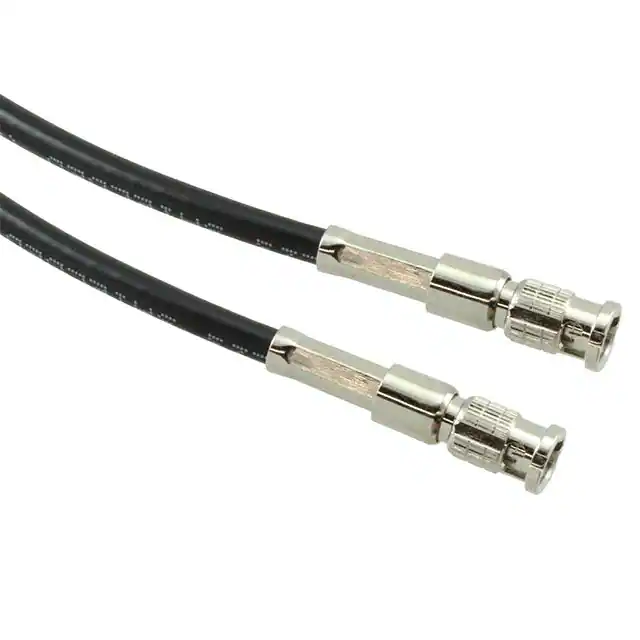

095-850-158-012CBL ASSY HD-BNC PLUG-PLUG 12 |
105 | 41.42 |
RFQ |
Datasheet |
Bulk | - | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|

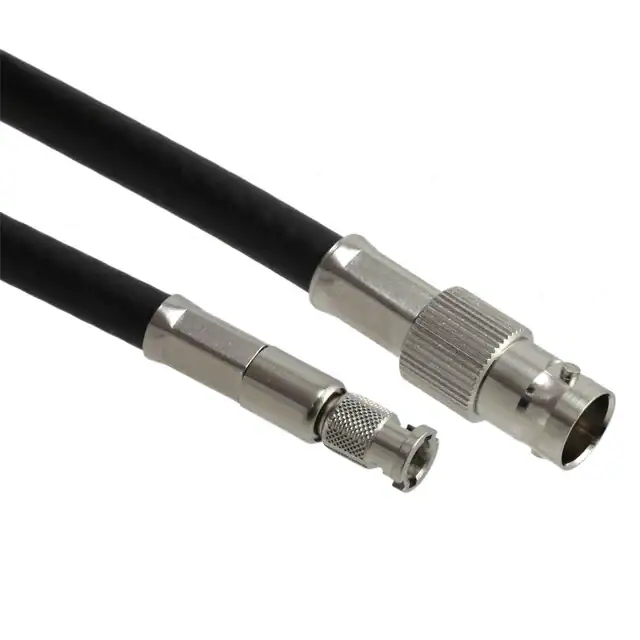

095-666-44882-2CBL ASSY HD-BNC JACK-PLUG 12 |
1,027 | 42.12 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | 0°C ~ 50°C |
|

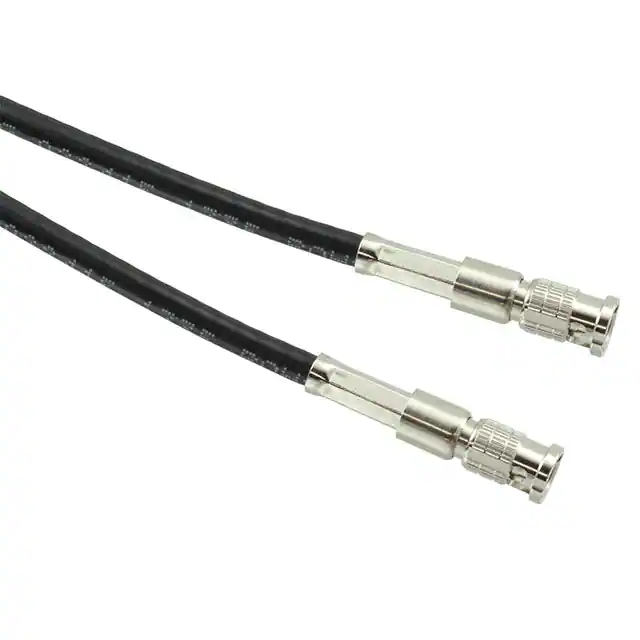

095-850-158M050CBL ASSY HD-BNC PLUG 19.69 |
119 | 42.38 |
RFQ |
Datasheet |
Bulk | - | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|

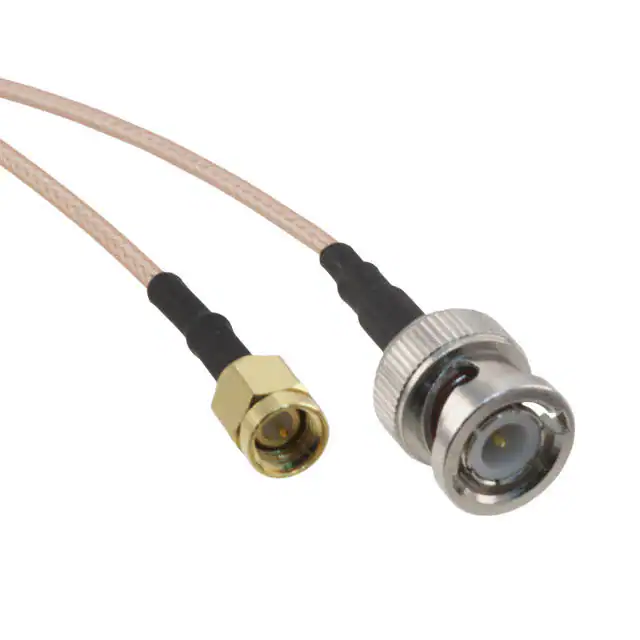

245101-07-36.00CBL ASSY SMA-BNC PLUG RG142 36 |
3,422 | 42.96 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|
095-850-186M100CBL ASSY BNC PLUG-PLUG 3.3' |
106 | 43.46 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|

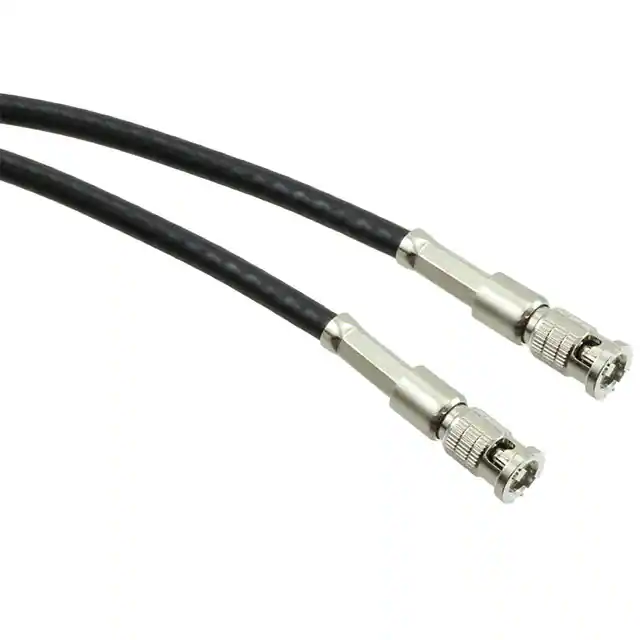

095-850-158M100CBL ASSY HD-BNC PLUG-PLUG 3.3' |
333 | 44.81 |
RFQ |
Datasheet |
Bulk | - | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - |
|
|
095-850-186M200CBL ASSY BNC PLUG-PLUG 6.6' |
115 | 62.62 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7 (2.0m) 6.6' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-909-176M100N-TYPE STRAIGHT PLUG TO N-TYPE S |
123 | 64.78 |
RFQ |
Datasheet |
Bag | ARC | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - |
|
A-1PL-081-050B2CBL ASSY UMCC PLUG-PLUG 1.969 |
102 | 3.91 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969 (50.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-1PA-113-137B2CBL ASSY UMCC PLUG-PLUG 5.394 |
207 | 6.25 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.394 (137.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-2PA-081-300B2CBL ASSY AMMC PLUG-PLUG 11.811 |
108 | 6.42 |
RFQ |
Datasheet |
Bag | - | Active | AMMC to AMMC | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
095-902-501-150RP SMA STRAIGHT BULKHEAD JACK TO |
171 | 13.78 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to AMC4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
095-902-503-100AMC4 PLUG TO RP SMA STRAIGHT BUL |
267 | 16.90 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to AMC4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
095-902-503-150AMC4 PLUG TO RP SMA STRAIGHT BUL |
128 | 16.97 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to AMC4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
095-902-503-300AMC4 PLUG TO RP SMA STRAIGHT BUL |
290 | 17.10 |
RFQ |
Datasheet |
Bag | - | Active | RP-SMA to AMC4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
