| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A-1PA-137-305B2CBL ASSY UMCC PLUG-PLUG 12 |
245 | 8.41 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00 (304.80mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
A-1PA-132-01KB2CBL ASSY UMCC PLUG-PLUG 3.3' |
636 | 8.46 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C |
|
336313-13-0150CBL ASSY SMA-UMC 5.906 |
220 | 9.92 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
336314-12-0300CBL ASSY RP-SMA-UMC 11.811 |
819 | 10.27 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
336313-13-0250CBL ASSY SMA-UMC 9.843 |
102 | 10.41 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843 (250.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|

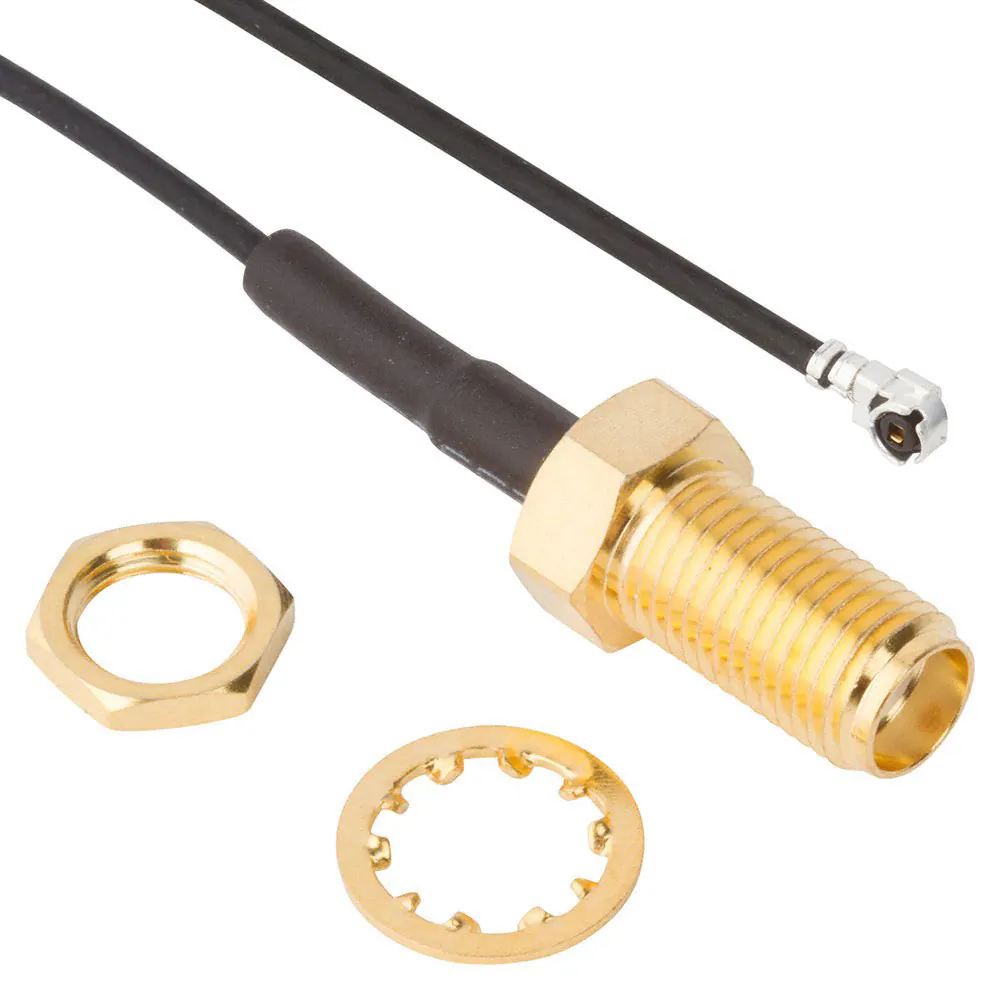

336313-12-0350SMA BULKHEAD JACK TO AMC PLUG ON |
210 | 10.48 |
RFQ |
Bag | - | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 13.78 (350.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | |
|
|
336314-14-0300CBL ASSY RP-SMA-UMC 11.811 |
2,175 | 10.50 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
115101-20-24.00CBL ASSY BNC PLUG-PLUG RG59 24 |
154 | 14.91 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - |
|
115101-19-M0.75CBL ASSY BNC PLUG RG58 29.53 |
3,050 | 15.40 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - |
|
A-1PA-178-01KN2CBL ASSY UMCC PLUG RG178 3.3' |
338 | 16.35 |
RFQ |
Datasheet |
Bag | - | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Natural | Shielded | -40°C ~ 90°C |
|
095-902-502-100AMC4 PLUG TO SMA STRAIGHT BULKHE |
164 | 16.51 |
RFQ |
Datasheet |
Bag | - | Active | AMC4 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937 (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|
|
095-902-502-150AMC4 PLUG TO SMA STRAIGHT BULKHE |
270 | 16.55 |
RFQ |
Datasheet |
Bag | - | Active | AMC4 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906 (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|

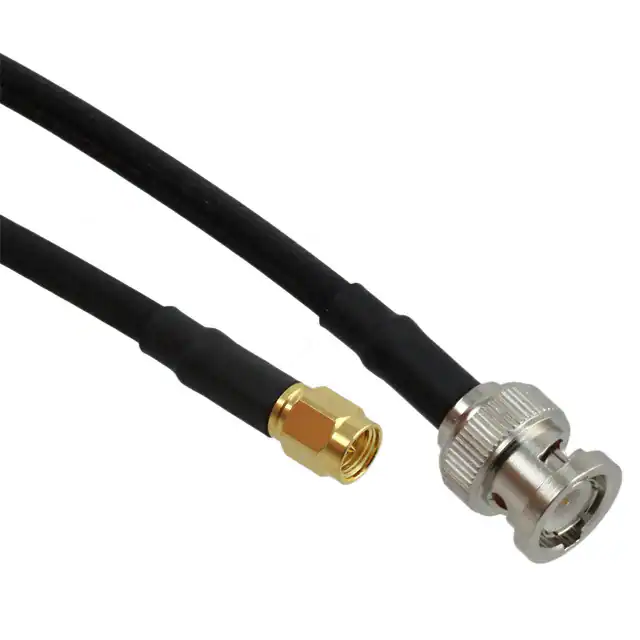

245101-04-36.00CBL ASSY SMA-BNC PLUG RG58 36 |
115 | 18.89 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00 (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - |
|
115101-01-M0.50CBL ASSY BNC PLUG RG316 19.69 |
3,256 | 19.06 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | - |
|

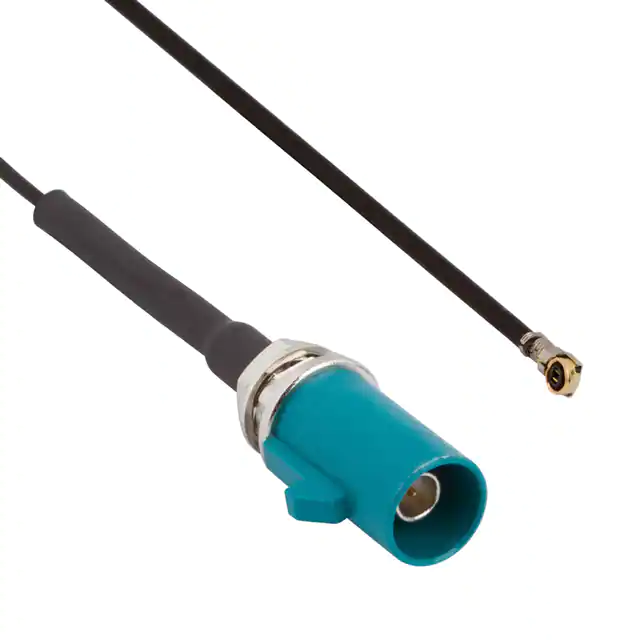

095-820-124-05ZFAKRA STRAIGHT PLUG TO AMC4 RIGH |
235 | 19.17 |
RFQ |
Datasheet |
Bag | - | Active | AMC4 to Fakra SMB | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Fakra SMB Plug | Male | Panel Mount | Bulkhead - Front Side Nut | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Locking | - |
|
095-850-164M050CBL ASSY BNC PLUG-PLUG 19.69 |
213 | 19.28 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | Belden 1855A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
135101-01-M0.75CBL ASSY SMA PLUG RG316 29.53 |
3,811 | 19.32 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
245101-01-M0.50CBL ASSY SMA-BNC RG316 19.69 |
193 | 19.45 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69 (500.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
|

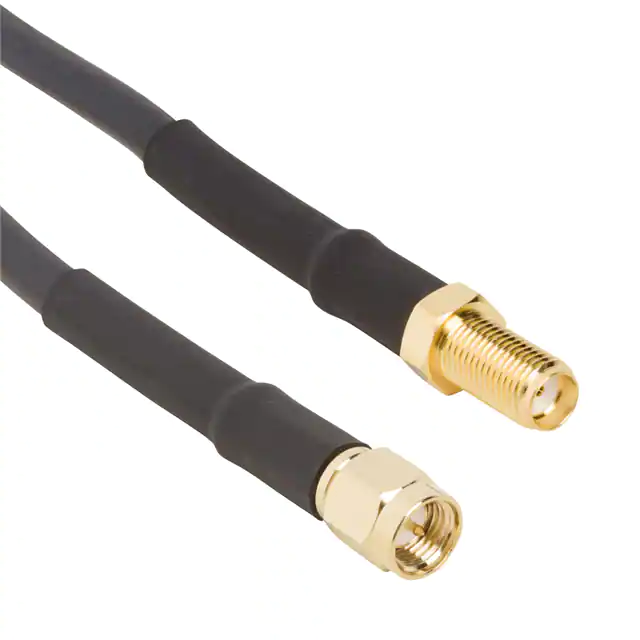

095-902-514-024SMA STRAIGHT PLUG TO SMA STRAIGH |
2,947 | 19.47 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
255110-01-12.00CBL ASSY MCX PLUG-SCKT RG316 12 |
563 | 19.51 |
RFQ |
Datasheet |
Box | - | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Socket | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00 (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - |
