| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEA-GA1C150CAP ALUM 15UF 20% 16V RADIAL |
28,908 | 0.32 |
RFQ |
Datasheet |
Bulk | GA-A | Active | 15 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 33 mA @ 120 Hz | 51.15 mA @ 100 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|

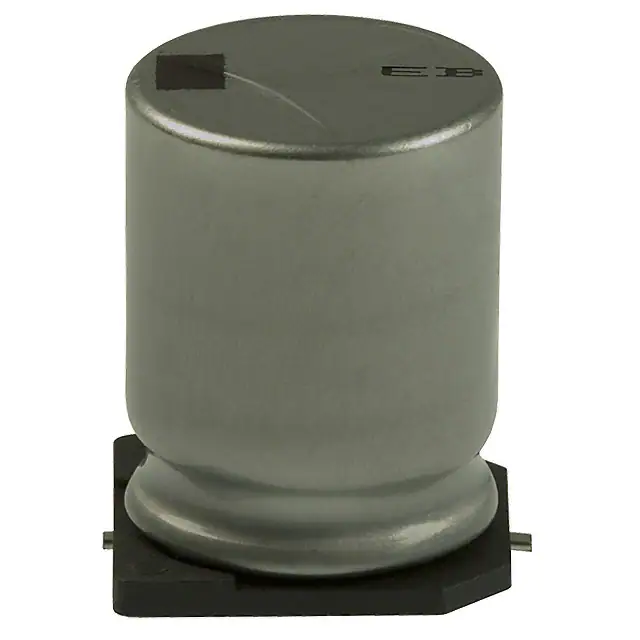

EEV-EB2C470SMCAP ALUM 47UF 20% 160V SMD |
2,944 | 4.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EB | Last Time Buy | 47 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 330 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
EEV-EB2G220MCAP ALUM 22UF 20% 400V SMD |
3,205 | 4.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EB | Last Time Buy | 22 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 205 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
EEU-FR0J151CAP ALUM 150UF 20% 6.3V RADIAL |
5,774 | 0.38 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 150 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 196 mA @ 120 Hz | 280 mA @ 100 kHz | 300 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
EEU-FR1A151CAP ALUM 150UF 20% 10V RADIAL |
2,636 | 0.38 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 150 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 196 mA @ 120 Hz | 280 mA @ 100 kHz | 300 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
EEU-FR1C680CAP ALUM 68UF 20% 16V RADIAL |
9,778 | 0.40 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 68 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 196 mA @ 120 Hz | 280 mA @ 100 kHz | 300 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FC1E681BCAP ALUM 680UF 20% 25V RADIAL |
2,998 | 1.02 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 680 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 120 Hz | 1.22 A @ 100 kHz | 52 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FR1H560CAP ALUM 56UF 20% 50V RADIAL |
9,059 | 0.41 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 56 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 283.5 mA @ 120 Hz | 405 mA @ 100 kHz | 140 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.500 (12.70mm) | - | Through Hole |
|
EEU-FS1J270CAP ALUM 27UF 20% 63V RADIAL |
5,790 | 0.42 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 27 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 96.25 mA @ 120 Hz | 175 mA @ 100 kHz | 510 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.453 (11.50mm) | - | Through Hole |
|
|
EEU-FR1J180CAP ALUM 18UF 20% 63V RADIAL |
2,874 | 0.42 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 18 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 96.25 mA @ 120 Hz | 175 mA @ 100 kHz | 510 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEV-EB2V470MCAP ALUM 47UF 20% 350V SMD |
969 | 5.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EB | Last Time Buy | 47 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|

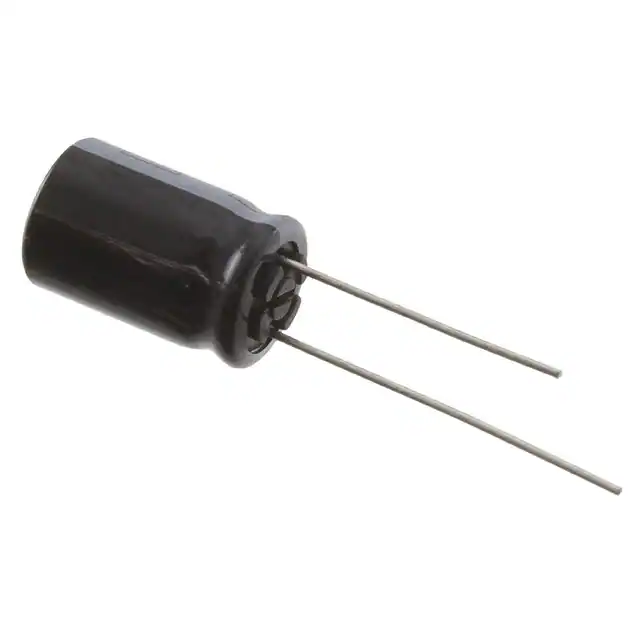

EEU-FS2A680BCAP ALUM 68UF 20% 100V RADIAL |
2,253 | 1.01 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 68 µF | ±20% | 100 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 651 mA @ 120 Hz | 930 mA @ 100 kHz | 72 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
|
EEA-GA1H150CAP ALUM 15UF 20% 50V RADIAL |
2,001 | 0.43 |
RFQ |
Datasheet |
Bulk | GA-A | Active | 15 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 85.25 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
EEU-FR1C121CAP ALUM 120UF 20% 16V RADIAL |
2,772 | 0.44 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 120 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 318.5 mA @ 120 Hz | 455 mA @ 100 kHz | 130 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.500 (12.70mm) | - | Through Hole |
|
|
EEU-FR0J331CAP ALUM 330UF 20% 6.3V RADIAL |
2,139 | 0.48 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 330 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 318.5 mA @ 120 Hz | 455 mA @ 100 kHz | 130 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.500 (12.70mm) | - | Through Hole |
|
ECA-2DHG3R3CAP ALUM 3.3UF 20% 200V RADIAL |
1,983 | 0.48 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 3.3 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 36 mA @ 120 Hz | 54 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
EEE-FN1V561UPCAP ALUM 560UF 20% 35V SMD |
2,305 | 1.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 560 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|

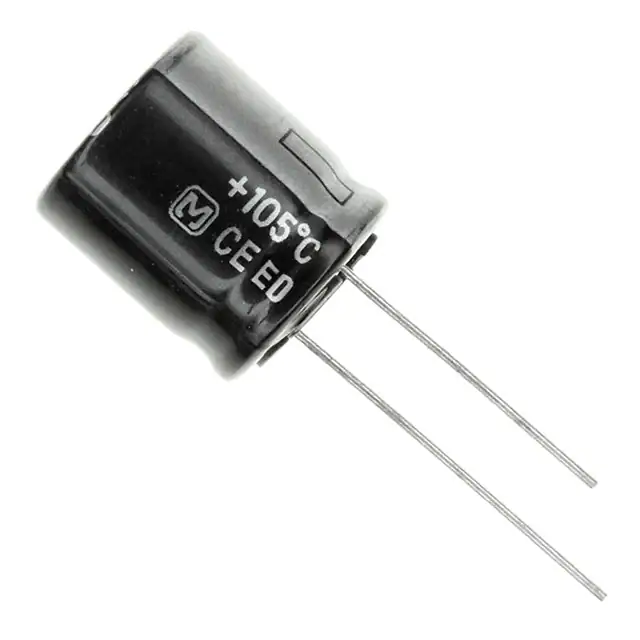

EEU-ED2E151CAP ALUM 150UF 20% 250V RADIAL |
496 | 4.54 |
RFQ |
Datasheet |
Bulk | ED-A | Active | 150 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 810 mA @ 120 Hz | 1.8 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
EEU-HD1H4R7CAP ALUM 4.7UF 20% 50V RADIAL |
1,204 | 0.65 |
RFQ |
Datasheet |
Bulk | HD | Active | 4.7 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 26 mA @ 120 Hz | 52 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
EEU-HD1E680CAP ALUM 68UF 20% 25V RADIAL |
1,170 | 0.65 |
RFQ |
Datasheet |
Bulk | HD | Active | 68 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 136.5 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
