| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FS1A821CAP ALUM 820UF 20% 10V RADIAL |
2,188 | 0.74 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 820 µF | ±20% | 10 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 712.5 mA @ 120 Hz | 950 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
ECE-A1AN221UCAP ALUM 220UF 20% 10V RADIAL |
7,903 | 0.75 |
RFQ |
Datasheet |
Bulk | SU | Active | 220 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 200 mA @ 120 Hz | 340 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.453 (11.50mm) | - | Through Hole |
|
EEE-FN1C101URCAP ALUM 100UF 20% 16V SMD |
7,994 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 100 µF | ±20% | 16 V | 700mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 104 mA @ 120 Hz | 160 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.240 (6.10mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
EEA-GA1A221HCAP ALUM 220UF 20% 10V RADIAL |
2,888 | 0.62 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | GA-A | Active | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 248 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
EEE-HB1C330APCAP ALUM 33UF 20% 16V SMD |
2,178 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 33 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEU-FC1V151BCAP ALUM 150UF 20% 35V RADIAL |
2,599 | 0.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 150 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 360.8 mA @ 120 Hz | 555 mA @ 100 kHz | 117 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-EB1V331CAP ALUM 330UF 20% 35V RADIAL |
7,253 | 0.83 |
RFQ |
Datasheet |
Bulk | EB-A | Active | 330 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 278 mA @ 120 Hz | 361.4 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
|
EEU-FC1H181LCAP ALUM 180UF 20% 50V RADIAL |
1,235 | 0.86 |
RFQ |
Datasheet |
Bulk | FC | Active | 180 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 559 mA @ 120 Hz | 860 mA @ 100 kHz | 120 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EEE-FP0J470ARCAP ALUM 47UF 20% 6.3V SMD |
14,000 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FP | Active | 47 µF | ±20% | 6.3 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.197 Dia (5.00mm) | 0.228 (5.80mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|
|
ECE-A1HN330UCAP ALUM 33UF 20% 50V RADIAL |
2,847 | 0.88 |
RFQ |
Datasheet |
Bulk | SU | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 110 mA @ 120 Hz | 187 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.453 (11.50mm) | - | Through Hole |
|
EEU-HD1H2R2BCAP ALUM 2.2UF 20% 50V RADIAL |
2,859 | 0.65 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 36 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
EEU-HD1H3R3BCAP ALUM 3.3UF 20% 50V RADIAL |
3,384 | 0.65 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 22 mA @ 120 Hz | 44 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEU-FM0J152CAP ALUM 1500UF 20% 6.3V RADIAL |
3,639 | 0.91 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 1500 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.744 A @ 120 Hz | 2.18 A @ 100 kHz | 19 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ECA-1AM332CAP ALUM 3300UF 20% 10V RADIAL |
1,689 | 0.96 |
RFQ |
Datasheet |
Bulk | M-A | Active | 3300 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.853 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
Series.jpg)
|
EEE-FN1E101ULCAP ALUM 100UF 20% 25V SMD |
3,652 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN, Halogen Free | Active | 100 µF | ±20% | 25 V | 360mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 156 mA @ 120 Hz | 240 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.240 (6.10mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
ECA-1AHG222CAP ALUM 2200UF 20% 10V RADIAL |
3,262 | 1.01 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 2200 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | 874 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FC1C821CAP ALUM 820UF 20% 16V RADIAL |
3,080 | 1.02 |
RFQ |
Datasheet |
Bulk | FC | Active | 820 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 915 mA @ 120 Hz | 1.22 A @ 100 kHz | 52 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
ECA-2CM470CAP ALUM 47UF 20% 160V RADIAL |
1,533 | 1.05 |
RFQ |
Datasheet |
Bulk | M-A | Active | 47 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 544 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
ECA-0JHG332CAP ALUM 3300UF 20% 6.3V RADIAL |
5,494 | 1.06 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 3300 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 966 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

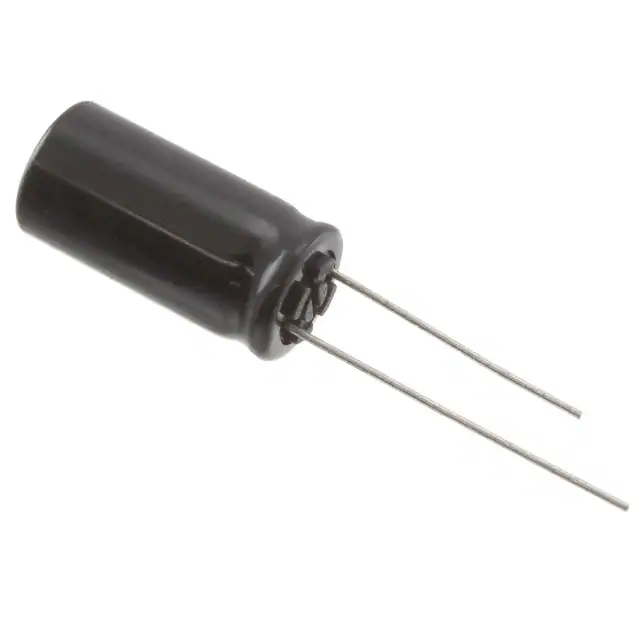

EEU-FS1A202CAP ALUM 2000UF 20% 10V RADIAL |
1,504 | 1.09 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 2000 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.744 A @ 120 Hz | 2.18 A @ 100 kHz | 20 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
