| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

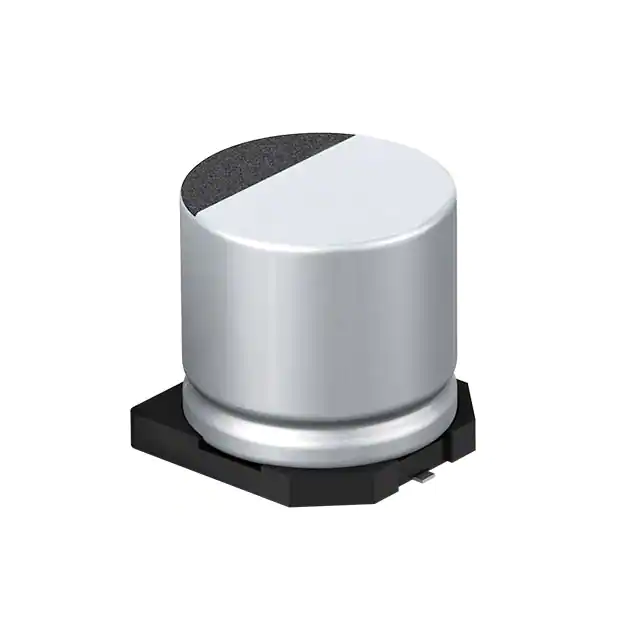

EEE-FK1V180SRCAP ALUM 18UF 20% 35V SMD |
6,951 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 18 µF | ±20% | 35 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-FK1E270SRCAP ALUM 27UF 20% 25V SMD |
554 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 27 µF | ±20% | 25 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
ECA-1VM331BCAP ALUM 330UF 20% 35V RADIAL |
3,552 | 0.18 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 748 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
ECA-0JM222BCAP ALUM 2200UF 20% 6.3V RADIAL |
1,500 | 0.21 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 2200 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 890 mA @ 120 Hz | 1.513 A @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
ECA-1JM100LWCAP ALUM 10UF 20% 63V RADIAL |
7,990 | 0.27 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 10 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEU-FS0J202LBCAP ALUM 2000UF 20% 6.3V RADIAL |
4,107 | 0.87 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 2000 µF | ±20% | 6.3 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.248 A @ 120 Hz | 1.56 A @ 100 kHz | 30 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
ECA-2AM2R2BCAP ALUM 2.2UF 20% 100V RADIAL |
4,935 | 0.30 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 2.2 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 51 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1JM220ICAP ALUM 22UF 20% 63V RADIAL |
28,459 | 0.32 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 105 mA @ 120 Hz | 178.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1JM220BCAP ALUM 22UF 20% 63V RADIAL |
25,742 | 0.32 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 22 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 105 mA @ 120 Hz | 178.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECE-A1CKS100BCAP ALUM 10UF 20% 16V RADIAL |
17,828 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | KS | Active | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 47.6 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.157 Dia (4.00mm) | 0.197 (5.00mm) | - | Through Hole |
|
EEU-FS1C821LBCAP ALUM 820UF 20% 16V RADIAL |
8,766 | 0.91 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 820 µF | ±20% | 16 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.24 A @ 100 kHz | 41 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EEA-GA1A220HCAP ALUM 22UF 20% 10V RADIAL |
7,201 | 0.32 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | GA-A | Active | 22 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 46.5 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
EEA-GA1H4R7HCAP ALUM 4.7UF 20% 50V RADIAL |
7,714 | 0.32 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | GA-A | Active | 4.7 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 26 mA @ 120 Hz | 40.3 mA @ 100 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
EEA-GA1H3R3BCAP ALUM 3.3UF 20% 50V RADIAL |
3,735 | 0.32 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | GA-A | Active | 3.3 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 22 mA @ 120 Hz | 34.1 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
ECE-A1CKA330CAP ALUM 33UF 20% 16V RADIAL |
1,568 | 0.29 |
RFQ |
Datasheet |
Bulk | KA | Active | 33 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 102 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECA-2AM3R3CAP ALUM 3.3UF 20% 100V RADIAL |
96,457 | 0.30 |
RFQ |
Datasheet |
Bulk | M-A | Active | 3.3 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 68 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECA-0JHG221CAP ALUM 220UF 20% 6.3V RADIAL |
2,812 | 0.30 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 220 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 210 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-0JHG101CAP ALUM 100UF 20% 6.3V RADIAL |
1,755 | 0.30 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 136.5 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECE-A1CKA101ICAP ALUM 100UF 20% 16V RADIAL |
38,000 | 0.35 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | KA | Active | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 91 mA @ 120 Hz | 154.7 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | - | Through Hole |
|
|
ECA-1JHG100ICAP ALUM 10UF 20% 63V RADIAL |
3,500 | 0.35 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 10 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 46 mA @ 120 Hz | 92 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
