| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

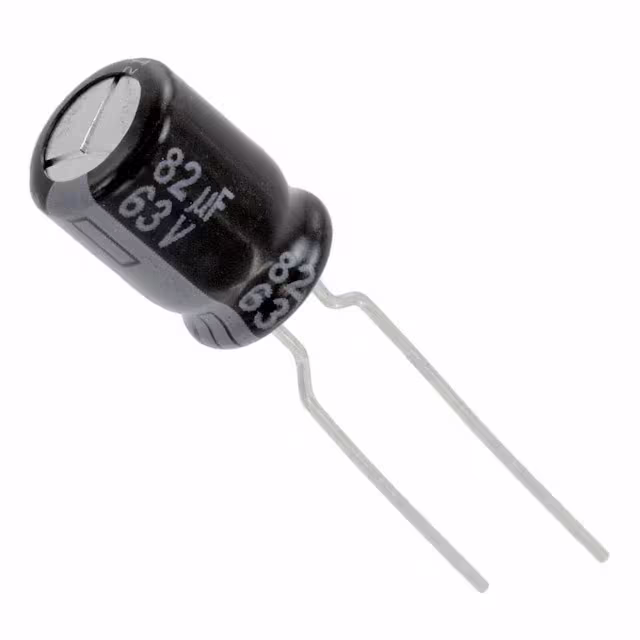

EEU-FR1J820BCAP ALUM 82UF 20% 63V RADIAL |
2,905 | 0.73 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 82 µF | ±20% | 63 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 396.2 mA @ 120 Hz | 566 mA @ 100 kHz | 92 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
ECA-2EM470CAP ALUM 47UF 20% 250V RADIAL |
988 | 1.19 |
RFQ |
Datasheet |
Bulk | M-A | Active | 47 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 330 mA @ 120 Hz | 561 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ECA-2CM101CAP ALUM 100UF 20% 160V RADIAL |
1,085 | 1.19 |
RFQ |
Datasheet |
Bulk | M-A | Active | 100 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 515 mA @ 120 Hz | 875.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

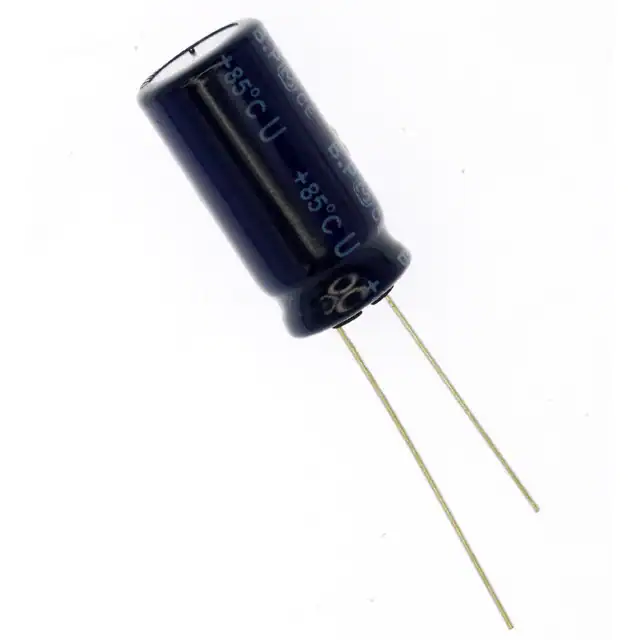

ECE-A1VN221UCAP ALUM 220UF 20% 35V RADIAL |
3,667 | 1.25 |
RFQ |
Datasheet |
Bulk | SU | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 360 mA @ 120 Hz | 612 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
ECA-0JHG472CAP ALUM 4700UF 20% 6.3V RADIAL |
2,207 | 1.25 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.254 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|

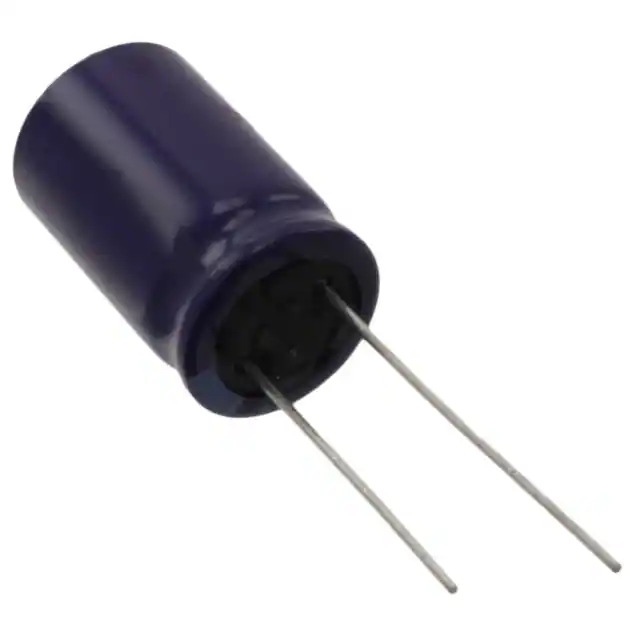

ECA-1CM332CAP ALUM 3300UF 20% 16V RADIAL |
2,940 | 1.29 |
RFQ |
Datasheet |
Bulk | M-A | Active | 3300 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 2.04 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-FC1E561SCAP ALUM 560UF 20% 25V RADIAL |
15,000 | 1.30 |
RFQ |
Datasheet |
Bulk | FC | Active | 560 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 903.8 mA @ 120 Hz | 1.205 A @ 100 kHz | 65 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.591 (15.00mm) | - | Through Hole |
|
EEU-EB1J471CAP ALUM 470UF 20% 63V RADIAL |
2,516 | 1.33 |
RFQ |
Datasheet |
Bulk | EB-A | Active | 470 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 454 mA @ 120 Hz | 590.2 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

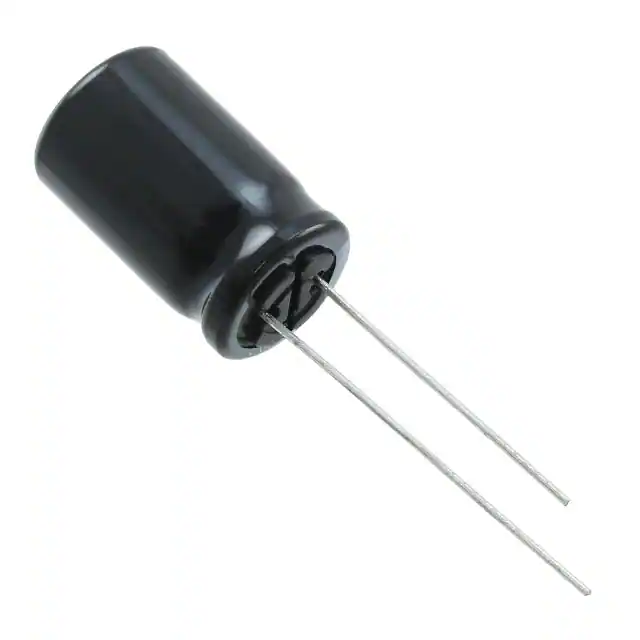

EEU-FS1C242CAP ALUM 2400UF 20% 16V RADIAL |
1,850 | 1.50 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 2400 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FC0J562LCAP ALUM 5600UF 20% 6.3V RADIAL |
5,436 | 1.75 |
RFQ |
Datasheet |
Bulk | FC | Active | 5600 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.134 A @ 120 Hz | 2.51 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.378 (35.00mm) | - | Through Hole |
|
EEU-FS1K680BCAP ALUM 68UF 20% 80V RADIAL |
3,833 | 0.79 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 68 µF | ±20% | 80 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 413 mA @ 120 Hz | 590 mA @ 100 kHz | 112 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
|
EEU-FS2A390BCAP ALUM 39UF 20% 100V RADIAL |
2,912 | 0.79 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 39 µF | ±20% | 100 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 324.5 mA @ 120 Hz | 590 mA @ 100 kHz | 112 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.650 (16.50mm) | - | Through Hole |
|
EEE-FNJ471XUPCAP ALUM 470UF 20% 6.3V SMD |
23,868 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 470 µF | ±20% | 6.3 V | 340mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 182 mA @ 120 Hz | 280 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

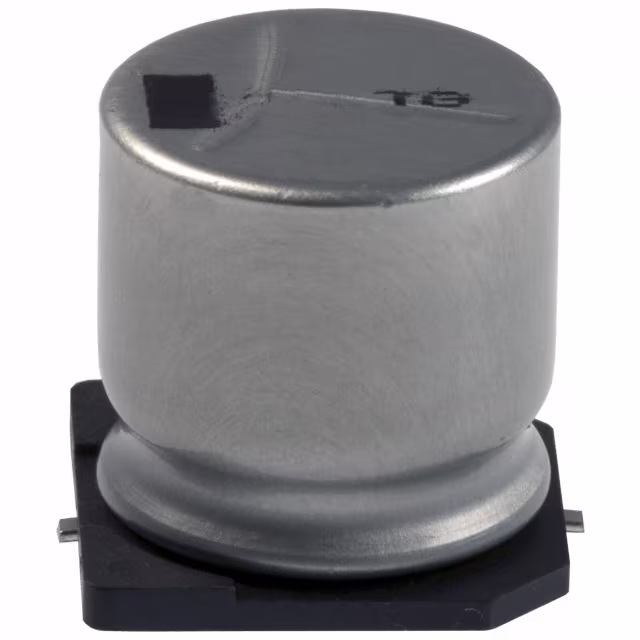

EEV-TG1E681MCAP ALUM 680UF 20% 25V SMD |
2,513 | 2.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TG | Active | 680 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
EEU-FC1C182SCAP ALUM 1800UF 20% 16V RADIAL |
17,589 | 1.95 |
RFQ |
Datasheet |
Bulk | FC | Active | 1800 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.6 A @ 120 Hz | 2 A @ 100 kHz | 38 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.591 (15.00mm) | - | Through Hole |
|

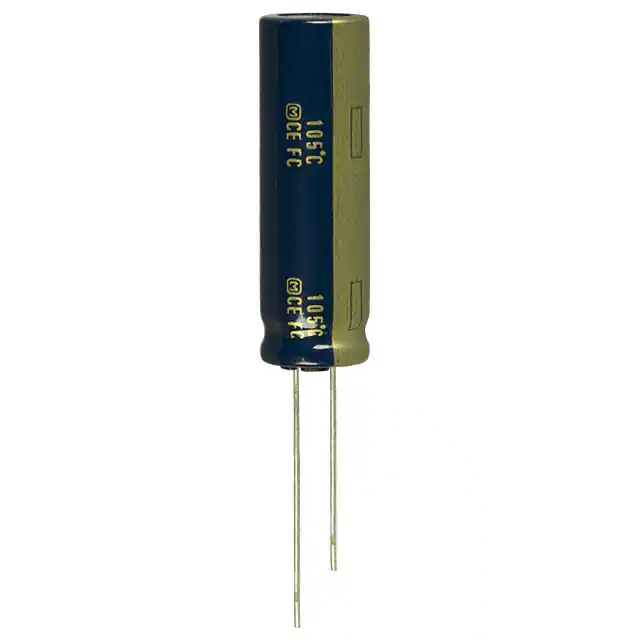

EEU-FC1A472LCAP ALUM 4700UF 20% 10V RADIAL |
19,430 | 2.00 |
RFQ |
Datasheet |
Bulk | FC | Active | 4700 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.257 A @ 120 Hz | 2.655 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.575 (40.00mm) | - | Through Hole |
|
ECA-2EM101CAP ALUM 100UF 20% 250V RADIAL |
1,634 | 2.13 |
RFQ |
Datasheet |
Bulk | M-A | Active | 100 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 530 mA @ 120 Hz | 901 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
ECA-2CM221CAP ALUM 220UF 20% 160V RADIAL |
1,060 | 2.13 |
RFQ |
Datasheet |
Bulk | M-A | Active | 220 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 830 mA @ 120 Hz | 1.411 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
EEU-FC0J682SCAP ALUM 6800UF 20% 6.3V RADIAL |
167 | 2.18 |
RFQ |
Datasheet |
Bulk | FC | Active | 6800 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.117 A @ 120 Hz | 2.49 A @ 100 kHz | 28 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EEU-FS2A560LBCAP ALUM 56UF 20% 100V RADIAL |
4,270 | 0.93 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 56 µF | ±20% | 100 V | - | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 567 mA @ 120 Hz | 810 mA @ 100 kHz | 96 mOhms | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
