| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

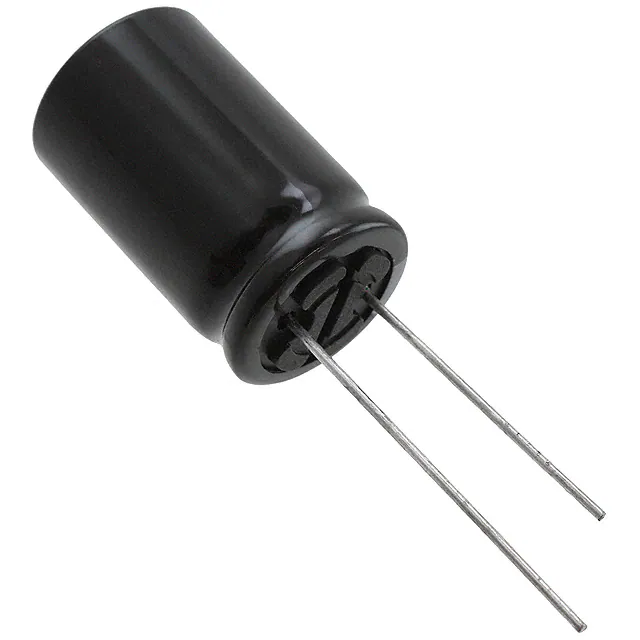

EEU-FK1A152SCAP ALUM 1500UF 20% 10V RAD TH |
1,471 | 2.35 |
RFQ |
Datasheet |
Bulk | FK | Active | 1500 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.12 A @ 120 Hz | 1.4 A @ 100 kHz | 48 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | - | Through Hole |
|

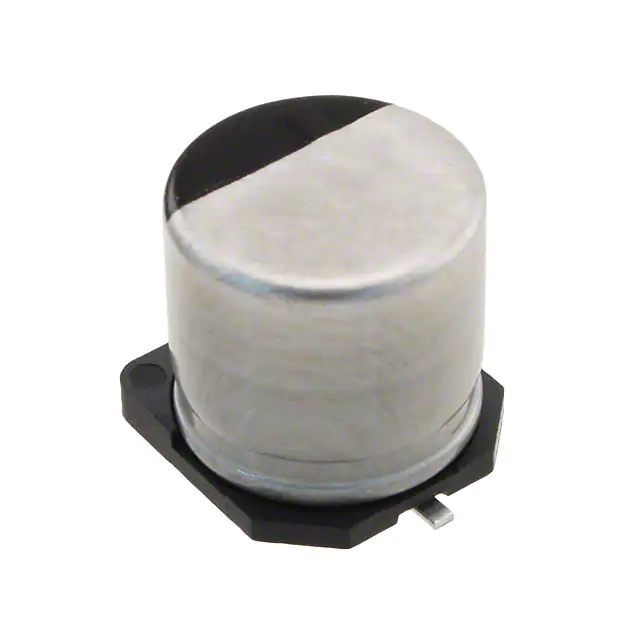

EEE-TP70471VCAP ALUM 470UF 20% 70V SMD |
450 | 3.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 470 µF | ±20% | 70 V | 100mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.425 A @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
|
EEE-TP1J561VCAP ALUM 560UF 20% 63V SMD |
365 | 3.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP, Anti-Vibration | Active | 560 µF | ±20% | 63 V | 100mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.425 A @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|

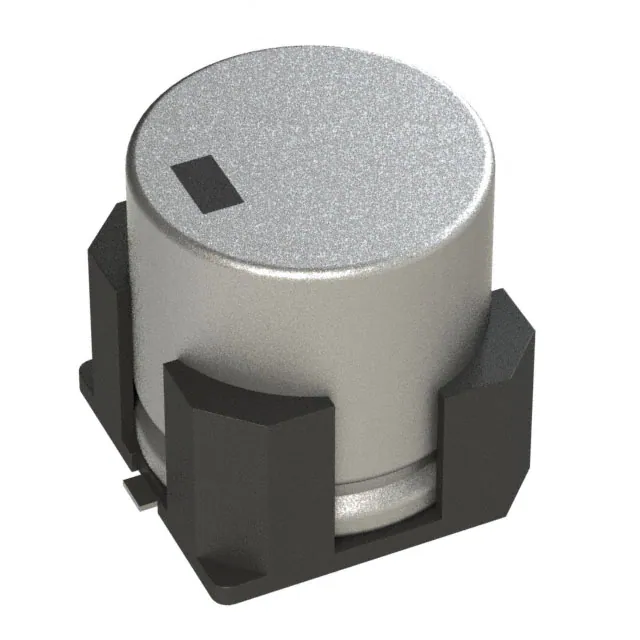

EEE-TP1V242MCAP ALUM 2400UF 20% 35V SMD |
251 | 4.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 2400 µF | ±20% | 35 V | 32mOhm @ 100kHz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 2.4375 A @ 120 Hz | 3.25 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|

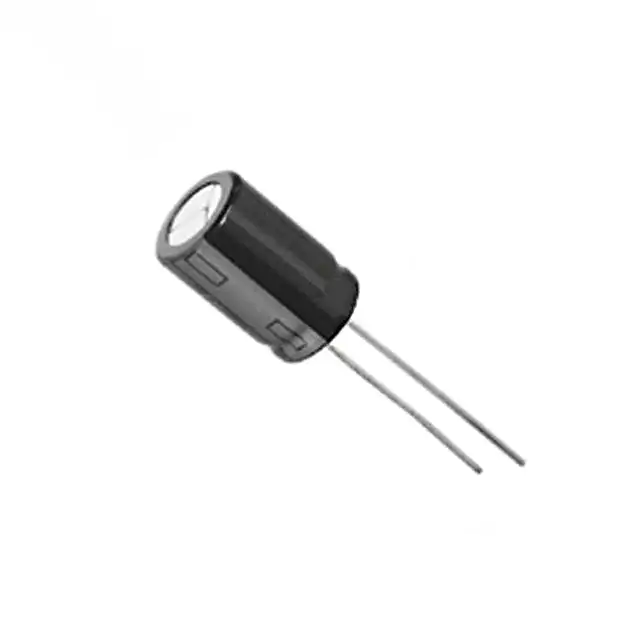

EEU-TP1V821CAP ALUM 820UF 20% 35V RADIAL |
1,423 | 3.04 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 820 µF | ±20% | 35 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.635 A @ 120 Hz | 1.75 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
ECA-1HM3R3BCAP ALUM 3.3UF 20% 50V RADIAL |
6,000 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 3.3 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 59.5 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HM330BCAP ALUM 33UF 20% 50V RADIAL |
4,000 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 187 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|

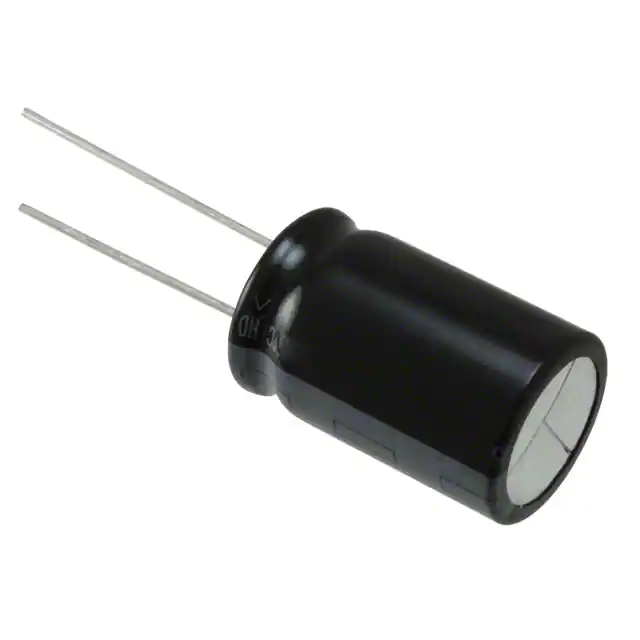

EEU-HD1A153CAP ALUM 15000UF 20% 10V RADIAL |
193 | 4.25 |
RFQ |
Datasheet |
Bulk | HD | Active | 15000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 2.507 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
EEE-0GA330SRCAP ALUM 33UF 20% 4V SMD |
2,632 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 33 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 26 mA @ 120 Hz | 44.2 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|

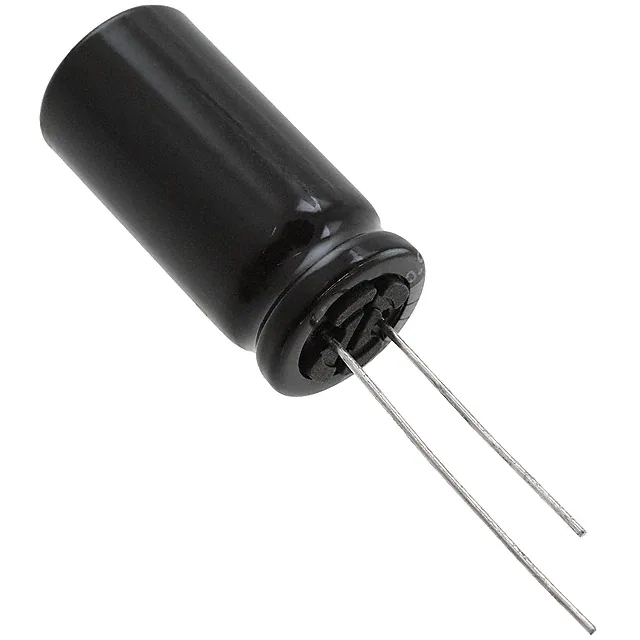

EEU-TP1E392SCAP ALUM 3900UF 20% 25V RADIAL |
860 | 4.93 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 3900 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.368 A @ 120 Hz | 2.47 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-TP1V162CAP ALUM 1600UF 20% 35V RADIAL |
572 | 5.00 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 1600 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.208 A @ 120 Hz | 2.3 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

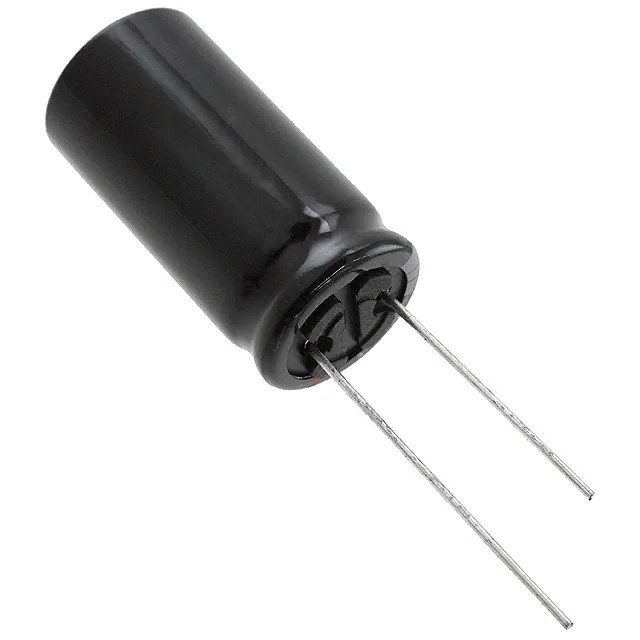

EEU-TP1E332CAP ALUM 3300UF 20% 25V RADIAL |
221 | 5.00 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 3300 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.6 A @ 120 Hz | 2.71 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
EEU-TP1V222CAP ALUM 2200UF 20% 35V RADIAL |
599 | 5.34 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 2200 µF | ±20% | 35 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.784 A @ 120 Hz | 2.9 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
EEU-TP1E512CAP ALUM 5100UF 20% 25V RADIAL |
224 | 5.34 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 5100 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.784 A @ 120 Hz | 2.9 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
EEU-TP1E472CAP ALUM 4700UF 20% 25V RADIAL |
145 | 5.34 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 4700 µF | ±20% | 25 V | - | 5000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 2.784 A @ 120 Hz | 2.9 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
EEU-HD1A223CAP ALUM 22000UF 20% 10V RADIAL |
200 | 5.35 |
RFQ |
Datasheet |
Bulk | HD | Active | 22000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.76 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
EEU-FS1C821BCAP ALUM 820UF 20% 16V RADIAL |
2,278 | 0.91 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 820 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 967.5 mA @ 120 Hz | 1.29 A @ 100 kHz | 43 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|
ECE-A0JN470UCAP ALUM 47UF 20% 6.3V RADIAL |
2,142 | 0.44 |
RFQ |
Datasheet |
Bulk | SU | Active | 47 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | 153 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|

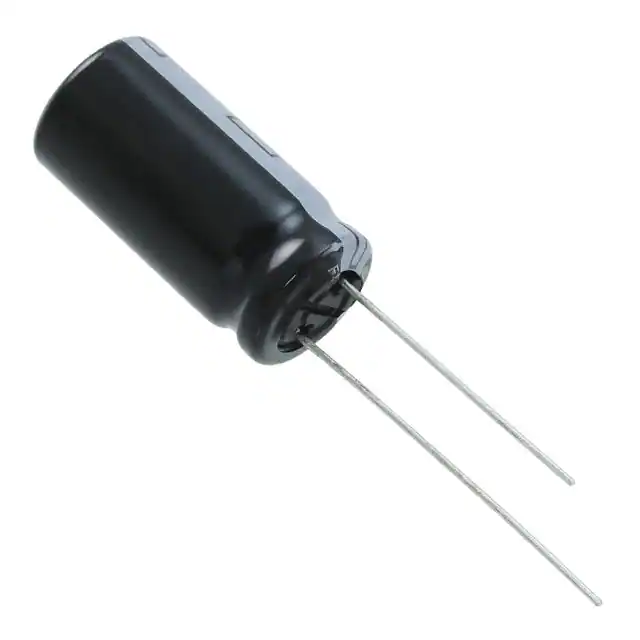

EEU-FS1C242BCAP ALUM 2400UF 20% 16V RADIAL |
1,843 | 1.50 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 2400 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FS0J512BCAP ALUM 5100UF 20% 6.3V RADIAL |
1,947 | 1.77 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 5100 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.552 A @ 120 Hz | 3.19 A @ 100 kHz | 15 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
