| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCLAMP3301H.THTTVS DIODE 3.3VWM 8VC SOD523 |
2,827 | 0.23 |
RFQ |
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR) | uClamp® | Active | Zener | 1 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|

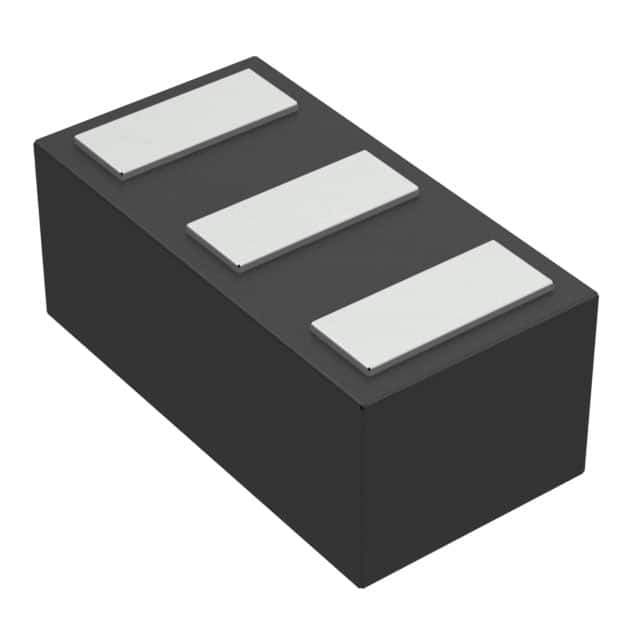

RCLAMP0542ZATFTTVS DIODE 5VWM 20VC SLP0603P3X3F |
2,210 | 0.23 |
RFQ |
Datasheet |
3-SMD, No Lead | Tape & Reel (TR) | RailClamp® | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6.5V | 20V | 2A | 40W | Yes | HDMI, USB | 0.27pF @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount |
|
UCLAMP0554T.TNTTVS DIODE 5VWM 12.5VC SLP0808P4T |
3,819 | 0.26 |
RFQ |
Datasheet |
4-XFDFN Exposed Pad | Tape & Reel (TR) | uClamp® | Active | Zener | 4 | - | 5V (Max) | 6V | 12.5V | 2A (8/20µs) | 25W | No | General Purpose | 4.5pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP0511P.TNTTVS DIODE 5VWM 14VC SLP1006P2 |
2,020 | 0.26 |
RFQ |
2-UDFN | Tape & Reel (TR) | uClamp® | Active | Zener | - | 1 | 5V (Max) | 6V | 14V | 12A (8/20µs) | 170W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount | |
|
|
UCLAMP1211P.TNTTVS DIODE 12VWM 28.5VC SLP1006P2 |
2,643 | 0.26 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR) | µClamp® | Active | Zener | - | 1 | 12V (Max) | 13.3V | 28.5V | 7A (8/20µs) | 200W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP2511T.TNTTVS DIODE 2.5VWM 8VC SLP1006P2T |
3,156 | 0.26 |
RFQ |
Datasheet |
2-XDFN | Tape & Reel (TR) | uClamp® | Active | Zener | - | 1 | 2.5V (Max) | - | 8V | 5A (8/20µs) | 40W | No | General Purpose | 6pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount |
|
|
RCLAMP3521ZATFTTVS DIODE 3.5VWM 5V SLP0603P2X3F |
3,364 | 0.27 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR) | - | Active | Zener | - | 1 | 3.5V (Max) | 5.5V | 5V (Typ) | 6A | 30W | No | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
SMF12.TCTTVS DIODE 12VWM 25VC SC70-5 |
2,114 | 0.28 |
RFQ |
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | SMF | Active | Zener | 4 | - | 12V (Max) | 13.3V | 25V | 8A (8/20µs) | 200W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP1061P.TNTTVS DIODE 10VWM 17VC SLP1608P2 |
2,607 | 0.29 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR) | µClamp® | Active | Zener | 1 | - | 10V (Max) | 12V | 17V | 60A (8/20µs) | 1600W (1.6kW) | No | General Purpose | 800pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP1261P.TNTTVS DIODE 12VWM 25VC SLP1608P2 |
2,916 | 0.29 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR) | µClamp® | Active | Zener | 1 | - | 12V (Max) | 14V | 25V | 45A (8/20µs) | 1600W (1.6kW) | No | General Purpose | 275pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP1561P.TNTTVS DIODE 15VWM 28VC SLP1608P2 |
2,758 | 0.29 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR) | µClamp® | Active | Zener | 1 | - | 15V (Max) | 17.5V | 28V | 40A (8/20µs) | 1600W (1.6kW) | No | General Purpose | 220pF @ 1MHz (Max) | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP2461P.TNT24V, 1-LINE SURGE PROTECTION |
2,259 | 0.29 |
RFQ |
Datasheet |
- | Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UCLAMP0506T.TCTTVS DIODE 5VWM 12.5VC SLP1313P6T |
3,114 | 0.32 |
RFQ |
Datasheet |
6-XFDFN Exposed Pad | Tape & Reel (TR) | uClamp® | Active | Zener | 6 | - | 5V (Max) | 6V | 12.5V | 2A (8/20µs) | 25W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP3061P.TNTTVS DIODE 30VWM 55VC SLP1608P2 |
2,260 | 0.33 |
RFQ |
Datasheet |
2-UDFN | Tape & Reel (TR) | µClamp® | Active | Zener | 1 | - | 30V | 34V | 55V | 18A (8/20µs) | 1600W (1.6kW) | No | General Purpose | 800pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3324P.TCTTVS DIODE 3.3VWM 4.5VC SGP2510P8 |
2,889 | 0.35 |
RFQ |
Datasheet |
10-UFDFN | Tape & Reel (TR) | Automotive, AEC-Q100, RailClamp® | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 8V (Typ) | 4.5V | 4.5A (8/20µs) | - | Yes | Automotive | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
RCLAMP3328P.TNTTVS DIODE 3.3VWM 10.5V SGP3810N9 |
2,504 | 0.36 |
RFQ |
Datasheet |
9-UDFN | Tape & Reel (TR) | RailClamp® | Active | Steering (Rail to Rail) | 8 | - | 3.3V (Max) | 3.8V | 10.5V | 5A (8/20µs) | 75W | Yes | HDMI | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
TCLAMP1201S.TCTTVS DIODE 12VWM 26.6VC SOT23-6 |
3,728 | 0.36 |
RFQ |
SOT-23-6 | Tape & Reel (TR) | TransClamp™ | Not For New Designs | Zener | 2 | 1 | 12V (Max) | 13.3V | 26.6V | 20A (8/20µs) | 500W | No | General Purpose | 8pF @ 1MHz | -40°C ~ 85°C (TJ) | Surface Mount | |
|

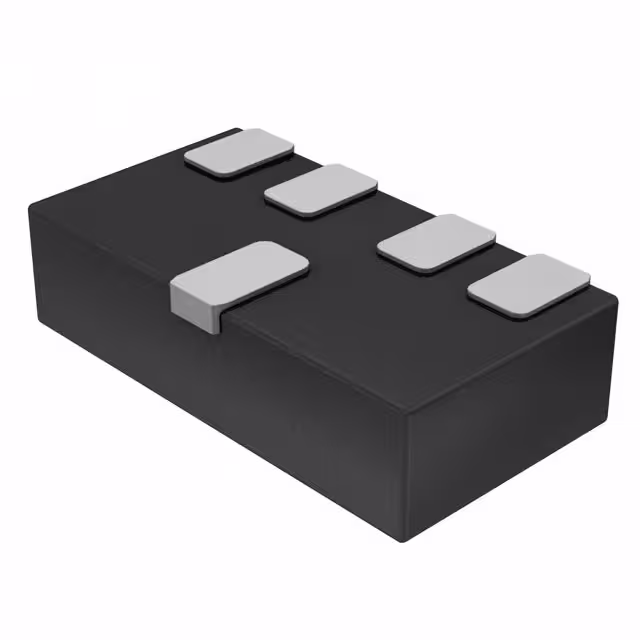

RCLAMP1644T.TNTTVS DIODE 5VWM 15VC SLP1508N5T |
2,479 | 0.38 |
RFQ |
Datasheet |
5-XFDFN | Tape & Reel (TR),Cut Tape (CT) | RailClamp® | Active | Steering (Rail to Rail) | 3 | - | 5V (Max) | 6.5V | 15V | 5A (8/20µs) | 75W | Yes | USB OTG | 0.45pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
|
UCLAMP5612T.TNTTVS DIODE 5VWM 12.5VC SLP1508N5T |
2,666 | 0.38 |
RFQ |
Datasheet |
5-XFDFN | Tape & Reel (TR) | uClamp® | Active | Zener | 2 | - | 5V (Max) | 6.5V | 12.5V | 10A (8/20µs) | 125W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
|
UCLAMP3305P.TCTTVS DIODE 3.3VWM 8VC SLP1616P6 |
3,055 | 0.39 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad | Tape & Reel (TR) | uClamp® | Active | Zener | 5 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 20pF @ 1MHz | -55°C ~ 125°C (TJ) | Surface Mount |
