| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FQB55N10TMMOSFET N-CH 100V 55A D2PAK |
1,017 | 2.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 55A (Tc) | 10V | 26mOhm @ 27.5A, 10V | 4V @ 250µA | 98 nC @ 10 V | ±25V | 2730 pF @ 25 V | - | 3.75W (Ta), 155W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDA16N50LDTUMOSFET N-CH 500V 16.5A TO3PN |
347 | 2.76 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 16.5A (Tc) | 10V | 380mOhm @ 8.3A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±30V | 1945 pF @ 25 V | - | 205W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NVMYS6D2N06CLTWGMOSFET N-CH 60V 17A/71A 4LFPAK |
2,975 | 2.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 17A (Ta), 71A (Tc) | - | 6.1mOhm @ 35A, 10V | 2V @ 53µA | 20 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 3.6W (Ta), 61W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FQA9P25MOSFET P-CH 250V 10.5A TO3P |
1,240 | 2.90 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 250 V | 10.5A (Tc) | 10V | 620mOhm @ 5.25A, 10V | 5V @ 250µA | 38 nC @ 10 V | ±30V | 1180 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

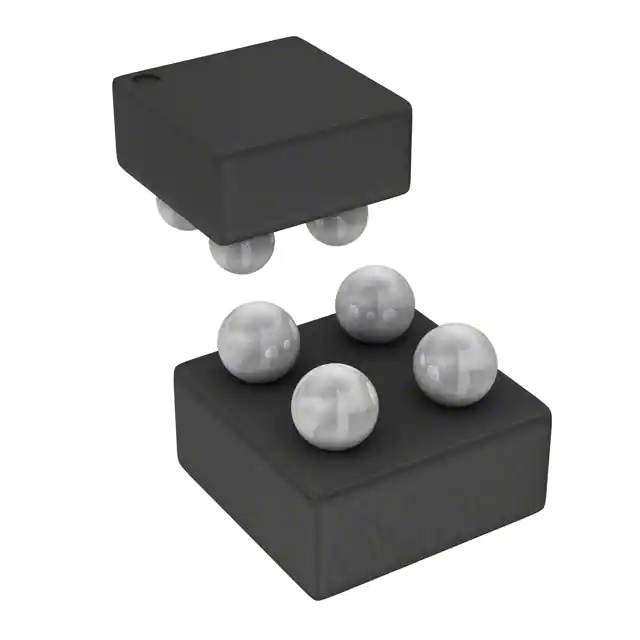

FDZ375PMOSFET P-CH 20V 3.7A 4WLCSP |
532 | 2.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.7A (Ta) | 1.5V, 4.5V | 78mOhm @ 2A, 4.5V | 1.2V @ 250µA | 15 nC @ 4.5 V | ±8V | 865 pF @ 10 V | - | 1.7W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTD360N80S3ZMOSFET N-CH 800V 13A DPAK |
2,490 | 2.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 13A (Tc) | 10V | 360mOhm @ 6.5A, 10V | 3.8V @ 300µA | 25.3 nC @ 10 V | ±20V | 1143 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMYS8D0N04CTWGMOSFET N-CH 40V 16A/49A 4LFPAK |
2,843 | 3.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 16A (Ta), 49A (Tc) | 10V | 8.1mOhm @ 15A, 10V | 3.5V @ 30µA | 10 nC @ 10 V | ±20V | 625 pF @ 25 V | - | 3.8W (Ta), 38W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMC7570SMOSFET N-CH 25V 27A/40A POWER33 |
1,198 | 3.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench®, SyncFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 27A (Ta), 40A (Tc) | 4.5V, 10V | 2mOhm @ 27A, 10V | 3V @ 1mA | 68 nC @ 10 V | ±20V | 4410 pF @ 13 V | - | 2.3W (Ta), 59W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NVMJS2D5N06CLTWGMOSFET N-CH 60V 31A/164A 8LFPAK |
1,841 | 3.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 31A (Ta), 164A (Tc) | 4.5V, 10V | 2.4mOhm @ 50A, 10V | 2V @ 135µA | 52 nC @ 10 V | ±20V | 3600 pF @ 25 V | - | 3.9W (Ta), 113W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDA70N20MOSFET N-CH 200V 70A TO3PN |
418 | 3.27 |
RFQ |
Datasheet |
Tube | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 70A (Tc) | 10V | 35mOhm @ 35A, 10V | 5V @ 250µA | 86 nC @ 10 V | ±30V | 3970 pF @ 25 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDB38N30UMOSFET N CH 300V 38A D2PAK |
662 | 3.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 38A (Tc) | 10V | 120mOhm @ 19A, 10V | 5V @ 250µA | 73 nC @ 10 V | ±30V | 3340 pF @ 25 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTMFS015N15MCMOSFET N-CH 150V 9.2A/61A 8PQFN |
2,688 | 3.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 9.2A (Ta), 61A (Tc) | 8V, 10V | 14mOhm @ 29A, 10V | 4.5V @ 162µA | 27 nC @ 10 V | ±20V | 2120 pF @ 75 V | - | 2.5W (Ta), 108.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDS86540MOSFET N-CH 60V 18A 8SOIC |
770 | 3.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Ta) | 8V, 10V | 4.5mOhm @ 18A, 10V | 4V @ 250µA | 90 nC @ 10 V | ±20V | 6410 pF @ 30 V | - | 2.5W (Ta), 5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FCMT125N65S3MOSFET N-CH 650V 24A 4PQFN |
287 | 3.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 125mOhm @ 12A, 10V | 4.5V @ 590µA | 49 nC @ 10 V | ±30V | 1920 pF @ 400 V | - | 181W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTMFS5C430NT1GMOSFET N-CH 40V 35A/185A 5DFN |
1,000 | 4.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 35A (Ta), 185A (Tc) | 10V | 1.7mOhm @ 50A, 10V | 3.5V @ 250µA | 47 nC @ 10 V | ±20V | 3300 pF @ 25 V | - | 3.8W (Ta), 106W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDBL9401L-F085MOSFET N-CH 40V 300A 8HPSOF |
1,197 | 4.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 4.5V, 10V | 0.55mOhm @ 80A, 10V | 3V @ 250µA | 376 nC @ 10 V | ±20V | 19550 pF @ 20 V | - | 429W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMS86202MOSFET N-CH 120V 13.5A POWER56 |
2,953 | 4.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 13.5A (Ta) | 6V, 10V | 7.2mOhm @ 13.5A, 10V | 4V @ 250µA | 64 nC @ 10 V | ±20V | 4250 pF @ 60 V | - | 2.7W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDB9403-F085MOSFET N-CH 40V 110A TO263AB |
216 | 4.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 1.2mOhm @ 80A, 10V | 4V @ 250µA | 213 nC @ 10 V | ±20V | 12700 pF @ 25 V | - | 333W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS6B05NT1GMOSFET N-CH 100V 16A/104A 5DFN |
125 | 4.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 16A (Ta), 104A (Tc) | 6V, 10V | 8mOhm @ 20A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±20V | 3100 pF @ 50 V | - | 3.3W (Ta), 138W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDB86360-F085MOSFET N-CH 80V 110A D2PAK |
2,152 | 5.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 110A (Tc) | 10V | 1.8mOhm @ 80A, 10V | 4.5V @ 250µA | 253 nC @ 10 V | ±20V | 14600 pF @ 25 V | - | 333W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
