| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

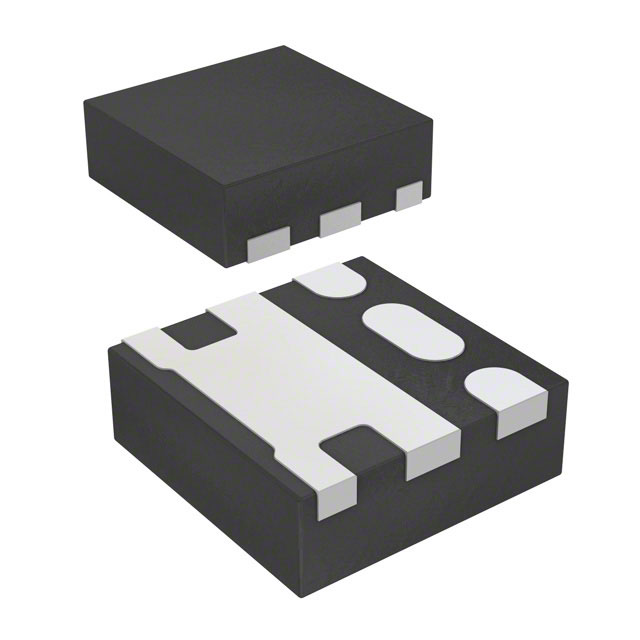

FDME905PTMOSFET P-CH 12V 8A MICROFET |
3,051 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8A (Ta) | 1.8V, 4.5V | 22mOhm @ 8A, 4.5V | 1V @ 250µA | 20 nC @ 4.5 V | ±8V | 2315 pF @ 6 V | - | 2.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDD5N50TM-WSMOSFET N-CH 500V 4A DPAK |
2,500 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 4A (Tc) | 10V | 1.4Ohm @ 2A, 10V | 5V @ 250µA | 15 nC @ 10 V | ±30V | 640 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTHS4166NT1GMOSFET N-CH 30V 4.9A CHIPFET |
1,661 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.9A (Ta) | 4.5V, 10V | 22mOhm @ 4.9A, 10V | 2.3V @ 250µA | 18 nC @ 10 V | ±20V | 900 pF @ 15 V | - | 800mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTMS5P02R2GMOSFET P-CH 20V 3.95A 8SOIC |
2,440 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.95A (Ta) | 2.5V, 4.5V | 33mOhm @ 5.4A, 4.5V | 1.25V @ 250µA | 35 nC @ 4.5 V | ±10V | 1900 pF @ 16 V | - | 790mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQP8P10MOSFET P-CH 100V 8A TO220-3 |
2,806 | 1.12 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 8A (Tc) | 10V | 530mOhm @ 4A, 10V | 4V @ 250µA | 15 nC @ 10 V | ±30V | 470 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
FQD19N10TMMOSFET N-CH 100V 15.6A DPAK |
2,446 | 0.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 100 V | 15.6A (Tc) | 10V | 100mOhm @ 7.8A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±25V | 780 pF @ 25 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ECH8420-TL-HMOSFET N-CH 20V 14A 8ECH |
2,789 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 14A (Ta) | 1.8V, 4.5V | 6.8mOhm @ 7A, 4.5V | - | 29 nC @ 4.5 V | ±12V | 2430 pF @ 10 V | - | 1.6W (Ta) | 150°C (TJ) | Surface Mount |
|

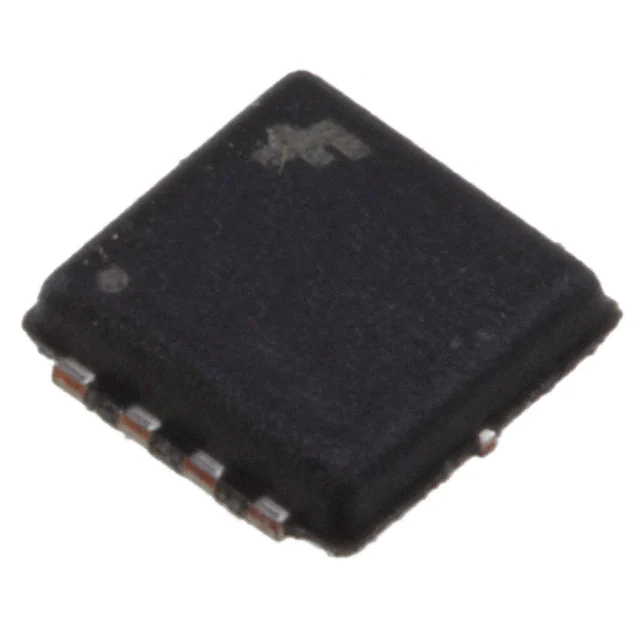

FDMC7696MOSFET N-CH 30V 12A/20A 8MLP |
2,831 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 20A (Tc) | 4.5V, 10V | 11.5mOhm @ 12A, 10V | 3V @ 250µA | 22 nC @ 10 V | ±20V | 1430 pF @ 15 V | - | 2.4W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
HUF76609D3STMOSFET N-CH 100V 10A TO252AA |
1,815 | 1.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UltraFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 10A (Tc) | 4.5V, 10V | 160mOhm @ 10A, 10V | 3V @ 250µA | 16 nC @ 10 V | ±16V | 425 pF @ 25 V | - | 49W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMC7672SMOSFET N-CH 30V 14.8A/18A 8MLP |
2,900 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench®, SyncFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 14.8A (Ta), 18A (Tc) | 4.5V, 10V | 6mOhm @ 14.8A, 10V | 3V @ 1mA | 42 nC @ 10 V | ±20V | 2520 pF @ 15 V | - | 2.3W (Ta), 36W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDD4N60NZMOSFET N-CH 600V 3.4A DPAK |
1,618 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UniFET-II™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.4A (Tc) | 10V | 2.5Ohm @ 1.7A, 10V | 5V @ 250µA | 10.8 nC @ 10 V | ±25V | 510 pF @ 25 V | - | 114W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQD2P40TMMOSFET P-CH 400V 1.56A DPAK |
1,495 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Active | P-Channel | MOSFET (Metal Oxide) | 400 V | 1.56A (Tc) | 10V | 6.5Ohm @ 780mA, 10V | 5V @ 250µA | 13 nC @ 10 V | ±30V | 350 pF @ 25 V | - | 2.5W (Ta), 38W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTDS015N15MCT4GMOSFET N-CH 150V 11A/50A DPAK |
2,500 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 11A (Ta), 50A (Tc) | 8V, 10V | 15mOhm @ 29A, 10V | 4.5V @ 162µA | 27 nC @ 10 V | ±20V | 2120 pF @ 75 V | - | 3.8W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTLJS3D0N02P8ZTAGMOSFET N-CH 20V 12.1A 6PQFN |
1,950 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 12.1A (Ta) | 1.8V, 4.5V | 3.8mOhm @ 10A, 4.5V | 1.2V @ 250µA | 21 nC @ 4.5 V | ±12V | 2165 pF @ 10 V | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDD8876MOSFET N-CH 30V 15A/73A TO252AA |
1,947 | 1.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 73A (Tc) | 4.5V, 10V | 8.2mOhm @ 35A, 10V | 2.5V @ 250µA | 47 nC @ 10 V | ±20V | 1700 pF @ 15 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMS8023SMOSFET N-CH 30V 26A/49A 8PQFN |
1,883 | 1.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench®, SyncFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 26A (Ta), 49A (Tc) | 4.5V, 10V | 2.4mOhm @ 26A, 10V | 3V @ 1mA | 57 nC @ 10 V | ±20V | 3550 pF @ 15 V | - | 2.5W (Ta), 59W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTTFS4C10NTAGMOSFET N-CH 30V 8.2A/44A 8WDFN |
1,330 | 1.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.2A (Ta), 44A (Tc) | 4.5V, 10V | 7.4mOhm @ 30A, 10V | 2.2V @ 250µA | 18.6 nC @ 10 V | ±20V | 993 pF @ 15 V | - | 790mW (Ta), 23.6W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQP4N20LMOSFET N-CH 200V 3.8A TO220-3 |
2,078 | 1.19 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 3.8A (Tc) | 5V, 10V | 1.35Ohm @ 1.9A, 10V | 2V @ 250µA | 5.2 nC @ 5 V | ±20V | 310 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FQU9N25TUMOSFET N-CH 250V 7.4A IPAK |
4,951 | 1.21 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 7.4A (Tc) | 10V | 420mOhm @ 3.7A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±30V | 700 pF @ 25 V | - | 2.5W (Ta), 55W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQU5N40TUMOSFET N-CH 400V 3.4A IPAK |
2,336 | 1.22 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 3.4A (Tc) | 10V | 1.6Ohm @ 1.7A, 10V | 5V @ 250µA | 13 nC @ 10 V | ±30V | 460 pF @ 25 V | - | 2.5W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
