| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTLUS3A90PZTAGMOSFET P-CH 20V 2.6A 6UDFN |
1,290 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | µCool™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.6A (Ta) | 1.5V, 4.5V | 62mOhm @ 4A, 4.5V | 1V @ 250µA | 12.3 nC @ 4.5 V | ±8V | 950 pF @ 10 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

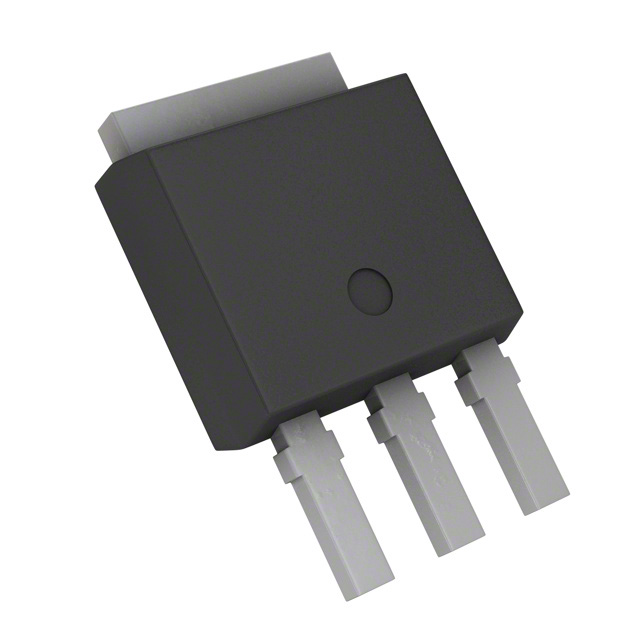

FDU6N25MOSFET N-CH 250V 4.4A IPAK |
3,997 | 0.61 |
RFQ |
Datasheet |
Tube | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 4.4A (Tc) | 10V | 1.1Ohm @ 2.2A, 10V | 5V @ 250µA | 6 nC @ 10 V | ±30V | 250 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NTNS3190NZT5GMOSFET N-CH 20V 224MA 3XLLGA |
2,392 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 224mA (Ta) | 1.5V, 4.5V | 1.4Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.7 nC @ 4.5 V | ±8V | 15.8 pF @ 15 V | - | 120mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTNS2K1P021ZTCGMOSFET P-CH 20V 127MA 3XDFN |
6,693 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 127mA (Ta) | 1.5V, 4.5V | 5Ohm @ 100mA, 4.5V | 1V @ 250µA | - | ±8V | 12800 pF @ 15 V | - | 125mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQT4N25TFMOSFET N-CH 250V 830MA SOT223-4 |
1,835 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 250 V | 830mA (Tc) | 10V | 1.75Ohm @ 415mA, 10V | 5V @ 250µA | 5.6 nC @ 10 V | ±30V | 200 pF @ 25 V | - | 2.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTRV4101PT1GMOSFET P-CH 20V 1.8A SOT23-3 |
1,810 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.8A (Ta) | 1.8V, 4.5V | 85mOhm @ 1.6A, 4.5V | 1.2V @ 250µA | 8.5 nC @ 4.5 V | ±8V | 675 pF @ 10 V | - | 420mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTR3A30PZT1GMOSFET P-CH 20V 3A SOT23-3 |
2,734 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.8V, 4.5V | 38mOhm @ 3A, 4.5V | 1V @ 250µA | 17.6 nC @ 4.5 V | ±8V | 1651 pF @ 15 V | - | 480mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDS8882MOSFET N-CH 30V 9A 8SOIC |
2,331 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 20mOhm @ 9A, 10V | 3V @ 250µA | 20 nC @ 10 V | ±20V | 940 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTD4815N-35GMOSFET N-CH 30V 6.9A/35A IPAK |
1,468 | 0.77 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.9A (Ta), 35A (Tc) | 4.5V, 11.5V | 15mOhm @ 30A, 10V | 2.5V @ 250µA | 14.1 nC @ 11.5 V | ±20V | 770 pF @ 12 V | - | 1.26W (Ta), 32.6W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FDZ661PZMOSFET P-CH 20V 2.6A 4WLCSP |
6,645 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.6A (Ta) | 1.5V, 4.5V | 140mOhm @ 2A, 4.5V | 1.2V @ 250µA | 8.8 nC @ 4.5 V | ±8V | 555 pF @ 10 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ECH8309-TL-HMOSFET P-CH 12V 9.5A 8ECH |
2,766 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 9.5A (Ta) | 1.8V, 4.5V | 16mOhm @ 4.5A, 4.5V | - | 18 nC @ 4.5 V | ±10V | 1780 pF @ 6 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|
NTMS4916NR2GMOSFET N-CH 30V 7.8A 8SOIC |
2,429 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.8A (Ta) | 4.5V, 10V | 9mOhm @ 12A, 10V | 2.5V @ 250µA | 15 nC @ 4.5 V | ±20V | 1376 pF @ 25 V | - | 890mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMA420NZMOSFET N-CH 20V 5.7A 6MICROFET |
2,721 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 5.7A (Ta) | 2.5V, 4.5V | 30mOhm @ 5.7A, 4.5V | 1.5V @ 250µA | 12 nC @ 4.5 V | ±12V | 935 pF @ 10 V | - | 2.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDMA7670MOSFET N-CH 30V 11A 6MICROFET |
1,700 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 15mOhm @ 11A, 10V | 3V @ 250µA | 22 nC @ 10 V | ±20V | 1360 pF @ 15 V | - | 2.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQD7N20LTMMOSFET N-CH 200V 5.5A DPAK |
1,089 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 5.5A (Tc) | 5V, 10V | 750mOhm @ 2.75A, 10V | 2V @ 250µA | 9 nC @ 5 V | ±20V | 500 pF @ 25 V | - | 2.5W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDS8672SMOSFET N-CH 30V 18A 8SOIC |
3,543 | 1.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench®, SyncFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V, 10V | 4.8mOhm @ 18A, 10V | 3V @ 1mA | 41 nC @ 10 V | ±20V | 2670 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQU8P10TUMOSFET P-CH 100V 6.6A IPAK |
10,070 | 0.88 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 6.6A (Tc) | 10V | 530mOhm @ 3.3A, 10V | 4V @ 250µA | 15 nC @ 10 V | ±30V | 470 pF @ 25 V | - | 2.5W (Ta), 44W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDS6690ASMOSFET N-CH 30V 10A 8SOIC |
1,828 | 0.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench®, SyncFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 12mOhm @ 10A, 10V | 3V @ 1mA | 23 nC @ 10 V | ±20V | 910 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTD4858NT4GMOSFET N-CH 25V 11.2A/73A DPAK |
1,698 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 11.2A (Ta), 73A (Tc) | 4.5V, 10V | 6.2mOhm @ 30A, 10V | 2.5V @ 250µA | 19.2 nC @ 4.5 V | ±20V | 1563 pF @ 12 V | - | 1.3W (Ta), 54.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVF3055L108T3GMOSFET N-CH 60V 3A SOT223 |
3,497 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 3A (Ta) | 5V | 120mOhm @ 1.5A, 5V | 2V @ 250µA | 15 nC @ 5 V | ±15V | 440 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
