| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

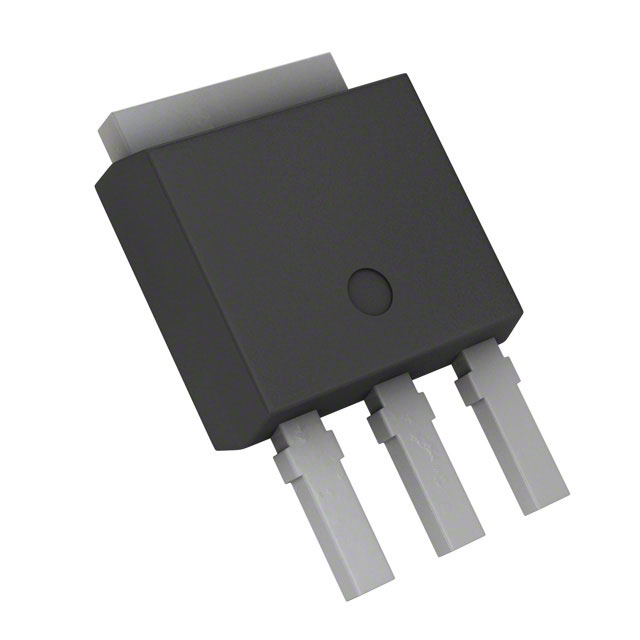

FCU600N65S3R0MOSFET N-CH 650V 6A IPAK |
2,286 | 1.39 |
RFQ |
Datasheet |
Tube | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 6A (Tc) | 10V | 600mOhm @ 3A, 10V | 4.5V @ 600µA | 11 nC @ 10 V | ±30V | 465 pF @ 400 V | - | 54W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FCU900N60ZMOSFET N-CH 600V 4.5A IPAK |
1,730 | 1.40 |
RFQ |
Datasheet |
Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.5A (Tc) | 10V | 900mOhm @ 2.3A, 10V | 3.5V @ 250µA | 17 nC @ 10 V | ±20V | 710 pF @ 25 V | - | 52W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FCMT299N60MOSFET N-CH 600V 12A POWER88 |
5,333 | 3.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Ta) | 10V | 299mOhm @ 6A, 10V | 3.5V @ 250µA | 51 nC @ 10 V | ±20V | 1948 pF @ 380 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FCU850N80ZMOSFET N-CH 800V 6A IPAK |
1,753 | 2.50 |
RFQ |
Datasheet |
Tube | SuperFET® II | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 850mOhm @ 3A, 10V | 4.5V @ 600µA | 29 nC @ 10 V | ±20V | 1315 pF @ 100 V | - | 75W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FCPF11N60NTMOSFET N-CH 600V 10.8A TO220F |
660 | 4.27 |
RFQ |
Datasheet |
Tube | SuperMOS™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.8A (Tc) | 10V | 299mOhm @ 5.4A, 10V | 4V @ 250µA | 35.6 nC @ 10 V | ±30V | 1505 pF @ 100 V | - | 32.1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FCP190N60MOSFET N-CH 600V 20.2A TO220-3 |
796 | 2.97 |
RFQ |
Datasheet |
Tube | SuperFET® II | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 20.2A (Tc) | 10V | 199mOhm @ 10A, 10V | 3.5V @ 250µA | 74 nC @ 10 V | ±20V | 2950 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDPF190N15AMOSFET N-CH 150V 27.4A TO220F |
1,000 | 3.17 |
RFQ |
Datasheet |
Tube | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 27.4A (Tc) | 10V | 19mOhm @ 27.4A, 10V | 4V @ 250µA | 39 nC @ 10 V | ±20V | 2685 pF @ 25 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FCPF7N60NTMOSFET N-CH 600V 6.8A TO220F |
1,630 | 3.18 |
RFQ |
Datasheet |
Tube | SupreMOS™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.8A (Tc) | 10V | 520mOhm @ 3.4A, 10V | 4V @ 250µA | 35.6 nC @ 10 V | ±30V | 960 pF @ 100 V | - | 30.5W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDA032N08MOSFET N-CH 75V 120A TO3PN |
337 | 4.70 |
RFQ |
Datasheet |
Tube | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 3.2mOhm @ 75A, 10V | 4.5V @ 250µA | 220 nC @ 10 V | ±20V | 15160 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FQAF13N80MOSFET N-CH 800V 8A TO3PF |
360 | 5.52 |
RFQ |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 750mOhm @ 4A, 10V | 5V @ 250µA | 88 nC @ 10 V | ±30V | 3500 pF @ 25 V | - | 120W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FCA20N60FMOSFET N-CH 600V 20A TO3PN |
282 | 5.56 |
RFQ |
Datasheet |
Tube | SuperFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±30V | 3080 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NTHL110N65S3FMOSFET N-CH 650V 30A TO247-3 |
279 | 5.63 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 110mOhm @ 15A, 10V | 5V @ 3mA | 58 nC @ 10 V | ±30V | 2560 pF @ 400 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NTP110N65S3HFMOSFET N-CH 650V 30A TO220-3 |
731 | 6.26 |
RFQ |
Datasheet |
Bulk | FRFET®, SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 110mOhm @ 15A, 10V | 5V @ 740µA | 62 nC @ 10 V | ±30V | 2635 pF @ 400 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NVHL110N65S3FMOSFET N-CH 650V 30A TO247-3 |
145 | 6.84 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, SuperFET® III, FRFET® | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 110mOhm @ 15A, 10V | 5V @ 3mA | 58 nC @ 10 V | ±30V | 2560 pF @ 400 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FCA22N60NMOSFET N-CH 600V 22A TO3PN |
426 | 8.05 |
RFQ |
Datasheet |
Tube | SupreMOS™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 165mOhm @ 11A, 10V | 4V @ 250µA | 45 nC @ 10 V | ±30V | 1950 pF @ 100 V | - | 205W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FCH041N60F-F085MOSFET N-CH 600V 76A TO247-3 |
444 | 15.01 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, SuperFET® II | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 76A (Tc) | 10V | 41mOhm @ 38A, 10V | 5V @ 250µA | 347 nC @ 10 V | ±20V | 10900 pF @ 25 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SMBF1006LT1SS SOT23 JFET NPN SPCL |
54,000 | 0.02 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
SMBF1053LT3SS SOT23 JFET NCH SPCL |
50,000 | 0.02 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SMBF1046LT1NFET SOT23 SPECIAL TR |
18,000 | 0.02 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
2N7002LT1GMOSFET N-CH 60V 115MA SOT23-3 |
653,657 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Tc) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 225mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
