| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FQA62N25CMOSFET N-CH 250V 62A TO3PN |
427 | 7.06 |
RFQ |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 250 V | 62A (Tc) | 10V | 35mOhm @ 31A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±30V | 6280 pF @ 25 V | - | 298W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDP75N08AMOSFET N-CH 75V 75A TO220-3 |
1,990 | 2.88 |
RFQ |
Datasheet |
Tube | UniFET™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 10V | 11mOhm @ 37.5A, 10V | 4V @ 250µA | 104 nC @ 10 V | ±20V | 4468 pF @ 25 V | - | 137W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDPF20N50TMOSFET N-CH 500V 20A TO220F |
803 | 3.10 |
RFQ |
Datasheet |
Tube | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 230mOhm @ 10A, 10V | 5V @ 250µA | 59.5 nC @ 10 V | ±30V | 3120 pF @ 25 V | - | 38.5W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDA16N50-F109MOSFET N-CH 500V 16.5A TO3PN |
886 | 3.14 |
RFQ |
Datasheet |
Tube | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16.5A (Tc) | 10V | 380mOhm @ 8.3A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±30V | 1945 pF @ 25 V | - | 205W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDPF18N50MOSFET N-CH 500V 18A TO220F |
11,323 | 3.17 |
RFQ |
Tube | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 18A (Tc) | 10V | 265mOhm @ 9A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±30V | 2860 pF @ 25 V | - | 38.5W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
FCPF16N60MOSFET N-CH 600V 16A TO220F |
1,386 | 3.17 |
RFQ |
Datasheet |
Tube | SuperFET™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 260mOhm @ 8A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 37.9W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FCP16N60MOSFET N-CH 600V 16A TO220-3 |
2,998 | 3.22 |
RFQ |
Datasheet |
Tube | SuperFET™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 260mOhm @ 8A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 167W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDP3672MOSFET N-CH 105V 5.9A/41A TO220 |
2,400 | 2.25 |
RFQ |
Datasheet |
Tube | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 105 V | 5.9A (Ta), 41A (Tc) | 6V, 10V | 33mOhm @ 41A, 10V | 4V @ 250µA | 37 nC @ 10 V | ±20V | 1670 pF @ 25 V | - | 135W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
FCP11N60NMOSFET N-CH 600V 10.8A TO220-3 |
801 | 3.34 |
RFQ |
Datasheet |
Tube | SupreMOS™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.8A (Tc) | 10V | 299mOhm @ 5.4A, 10V | 4V @ 250µA | 35.6 nC @ 10 V | ±30V | 1505 pF @ 100 V | - | 94W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
HUF75542P3MOSFET N-CH 80V 75A TO220-3 |
733 | 3.50 |
RFQ |
Datasheet |
Tube | UltraFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 75A (Tc) | 10V | 14mOhm @ 75A, 10V | 4V @ 250µA | 180 nC @ 20 V | ±20V | 2750 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
NTP6410ANGMOSFET N-CH 100V 76A TO220AB |
150 | 3.51 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 76A (Tc) | 10V | 13mOhm @ 76A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 4500 pF @ 25 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
FQPF9N90CTMOSFET N-CH 900V 8A TO220F |
342 | 3.66 |
RFQ |
Datasheet |
Tube | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 8A (Tc) | 10V | 1.4Ohm @ 4A, 10V | 5V @ 250µA | 58 nC @ 10 V | ±30V | 2730 pF @ 25 V | - | 68W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

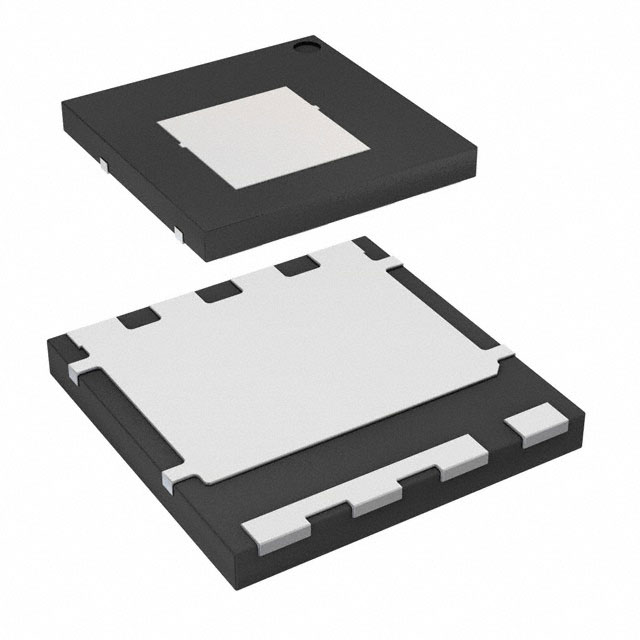

FDMT800120DCMOSFET N-CH 120V 20A 8DLCOOL88 |
5,875 | 7.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Dual Cool™, PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 20A (Ta), 129A (Tc) | 6V, 10V | 4.14mOhm @ 20A, 10V | 4V @ 250µA | 107 nC @ 10 V | ±20V | 7850 pF @ 60 V | - | 3.2W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FCP125N65S3R0MOSFET N-CH 650V 24A TO220-3 |
1,039 | 3.90 |
RFQ |
Datasheet |
Tube | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 125mOhm @ 12A, 10V | 4.5V @ 2.4mA | 46 nC @ 10 V | ±30V | 1940 pF @ 400 V | - | 181W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQA46N15MOSFET N-CH 150V 50A TO3P |
361 | 3.94 |
RFQ |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 150 V | 50A (Tc) | 10V | 42mOhm @ 25A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±25V | 3250 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FCH165N60EMOSFET N-CH 600V 23A TO247-3 |
462 | 4.03 |
RFQ |
Datasheet |
Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 165mOhm @ 11.5A, 10V | 3.5V @ 250µA | 75 nC @ 10 V | ±20V | 2434 pF @ 380 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDPF20N50MOSFET N-CH 500V 20A TO220F |
228 | 3.17 |
RFQ |
Datasheet |
Tube | UniFET™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 230mOhm @ 10A, 10V | 5V @ 250µA | 59.5 nC @ 10 V | ±30V | 3120 pF @ 25 V | - | 38.5W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQP22N30MOSFET N-CH 300V 21A TO220-3 |
3,000 | 3.25 |
RFQ |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 300 V | 21A (Tc) | 10V | 160mOhm @ 10.5A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±30V | 2200 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NTHL190N65S3HFMOSFET N-CH 650V 20A TO247-3 |
234 | 4.45 |
RFQ |
Datasheet |
Tube | FRFET®, SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 430µA | 34 nC @ 10 V | ±30V | 1610 pF @ 400 V | - | 162W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQA13N80-F109MOSFET N-CH 800V 12.6A TO3PN |
348 | 4.47 |
RFQ |
Datasheet |
Tube | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 12.6A (Tc) | 10V | 750mOhm @ 6.3A, 10V | 5V @ 250µA | 88 nC @ 10 V | ±30V | 3500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
