| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HUF75345G3MOSFET N-CH 55V 75A TO247-3 |
145 | 4.62 |
RFQ |
Datasheet |
Tube | UltraFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 7mOhm @ 75A, 10V | 4V @ 250µA | 275 nC @ 20 V | ±20V | 4000 pF @ 25 V | - | 325W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FCPF22N60NTMOSFET N-CH 600V 22A TO220F |
898 | 5.29 |
RFQ |
Datasheet |
Tube | SupreMOS™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 165mOhm @ 11A, 10V | 4V @ 250µA | 45 nC @ 10 V | ±45V | 1950 pF @ 100 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDA28N50FMOSFET N-CH 500V 28A TO3PN |
229 | 5.33 |
RFQ |
Datasheet |
Tube | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 28A (Tc) | 10V | 175mOhm @ 14A, 10V | 5V @ 250µA | 105 nC @ 10 V | ±30V | 5387 pF @ 25 V | - | 310W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQA90N15MOSFET N-CH 150V 90A TO3PN |
197 | 6.97 |
RFQ |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 150 V | 90A (Tc) | 10V | 18mOhm @ 45A, 10V | 4V @ 250µA | 285 nC @ 10 V | ±25V | 8700 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

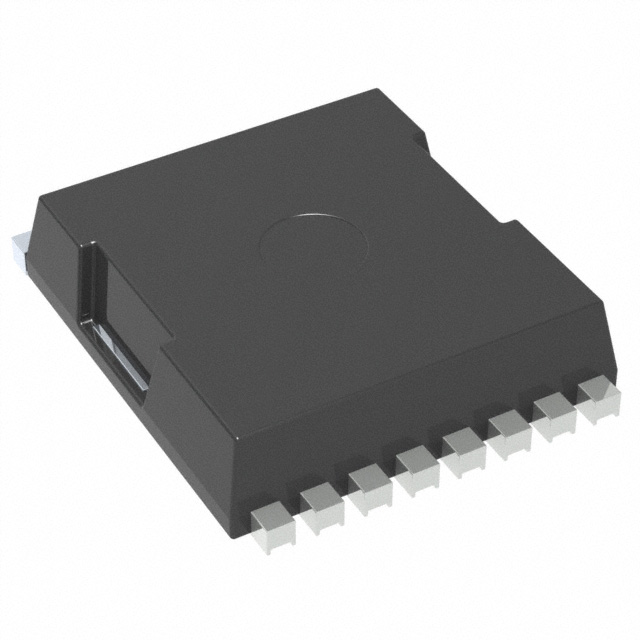

NVBLS001N06CMOSFET N-CH 60V 51A/422A 8HPSOF |
8,000 | 12.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 51A (Ta), 422A (Tc) | 10V | 0.9mOhm @ 80A, 10V | 4V @ 562µA | 143 nC @ 10 V | ±20V | 11575 pF @ 30 V | - | 4.2W (Ta), 284W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FQA24N60MOSFET N-CH 600V 23.5A TO3PN |
357 | 7.18 |
RFQ |
Datasheet |
Tube | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23.5A (Tc) | 10V | 240mOhm @ 11.8A, 10V | 5V @ 250µA | 145 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 310W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQA170N06MOSFET N-CH 60V 170A TO3PN |
258 | 7.88 |
RFQ |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 60 V | 170A (Tc) | 10V | 5.6mOhm @ 85A, 10V | 4V @ 250µA | 290 nC @ 10 V | ±25V | 9350 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FCP220N80MOSFET N-CH 800V 23A TO220-3 |
339 | 8.08 |
RFQ |
Datasheet |
Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 23A (Tc) | 10V | 220mOhm @ 11.5A, 10V | 4.5V @ 2.3mA | 105 nC @ 10 V | ±20V | 4560 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDH50N50-F133MOSFET N-CH 500V 48A TO247-3 |
129 | 9.63 |
RFQ |
Datasheet |
Tube | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 48A (Tc) | 10V | 105mOhm @ 24A, 10V | 5V @ 250µA | 137 nC @ 10 V | ±20V | 6460 pF @ 25 V | - | 625W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FCA47N60FMOSFET N-CH 600V 47A TO3PN |
362 | 10.55 |
RFQ |
Datasheet |
Tube | SuperFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 73mOhm @ 23.5A, 10V | 5V @ 250µA | 270 nC @ 10 V | ±30V | 8000 pF @ 25 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FCH47N60NFMOSFET N-CH 600V 45.8A TO247-3 |
3,374 | 11.83 |
RFQ |
Datasheet |
Tube | SupreMOS™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 45.8A (Tc) | 10V | 65mOhm @ 23.5A, 10V | 4V @ 250µA | 157 nC @ 10 V | ±30V | 6120 pF @ 100 V | - | 368W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NVHL040N65S3FMOSFET N-CH 650V 65A TO247-3 |
2,529 | 12.03 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, SuperFET® III, FRFET® | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 65A (Tc) | 10V | 40mOhm @ 32.5A, 10V | 5V @ 2.1mA | 153 nC @ 10 V | ±30V | 5875 pF @ 400 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FCA47N60-F109MOSFET N-CH 600V 47A TO3PN |
1,782 | 10.12 |
RFQ |
Datasheet |
Tube,Tube | SuperFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 70mOhm @ 23.5A, 10V | 5V @ 250µA | 270 nC @ 10 V | ±30V | 8000 pF @ 25 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NVHL160N120SC1SICFET N-CH 1200V 17A TO247-3 |
2,849 | 13.37 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 17A (Tc) | 20V | 224mOhm @ 12A, 20V | 4.3V @ 2.5mA | 34 nC @ 20 V | +25V, -15V | 665 pF @ 800 V | - | 119W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
FCH043N60MOSFET N-CH 600V 75A TO247-3 |
255 | 17.15 |
RFQ |
Datasheet |
Tube | SuperFET® II | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 75A (Tc) | 10V | 43mOhm @ 38A, 10V | 3.5V @ 250µA | 215 nC @ 10 V | ±20V | 12225 pF @ 400 V | - | 592W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NVHL040N120SC1SICFET N-CH 1200V 60A TO247-3 |
885 | 25.49 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 60A (Tc) | 20V | 56mOhm @ 35A, 20V | 4.3V @ 10mA | 106 nC @ 20 V | +25V, -15V | 1781 pF @ 800 V | - | 348W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
NVH4L020N120SC1SICFET N-CH 1200V 102A TO247 |
2,089 | 40.33 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 102A (Tc) | 20V | 28mOhm @ 60A, 20V | 4.3V @ 20mA | 220 nC @ 20 V | +25V, -15V | 2943 pF @ 800 V | - | 510W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

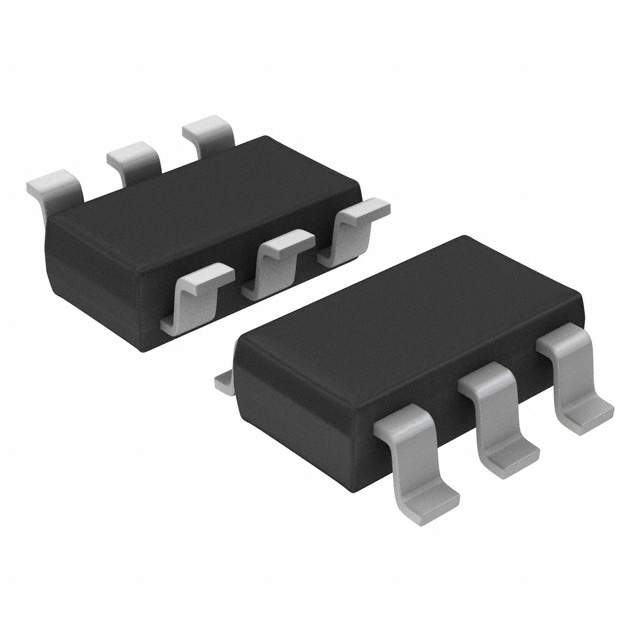

NVGS5120PT1GMOSFET P-CH 60V 1.8A 6TSOP |
113,800 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.8A (Ta) | 4.5V, 10V | 111mOhm @ 2.9A, 10V | 3V @ 250µA | 18.1 nC @ 10 V | ±20V | 942 pF @ 30 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDD5N50NZTMMOSFET N-CH 500V 4A DPAK |
6,500 | 1.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 4A (Tc) | 10V | 1.5Ohm @ 2A, 10V | 5V @ 250µA | 12 nC @ 10 V | ±25V | 440 pF @ 25 V | - | 62W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQU5N60CTUMOSFET N-CH 600V 2.8A IPAK |
3,840 | 1.03 |
RFQ |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.8A (Tc) | 10V | 2.5Ohm @ 1.4A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±30V | 670 pF @ 25 V | - | 2.5W (Ta), 49W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
