| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STD16N60M6MOSFET N-CH 600V 12A DPAK |
3,113 | 1.38 |
RFQ |
Tape & Reel (TR) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4.75V @ 250µA | 16.7 nC @ 10 V | ±25V | 575 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
STF10N62K3MOSFET N-CH 620V 8.4A TO220FP |
2,017 | 1.38 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 620 V | 8.4A (Tc) | 10V | 750mOhm @ 4A, 10V | 4.5V @ 100µA | 42 nC @ 10 V | ±30V | 1250 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STP6N80K5MOSFET N-CH 800V 4.5A TO220 |
2,591 | 1.39 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4.5A (Tc) | 10V | 1.6Ohm @ 2A, 10V | 5V @ 100µA | 7.5 nC @ 10 V | 30V | 255 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
;;2.jpg)
|
STD9NM60NMOSFET N-CH 600V 6.5A DPAK |
3,983 | 2.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.5A (Tc) | 10V | 745mOhm @ 3.25A, 10V | 4V @ 250µA | 17.4 nC @ 10 V | ±25V | 452 pF @ 50 V | - | 70W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STP40NF12MOSFET N-CH 120V 40A TO220AB |
3,126 | 1.41 |
RFQ |
Datasheet |
Tube | STripFET™ II | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 120 V | 40A (Tc) | 10V | 32mOhm @ 20A, 10V | 4V @ 250µA | 80 nC @ 10 V | ±20V | 1880 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STF16N65M2MOSFET N-CH 650V 11A TO220FP |
3,983 | 1.43 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 19.5 nC @ 10 V | ±25V | 718 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STP18N60M6MOSFET N-CH 600V 13A TO220 |
2,579 | 1.45 |
RFQ |
Datasheet |
Tube | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 280mOhm @ 6.5A, 10V | 4.75V @ 250µA | 16.8 nC @ 10 V | ±25V | 650 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

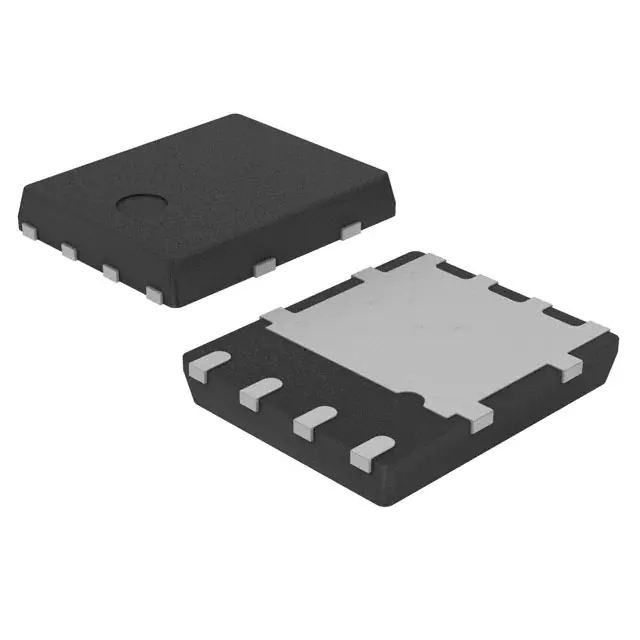

STL8NH3LLMOSFET N-CH 30V 8A POWERFLAT |
2,120 | 1.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Tc) | 4.5V, 10V | 15mOhm @ 4A, 10V | 2.5V @ 250µA | 12 nC @ 4.5 V | ±18V | 965 pF @ 25 V | - | 2W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STFU18N60M2MOSFET N-CH 600V TO-220FP |
2,358 | 1.48 |
RFQ |
Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
STD9N80K5MOSFET N-CHANNEL 800V 7A DPAK |
2,917 | 1.48 |
RFQ |
Datasheet |
Tape & Reel (TR) | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 900mOhm @ 3.5A, 10V | 5V @ 100µA | 12 nC @ 10 V | ±30V | 340 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STL18N60M2MOSFET N-CH 600V 9A POWERFLAT HV |
2,846 | 1.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 308mOhm @ 4.5A, 10V | 4V @ 250µA | 21.5 nC @ 10 V | ±25V | 791 pF @ 100 V | - | 57W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STP18N60DM2MOSFET N-CH 600V 12A TO220 |
3,971 | 1.53 |
RFQ |
Datasheet |
Tube | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 295mOhm @ 6A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±25V | 800 pF @ 100 V | - | 90W (Tc) | 150°C (TJ) | Through Hole |
|
STU2N95K5MOSFET N-CH 950V 2A IPAK |
2,350 | 1.54 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 2A (Tc) | 10V | 5Ohm @ 1A, 10V | 5V @ 100µA | 10 nC @ 10 V | 30V | 105 pF @ 100 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STU9N60M2MOSFET N-CH 600V 5.5A IPAK |
3,225 | 1.54 |
RFQ |
Datasheet |
Tube | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.5A (Tc) | 10V | 780mOhm @ 3A, 10V | 4V @ 250µA | 10 nC @ 10 V | ±25V | 320 pF @ 100 V | - | 60W (Tc) | 150°C (TJ) | Through Hole |
|
|
STU13NM60NMOSFET N-CH 600V 11A IPAK |
3,342 | 1.57 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 27 nC @ 10 V | ±25V | 790 pF @ 50 V | - | 90W (Tc) | 150°C (TJ) | Through Hole |
|
|
STU10N60M2MOSFET N-CH 600V 7.5A IPAK |
3,093 | 1.60 |
RFQ |
Datasheet |
Tube | MDmesh™ II Plus | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.5A (Tc) | 10V | 600mOhm @ 3A, 10V | 4V @ 250µA | 13.5 nC @ 10 V | ±25V | 400 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STL19N60M2MOSFET N-CH 600V 11A PWRFLAT HV |
2,303 | 1.61 |
RFQ |
Datasheet |
Tape & Reel (TR) | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | - | 4V @ 250µA | 21.5 nC @ 10 V | ±25V | 791 pF @ 100 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STF18N60DM2MOSFET N-CH 600V 13A TO220FP |
2,856 | 1.63 |
RFQ |
Datasheet |
Tube | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 295mOhm @ 6A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±25V | 800 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP9N80K5MOSFET N-CHANNEL 800V 7A TO220 |
3,441 | 1.63 |
RFQ |
Datasheet |
Tube | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 900mOhm @ 3.5A, 10V | 5V @ 100µA | 12 nC @ 10 V | ±30V | 340 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP5N60M2MOSFET N-CH 600V 3.7A TO220 |
3,712 | 1.66 |
RFQ |
Datasheet |
Tube | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.7A (Tc) | 10V | 1.4Ohm @ 1.85A, 10V | 4V @ 250µA | 4.5 nC @ 10 V | ±25V | 165 pF @ 100 V | - | 45W (Tc) | 150°C (TJ) | Through Hole |
