| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STB141NF55MOSFET N-CH 55V 80A D2PAK |
3,764 | 1.97 |
RFQ |
Datasheet |
Tape & Reel (TR) | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 10V | 8mOhm @ 40A, 10V | 4V @ 250µA | 142 nC @ 10 V | ±20V | 5300 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STF11N65M2MOSFET N-CH 650V 7A TO220FP |
2,675 | 1.99 |
RFQ |
Datasheet |
Tube | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 670mOhm @ 3.5A, 10V | 4V @ 250µA | 12.5 nC @ 10 V | ±25V | 410 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

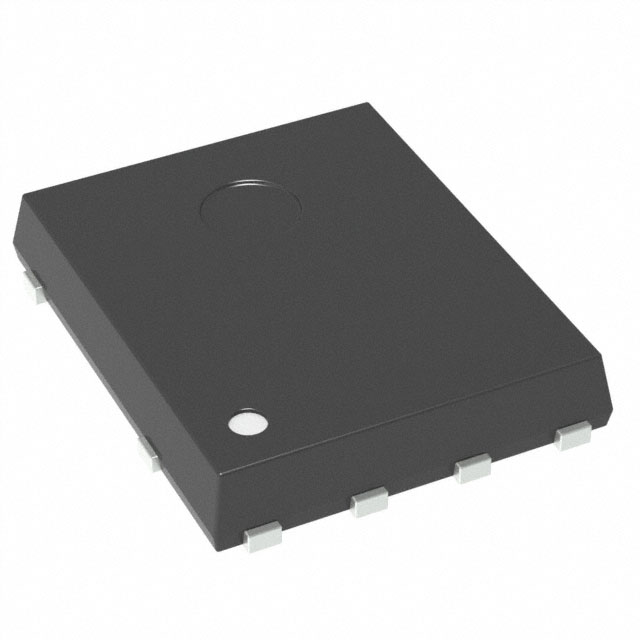

STL22N60M6MOSFET N-CH 600V 10A PWRFLAT HV |
2,434 | 1.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 250mOhm @ 5A, 10V | 4.75V @ 250µA | 20 nC @ 10 V | ±25V | 800 pF @ 100 V | - | 57W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STL10LN80K5MOSFET N-CH 800V 6A PWRFLAT VHV |
2,082 | 2.02 |
RFQ |
Datasheet |
Tape & Reel (TR) | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 660mOhm @ 4A, 10V | 5V @ 100µA | 15 nC @ 10 V | ±30V | 427 pF @ 100 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STB85NF55LT4MOSFET N-CH 55V 80A D2PAK |
3,793 | 2.16 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 5V, 10V | 8mOhm @ 40A, 10V | 2.5V @ 250µA | 110 nC @ 5 V | ±15V | 4050 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STI150N10F7MOSFET N-CH 100V 110A I2PAK |
3,242 | 2.04 |
RFQ |
Datasheet |
Tube | STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 110A (Tc) | 10V | 4.2mOhm @ 55A, 10V | 4.5V @ 250µA | 117 nC @ 10 V | ±20V | 8115 pF @ 50 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STL22N60DM6MOSFET N-CH 650V 15A PWRFLAT HV |
3,643 | 2.04 |
RFQ |
Datasheet |
Tape & Reel (TR) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
STFU25N60M2-EPMOSFET N-CH 600V 18A TO220FP |
2,307 | 2.04 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 188mOhm @ 9A, 10V | 4.75V @ 250µA | 29 nC @ 10 V | ±25V | 1090 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STP22N60DM6MOSFET N-CH 600V 15A TO220 |
2,609 | 2.04 |
RFQ |
Datasheet |
Tube | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 240mOhm @ 7.5A, 10V | 4.75V @ 250µA | 20.6 nC @ 10 V | ±25V | 800 pF @ 100 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STD2NK90Z-1MOSFET N-CH 900V 2.1A IPAK |
3,622 | 2.06 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 2.1A (Tc) | 10V | 6.5Ohm @ 1.05A, 10V | 4.5V @ 50µA | 27 nC @ 10 V | ±30V | 485 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STU6N62K3MOSFET N-CH 620V 5.5A IPAK |
2,445 | 2.09 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 620 V | 5.5A (Tc) | 10V | 1.2Ohm @ 2.8A, 10V | 4.5V @ 50µA | 30 nC @ 10 V | ±30V | 875 pF @ 50 V | - | 90W (Tc) | 150°C (TJ) | Through Hole |
|
|
STP10N80K5MOSFET N-CH 800V 9A TO220 |
2,167 | 2.09 |
RFQ |
Datasheet |
Tube | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 9A (Tc) | 10V | 600mOhm @ 4.5A, 10V | 5V @ 100µA | 22 nC @ 10 V | ±30V | 635 pF @ 100 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STL24N65M2MOSFET N-CH 650V 14A PWRFLAT HV |
3,502 | 2.09 |
RFQ |
Tape & Reel (TR) | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 14A (Tc) | 10V | 250mOhm @ 7A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±25V | 1060 pF @ 100 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
STP9NK65ZMOSFET N-CH 650V 6.4A TO220AB |
3,892 | 2.11 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 6.4A (Tc) | 10V | 1.2Ohm @ 3.2A, 10V | 4.5V @ 100µA | 41 nC @ 10 V | ±30V | 1145 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STB7NK80Z-1MOSFET N-CH 800V 5.2A I2PAK |
2,495 | 2.11 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.2A (Tc) | 10V | 1.8Ohm @ 2.6A, 10V | 4.5V @ 100µA | 56 nC @ 10 V | ±30V | 1138 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STB22N60DM6MOSFET N-CH 600V 15A D2PAK |
2,950 | 2.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 240mOhm @ 7.5A, 10V | 4.75V @ 250µA | 20.6 nC @ 10 V | ±25V | 800 pF @ 100 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STF17NF25MOSFET N-CH 250V 17A TO220FP |
3,321 | 2.17 |
RFQ |
Datasheet |
Tube | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 17A (Tc) | 10V | 165mOhm @ 8.5A, 10V | 4V @ 250µA | 29.5 nC @ 10 V | ±20V | 1000 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STW26N65DM2MOSFET N-CH 650V 20A TO247 |
2,878 | 2.20 |
RFQ |
Datasheet |
Tube | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 250µA | 35.5 nC @ 10 V | ±25V | 1480 pF @ 100 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STL26N65DM2MOSFET N-CH 650V 20A PWRFLAT HV |
2,753 | 2.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 206mOhm @ 10A, 10V | 5V @ 250µA | 35.5 nC @ 10 V | ±25V | 1480 pF @ 100 V | - | 140W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STL19N60M6MOSFET N-CH 600V 11A PWRFLAT HV |
2,319 | 2.22 |
RFQ |
Tape & Reel (TR) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 308mOhm @ 6.5A, 10V | 4.75V @ 250µA | 16.8 nC @ 10 V | ±25V | 650 pF @ 100 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
