| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
STD5NK40ZT4MOSFET N-CH 400V 3A DPAK |
2,642 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 3A (Tc) | 10V | 1.8Ohm @ 1.5A, 10V | 4.5V @ 50µA | 17 nC @ 10 V | ±30V | 305 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STD4N52K3MOSFET N-CH 525V 2.5A DPAK |
3,833 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 525 V | 2.5A (Tc) | 10V | 2.6Ohm @ 1.25A, 10V | 4.5V @ 50µA | 2 nC @ 10 V | ±30V | 334 pF @ 100 V | - | 45W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STD9N60M2MOSFET N-CH 600V 5.5A DPAK |
2,682 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.5A (Tc) | 10V | 780mOhm @ 3A, 10V | 4V @ 250µA | 10 nC @ 10 V | ±25V | 320 pF @ 100 V | - | 60W (Tc) | 150°C (TJ) | Surface Mount |
|
STB6N65K3MOSFET N-CH 650V DPAK |
3,931 | 0.74 |
RFQ |
Tape & Reel (TR) | - | Not For New Designs | - | - | - | 5.4A (Tc) | - | - | - | - | - | - | - | - | - | - | |
|
STD6N60DM2MOSFET N-CH 600V 5A DPAK |
2,685 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1.1Ohm @ 2.5A, 10V | 4.75V @ 250µA | 6.2 nC @ 10 V | ±25V | 274 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

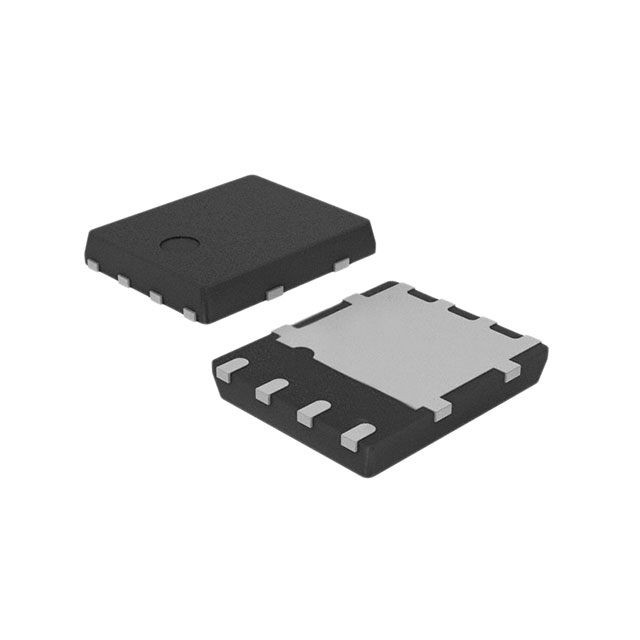

STL45P3LLH6MOSFET P-CH 30V 45A POWERFLAT |
2,104 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | STripFET™ H6 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 45A (Tc) | 4.5V, 10V | 13mOhm @ 6A, 10V | 1V @ 250µA | 24 nC @ 4.5 V | ±20V | 2615 pF @ 25 V | - | 4.8W (Ta), 75W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STU6N60DM2MOSFET N-CH 600V 5A IPAK |
3,013 | 0.75 |
RFQ |
Datasheet |
Tube | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1.1Ohm @ 2.5A, 10V | 4.75V @ 250µA | 6.2 nC @ 10 V | ±25V | 274 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STF6N60DM2MOSFET N-CH 600V 5A TO220FP |
2,488 | 0.76 |
RFQ |
Datasheet |
Tube | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1.1Ohm @ 2.5A, 10V | 4.75V @ 250µA | 6.2 nC @ 10 V | ±25V | 274 pF @ 100 V | - | 20W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STD7N60DM2MOSFET N-CH 600V 6A DPAK |
3,617 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR) | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 900mOhm @ 3A, 10V | 4.75V @ 250µA | 7.5 nC @ 10 V | ±25V | 324 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STL51N3LLH5MOSFET N-CH 30V 51A POWERFLAT |
3,692 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 51A (Tc) | 4.5V, 10V | 14.5mOhm @ 6.3A, 10V | 2.5V @ 250µA | 5 nC @ 4.5 V | ±22V | 724 pF @ 25 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STD11N50M2MOSFET N-CH 500V 8A DPAK |
2,956 | 1.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 530mOhm @ 4A, 10V | 4V @ 250µA | 12 nC @ 10 V | ±25V | 395 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STD5N65M6MOSFET N-CH 650V DPAK |
3,965 | 0.79 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
STU5N65M6MOSFET N-CH 650V 4A IPAK |
2,958 | 0.79 |
RFQ |
Tube | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 1.3Ohm @ 2A, 10V | 3.75V @ 250µA | 5.1 nC @ 10 V | ±25V | 170 pF @ 100 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
STF9N60M2MOSFET N-CH 600V 5.5A TO220FP |
2,791 | 0.80 |
RFQ |
Datasheet |
Tube | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.5A (Tc) | 10V | 780mOhm @ 3A, 10V | 4V @ 250µA | 10 nC @ 10 V | ±25V | 320 pF @ 100 V | - | 20W (Tc) | 150°C (TJ) | Through Hole |
|
STL58N3LLH5MOSFET N-CH 30V 64A POWERFLAT |
2,193 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ H5 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 64A (Tc) | 4.5V, 10V | 9mOhm @ 7.5A, 10V | 2.5V @ 250µA | 10 nC @ 4.5 V | +22V, -20V | 950 pF @ 25 V | - | 4.8W (Ta), 62.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STU7N60DM2MOSFET N-CH 600V 6A IPAK |
2,976 | 0.81 |
RFQ |
Datasheet |
Tube | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 900mOhm @ 3A, 10V | 4.75V @ 250µA | 7.5 nC @ 10 V | ±25V | 324 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF5N65M6MOSFET N-CH 650V 4A TO-220FP |
3,834 | 0.83 |
RFQ |
Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
STD7N52K3MOSFET N-CH 525V 6A DPAK |
2,642 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 525 V | 6A (Tc) | 10V | 980mOhm @ 3.1A, 10V | 4.5V @ 50µA | 34 nC @ 10 V | ±30V | 737 pF @ 100 V | - | 90W (Tc) | 150°C (TJ) | Surface Mount |
|
STB6N60M2MOSFET N-CH 600V 4.5A D2PAK |
3,284 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.5A (Tc) | 10V | 1.2Ohm @ 2.25A, 10V | 4V @ 250µA | 8 nC @ 10 V | ±25V | 232 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STU5N70M6-SMOSFET N-CH 700V 3.5A IPAK |
2,970 | 0.84 |
RFQ |
Datasheet |
Tube | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 3.5A (Tc) | 10V | 1.4Ohm @ 1.75A, 10V | 3.75V @ 250µA | 5.1 nC @ 10 V | ±25V | 170 pF @ 100 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
