| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

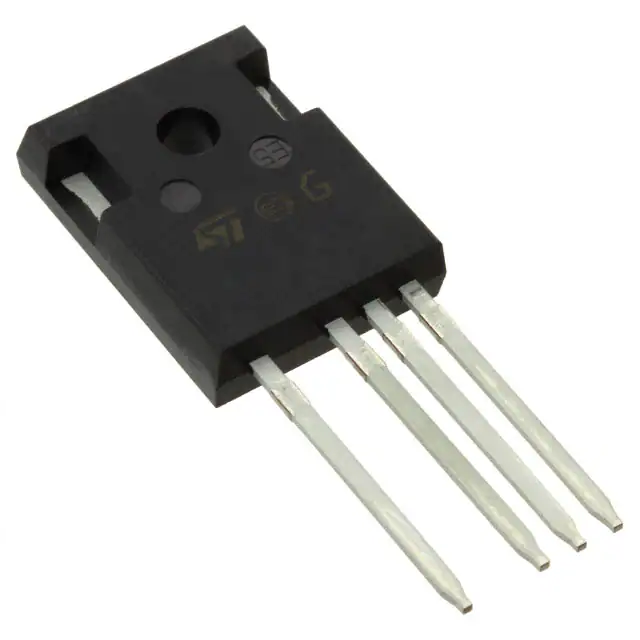

SCTWA60N120G2-4SILICON CARBIDE POWER MOSFET 120 |
2,516 | 32.93 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 60A (Tc) | 18V | 52mOhm @ 30A, 18V | 5V @ 1mA | 94 nC @ 18 V | +22V, -10V | 1969 pF @ 800 V | - | 388W (Tc) | -55°C ~ 200°C (TJ) | Through Hole |
|
|
SCTWA90N65G2VSILICON CARBIDE POWER MOSFET 650 |
3,389 | 39.30 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 119A (Tc) | 18V | 24mOhm @ 50A, 18V | 5V @ 1mA | 157 nC @ 18 V | +22V, -10V | 3380 pF @ 400 V | - | 565W (Tc) | -55°C ~ 200°C (TJ) | Through Hole |
|
SCTWA90N65G2V-4TRANS SJT N-CH 650V 119A HIP247 |
2,973 | 39.82 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 119A (Tc) | - | 24mOhm @ 50A, 18V | 5V @ 1mA | 157 nC @ 18 V | +22V, -10V | 3380 pF @ 400 V | - | 565W (Tc) | -55°C ~ 200°C (TJ) | Through Hole |
|
STL6N3LLH6MOSFET N-CH 30V POWERFLAT |
2,709 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VI | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Tc) | 4.5V, 10V | 25mOhm @ 3A, 10V | 1V @ 250µA (Min) | 3.6 nC @ 4.5 V | ±20V | 283 pF @ 24 V | - | 2.4W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
;;2.jpg)
|
STD2LN60K3MOSFET N CH 600V 2A DPAK |
2,864 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 2A (Tc) | 10V | 4.5Ohm @ 1A, 10V | 4.5V @ 50µA | 12 nC @ 10 V | ±30V | 235 pF @ 50 V | - | 45W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STL6N2VH5MOSFET N-CH 20V POWERFLAT |
2,901 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ V | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Tj) | 2.5V, 4.5V | 30mOhm @ 3A, 4.5V | 700mV @ 250µA (Min) | 6 nC @ 4.5 V | ±8V | 550 pF @ 16 V | - | 2.4W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STU3N45K3MOSFET N-CH 450V 1.8A IPAK |
3,244 | 0.47 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 450 V | 1.8A (Tc) | 10V | 3.8Ohm @ 500mA, 10V | 4.5V @ 50µA | 6 nC @ 10 V | ±30V | 150 pF @ 25 V | - | 27W (Tc) | - | Through Hole |
|
|
STD30NF06LAGMOSFET N-CH 60V 28A DPAK |
3,949 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR) | STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 35A (Tc) | - | - | - | - | - | - | - | - | - | Surface Mount |
|
STS6P3LLH6MOSFET P-CH 30V 6A 8SO |
2,098 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VI | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 30mOhm @ 3A, 10V | 1V @ 250µA (Min) | 12 nC @ 4.5 V | ±20V | 1450 pF @ 24 V | - | 2.7W (Ta) | 150°C (TJ) | Surface Mount |
|
STD80N6F7MOSFET N-CH 60V 40A DPAK |
3,932 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR) | STripFET™ F7 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 40A (Tc) | 10V | 8mOhm @ 20A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±20V | 1600 pF @ 30 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STD3N65M6MOSFET N-CH 650V DPAK |
3,068 | 0.61 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
STD30N6LF6AGMOSFET N-CH 60V 24A DPAK |
2,376 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ F6 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Tc) | 4.5V, 10V | 25mOhm @ 12A, 10V | 2.5V @ 250µA | 26 nC @ 10 V | ±20V | 1320 pF @ 25 V | - | 40W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STU3N65M6MOSFET N-CH 650V 3.5A IPAK |
3,225 | 0.62 |
RFQ |
Tube | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 3.5A (Tc) | 10V | 1.5Ohm @ 1.75A, 10V | 3.75V @ 250µA | 6 nC @ 10 V | ±25V | 150 pF @ 100 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
STI4N62K3MOSFET N-CH 620V 3.8A I2PAK |
2,651 | 0.62 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 620 V | 3.8A (Tc) | 10V | 2Ohm @ 1.9A, 10V | 4.5V @ 50µA | 22 nC @ 10 V | ±30V | 550 pF @ 50 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STL35N75LF3MOSFET N-CH 75V 32A POWERFLAT |
2,672 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 32A (Tc) | 4.5V, 10V | 25mOhm @ 4A, 10V | 2.4V @ 250µA | 7.5 nC @ 4.5 V | ±20V | 800 pF @ 50 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STU6N65M2-SMOSFET N-CH 650V 4A IPAK |
3,983 | 0.64 |
RFQ |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 1.35Ohm @ 2A, 10V | 4V @ 250µA | 9.8 nC @ 10 V | ±25V | 226 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
STD3NK50ZT4MOSFET N-CH 500V 2.3A DPAK |
3,215 | 1.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 2.3A (Tc) | 10V | 3.3Ohm @ 1.15A, 10V | 4.5V @ 50µA | 15 nC @ 10 V | ±30V | 280 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STB6NK60Z-1MOSFET N-CH 600V 6A I2PAK |
3,789 | 0.66 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 1.2Ohm @ 3A, 10V | 4.5V @ 100µA | 46 nC @ 10 V | ±30V | 905 pF @ 25 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STQ2NK60ZR-APMOSFET N-CH 600V 400MA TO92-3 |
3,044 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 400mA (Tc) | 10V | 8Ohm @ 700mA, 10V | 4.5V @ 50µA | 10 nC @ 10 V | ±30V | 170 pF @ 25 V | - | 3W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STU25N10F7MOSFET N-CH 100V 25A IPAK |
2,446 | 0.70 |
RFQ |
Tube | STripFET™ F7 | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 25A | 4.5V, 10V | - | - | - | - | - | - | - | - | Through Hole |
