| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STL140N4LLF5MOSFET N-CH 40V 140A POWERFLAT |
3,209 | 4.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ V | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 140A (Tc) | 4.5V, 10V | 2.75mOhm @ 16A, 10V | 1V @ 250µA | 45 nC @ 4.5 V | ±22V | 5900 pF @ 25 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STP7N80K5MOSFET N-CH 800V 6A TO220 |
3,501 | 2.68 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 1.2Ohm @ 3A, 10V | 5V @ 100µA | 13.4 nC @ 10 V | ±30V | 360 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP40NF10MOSFET N-CH 100V 50A TO220AB |
2,594 | 2.70 |
RFQ |
Datasheet |
Tube | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Tc) | 10V | 28mOhm @ 25A, 10V | 4V @ 250µA | 62 nC @ 10 V | ±20V | 2180 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STH10N80K5-2AGMOSFET N-CH 800V 8A H2PAK-2 |
3,159 | 4.62 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 680mOhm @ 4A, 10V | 5V @ 100µA | 17.3 nC @ 10 V | ±30V | 426 pF @ 100 V | - | 121W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
STH240N10F7-2MOSFET N-CH 100V 180A H2PAK-2 |
2,457 | 4.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 2.5mOhm @ 60A, 10V | 4.5V @ 250µA | 160 nC @ 10 V | ±20V | 11550 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STB11NM60T4MOSFET N-CH 650V 11A D2PAK |
3,592 | 4.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 450mOhm @ 5.5A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±30V | 1000 pF @ 25 V | - | 160W (Tc) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
STB14NK50ZT4MOSFET N-CH 500V 14A D2PAK |
2,663 | 4.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 380mOhm @ 6A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2000 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STF13NK50ZMOSFET N-CH 500V 11A TO220FP |
910 | 2.84 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 11A (Tc) | 10V | 480mOhm @ 6.5A, 10V | 4.5V @ 100µA | 47 nC @ 10 V | ±30V | 1600 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP7NK80ZMOSFET N-CH 800V 5.2A TO220AB |
3,833 | 2.96 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.2A (Tc) | 10V | 1.8Ohm @ 2.6A, 10V | 4.5V @ 100µA | 56 nC @ 10 V | ±30V | 1138 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STU5N95K3MOSFET N-CH 950V 4A IPAK |
2,540 | 3.00 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 4A (Tc) | 10V | 3.5Ohm @ 2A, 10V | 5V @ 100µA | 19 nC @ 10 V | ±30V | 460 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STF9N80K5MOSFET N-CH 800V 7A TO220FP |
2,213 | 3.00 |
RFQ |
Datasheet |
Tube | MDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 900mOhm @ 3.5A, 10V | 5V @ 100µA | 12 nC @ 10 V | ±30V | 340 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF18NM60NMOSFET N-CH 600V 13A TO220FP |
3,227 | 3.05 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 285mOhm @ 6.5A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±25V | 1000 pF @ 50 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP12N65M5MOSFET N-CH 650V 8.5A TO220AB |
948 | 3.06 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8.5A (Tc) | 10V | 430mOhm @ 4.3A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±25V | 900 pF @ 100 V | - | 70W (Tc) | 150°C (TJ) | Through Hole |
|
STW6N95K5MOSFET N-CH 950V 9A TO247-3 |
2,970 | 3.07 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 9A (Tc) | 10V | 1.25Ohm @ 3A, 10V | 5V @ 100µA | 13 nC @ 10 V | ±30V | 450 pF @ 100 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STFU24N60M2MOSFET N-CH 600V 18A TO220FP |
2,422 | 3.13 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 190mOhm @ 9A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±25V | 1060 pF @ 100 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF8N65M5MOSFET N-CH 650V 7A TO220FP |
3,620 | 3.18 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 5V @ 250µA | 15 nC @ 10 V | ±25V | 690 pF @ 100 V | - | 25W (Tc) | 150°C (TJ) | Through Hole |
|
|
STP100N10F7MOSFET N CH 100V 80A TO-220 |
2,052 | 3.19 |
RFQ |
Datasheet |
Tube | DeepGATE™, STripFET™ VII | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 10V | 8mOhm @ 40A, 10V | 4.5V @ 250µA | 61 nC @ 10 V | ±20V | 4369 pF @ 50 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STFU16N65M2MOSFET N-CH 650V 11A TO220FP |
3,127 | 3.20 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 19.5 nC @ 10 V | ±25V | 718 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STB34N50DM2AGMOSFET N-CH 500V 26A D2PAK |
3,466 | 5.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 26A (Tc) | 10V | 120mOhm @ 12.5A, 10V | 5V @ 250µA | 44 nC @ 10 V | ±25V | 1850 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

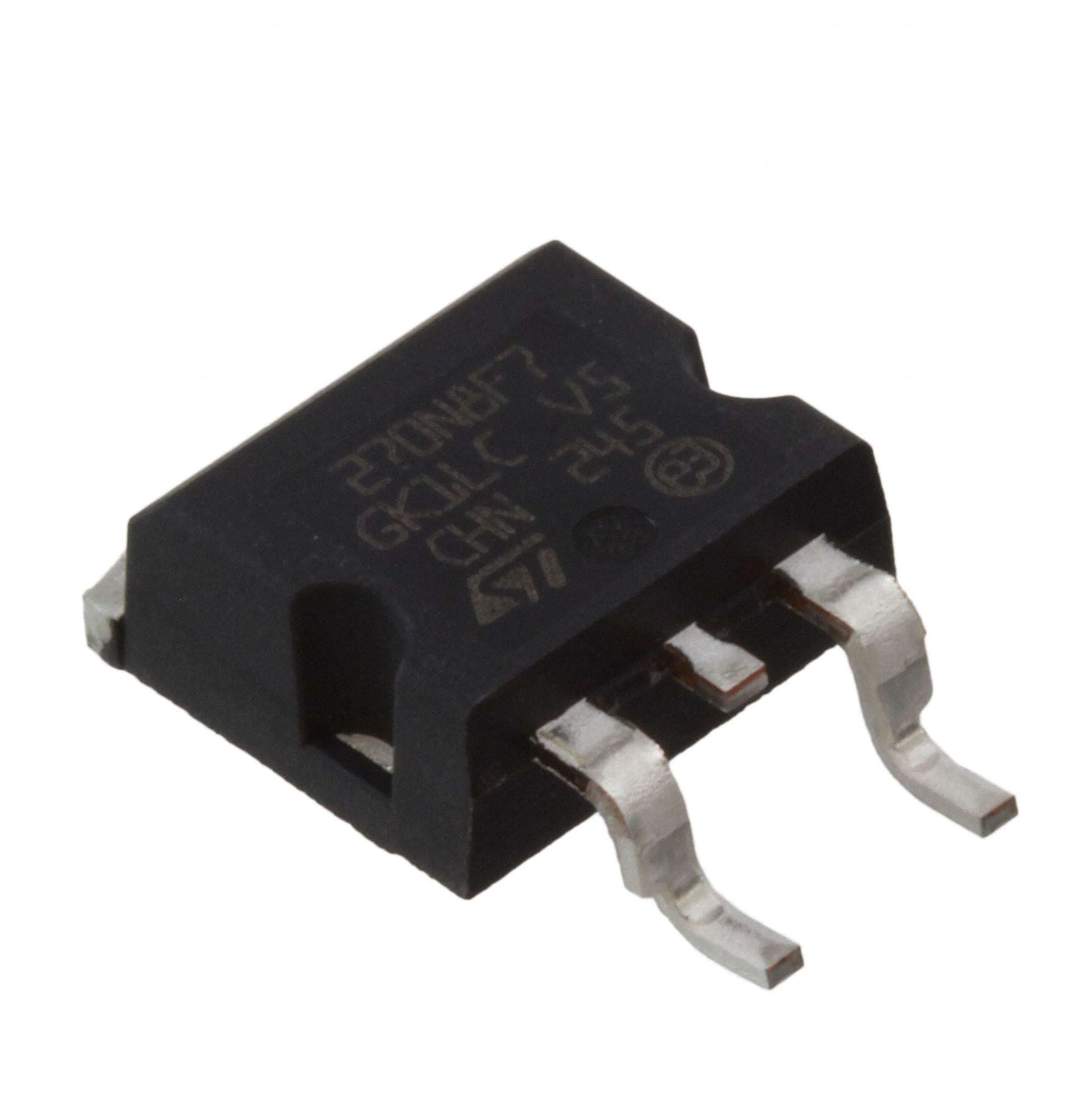

STH270N8F7-2MOSFET N-CH 80V 180A H2PAK |
3,877 | 5.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VII | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 180A (Tc) | 10V | 2.1mOhm @ 90A, 10V | 4V @ 250µA | 193 nC @ 10 V | ±20V | 13600 pF @ 50 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
