| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STB24N60M2MOSFET N-CH 600V 18A D2PAK |
3,973 | 3.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 190mOhm @ 9A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±25V | 1060 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STB24N60M6MOSFET N-CH 600V D2PAK |
3,082 | 3.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tc) | 10V | 190mOhm @ 8.5A, 10V | 4.75V @ 250µA | 23 nC @ 10 V | ±25V | 960 pF @ 100 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STP6N62K3MOSFET N-CH 620V 5.5A TO220AB |
3,007 | 2.04 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 620 V | 5.5A (Tc) | 10V | 1.2Ohm @ 2.8A, 10V | 4.5V @ 50µA | 34 nC @ 10 V | ±30V | 875 pF @ 50 V | - | 90W (Tc) | 150°C (TJ) | Through Hole |
|
|
STB26N60M2MOSFET N-CHANNEL 600V 20A D2PAK |
3,142 | 3.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 165mOhm @ 10A, 10V | 4V @ 250µA | 34 nC @ 10 V | ±25V | 1360 pF @ 100 V | - | 169W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STP45N10F7MOSFET N-CH 100V 45A TO220 |
3,804 | 2.08 |
RFQ |
Datasheet |
Tube | DeepGATE™, STripFET™ VII | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 45A (Tc) | 10V | 18mOhm @ 22.5A, 10V | 4.5V @ 250µA | 25 nC @ 10 V | ±20V | 1640 pF @ 50 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STF13N60DM2MOSFET N-CH 600V 11A TO220FP |
3,171 | 2.10 |
RFQ |
Datasheet |
Tube | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 365mOhm @ 5.5A, 10V | 5V @ 250µA | 19 nC @ 10 V | ±25V | 730 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STB8NM60T4MOSFET N-CH 650V 8A D2PAK |
3,549 | 3.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8A (Tc) | 10V | 1Ohm @ 2.5A, 10V | 5V @ 250µA | 18 nC @ 10 V | ±30V | 400 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STF13N65M2MOSFET N-CH 650V 10A TO220FP |
869 | 2.14 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 430mOhm @ 5A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±25V | 590 pF @ 100 V | - | 25W (Tc) | 150°C (TJ) | Through Hole |
|
|
STB24N60DM2MOSFET N-CH 600V 18A D2PAK |
3,877 | 3.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 200mOhm @ 9A, 10V | 5V @ 250µA | 29 nC @ 10 V | ±25V | 1055 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

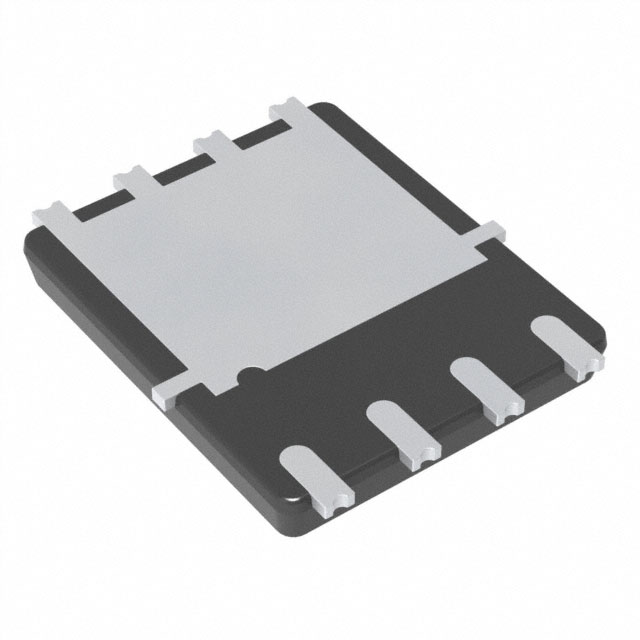

STLD125N4F6AGMOSFET N-CH 40V 120A POWERFLAT |
2,273 | 3.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ F6 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 6.5V, 10V | 3mOhm @ 75A, 10V | 4V @ 1mA | 91 nC @ 10 V | ±20V | 5600 pF @ 10 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STP11N65M5MOSFET N-CH 650V 9A TO220 |
3,847 | 2.17 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 9A (Tc) | 10V | 480mOhm @ 4.5A, 10V | 5V @ 250µA | 17 nC @ 10 V | ±25V | 644 pF @ 100 V | - | 85W (Tc) | 150°C (TJ) | Through Hole |
|
|
STB10N95K5MOSFET N-CH 950V 8A D2PAK |
2,408 | 3.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 8A (Tc) | 10V | 800mOhm @ 4A, 10V | 5V @ 100µA | 22 nC @ 10 V | ±30V | 630 pF @ 100 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STLD200N4F6AGMOSFET N-CH 40V 120A POWERFLAT |
2,814 | 3.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ F6 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 6.5V, 10V | 1.5mOhm @ 75A, 10V | 4V @ 1mA | 172 nC @ 10 V | ±20V | 10700 pF @ 10 V | - | 158W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STB80NF55L-06T4MOSFET N-CH 55V 80A D2PAK |
2,076 | 3.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 10V | 6.5mOhm @ 40A, 10V | 1V @ 250µA | 136 nC @ 5 V | ±20V | 4850 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STP13N65M2MOSFET N-CH 650V 10A TO220 |
3,776 | 2.26 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 430mOhm @ 5A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±25V | 590 pF @ 100 V | - | 110W (Tc) | 150°C (TJ) | Through Hole |
|
|
STP120N4F6MOSFET N-CH 40V 80A TO220AB |
3,077 | 2.29 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, DeepGATE™, STripFET™ VI | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 10V | 4.3mOhm @ 40A, 10V | 4V @ 250µA | 65 nC @ 10 V | ±20V | 3850 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STP4N90K5MOSFET N-CH 900V 3A TO220 |
3,752 | 2.31 |
RFQ |
Datasheet |
Tube | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 3A (Tc) | 10V | 2.1Ohm @ 1A, 10V | 5V @ 100µA | 5.3 nC @ 10 V | ±30V | 173 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
;;2.jpg)
|
STD11NM60NDMOSFET N-CH 600V 10A DPAK |
2,173 | 3.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 450mOhm @ 5A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±25V | 850 pF @ 50 V | - | 90W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STB28N60M2MOSFET N-CH 600V 22A D2PAK |
3,059 | 4.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II Plus | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 150mOhm @ 11A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±25V | 1440 pF @ 100 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STP140N6F7MOSFET N-CH 60V 80A TO220 |
3,527 | 2.62 |
RFQ |
Datasheet |
Tube | STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 10V | 3.5mOhm @ 40A, 10V | 4V @ 250µA | 55 nC @ 10 V | ±20V | 3100 pF @ 10 V | - | 158W (Tc) | 175°C (TJ) | Through Hole |
