| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
STD4LN80K5MOSFET N-CHANNEL 800V 3A DPAK |
3,913 | 1.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 3A (Tc) | 10V | 2.6Ohm @ 1A, 10V | 5V @ 100µA | 3.7 nC @ 10 V | ±30V | 122 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STD25N10F7MOSFET N-CH 100V 25A DPAK |
3,293 | 1.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VII | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 25A (Tc) | 10V | 35mOhm @ 12.5A, 10V | 4.5V @ 250µA | 14 nC @ 10 V | ±20V | 920 pF @ 50 V | - | 40W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

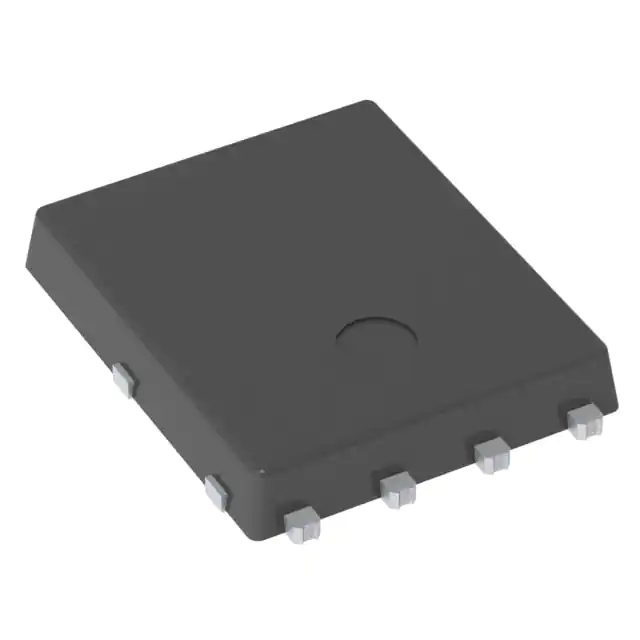

STL160N4F7MOSFET N-CH 40V 120A POWERFLAT |
2,726 | 1.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ F7 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 2.5mOhm @ 16A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±20V | 2300 pF @ 25 V | - | 111W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STD10N60DM2MOSFET N-CH 650V 8A DPAK |
3,619 | 1.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8A (Tc) | 10V | 530mOhm @ 4A, 10V | 5V @ 250µA | 15 nC @ 10 V | ±25V | 529 pF @ 100 V | - | 109W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STS10P3LLH6MOSFET P-CH 30V 10A 8SO |
2,762 | 0.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ H6 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 12mOhm @ 5A, 10V | 1V @ 250µA (Min) | 33 nC @ 4.5 V | ±20V | 3350 pF @ 25 V | - | 2.7W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STL70N4LLF5MOSFET N-CH 40V 70A POWERFLAT |
3,884 | 1.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ V | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 70A (Tc) | 4.5V, 10V | 6.5mOhm @ 9A, 10V | 1V @ 250µA | 13 nC @ 4.5 V | ±22V | 1800 pF @ 25 V | - | 72W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank |
|
|
STD52P3LLH6MOSFET P-CH 30V 52A DPAK |
3,292 | 1.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ H6 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 52A (Tc) | 4.5V, 10V | 12mOhm @ 26A, 10V | 2.5V @ 250µA | 33 nC @ 4.5 V | ±20V | 3350 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | Surface Mount |
|
|
STL66N3LLH5MOSFET N-CH 30V 80A POWERFLAT |
2,392 | 1.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ V | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 5.8mOhm @ 10.5A, 10V | 3V @ 250µA | 12 nC @ 4.5 V | ±22V | 1500 pF @ 25 V | - | 72W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank |
|
|
STS10P4LLF6MOSFET P-CH 40V 10A 8SO |
3,869 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ F6 | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 10A (Ta) | 4.5V, 10V | 15mOhm @ 3A, 10V | 1V @ 250µA (Min) | 34 nC @ 4.5 V | ±20V | 3525 pF @ 25 V | - | 2.7W (Ta) | 150°C (TJ) | Surface Mount |
|
STD4NK60Z-1MOSFET N-CH 600V 4A IPAK |
3,678 | 0.96 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 2Ohm @ 2A, 10V | 4.5V @ 50µA | 26 nC @ 10 V | ±30V | 510 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STD47N10F7AGMOSFET N-CH 100V 45A DPAK |
3,289 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, STripFET™ F7 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 45A (Tc) | 10V | 18mOhm @ 22.5A, 10V | 4.5V @ 250µA | 25 nC @ 10 V | ±10V | 1640 pF @ 50 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STD14NM50NAGMOSFET N-CH 500V 12A DPAK |
2,306 | 2.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, MDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4V @ 250µA | 27 nC @ 10 V | ±25V | 816 pF @ 50 V | - | 90W | 150°C (TJ) | Surface Mount |
|
|
STD45N10F7MOSFET N-CH 100V 45A DPAK |
3,394 | 2.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VII | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 45A (Tc) | 10V | 18mOhm @ 22.5A, 10V | 4.5V @ 250µA | 25 nC @ 10 V | ±20V | 1640 pF @ 50 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STL16N65M2MOSFET N-CH 650V 7.5A POWERFLAT |
2,582 | 2.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.5A (Tc) | 10V | 395mOhm @ 3.5A, 10V | 4V @ 250µA | 19.5 nC @ 10 V | ±25V | 718 pF @ 100 V | - | 56W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STD130N6F7MOSFET N-CHANNEL 60V 80A DPAK |
3,371 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 80A (Tc) | 10V | 5mOhm @ 40A, 10V | 4V @ 250µA | 42 nC @ 10 V | ±20V | 2600 pF @ 30 V | - | 134W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STD110N8F6MOSFET N-CH 80V 80A DPAK |
2,258 | 1.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ F6 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 80A (Tc) | 10V | 6.5mOhm @ 40A, 10V | 4.5V @ 250µA | 150 nC @ 10 V | ±20V | 9130 pF @ 40 V | - | 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

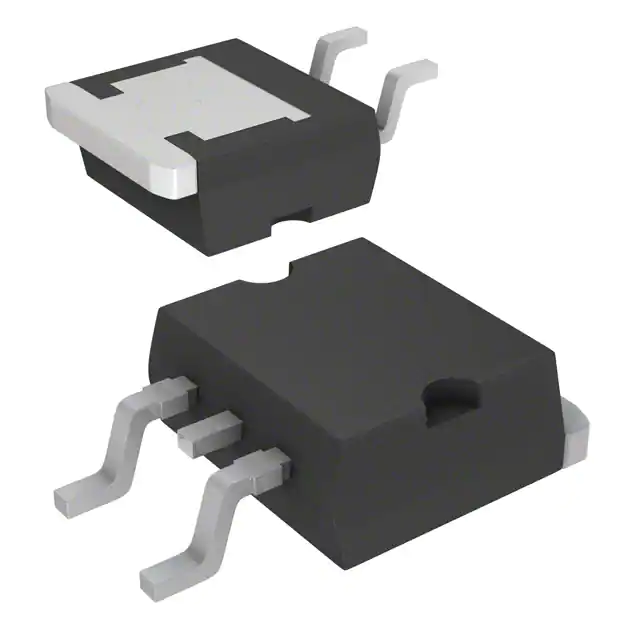

STB45NF06T4MOSFET N-CH 60V 38A D2PAK |
2,252 | 1.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 38A (Tc) | 10V | 28mOhm @ 19A, 10V | 4V @ 250µA | 58 nC @ 10 V | ±20V | 1730 pF @ 25 V | - | 80W (Tc) | 175°C (TJ) | Surface Mount |
|
|
STS5N15F4MOSFET N-CH 150V 5A 8SO |
3,144 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 5A (Tc) | 10V | 63mOhm @ 2.5A, 10V | 4V @ 250µA | 48 nC @ 10 V | ±20V | 2710 pF @ 25 V | - | 2.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STL12N60M2MOSFET N-CH 600V 6.5A POWERFLAT |
3,568 | 1.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.5A (Tc) | 10V | 495mOhm @ 4.5A, 10V | 4V @ 250µA | 16 nC @ 10 V | ±25V | 538 pF @ 100 V | - | 52W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STD5NK60ZT4MOSFET N-CH 600V 5A DPAK |
3,720 | 1.90 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperMESH™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1.6Ohm @ 2.5A, 10V | 4.5V @ 50µA | 34 nC @ 10 V | ±30V | 690 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
