| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

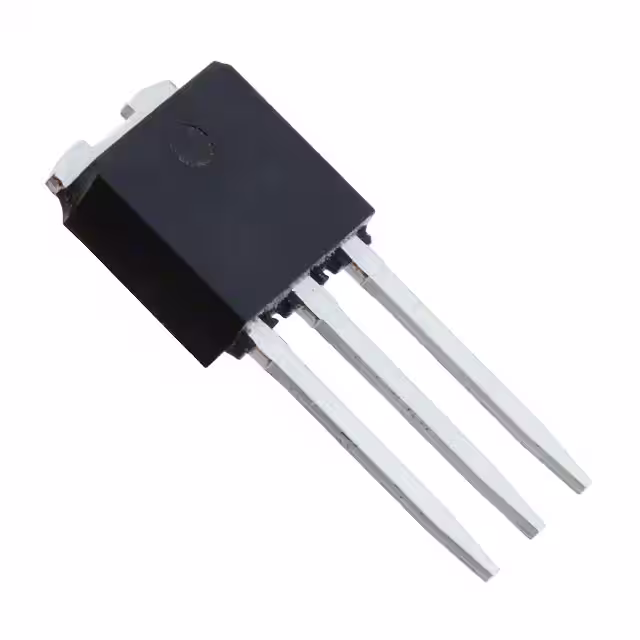

STD150NH02L-1MOSFET N-CH 24V 150A IPAK |
2,379 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ III | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 150A (Tc) | 5V, 10V | 3.5mOhm @ 75A, 10V | 1.8V @ 250µA | 93 nC @ 10 V | ±20V | 4450 pF @ 15 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STI24NM65NMOSFET N-CH 650V 19A I2PAK |
3,625 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 19A (Tc) | 10V | 190mOhm @ 9.5A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±25V | 2500 pF @ 50 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STW20NM65NMOSFET N-CH 650V 19A TO247-3 |
2,985 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 19A (Tc) | 10V | 190mOhm @ 9.5A, 10V | 4V @ 250µA | 70 nC @ 10 V | ±25V | 2500 pF @ 50 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STD3NM60-1MOSFET N-CH 600V 3A IPAK |
2,051 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3A (Tc) | 10V | 1.5Ohm @ 1.5A, 10V | 5V @ 250µA | 14 nC @ 10 V | ±30V | 324 pF @ 25 V | - | 42W (Tc) | -65°C ~ 150°C (TJ) | Through Hole |
|
STU95N2LH5MOSFET N-CH 25V 80A IPAK |
3,298 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 80A (Tc) | 5V, 10V | 4.9mOhm @ 40A, 10V | 1V @ 250µA | 13.4 nC @ 5 V | ±25V | 1817 pF @ 25 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STI25NM60NDMOSFET N-CH 600V 21A I2PAK |
2,339 | 0.00 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 160mOhm @ 10.5A, 10V | 5V @ 250µA | 80 nC @ 10 V | ±25V | 2400 pF @ 50 V | - | 160W (Tc) | 150°C (TJ) | Through Hole |
|
|
STD30PF03L-1MOSFET P-CH 30V 24A IPAK |
3,800 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ II | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Tc) | 5V, 10V | 28mOhm @ 12A, 10V | 1V @ 250µA | 28 nC @ 5 V | ±16V | 1670 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | Through Hole |
|
|
STD7NM80-1MOSFET N-CH 800V 6.5A IPAK |
100 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 6.5A (Tc) | 10V | 1.05Ohm @ 3.25A, 10V | 5V @ 250µA | 18 nC @ 10 V | ±30V | 620 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STU90N4F3MOSFET N-CH 40V 80A IPAK |
3,983 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ III | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 10V | 6.5mOhm @ 40A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 2200 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STB9NK70Z-1MOSFET N-CH 700V 7.5A I2PAK |
2,516 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 7.5A (Tc) | 10V | 1.2Ohm @ 4A, 10V | 4.5V @ 100µA | 68 nC @ 10 V | ±30V | 1370 pF @ 25 V | - | 115W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STU11NM60NDMOSFET N-CH 600V 10A IPAK |
2,632 | 0.00 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 450mOhm @ 5A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±25V | 850 pF @ 50 V | - | 90W (Tc) | 150°C (TJ) | Through Hole |
|
|
STB80NF55-06-1MOSFET N-CH 55V 80A I2PAK |
3,610 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ II | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 10V | 6.5mOhm @ 40A, 10V | 4V @ 250µA | 189 nC @ 10 V | ±20V | 4400 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STI19NM65NMOSFET N-CH 650V 15.5A I2PAK |
2,154 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15.5A (Tc) | 10V | 270mOhm @ 7.75A, 10V | 4V @ 250µA | 55 nC @ 10 V | ±25V | 1900 pF @ 50 V | - | 150W (Tc) | 150°C (TJ) | Through Hole |
|
|
STD4NK50Z-1MOSFET N-CH 500V 3A IPAK |
3,941 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 3A (Tc) | 10V | 2.7Ohm @ 1.5A, 10V | 4.5V @ 50µA | 12 nC @ 10 V | ±30V | 310 pF @ 25 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

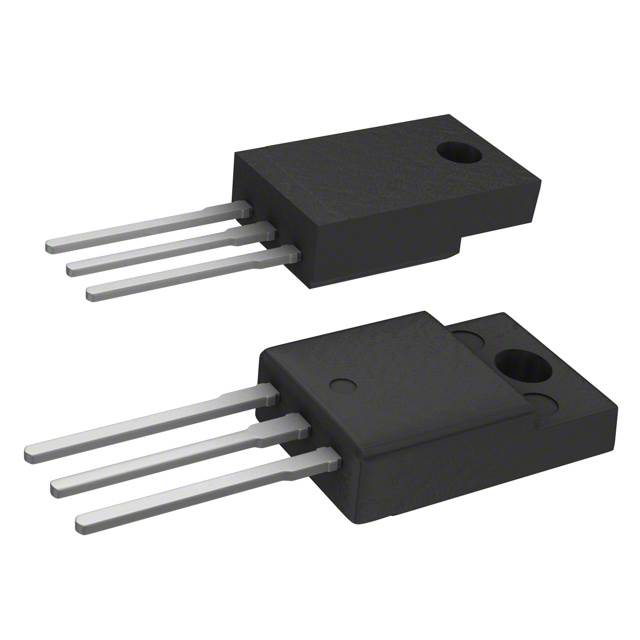

STP80NF55-06FPMOSFET N-CH 55V 60A TO220FP |
3,243 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 60A (Tc) | 10V | 6.5mOhm @ 40A, 10V | 4V @ 250µA | 189 nC @ 10 V | ±20V | 4400 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STF19NM65NMOSFET N-CH 650V 15.5A TO220FP |
2,392 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 15.5A (Tc) | 10V | 270mOhm @ 7.75A, 10V | 4V @ 250µA | 55 nC @ 10 V | ±25V | 1900 pF @ 50 V | - | 35W (Tc) | 150°C (TJ) | Through Hole |
|
|
STU70N2LH5MOSFET N-CH 25V 48A IPAK |
2,231 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 48A (Tc) | 5V, 10V | 7.5mOhm @ 24A, 10V | 1V @ 250µA | 8 nC @ 5 V | ±22V | 1300 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STB14NK50Z-1MOSFET N-CH 500V 14A I2PAK |
3,980 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 380mOhm @ 6A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2000 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STP5N120MOSFET N-CH 1200V 4.7A TO220-3 |
3,208 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 4.7A (Tc) | 10V | 3.5Ohm @ 2.3A, 10V | 5V @ 100µA | 55 nC @ 10 V | ±30V | 120 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP75NF75FPMOSFET N-CH 75V 80A TO220FP |
2,097 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 10V | 11mOhm @ 40A, 10V | 4V @ 250µA | 160 nC @ 10 V | ±20V | 3700 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
