| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STT2PF60LMOSFET P-CH 60V 2A SOT23-6 |
3,021 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Tc) | 4.5V, 10V | 250mOhm @ 1A, 10V | 1V @ 250µA | 7 nC @ 10 V | ±15V | 313 pF @ 25 V | - | 1.6W (Tc) | 150°C (TJ) | Surface Mount |
;;2.jpg)
|
STD8NM60NMOSFET N-CH 600V 7A DPAK |
2,692 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 650mOhm @ 3.5A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±25V | 560 pF @ 50 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STD85N3LH5MOSFET N-CH 30V 80A DPAK |
2,395 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 5V, 10V | 5mOhm @ 40A, 10V | 2.5V @ 250µA | 14 nC @ 5 V | ±22V | 1850 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | Surface Mount |
|
STB230NH03LMOSFET N-CH 30V 80A D2PAK |
3,898 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 3mOhm @ 40A, 10V | 2.5V @ 250µA | 72 nC @ 10 V | ±20V | 4700 pF @ 10 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STB60NF10T4MOSFET N-CH 100V 80A D2PAK |
2,306 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 10V | 23mOhm @ 40A, 10V | 4V @ 250µA | 104 nC @ 10 V | ±20V | 4270 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STB23NM60NMOSFET N-CH 600V 19A D2PAK |
3,836 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 19A (Tc) | 10V | 180mOhm @ 9.5A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±25V | 2050 pF @ 50 V | - | 150W (Tc) | 150°C (TJ) | Surface Mount |
|
|
STB85NS04ZMOSFET N-CH 33V 80A D2PAK |
2,260 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SAFeFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 33 V | 80A (Tc) | 10V | 15mOhm @ 30A, 10V | 4V @ 1mA | 100 nC @ 10 V | ±18V | 2500 pF @ 25 V | - | 215W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STB300NH02LMOSFET N-CH 24V 120A D2PAK |
3,794 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 120A (Tc) | 10V | 1.8mOhm @ 80A, 10V | 2V @ 250µA | 109.4 nC @ 10 V | ±20V | 7055 pF @ 15 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STB85NF3LLT4MOSFET N-CH 30V 85A D2PAK |
2,189 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 85A (Tc) | 4.5V, 10V | 8mOhm @ 40A, 10V | 1V @ 250µA | 40 nC @ 4.5 V | ±16V | 2210 pF @ 25 V | - | 110W (Tc) | -65°C ~ 175°C (TJ) | Surface Mount |
|
|
STB35NF10T4MOSFET N-CH 100V 40A D2PAK |
3,564 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 10V | 35mOhm @ 17.5A, 10V | 4V @ 250µA | 55 nC @ 10 V | ±20V | 1550 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STB40NS15T4MOSFET N-CH 150V 40A D2PAK |
3,254 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MESH OVERLAY™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 40A (Tc) | 10V | 52mOhm @ 20A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 2420 pF @ 25 V | - | 300W (Tc) | -65°C ~ 175°C (TJ) | Surface Mount |
|
STL6NM60NMOSFET N-CH 600V 5.75A POWERFLAT |
3,578 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.75A (Tc) | 10V | 920mOhm @ 2.3A, 10V | 4V @ 250µA | 13 nC @ 10 V | ±25V | 420 pF @ 50 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STB50NF25MOSFET N-CH 250V 45A D2PAK |
2,126 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 45A (Tc) | 10V | 69mOhm @ 22A, 10V | 4V @ 250µA | 68.2 nC @ 10 V | ±20V | 2670 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STS4NF100MOSFET N-CH 100V 4A 8SO |
3,898 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 4A (Tc) | 10V | 70mOhm @ 2A, 10V | 4V @ 250µA | 41 nC @ 10 V | ±20V | 870 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

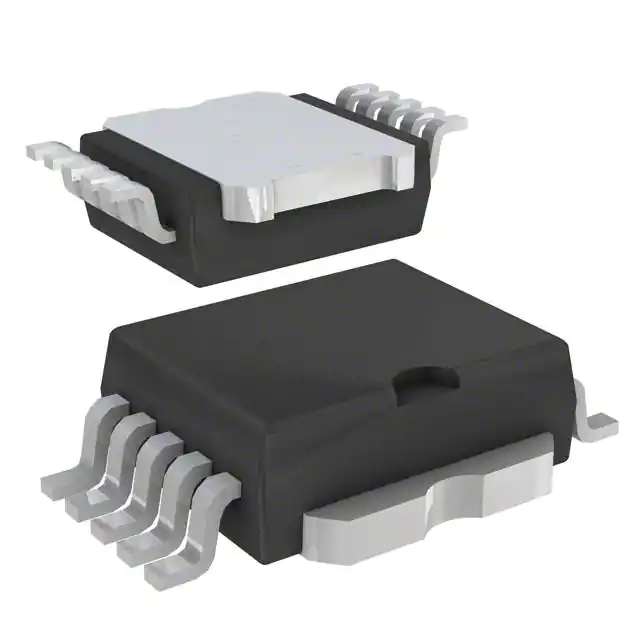

STV300NH02LMOSFET N-CH 24V 200A 10POWERSO |
3,113 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ III | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 200A (Tc) | 10V, 5V | 1mOhm @ 80A, 10V | 2V @ 250µA | 109 nC @ 10 V | ±20V | 7055 pF @ 15 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STT3PF30LMOSFET P-CH 30V 2.4A SOT23-6 |
3,869 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.4A (Tc) | 4.5V, 10V | 165mOhm @ 1.5A, 10V | 2.5V @ 250µA | 7 nC @ 4.5 V | ±16V | 420 pF @ 25 V | - | 1.6W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
STD36NH02LMOSFET N-CH 24V 30A DPAK |
2,008 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ III | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 30A (Tc) | 5V, 10V | 14.5mOhm @ 15A, 10V | 2.5V @ 250µA | 20 nC @ 10 V | ±20V | 860 pF @ 15 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STD90N02LMOSFET N-CH 25V 60A DPAK |
2,431 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ III | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 60A (Tc) | 5V, 10V | 6mOhm @ 30A, 10V | 1.8V @ 250µA | 22 nC @ 5 V | ±20V | 2050 pF @ 16 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STP25NM60NDMOSFET N-CH 600V 21A TO220AB |
3,346 | 0.00 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 160mOhm @ 10.5A, 10V | 5V @ 250µA | 80 nC @ 10 V | ±25V | 2400 pF @ 50 V | - | 160W (Tc) | 150°C (TJ) | Through Hole |
|
|
STP30NM60NMOSFET N-CH 600V 25A TO220AB |
2,089 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 130mOhm @ 12.5A, 10V | 4V @ 250µA | 91 nC @ 10 V | ±30V | 2700 pF @ 50 V | - | 190W (Tc) | 150°C (TJ) | Through Hole |
