| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STB8NM60NMOSFET N-CH 600V 7A D2PAK |
2,096 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 650mOhm @ 3.5A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±25V | 560 pF @ 50 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
;;2.jpg)
|
STD8NM60NDMOSFET N-CH 600V 7A DPAK |
2,583 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 700mOhm @ 3.5A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±30V | 560 pF @ 50 V | - | 70W (Tc) | 150°C (TJ) | Surface Mount |
|
STF20NK50ZMOSFET N-CH 500V 17A TO220FP |
3,518 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 17A (Tc) | 10V | 270mOhm @ 8.5A, 10V | 4.5V @ 100µA | 119 nC @ 10 V | ±30V | 2600 pF @ 25 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
STI42N65M5MOSFET N-CH 650V 33A I2PAK |
2,923 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 33A (Tc) | 10V | 79mOhm @ 16.5A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±25V | 4650 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STD95N3LLH6MOSFET N-CH 30V 80A DPAK |
2,060 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 4.2mOhm @ 40A, 10V | 2.5V @ 250µA | 20 nC @ 4.5 V | ±20V | 2200 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | Surface Mount |
|

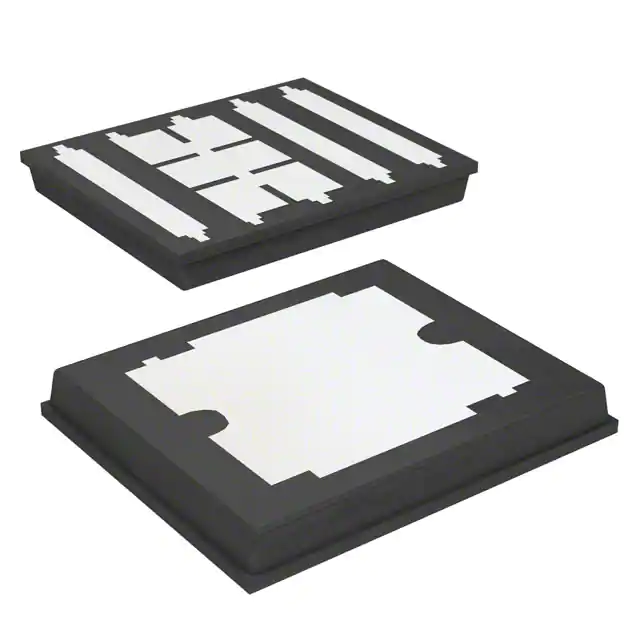

STK20N75F3MOSFET N-CH 75V 20A POLARPAK |
3,530 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 20A (Tc) | 10V | 7mOhm @ 10A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±20V | 3150 pF @ 25 V | - | 5.2W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STK28N3LLH5MOSFET N-CH 30V 28A POLARPAK |
3,470 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 28A (Tc) | 4.5V, 10V | 4.5mOhm @ 14A, 10V | 2.5V @ 250µA | 19 nC @ 4.5 V | ±22V | 2300 pF @ 25 V | - | 5.2W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STD6NM60N-1MOSFET N-CH 600V 4.6A IPAK |
2,741 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.6A (Tc) | 10V | 920mOhm @ 2.3A, 10V | 4V @ 250µA | 13 nC @ 10 V | ±25V | 420 pF @ 50 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STF30NM50NMOSFET N-CH 500V 27A TO220FP |
3,749 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 27A (Tc) | 10V | 115mOhm @ 13.5A, 10V | 4V @ 250µA | 94 nC @ 10 V | ±25V | 2740 pF @ 50 V | - | 40W (Tc) | 150°C (TJ) | Through Hole |
|
|
STF40NF03LMOSFET N-CH 30V 23A TO220FP |
2,522 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 23A (Tc) | 4.5V, 10V | 22mOhm @ 20A, 10V | 2.5V @ 250µA | 15 nC @ 4.5 V | ±16V | 770 pF @ 25 V | - | 25W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STF5NK52ZDMOSFET N-CH 520V 4.4A TO220FP |
3,364 | 0.00 |
RFQ |
Datasheet |
Tube | SuperMESH™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 520 V | 4.4A (Tc) | 10V | 1.5Ohm @ 2.2A, 10V | 4.5V @ 50µA | 16.9 nC @ 10 V | ±30V | 529 pF @ 25 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF8NM60NDMOSFET N-CH 600V 7A TO220FP |
3,256 | 0.00 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 700mOhm @ 3.5A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±30V | 560 pF @ 50 V | - | 25W (Tc) | 150°C (TJ) | Through Hole |
|
|
STU85N3LH5MOSFET N-CH 30V 80A IPAK |
2,185 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 5V, 10V | 5.4mOhm @ 40A, 10V | 2.5V @ 250µA | 14 nC @ 5 V | ±22V | 1850 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | Through Hole |
|
|
STU8NM60NDMOSFET N-CH 600V 7A IPAK |
3,160 | 0.00 |
RFQ |
Datasheet |
Tube | FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 700mOhm @ 3.5A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±30V | 560 pF @ 50 V | - | 70W (Tc) | 150°C (TJ) | Through Hole |
|
STP27N3LH5MOSFET N-CH 30V 27A TO220AB |
2,329 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 27A (Tc) | 4.5V, 10V | 20mOhm @ 13.5A, 10V | 2.5V @ 250µA | 4.6 nC @ 5 V | ±22V | 475 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STP200N6F3MOSFET N-CH 60V 120A TO220AB |
3,410 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.9mOhm @ 60A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 6800 pF @ 25 V | - | 330W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STP95N2LH5MOSFET N-CH 25V 80A TO220AB |
2,059 | 0.00 |
RFQ |
Datasheet |
Tube | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 80A (Tc) | 5V, 10V | 4.9mOhm @ 40A, 10V | 1V @ 250µA | 13.4 nC @ 5 V | ±22V | 1817 pF @ 25 V | - | 80W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
STS30N3LLH6MOSFET N-CH 30V 30A 8SO |
2,068 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Tc) | 4.5V, 10V | 2.4mOhm @ 15A, 10V | 1V @ 250µA | 40 nC @ 4.5 V | ±20V | 4040 pF @ 25 V | - | 2.7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STB95N3LLH6MOSFET N-CH 30V 80A D2PAK |
2,163 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 4.2mOhm @ 40A, 10V | 2.5V @ 250µA | 24.5 nC @ 4.5 V | ±20V | 2200 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | Surface Mount |
|
|
STD27N3LH5MOSFET N-CH 30V 27A DPAK |
2,612 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ V | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 27A (Tc) | 4.5V, 10V | 19mOhm @ 13.5A, 10V | 1V @ 250µA | 4.6 nC @ 5 V | ±22V | 475 pF @ 25 V | - | 30W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
