| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

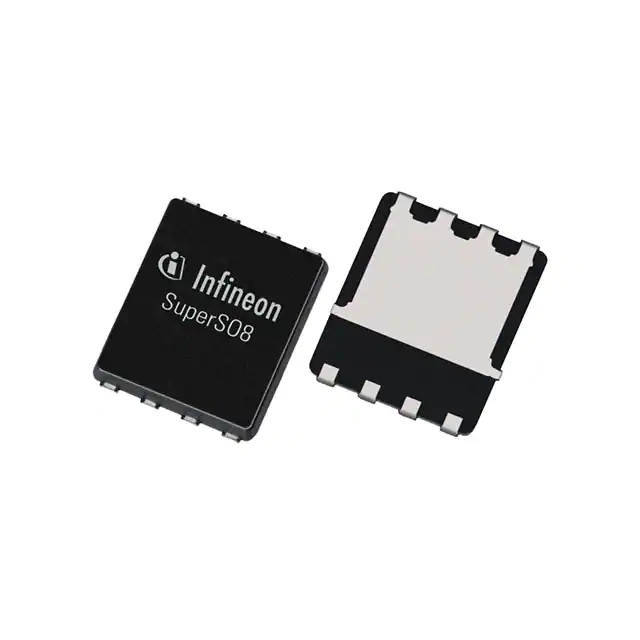

ISC045N03L5SATMA1MOSFET N-CH 30V 18A/63A TDSON |
2,579 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta), 63A (Tc) | 4.5V, 10V | 4.5mOhm @ 30A, 10V | 2V @ 250µA | 13 nC @ 10 V | ±20V | 870 pF @ 15 V | - | 2.5W (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPN50R2K0CEATMA1MOSFET N-CH 500V 3.6A SOT223 |
3,832 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolMOS™ CE | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 3.6A (Tc) | 13V | 2Ohm @ 600mA, 13V | 3.5V @ 50µA | 6 nC @ 10 V | ±20V | 124 pF @ 100 V | - | 5W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IRFTS9342TRPBFMOSFET P-CH 30V 5.8A 6TSOP |
2,801 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.8A (Ta) | 4.5V, 10V | 40mOhm @ 5.8A, 10V | 2.4V @ 25µA | 12 nC @ 10 V | ±20V | 595 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSR316PH6327XTSA1MOSFET P-CH 100V 360MA SC59 |
2,465 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 360mA (Ta) | 4.5V, 10V | 1.8Ohm @ 360mA, 10V | 1V @ 170µA | 7 nC @ 10 V | ±20V | 165 pF @ 25 V | - | 500mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPN60R2K1CEATMA1MOSFET N-CH 600V 3.7A SOT223 |
3,442 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.7A (Tc) | 10V | 2.1Ohm @ 800mA, 10V | 3.5V @ 60µA | 6.7 nC @ 10 V | ±20V | 140 pF @ 100 V | Super Junction | 5W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
BSS606NH6327XTSA1MOSFET N-CH 60V 3.2A SOT89 |
2,581 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 3.2A (Ta) | 4.5V, 10V | 60mOhm @ 3.2A, 10V | 2.3V @ 15µA | 5.6 nC @ 5 V | ±20V | 657 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRLR8726TRLPBFMOSFET N-CH 30V 86A DPAK |
3,162 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 86A (Tc) | 4.5V, 10V | 5.8mOhm @ 25A, 10V | 2.35V @ 50µA | 23 nC @ 4.5 V | ±20V | 2150 pF @ 15 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRL6342TRPBFMOSFET N-CH 30V 9.9A 8SO |
2,026 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.9A (Ta) | 2.5V, 4.5V | 14.6mOhm @ 9.9A, 4.5V | 1.1V @ 10µA | 11 nC @ 4.5 V | ±12V | 1025 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS87H6327FTSA1MOSFET N-CH 240V 260MA SOT89-4 |
3,035 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 240 V | 260mA (Ta) | 4.5V, 10V | 6Ohm @ 260mA, 10V | 1.8V @ 108µA | 5.5 nC @ 10 V | ±20V | 97 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPN70R2K0P7SATMA1MOSFET N-CH 700V 3A SOT223 |
3,413 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 3A (Tc) | 10V | 2Ohm @ 500mA, 10V | 3.5V @ 30µA | 3.8 nC @ 10 V | ±16V | 130 pF @ 400 V | - | 6W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IPD60R2K1CEAUMA1MOSFET N-CH 600V 2.3A TO252-3 |
2,538 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ CE | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.3A (Tc) | 10V | 2.1Ohm @ 760mA, 10V | 3.5V @ 60µA | 6.7 nC @ 10 V | ±20V | 140 pF @ 100 V | - | 38W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IPN60R1K5CEATMA1MOSFET N-CH 600V 5A SOT223 |
3,991 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ CE | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 5A (Tc) | 10V | 1.5Ohm @ 1.1A, 10V | 3.5V @ 90µA | 9.4 nC @ 10 V | ±20V | 200 pF @ 100 V | - | 5W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS192PH6327FTSA1MOSFET P-CH 250V 190MA SOT89 |
2,309 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | P-Channel | MOSFET (Metal Oxide) | 250 V | 190mA (Ta) | 2.8V, 10V | 12Ohm @ 190mA, 10V | 2V @ 130µA | 6.1 nC @ 10 V | ±20V | 104 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFH3702TRPBFMOSFET N-CH 30V 16A/42A 8PQFN |
2,931 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 42A (Tc) | 4.5V, 10V | 7.1mOhm @ 16A, 10V | 2.35V @ 25µA | 14 nC @ 4.5 V | ±20V | 1510 pF @ 15 V | - | 2.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ISC037N03L5ISATMA1MOSFET N-CH 30V 20A/78A TDSON |
3,495 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta), 78A (Tc) | 4.5V, 10V | 3.7mOhm @ 30A, 10V | 2V @ 250µA | 17 nC @ 10 V | ±20V | 1100 pF @ 15 V | - | 2.5W (Ta), 37W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFL024NTRPBFMOSFET N-CH 55V 2.8A SOT223 |
2,978 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 2.8A (Ta) | 10V | 75mOhm @ 2.8A, 10V | 4V @ 250µA | 18.3 nC @ 10 V | ±20V | 400 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFML8244TRPBFMOSFET N-CH 25V 5.8A SOT23 |
42,000 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 5.8A (Ta) | 4.5V, 10V | 24mOhm @ 5.8A, 10V | 2.35V @ 10µA | 5.4 nC @ 10 V | ±20V | 430 pF @ 10 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ISZ065N03L5SATMA1MOSFET N-CH 30V 12A/40A TSDSON |
3,570 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 40A (Tc) | 4.5V, 10V | 6.5mOhm @ 20A, 10V | 2V @ 250µA | 10 nC @ 10 V | ±20V | 670 pF @ 15 V | - | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPN70R1K2P7SATMA1MOSFET N-CH 700V 4.5A SOT223 |
9,000 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 4.5A (Tc) | 10V | 1.2Ohm @ 900mA, 10V | 3.5V @ 40µA | 4.8 nC @ 10 V | ±16V | 174 pF @ 400 V | - | 6.3W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS225H6327FTSA1MOSFET N-CH 600V 90MA SOT89 |
2,707 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 90mA (Ta) | 4.5V, 10V | 45Ohm @ 90mA, 10V | 2.3V @ 94µA | 5.8 nC @ 10 V | ±20V | 131 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
