| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

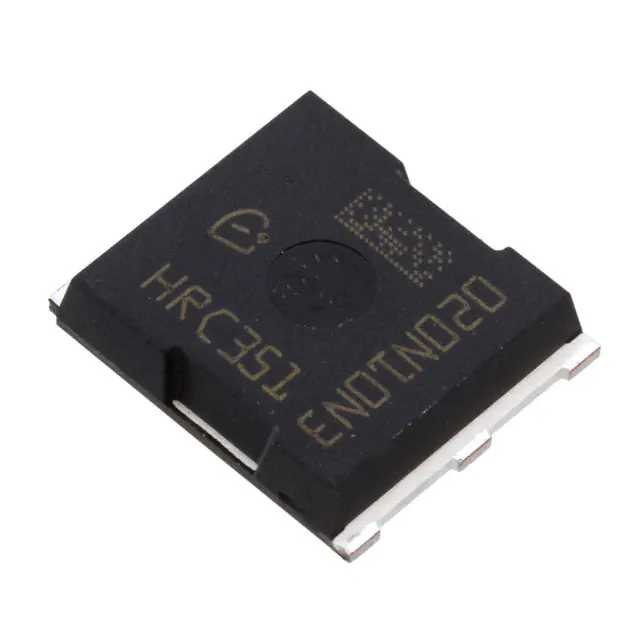

IPT020N10N3ATMA1MOSFET N-CH 100V 300A 8HSOF |
3,283 | 10.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 300A (Tc) | 6V, 10V | 2mOhm @ 150A, 10V | 3.5V @ 272µA | 156 nC @ 10 V | ±20V | 11200 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
.jpg)
|
IPT059N15N3ATMA1MOSFET N-CH 150V 155A 8HSOF |
2,930 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 155A (Tc) | 8V, 10V | 5.9mOhm @ 150A, 10V | 4V @ 270µA | 92 nC @ 10 V | ±20V | 7200 pF @ 75 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPB017N10N5LFATMA1MOSFET N-CH 100V 180A TO263-7 |
3,695 | 10.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™-5 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 1.7mOhm @ 100A, 10V | 4.1V @ 270µA | 195 nC @ 10 V | ±20V | 840 pF @ 50 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPB110N20N3LFATMA1MOSFET N-CH 200V 88A TO263-3 |
2,525 | 10.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ 3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 88A (Tc) | 10V | 11mOhm @ 88A, 10V | 4.2V @ 260µA | 76 nC @ 10 V | ±20V | 650 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPB107N20NAATMA1MOSFET N-CH 200V 88A D2PAK |
2,948 | 11.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 88A (Tc) | 10V | 10.7mOhm @ 88A, 10V | 4V @ 270µA | 87 nC @ 10 V | ±20V | 7100 pF @ 100 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPB048N15N5LFATMA1MOSFET N-CH 150V 120A D2PAK |
2,359 | 11.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™-5 | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 120A (Tc) | 10V | 4.8mOhm @ 100A, 10V | 4.9V @ 255µA | 84 nC @ 10 V | ±20V | 380 pF @ 75 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPL65R070C7AUMA1MOSFET N-CH 650V 28A 4VSON |
2,821 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 28A (Tc) | 10V | 70mOhm @ 8.5A, 10V | 4V @ 850µA | 64 nC @ 10 V | ±20V | 3020 pF @ 100 V | - | 169W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
AUIRF7769L2TRMOSFET N-CH 100V 375A DIRECTFET |
3,559 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 375A (Tc) | 10V | 3.5mOhm @ 74A, 10V | 4V @ 250µA | 300 nC @ 10 V | ±20V | 11560 pF @ 25 V | - | 3.3W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
AUIRFS8409-7PMOSFET N-CH 40V 240A D2PAK |
2,962 | 7.93 |
RFQ |
Datasheet |
Bulk,Tube | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 10V | 0.75mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 13975 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPP60R125CPXKSA1MOSFET N-CH 650V 25A TO220-3 |
2,774 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 25A (Tc) | 10V | 125mOhm @ 16A, 10V | 3.5V @ 1.1mA | 70 nC @ 10 V | ±20V | 2500 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPP220N25NFDAKSA1MOSFET N-CH 250V 61A TO220-3 |
2,875 | 8.18 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 61A (Tc) | 10V | 22mOhm @ 61A, 10V | 4V @ 270µA | 86 nC @ 10 V | ±20V | 7076 pF @ 125 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRFP4368PBFMOSFET N-CH 75V 195A TO247AC |
3,642 | 9.36 |
RFQ |
Datasheet |
Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 195A (Tc) | 10V | 1.85mOhm @ 195A, 10V | 4V @ 250µA | 570 nC @ 10 V | ±20V | 19230 pF @ 50 V | - | 520W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPP200N25N3GXKSA1MOSFET N-CH 250V 64A TO220-3 |
2,437 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 64A (Tc) | 10V | 20mOhm @ 64A, 10V | 4V @ 270µA | 86 nC @ 10 V | ±20V | 7100 pF @ 100 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFP4468PBFMOSFET N-CH 100V 195A TO247AC |
2,516 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 195A (Tc) | 10V | 2.6mOhm @ 180A, 10V | 4V @ 250µA | 540 nC @ 10 V | ±20V | 19860 pF @ 50 V | - | 520W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPBE65R050CFD7AATMA1MOSFET N-CH 650V 45A TO263-7 |
3,815 | 15.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 45A (Tc) | 10V | 50mOhm @ 24.8A, 10V | 4.5V @ 1.24mA | 102 nC @ 10 V | ±20V | 4975 pF @ 400 V | - | 227W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF200P222MOSFET N-CH 200V 182A TO247AC |
3,844 | 11.29 |
RFQ |
Datasheet |
Tube | StrongIRFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 182A (Tc) | 10V | 6.6mOhm @ 82A, 10V | 4V @ 270µA | 203 nC @ 10 V | ±20V | 9820 pF @ 50 V | - | 556W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPW65R080CFDFKSA1MOSFET N-CH 700V 43.3A TO247-3 |
3,729 | 12.26 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 700 V | 43.3A (Tc) | 10V | 80mOhm @ 17.6A, 10V | 4.5V @ 1.76mA | 170 nC @ 10 V | ±20V | 5030 pF @ 100 V | - | 391W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPW65R080CFDAFKSA1MOSFET N-CH 650V 43.3A TO247-3 |
3,697 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | Automotive, AEC-Q101, CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 43.3A (Tc) | 10V | 80mOhm @ 17.6A, 10V | 4.5V @ 1.76mA | 161 nC @ 10 V | ±20V | 4440 pF @ 100 V | - | 391W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IPT60R028G7XTMA1MOSFET N-CH 600V 75A 8HSOF |
2,842 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolMOS™ G7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 75A (Tc) | 10V | 28mOhm @ 28.8A, 10V | 4V @ 1.44mA | 123 nC @ 10 V | ±20V | 4820 pF @ 400 V | - | 391W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPP65R045C7XKSA1MOSFET N-CH 650V 46A TO220-3 |
3,988 | 16.78 |
RFQ |
Datasheet |
Tube | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 45mOhm @ 24.9A, 10V | 4V @ 1.25mA | 93 nC @ 10 V | ±20V | 4340 pF @ 400 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
