| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF9317TRPBFMOSFET P-CH 30V 16A 8SO |
3,689 | 1.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 6.6mOhm @ 16A, 10V | 2.4V @ 50µA | 92 nC @ 10 V | ±20V | 2820 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

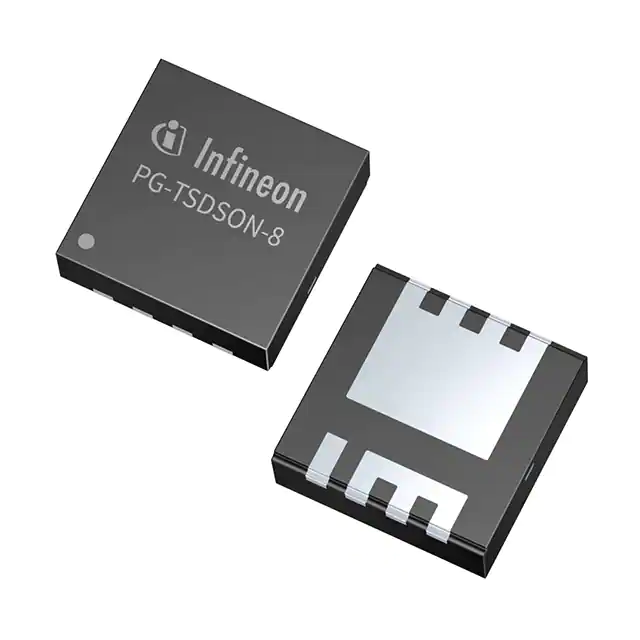

IAUZ40N06S5N050ATMA1MOSFET N-CH 60V 40A TSDSON-8-33 |
3,574 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™-5 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 40A (Tj) | - | 5mOhm @ 20A, 10V | 3.4V @ 29µA | 30.5 nC @ 10 V | ±20V | 2200 pF @ 30 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

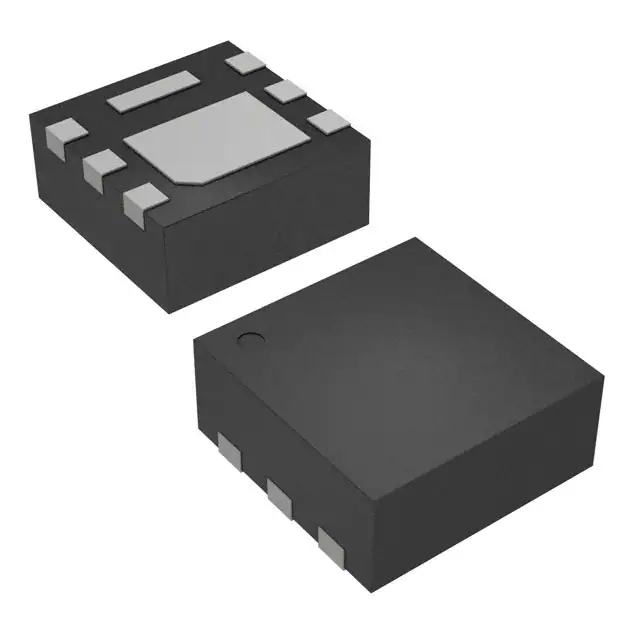

IRL60HS118MOSFET N-CH 60V 18.5A 6PQFN |
3,892 | 1.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 18.5A (Tc) | 4.5V, 10V | 17mOhm @ 11A, 10V | 2.3V @ 10µA | 8 nC @ 4.5 V | ±20V | 660 pF @ 25 V | - | 11.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
ISZ0703NLSATMA1MOSFET N-CH 60V 13A/56A TSDSON |
2,394 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ 5 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 13A (Ta), 56A (Tc) | 4.5V, 10V | 7.3mOhm @ 20A, 10V | 2.3V @ 15µA | 23 nC @ 10 V | ±20V | 1400 pF @ 30 V | - | 2.5W (Ta), 44W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRLR6225TRPBFMOSFET N-CH 20V 100A DPAK |
3,463 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 100A (Tc) | 2.5V, 4.5V | 4mOhm @ 21A, 4.5V | 1.1V @ 50µA | 72 nC @ 4.5 V | ±12V | 3770 pF @ 10 V | - | 63W (Tc) | -50°C ~ 150°C (TJ) | Surface Mount |
|
BSZ100N06LS3GATMA1MOSFET N-CH 60V 11A/20A 8TSDSON |
3,410 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 11A (Ta), 20A (Tc) | 4.5V, 10V | 10mOhm @ 20A, 10V | 2.2V @ 23µA | 45 nC @ 10 V | ±20V | 3500 pF @ 30 V | - | 2.1W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPN60R360P7SATMA1MOSFET N-CHANNEL 600V 9A SOT223 |
3,187 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9A (Tc) | 10V | 360mOhm @ 2.7A, 10V | 4V @ 140µA | 13 nC @ 10 V | ±20V | 555 pF @ 400 V | - | 7W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
BSC024NE2LSATMA1MOSFET N-CH 25V 25A/110A TDSON |
3,590 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 25A (Ta), 110A (Tc) | 4.5V, 10V | 2.4mOhm @ 30A, 10V | 2V @ 250µA | 23 nC @ 10 V | ±20V | 1700 pF @ 12 V | - | 2.5W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF7410TRPBFMOSFET P-CH 12V 16A 8SO |
2,224 | 1.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 16A (Ta) | 1.8V, 4.5V | 7mOhm @ 16A, 4.5V | 900mV @ 250µA | 91 nC @ 4.5 V | ±8V | 8676 pF @ 10 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRL100HS121MOSFET N-CH 100V 11A 6PQFN |
3,840 | 1.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 11A (Tc) | 4.5V, 10V | 42mOhm @ 6.7A, 10V | 2.3V @ 10µA | 5.6 nC @ 4.5 V | ±20V | 440 pF @ 50 V | - | 11.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
BSZ0703LSATMA1MOSFET N-CH 60V 40A TSDSON |
3,918 | 1.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 40A (Tc) | 4.5V, 10V | 6.5mOhm @ 20A, 10V | 2.3V @ 20µA | 13 nC @ 4.5 V | ±20V | 1800 pF @ 30 V | Standard | 46W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSC030N03LSGATMA1MOSFET N-CH 30V 23A/100A TDSON |
3,431 | 1.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 23A (Ta), 100A (Tc) | 4.5V, 10V | 3mOhm @ 30A, 10V | 2.2V @ 250µA | 55 nC @ 10 V | ±20V | 4300 pF @ 15 V | - | 2.5W (Ta), 69W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR540ZTRPBFMOSFET N-CH 100V 35A DPAK |
2,443 | 1.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 10V | 28.5mOhm @ 21A, 10V | 4V @ 50µA | 59 nC @ 10 V | ±20V | 1690 pF @ 25 V | - | 91W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPD050N03LGATMA1MOSFET N-CH 30V 50A TO252-3 |
2,359 | 1.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 5mOhm @ 30A, 10V | 2.2V @ 250µA | 31 nC @ 10 V | ±20V | 3200 pF @ 15 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRLR3105TRPBFMOSFET N-CH 55V 25A DPAK |
3,694 | 1.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 25A (Tc) | 5V, 10V | 37mOhm @ 15A, 10V | 3V @ 250µA | 20 nC @ 5 V | ±16V | 710 pF @ 25 V | - | 57W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
ISZ0803NLSATMA1MOSFET N-CH 100V 7.7A/37A TSDSON |
2,858 | 1.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ 5 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.7A (Ta), 37A (Tc) | 4.5V, 10V | 16.9mOhm @ 20A, 10V | 2.3V @ 18µA | 15 nC @ 10 V | ±20V | 1000 pF @ 50 V | - | 2.1W (Ta), 43W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPN95R2K0P7ATMA1MOSFET N-CH 950V 4A SOT223 |
3,763 | 1.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 4A (Tc) | 10V | 2Ohm @ 1.7A, 10V | 3.5V @ 80µA | 10 nC @ 10 V | ±20V | 330 pF @ 400 V | - | 7W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF7862TRPBFMOSFET N-CH 30V 21A 8SO |
3,826 | 1.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta) | 4.5V, 10V | 3.7mOhm @ 20A, 10V | 2.35V @ 100µA | 45 nC @ 4.5 V | ±20V | 4090 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSC060P03NS3EGATMA1MOSFET P-CH 30V 17.7/100A 8TDSON |
3,312 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 17.7A (Ta), 100A (Tc) | 6V, 10V | 6mOhm @ 50A, 10V | 3.1V @ 150µA | 81 nC @ 10 V | ±25V | 6020 pF @ 15 V | - | 2.5W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR7446TRPBFMOSFET N-CH 40V 56A DPAK |
3,061 | 1.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET®, StrongIRFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 56A (Tc) | 6V, 10V | 3.9mOhm @ 56A, 10V | 3.9V @ 100µA | 130 nC @ 10 V | ±20V | 3150 pF @ 25 V | - | 98W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
