| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPP04N60C3XKSA1MOSFET N-CH 600V 4.5A TO220-3 |
1,000 | 0.92 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.5A (Tc) | 10V | 950mOhm @ 2.8A, 10V | 3.9V @ 200µA | 25 nC @ 10 V | ±20V | 490 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|

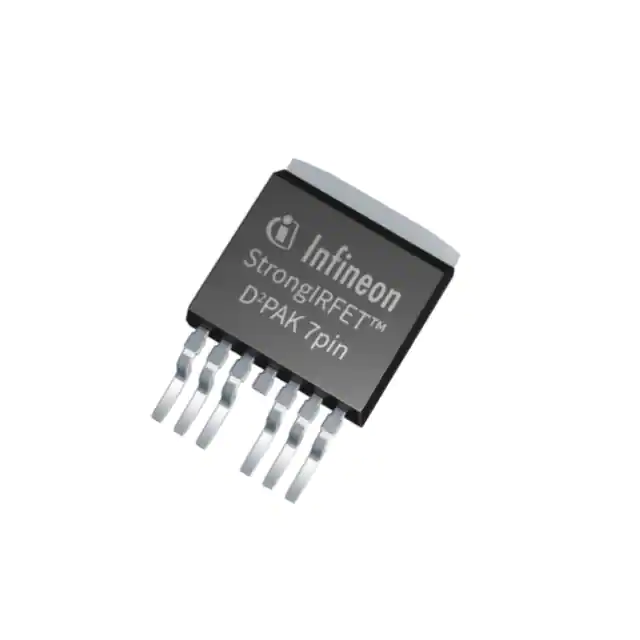

IRFS7530-7PPBFMOSFET N CH 60V 240A D2PAK |
3,893 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET®, StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 240A (Tc) | 6V, 10V | 1.4mOhm @ 100A, 10V | 3.7V @ 250µA | 354 nC @ 10 V | ±20V | 12960 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRFS7530PBFMOSFET N-CH 60V 195A D2PAK |
2,458 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | HEXFET®, StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 195A (Tc) | 6V, 10V | 2mOhm @ 100A, 10V | 3.7V @ 250µA | 411 nC @ 10 V | ±20V | 13703 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS7534-7PPBFMOSFET N CH 60V 240A D2PAK |
2,608 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET®, StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 240A (Tc) | 6V, 10V | 1.95mOhm @ 100A, 10V | 3.7V @ 250µA | 300 nC @ 10 V | ±20V | 9990 pF @ 25 V | - | 290W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS7534PBFMOSFET N CH 60V 195A D2PAK |
3,667 | 1.00 |
RFQ |
Datasheet |
Tube,Tube | HEXFET®, StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 195A (Tc) | 6V, 10V | 2.4mOhm @ 100A, 10V | 3.7V @ 250µA | 279 nC @ 10 V | ±20V | 10034 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS7537PBFMOSFET N CH 60V 173A D2PAK |
2,512 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET®, StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 173A (Tc) | 6V, 10V | 3.3mOhm @ 100A, 10V | 3.7V @ 150µA | 210 nC @ 10 V | ±20V | 7020 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS7540PBFMOSFET N CH 60V 110A D2PAK |
3,557 | 1.00 |
RFQ |
Datasheet |
Tube,Tube | HEXFET®, StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 110A (Tc) | 6V, 10V | 5.1mOhm @ 65A, 10V | 3.7V @ 100µA | 130 nC @ 10 V | ±20V | 4555 pF @ 25 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRFI7536GPBFMOSFET N-CH 60V 86A TO220 |
1,330 | 1.58 |
RFQ |
Datasheet |
Bulk,Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 86A (Tc) | 10V | 3.4mOhm @ 75A, 10V | 4V @ 150µA | 195 nC @ 10 V | ±20V | 6600 pF @ 48 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
AUIRFS4115-7PMOSFET N-CH 150V 105A D2PAK |
3,219 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 105A (Tc) | 10V | 11.8mOhm @ 63A, 10V | 5V @ 250µA | 110 nC @ 10 V | ±20V | 5320 pF @ 50 V | - | 380W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
AUIRFS4115-7TRLMOSFET N-CH 150V 105A D2PAK |
2,834 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 105A (Tc) | 10V | 11.8mOhm @ 63A, 10V | 5V @ 250µA | 110 nC @ 10 V | ±20V | 5320 pF @ 50 V | - | 380W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

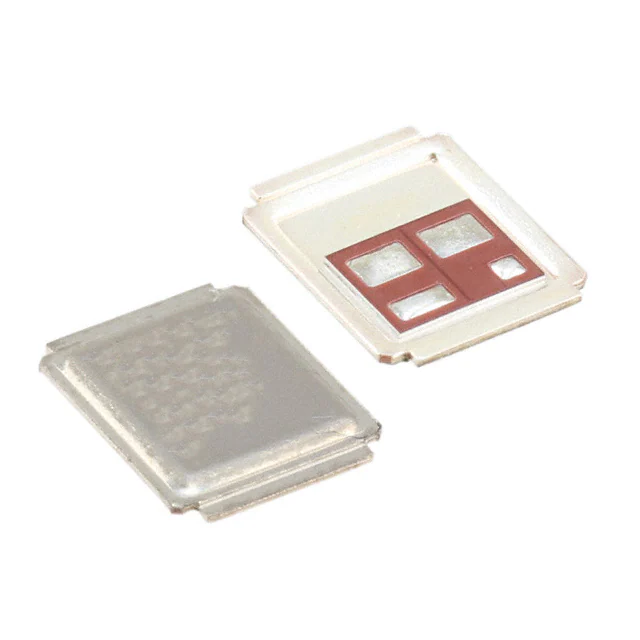

IRL6283MTRPBFMOSFET N-CH 20V 38A DIRECTFET |
3,650 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET®, StrongIRFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 38A (Ta), 211A (Tc) | 2.5V, 4.5V | 0.75mOhm @ 50A, 10V | 1.1V @ 100µA | 158 nC @ 4.5 V | ±12V | 8292 pF @ 10 V | - | 2.1W (Ta), 63W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IRFR7546PBFMOSFET N-CH 60V 56A DPAK |
2,875 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 56A (Tc) | 6V, 10V | 7.9mOhm @ 43A, 10V | 3.7V @ 100µA | 87 nC @ 10 V | ±20V | 3020 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

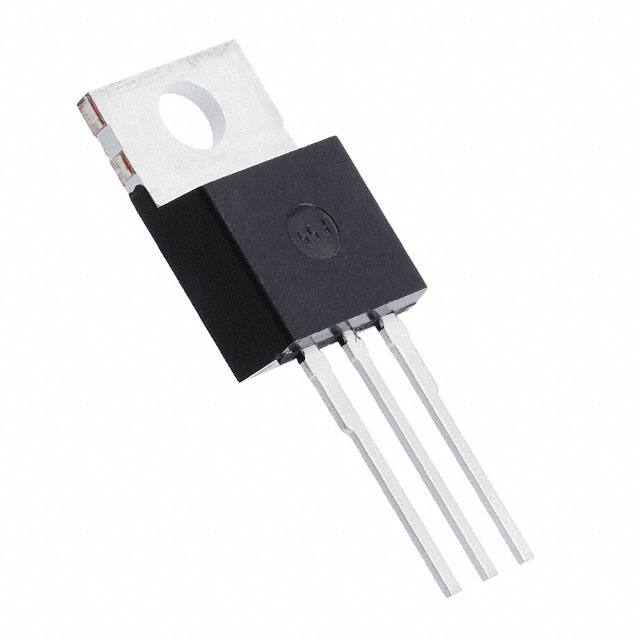

SPP16N50C3XKSA1MOSFET N-CH 560V 16A TO220-3 |
2,548 | 0.00 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 560 V | 16A (Tc) | 10V | 280mOhm @ 10A, 10V | 3.9V @ 675µA | 66 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFS7430PBFMOSFET N-CH 40V 195A D2PAK |
3,638 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET®, StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
AUIRFN8403TRMOSFET N-CH 40V 95A 8PQFN |
3,584 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 95A (Tc) | 10V | 3.3mOhm @ 50A, 10V | 3.9V @ 100µA | 98 nC @ 10 V | ±20V | 3174 pF @ 25 V | - | 4.3W (Ta), 94W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFR7540PBFMOSFET N-CH 60V 90A DPAK |
3,643 | 0.51 |
RFQ |
Datasheet |
Tube,Tube | StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | 6V, 10V | 4.8mOhm @ 66A, 10V | 3.7V @ 100µA | 130 nC @ 10 V | ±20V | 4360 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRFS7430-7PPBFMOSFET N-CH 40V 240A D2PAK |
2,777 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET®, StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 6V, 10V | 0.75mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 13975 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFS7434PBFMOSFET N-CH 40V 195A D2PAK |
2,959 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET®, StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.6mOhm @ 100A, 10V | 3.9V @ 250µA | 324 nC @ 10 V | ±20V | 10820 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPU80R1K4CEBKMA1MOSFET N-CH 800V 3.9A TO251-3 |
20,500 | 0.33 |
RFQ |
Datasheet |
Tube,Tube | CoolMOS™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 800 V | 3.9A (Tc) | 10V | 1.4Ohm @ 2.3A, 10V | 3.9V @ 240µA | 23 nC @ 10 V | ±20V | 570 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPU80R2K8CEBKMA1MOSFET N-CH 800V 1.9A TO251-3 |
2,462 | 0.00 |
RFQ |
Datasheet |
Tube,Tube | CoolMOS™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 800 V | 1.9A (Tc) | 10V | 2.8Ohm @ 1.1A, 10V | 3.9V @ 120µA | 12 nC @ 10 V | ±20V | 290 pF @ 100 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
