| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFR7446PBFMOSFET N-CH 40V 56A TO252 |
3,589 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET®, StrongIRFET™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 40 V | 56A (Tc) | 6V, 10V | 3.9mOhm @ 56A, 10V | 3.9V @ 100µA | 130 nC @ 10 V | ±20V | 3150 pF @ 25 V | - | 98W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
AUIRFP4409MOSFET N-CH 300V 38A TO247AC |
3,131 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 38A (Tc) | 10V | 69mOhm @ 24A, 10V | 5V @ 250µA | 125 nC @ 10 V | ±20V | 5168 pF @ 50 V | - | 341W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
AUIRFSL8409MOSFET N-CH 40V 195A TO262 |
2,974 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 450 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRFHM8235TRPBFMOSFET N-CH 25V 16A 8PQFN |
3,838 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 16A (Ta) | 4.5V, 10V | 7.7mOhm @ 20A, 10V | 2.35V @ 25µA | 12 nC @ 4.5 V | ±20V | 1040 pF @ 10 V | - | 3W (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFHM8337TRPBFMOSFET N-CH 30V 12A 8PQFN |
3,833 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 12.4mOhm @ 12A, 10V | 2.35V @ 25µA | 8.1 nC @ 4.5 V | ±20V | 755 pF @ 15 V | - | 2.8W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFHM8342TRPBFMOSFET N-CH 30V 10A 8PQFN |
3,653 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 16mOhm @ 17A, 10V | 2.35V @ 25µA | 7.5 nC @ 4.5 V | ±20V | 560 pF @ 25 V | - | 2.6W (Ta), 20W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFHM9391TRPBFMOSFET P-CH 30V 11A 8PQFN |
3,888 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 14.6mOhm @ 11A, 10V | 2.4V @ 25µA | 16 nC @ 10 V | ±25V | 1543 pF @ 25 V | - | 2.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFHM8330TRPBFMOSFET N-CH 30V 16A 8PQFN |
3,132 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 6.6mOhm @ 20A, 10V | 2.35V @ 25µA | 20 nC @ 10 V | ±20V | 1450 pF @ 25 V | - | 2.7W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFHM8334TRPBFMOSFET N-CH 30V 13A 8PQFN |
3,996 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 9mOhm @ 20A, 10V | 2.35V @ 25µA | 15 nC @ 10 V | ±20V | 1180 pF @ 10 V | - | 2.7W (Ta), 28W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFHM8228TRPBFMOSFET N-CH 25V 19A 8PQFN |
2,585 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 19A (Ta) | 4.5V, 10V | 5.2mOhm @ 20A, 10V | 2.35V @ 25µA | 18 nC @ 10 V | ±20V | 1667 pF @ 10 V | - | 2.8W (Ta), 34W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPP50R399CPXKSA1MOSFET N-CH 500V 9A TO220-3 |
3,848 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 9A (Ta) | 10V | 399mOhm @ 4.9A, 10V | 3.5V @ 330µA | 4 nC @ 10 V | ±20V | 890 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF6718L2TRPBFMOSFET N-CH 25V 61A DIRECTFET |
2,704 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 61A (Ta), 270A (Tc) | 4.5V, 10V | 0.7mOhm @ 61A, 10V | 2.35V @ 150µA | 96 nC @ 4.5 V | ±20V | 6500 pF @ 13 V | - | 4.3W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF6729MTRPBFMOSFET N-CH 30V 31A DIRECTFET |
2,782 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 31A (Ta), 190A (Tc) | 4.5V, 10V | 1.8mOhm @ 31A, 10V | 2.35V @ 150µA | 63 nC @ 4.5 V | ±20V | 6030 pF @ 15 V | - | 2.8W (Ta), 104W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|

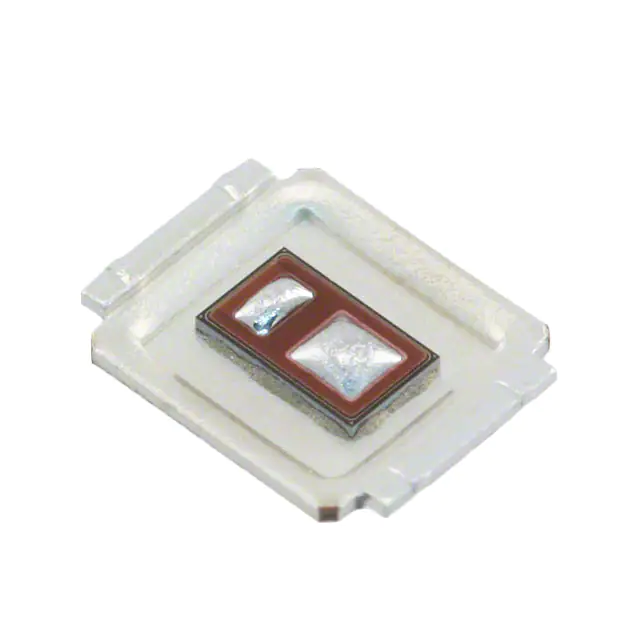

IRF7665S2TRPBFMOSFET N-CH 100V 4.1A DIRECTFET |
3,798 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.1A (Ta), 14.4A (Tc) | 10V | 62mOhm @ 8.9A, 10V | 5V @ 25µA | 13 nC @ 10 V | ±20V | 515 pF @ 25 V | - | 2.4W (Ta), 30W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

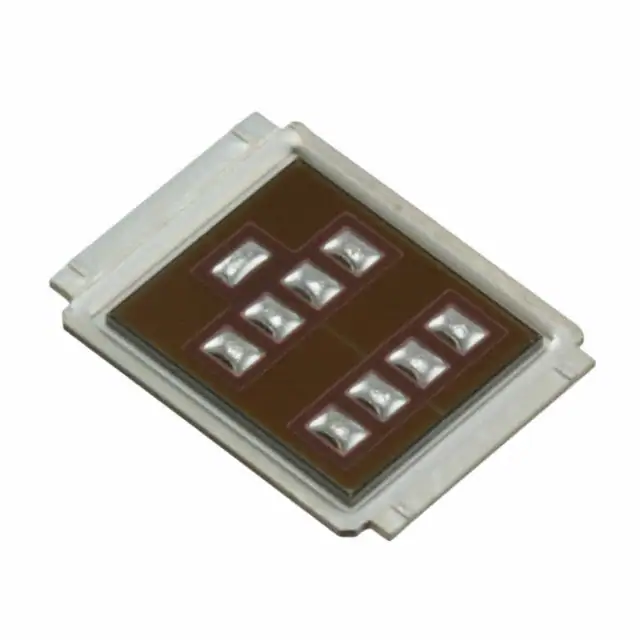

IRF7739L2TRPBFMOSFET N-CH 40V 46A DIRECTFET |
2,643 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 46A (Ta), 375A (Tc) | 10V | 1mOhm @ 160A, 10V | 4V @ 250µA | 330 nC @ 10 V | ±20V | 11880 pF @ 25 V | - | 3.8W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF7749L2TRPBFMOSFET N-CH 60V 33A DIRECTFET |
3,823 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 33A (Ta), 375A (Tc) | 10V | 1.5mOhm @ 120A, 10V | 4V @ 250µA | 300 nC @ 10 V | ±20V | 12320 pF @ 25 V | - | 3.3W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF7769L2TRPBFMOSFET N-CH 100V 375A DIRECTFET |
3,186 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 375A (Tc) | 10V | 3.5mOhm @ 74A, 10V | 4V @ 250µA | 300 nC @ 10 V | ±20V | 11560 pF @ 25 V | - | 3.3W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF7799L2TRPBFMOSFET N-CH 250V 375A DIRECTFET |
2,462 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 35A (Tc) | 10V | 38mOhm @ 21A, 10V | 5V @ 250µA | 165 nC @ 10 V | ±30V | 6714 pF @ 25 V | - | 4.3W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFHM4231TRPBFMOSFET N-CH 25V 40A 8PQFN |
2,368 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 40A (Tc) | 4.5V, 10V | 3.4mOhm @ 30A, 10V | 2.1V @ 35µA | 20 nC @ 10 V | ±20V | 1270 pF @ 13 V | - | 2.7W (Ta), 29W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFH7185TRPBFMOSFET N CH 100V 19A 8QFN |
2,826 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FASTIRFET™, HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Ta) | 10V | 5.2mOhm @ 50A, 10V | 3.6V @ 150µA | 54 nC @ 10 V | ±20V | 2320 pF @ 50 V | - | 3.6W (Ta), 160W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
