| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUIRFSL8403MOSFET N-CH 40V 123A TO262 |
3,892 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 123A (Tc) | 10V | 3.3mOhm @ 70A, 10V | 3.9V @ 100µA | 93 nC @ 10 V | ±20V | 3183 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
AUIRFS8405MOSFET N-CH 40V 120A D2PAK |
2,539 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 2.3mOhm @ 100A, 10V | 3.9V @ 100µA | 161 nC @ 10 V | ±20V | 5193 pF @ 25 V | - | 163W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
AUIRFS8407MOSFET N-CH 40V 195A D2PAK |
3,016 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.8mOhm @ 100A, 10V | 4V @ 150µA | 225 nC @ 10 V | ±20V | 7330 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
AUIRFS8408MOSFET N-CH 40V 195A D2PAK |
3,465 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.6mOhm @ 100A, 10V | 3.9V @ 250µA | 324 nC @ 10 V | ±20V | 10820 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
AUIRFS8409MOSFET N-CH 40V 195A D2PAK |
2,275 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 450 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
AUIRFR8401MOSFET N-CH 40V 100A DPAK |
2,983 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 4.25mOhm @ 60A, 10V | 3.9V @ 50µA | 63 nC @ 10 V | ±20V | 2200 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
AUIRFR8405MOSFET N-CH 40V 100A DPAK |
370 | 1.08 |
RFQ |
Datasheet |
Bulk,Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 1.98mOhm @ 90A, 10V | 3.9V @ 100µA | 155 nC @ 10 V | ±20V | 5171 pF @ 25 V | - | 163W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
AUIRFU8405MOSFET N-CH 40V 100A IPAK |
2,088 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 1.98mOhm @ 90A, 10V | 3.9V @ 100µA | 155 nC @ 10 V | ±20V | 5171 pF @ 25 V | - | 163W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
AUIRFU8401MOSFET N-CH 40V 100A IPAK |
3,489 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 10V | 4.25mOhm @ 60A, 10V | 3.9V @ 500µA | 63 nC @ 10 V | ±20V | 2200 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

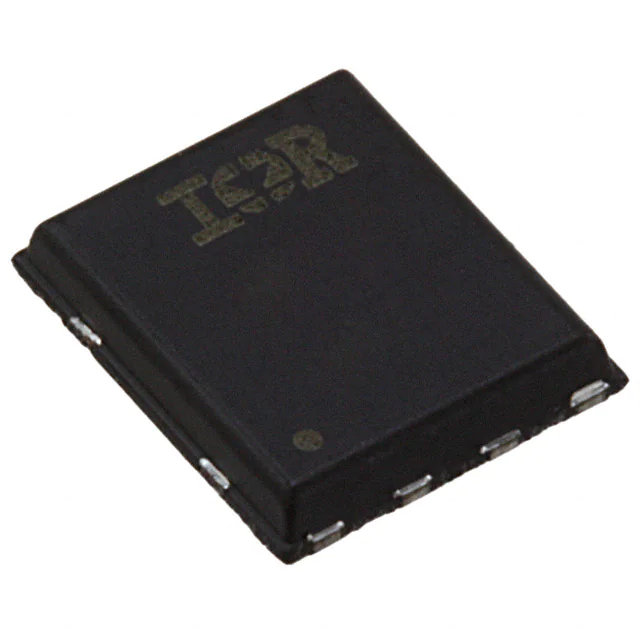

IRFH4201TRPBFMOSFET N-CH 25V 49A 8PQFN |
2,175 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 49A (Ta) | 4.5V, 10V | 0.95mOhm @ 50A, 10V | 2.1V @ 150µA | 94 nC @ 10 V | ±20V | 6100 pF @ 13 V | - | 3.5W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFH4210TRPBFMOSFET N-CH 25V 45A PQFN |
3,758 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 45A (Ta) | 4.5V, 10V | 1.35mOhm @ 50A, 10V | 2.1V @ 100µA | 74 nC @ 10 V | ±20V | 4812 pF @ 13 V | - | 3.6W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFH4213DTRPBFMOSFET N-CH 25V 40A PQFN |
2,265 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 40A (Ta) | 4.5V, 10V | 1.35mOhm @ 50A, 10V | 2.1V @ 100µA | 55 nC @ 10 V | ±20V | 3520 pF @ 13 V | - | 3.6W (Ta), 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFH4213TRPBFMOSFET N-CH 25V 41A PQFN |
2,050 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 41A (Ta) | 4.5V, 10V | 1.35mOhm @ 50A, 10V | 2.1V @ 100µA | 54 nC @ 10 V | ±20V | 3420 pF @ 13 V | - | 3.6W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFH4234TRPBFMOSFET N-CH 25V 22A PQFN |
3,454 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 22A (Ta) | 4.5V, 10V | 4.6mOhm @ 30A | 2.1V @ 25µA | 17 nC @ 10 V | ±20V | 1011 pF @ 13 V | - | 3.5W (Ta), 27W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFHM4226TRPBFMOSFET N CH 25V 28A PQFN |
3,119 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 28A (Ta) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.1V @ 50µA | 32 nC @ 10 V | ±20V | 2000 pF @ 13 V | - | 2.7W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFHM4234TRPBFMOSFET N-CH 25V 20A PQFN |
3,235 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FASTIRFET™, HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 20A (Ta) | 4.5V, 10V | 4.4mOhm @ 30A, 10V | 2.1V @ 25µA | 17 nC @ 10 V | ±20V | 1011 pF @ 13 V | - | 2.8W (Ta), 28W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPD50R1K4CEBTMA1MOSFET N-CH 500V 3.1A TO252-3 |
3,441 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolMOS™ CE | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 3.1A (Tc) | 13V | 1.4Ohm @ 900mA, 13V | 3.5V @ 70µA | 1 nC @ 10 V | ±20V | 178 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPD50R3K0CEBTMA1MOSFET N-CH 500V 1.7A TO252-3 |
3,317 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolMOS™ CE | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 1.7A (Tc) | 13V | 3Ohm @ 400mA, 13V | 3.5V @ 30µA | 4.3 nC @ 10 V | ±20V | 84 pF @ 100 V | - | 18W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPP60R600P6XKSA1MOSFET N-CH 600V 7.3A TO220-3 |
110,340 | 0.56 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ P6 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | 4.5V @ 200µA | 12 nC @ 10 V | ±20V | 557 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPU50R950CEBKMA1MOSFET N-CH 500V 4.3A TO251-3 |
34,000 | 0.16 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ CE | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.3A (Tc) | 13V | 950mOhm @ 1.2A, 13V | 3.5V @ 100µA | 10.5 nC @ 10 V | ±20V | 231 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
