| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMPDM202PH BKMOSFET P-CH 20V 2.3A SOT23F |
2,468 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.3A (Ta) | 2.5V, 5V | 88mOhm @ 1.2A, 5V | 1.4V @ 250µA | 12 nC @ 5 V | 12V | 800 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CMPDM203NH BKMOSFET N-CH 20V 3.2A SOT23F |
2,466 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.2A (Ta) | 2.5V, 4.5V | 50mOhm @ 1.6A, 4.5V | 1.2V @ 250µA | 10 nC @ 4.5 V | 12V | 395 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CMPDM302PH BKMOSFET P-CH 30V 2.4A SOT23F |
2,929 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.4A (Ta) | 2.5V, 4.5V | 91mOhm @ 1.2A, 4.5V | 1.4V @ 250µA | 9.6 nC @ 5 V | 12V | 800 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CMPDM303NH BKMOSFET N-CH 30V 3.6A SOT23F |
3,245 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 2.5V, 4.5V | 40mOhm @ 1.8A, 4.5V | 1.2V @ 250µA | 13 nC @ 4.5 V | 12V | 590 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM7002A-M621 BKMOSFET N-CH 60V 280MA TLM621 |
3,606 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 280mA (Ta) | 5V, 10V | 2Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.592 nC @ 4.5 V | 40V | 50 pF @ 25 V | - | 900mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM7002A-M621 TRMOSFET N-CH 60V 280MA TLM621 |
2,260 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 280mA (Ta) | 5V, 10V | 2Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.592 nC @ 4.5 V | 40V | 50 pF @ 25 V | - | 900mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM7003-M621 BKMOSFET N-CH 50V 280MA TLM621 |
2,483 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 280mA (Ta) | 1.8V, 5V | 2Ohm @ 50mA, 5V | 1V @ 250µA | 0.764 nC @ 4.5 V | 12V | 50 pF @ 25 V | - | 900mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM7003-M621 TRMOSFET N-CH 50V 280MA TLM621 |
3,636 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 280mA (Ta) | 1.8V, 5V | 2Ohm @ 50mA, 5V | 1V @ 250µA | 0.764 nC @ 4.5 V | 12V | 50 pF @ 25 V | - | 900mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM7120-M621H BKMOSFET N-CH 20V 1A TLM621H |
2,732 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 1.5V, 4.5V | 100mOhm @ 500mA, 4.5V | 1.2V @ 1mA | 2.4 nC @ 4.5 V | 8V | 220 pF @ 10 V | - | 1.6W (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM8002A-M621 BKMOSFET P-CH 50V 280MA TLM621 |
2,748 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 280mA (Ta) | 5V, 10V | 2.5Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.72 nC @ 4.5 V | 20V | 70 pF @ 25 V | - | 900mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM8002A-M621 TRMOSFET P-CH 50V 280MA TLM621 |
3,548 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 280mA (Ta) | 5V, 10V | 2.5Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.72 nC @ 4.5 V | 20V | 70 pF @ 25 V | - | 900mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM8002A-M621H BKMOSFET P-CH 50V 280MA TLM621H |
3,494 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 280mA (Ta) | 5V, 10V | 2.5Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.72 nC @ 4.5 V | 20V | 70 pF @ 25 V | - | 1.6W (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM8002A-M621H TRMOSFET P-CH 50V 280MA TLM621H |
2,825 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 280mA (Ta) | 5V, 10V | 2.5Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.72 nC @ 4.5 V | 20V | 70 pF @ 25 V | - | 1.6W (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM8120-M621H BKMOSFET P-CH 20V 950MA TLM621H |
3,642 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 950mA (Ta) | 1.8V, 4.5V | 150mOhm @ 950mA, 4.5V | 1V @ 250µA | 3.56 nC @ 4.5 V | 8V | 200 pF @ 16 V | - | 1.6W (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM8120-M621H TRMOSFET P-CH 20V 950MA TLM621H |
3,737 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 950mA (Ta) | 1.8V, 4.5V | 150mOhm @ 950mA, 4.5V | 1V @ 250µA | 3.56 nC @ 4.5 V | 8V | 200 pF @ 16 V | - | 1.6W (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|

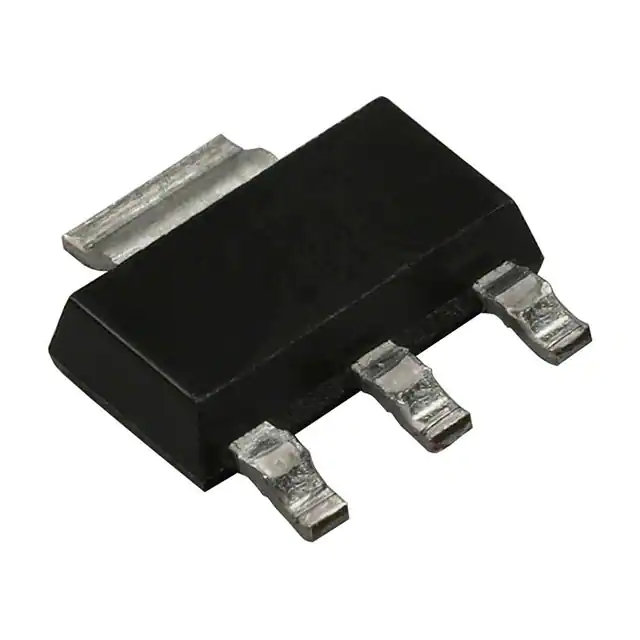

CZDM1003N BKMOSFET N-CH 100V 3A SOT-223 |
3,982 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 3A (Ta) | 10V | 150mOhm @ 2A, 10V | 4V @ 250µA | 15 nC @ 10 V | 20V | 975 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CP398X-CPDM303-CT20MOSFET TRANSISTOR N-CH CHIP |
2,768 | 0.00 |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CP398X-CPDM303NH-CTMOSFET N-CH 30V 3.6A DIE |
3,501 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 2.5V, 4.5V | 78mOhm @ 1.8A, 2.5V | 1.2V @ 250µA | 13 nC @ 4.5 V | 12V | 590 pF @ 10 V | - | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CP398X-CPDM303NH-WNMOSFET N-CH 30V 3.6A DIE |
3,202 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 2.5V, 4.5V | 78mOhm @ 1.8A, 2.5V | 1.2V @ 250µA | 13 nC @ 4.5 V | 12V | 590 pF @ 10 V | - | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CP398X-CTLDM303N-CTMOSFET N-CH 30V 3.6A DIE |
3,505 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 2.5V, 4.5V | 78mOhm @ 1.8A, 2.5V | 1.2V @ 250µA | 13 nC @ 4.5 V | 12V | 590 pF @ 10 V | - | - | -55°C ~ 150°C (TJ) | Surface Mount |
