| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDM7-650 TR13 PBFREEMOSFET N-CH 650V 7A DPAK |
2,193 | 1.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Ta) | 10V | 1.5Ohm @ 3.5A, 10V | 4V @ 250µA | 16.8 nC @ 10 V | 30V | 754 pF @ 25 V | - | 1.12W (Ta), 140W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CDM7-600LR TR13 PBFREEMOSFET N-CH 600V 7A DPAK |
1,843 | 1.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 580mOhm @ 3.5A, 10V | 4V @ 250µA | 14.5 nC @ 10 V | 30V | 440 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
CEDM7001 TR PBFREEMOSFET N-CH 20V 100MA SOT883 |
779 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 3Ohm @ 10mA, 4V | 900mV @ 250µA | 0.57 nC @ 4.5 V | 10V | 9 pF @ 3 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
CEDM8004 TR PBFREEMOSFET P-CH 30V 450MA SOT883VL |
539 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 450mA (Ta) | 1.8V, 4.5V | 1.1Ohm @ 430mA, 4.5V | 1V @ 250µA | 0.88 nC @ 4.5 V | 8V | 55 pF @ 25 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
CDM22010-650 SLMOSFET N-CH 650V 10A TO220 |
476 | 2.21 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Ta) | 10V | 1Ohm @ 5A, 10V | 4V @ 250µA | 20 nC @ 10 V | 30V | 1168 pF @ 25 V | - | 2W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
CDM22011-600LRFP SLMOSFET N-CH 600V 11A TO220FP |
590 | 2.45 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 23.05 nC @ 10 V | 30V | 763 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
CMPDM7002AHC TR PBFREEMOSFET N-CH 60V 1A SOT23 |
2,579 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 1A (Ta) | 5V, 10V | 220mOhm @ 500mA, 10V | 2.3V @ 250µA | 2.3 nC @ 4.5 V | 20V | 240 pF @ 25 V | - | 350mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
CXDM4060P TR PBFREEMOSFET P-CH 40V 6A SOT-89 |
1,970 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 6A (Ta) | 4.5V, 10V | 65mOhm @ 6A, 10V | 3V @ 250µA | 6.5 nC @ 4.5 V | 20V | 750 pF @ 25 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
CMLDM7120G TR PBFREEMOSFET N-CH 20V 1A SOT563 |
3,266 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 1.5V, 4V | 100mOhm @ 500mA, 4.5V | 1.2V @ 1mA | 2.4 nC @ 4.5 V | 8V | 220 pF @ 10 V | - | 150mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CDM3-800 TR13 PBFREEMOSFET N-CH 800V 3A DPAK |
2,528 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 3A (Tc) | 10V | 4.8Ohm @ 1.5A, 10V | 4V @ 250µA | 11.3 nC @ 10 V | 30V | 415 pF @ 25 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

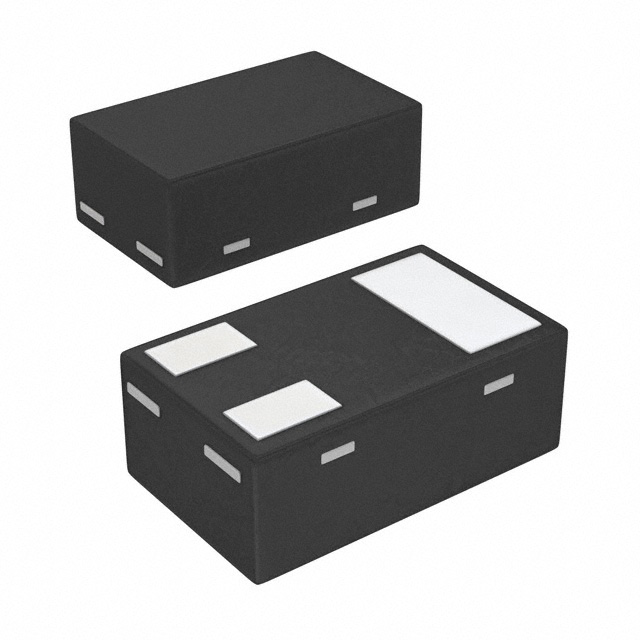

CEDM7002AE TR PBFREEMOSFET N-CH 60V 300MA SOT883L |
2,481 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 2.5V, 10V | 1.4Ohm @ 500mA, 10V | 2V @ 250µA | 0.5 nC @ 4.5 V | 20V | 50 pF @ 25 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
CWDM3011P TR13 PBFREEMOSFET P-CH 30V 11A 8SOIC |
1,930 | 0.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 20mOhm @ 11A, 10V | 3V @ 250µA | 80 nC @ 10 V | 20V | 3100 pF @ 8 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
2N7002 BK PBFREEMOSFET N-CH 60V 115MA SOT23 |
3,541 | 0.10 |
RFQ |
Datasheet |
Box | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Tc) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.59 nC @ 4.5 V | 40V | 50 pF @ 25 V | - | 350mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
2N7002 TR13 PBFREEMOSFET N-CH 60V 115MA SOT23 |
2,099 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Tc) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.59 nC @ 4.5 V | 40V | 50 pF @ 25 V | - | 350mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
CWDM305P TR13 PBFREEMOSFET P-CH 30V 5.3A 8SOIC |
3,201 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.3A (Ta) | 5V, 10V | 72mOhm @ 2.7A, 10V | 3V @ 250µA | 7 nC @ 5 V | 16V | 590 pF @ 10 V | - | 2W (Ta) | - | Surface Mount |
|
|
CWDM305N TR13 PBFREEMOSFET N-CH 30V 5.8A 8SOIC |
2,017 | 0.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.8A (Ta) | 5V, 10V | 30mOhm @ 2.9A, 10V | 3V @ 250µA | 6.3 nC @ 5 V | 20V | 560 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CMPDM7002AG BK PBFREEMOSFET N-CH 60V 280MA SOT23 |
2,940 | 0.14 |
RFQ |
Datasheet |
Box | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 280mA (Ta) | 5V, 10V | 2Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.59 nC @ 4.5 V | 40V | 50 pF @ 25 V | - | 350mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CEDM8004 BK PBFREEMOSFET P-CH 30V 450MA SOT883 |
2,101 | 0.18 |
RFQ |
Datasheet |
Box | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 450mA (Ta) | 1.8V, 4.5V | 1.1Ohm @ 430mA, 4.5V | 1.1V @ 250µA | 0.88 nC @ 4.5 V | 8V | 55 pF @ 25 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CEDM8001 BK PBFREEMOSFET P-CH 20V 100MA SOT883 |
2,913 | 0.19 |
RFQ |
Datasheet |
Box | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 8Ohm @ 10mA, 4V | 1.1V @ 250µA | 0.66 nC @ 4.5 V | 10V | 45 pF @ 3 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CEDM7001 BK PBFREEMOSFET N-CH 20V 100MA SOT883 |
3,957 | 0.20 |
RFQ |
Datasheet |
Box | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 3Ohm @ 10mA, 4V | 900mV @ 250µA | 0.57 nC @ 4.5 V | 10V | 9 pF @ 3 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
