| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CEDM7004 BK PBFREEMOSFET N-CH 30V 1.78A SOT-883 |
2,054 | 0.23 |
RFQ |
Datasheet |
Box | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.78A (Ta) | 1.8V, 4.5V | 460mOhm @ 200mA, 4.5V | 1V @ 250µA | 0.79 nC @ 4.5 V | 8V | 43 pF @ 25 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|

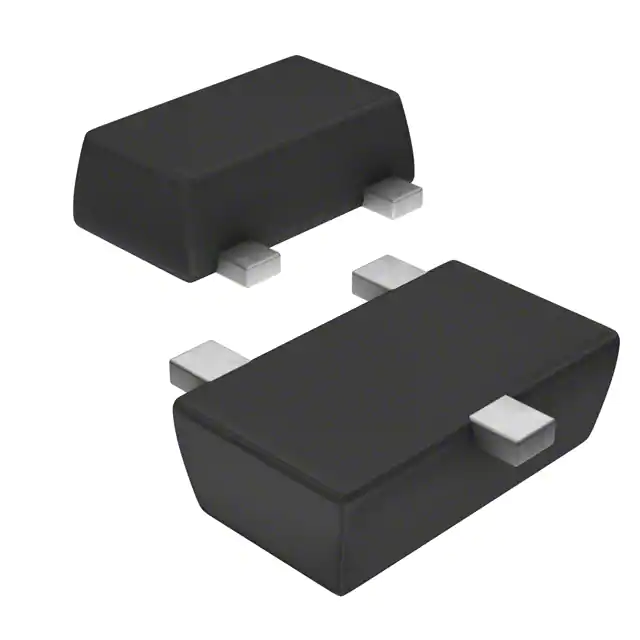

CMPDM202PH TRMOSFET P-CH 20V 2.3A SOT-23F |
3,145 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.3A (Ta) | 2.5V, 5V | 88mOhm @ 1.2A, 5V | 1.4V @ 250µA | 12 nC @ 5 V | 12V | 800 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CMPDM203NH TRMOSFET N-CH 20V 3.2A SOT-23F |
3,475 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.2A (Ta) | 2.5V, 4.5V | 50mOhm @ 1.6A, 4.5V | 1.2V @ 250µA | 10 nC @ 4.5 V | 12V | 395 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CMPDM302PH TRMOSFET P-CH 30V 2.4A SOT-23F |
2,722 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.4A (Ta) | 2.5V, 4.5V | 91mOhm @ 1.2A, 4.5V | 1.4V @ 250µA | 9.6 nC @ 5 V | 12V | 800 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
CMPDM303NH TRMOSFET N-CH 30V 3.6A SOT-23F |
3,184 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 2.5V, 4.5V | 40mOhm @ 1.8A, 4.5V | 1.2V @ 250µA | 13 nC @ 4.5 V | 12V | 590 pF @ 10 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
CTLDM3590 TRMOSFET N-CH 20V 160MA TLM3D6D8 |
9,487 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 160mA (Ta) | 1.2V, 4.5V | 3Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.46 nC @ 4.5 V | 8V | 9 pF @ 15 V | - | 125mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CTLDM7590 TRMOSFET P-CH 20V 140MA TLM3D6D8 |
8,989 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 140mA (Ta) | 1.2V, 4.5V | 5Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.5 nC @ 4.5 V | 8V | 10 pF @ 15 V | - | 125mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
CZDM1003N TRMOSFET N-CH 100V 3A SOT-223 |
3,754 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 3A (Ta) | 10V | 150mOhm @ 2A, 10V | 4V @ 250µA | 15 nC @ 10 V | 20V | 975 pF @ 25 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
CEDM7001VL TR PBFREEMOSFET N-CH 20V 100MA SOT883VL |
3,974 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 3Ohm @ 10mA, 4V | 900mV @ 250µA | 0.57 nC @ 4.5 V | 10V | 9 pF @ 3 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CEDM7004VL TR PBFREEMOSFET N-CH 30V 450MA SOT883VL |
3,203 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 450mA (Ta) | 1.8V, 4.5V | 460mOhm @ 200mA, 4.5V | 1V @ 250µA | 0.79 nC @ 4.5 V | 8V | 43 pF @ 25 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CEDM8001VL TR PBFREEMOSFET P-CH 20V 100MA SOT883VL |
2,093 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 8Ohm @ 10mA, 4V | 1.1V @ 250µA | 0.66 nC @ 4.5 V | 10V | 45 pF @ 3 V | - | 100mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|

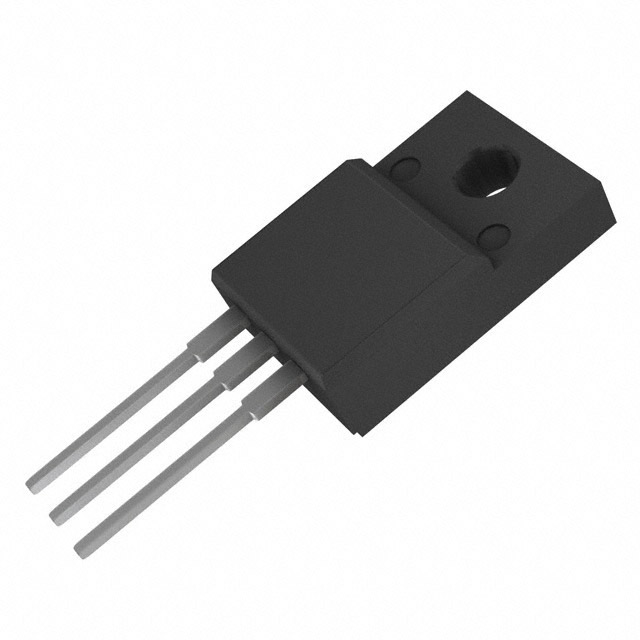

CDM2205-800FP SLMOSFET N-CH 800V 5A TO220FP |
3,632 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 5A (Tc) | 10V | 2.7Ohm @ 2.5A, 10V | 4V @ 250µA | 17.4 nC @ 10 V | 30V | 705 pF @ 25 V | - | 48W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
CDM2208-800FP SL PBFREEMOSFET N-CH 800V 8A TO220FP |
2,576 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 1.6Ohm @ 4A, 10V | 4V @ 250µA | 24.45 nC @ 10 V | 30V | 1110 pF @ 25 V | - | 57W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

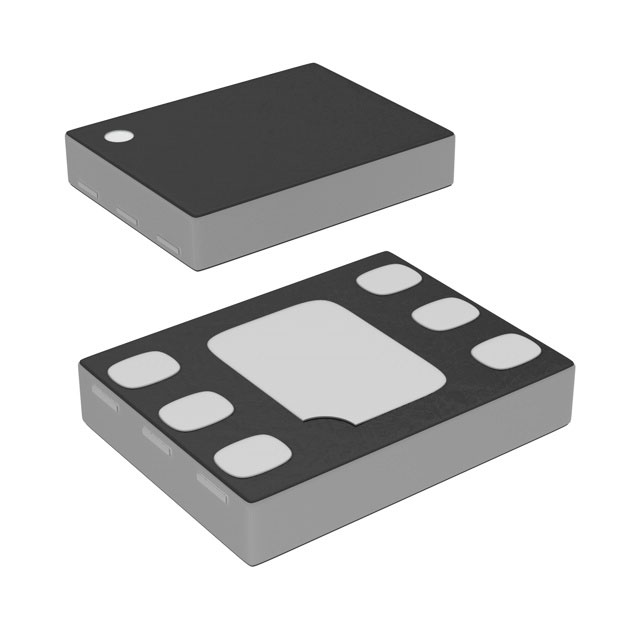

CTLDM7120-M621H TRMOSFET N-CH 20V 1A TLM621H |
3,166 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1A (Ta) | 1.5V, 4.5V | 100mOhm @ 500mA, 4.5V | 1.2V @ 1mA | 2.4 nC @ 4.5 V | 8V | 220 pF @ 10 V | - | 1.6W (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
|
CDM22012-800LRFP SLMOSFET N-CH 800V 12A TO220FP |
2,302 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 12A (Ta) | 10V | 450mOhm @ 6A, 10V | 4V @ 250µA | 52.4 nC @ 10 V | 30V | 1090 pF @ 100 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
CDM2206-800LR SL PBFREEMOSFET N-CH 800V 6A TO220 |
2,026 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 950mOhm @ 3A, 10V | 4V @ 250µA | 24.3 nC @ 10 V | 30V | - | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
CEN1232 TRCEN1232 IC |
2,704 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CEN1233 TRCEN1233 IC |
2,599 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CEN1232 BKCEN1232 IC |
2,884 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CEN1233 BKCEN1233 IC |
2,624 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
