| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZXMN10A25KTCMOSFET N-CH 100V 4.2A TO252-3 |
2,506 | 1.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.2A (Ta) | 6V, 10V | 125mOhm @ 2.9A, 10V | 4V @ 250µA | 17.16 nC @ 10 V | ±20V | 859 pF @ 50 V | - | 2.11W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN65D8L-7MOSFET N-CH 60V 310MA SOT23 |
649,858 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 310mA (Ta) | 5V, 10V | 3Ohm @ 115mA, 10V | 2V @ 250µA | 0.87 nC @ 10 V | ±20V | 22 pF @ 25 V | - | 370mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG2302UK-7MOSFET N-CH 20V 2.8A SOT23 |
527,259 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.8A (Ta) | 2.5V, 4.5V | 90mOhm @ 3.6A, 4.5V | 1V @ 250µA | 2.8 nC @ 10 V | ±12V | 130 pF @ 10 V | - | 660mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
2N7002T-7-FMOSFET N-CH 60V 115MA SOT-523 |
305,649 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Ta) | 5V, 10V | 7.5Ohm @ 50mA, 5V | 2V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 150mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2110U-7MOSFET P-CH 20V 3.5A SOT23 |
6,021 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.5A (Ta) | 2.5V, 4.5V | 80mOhm @ 2.8A, 4.5V | 1V @ 250µA | 6 nC @ 4.5 V | ±10V | 443 pF @ 10 V | - | 800mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2400UFD-7MOSFET N-CH 20V 900MA 3DFN |
10,040 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 20 V | 900mA (Ta) | 1.5V, 4.5V | 600mOhm @ 200mA, 4.5V | 1V @ 250µA | 500 nC @ 4.5 V | ±12V | 37 pF @ 16 V | - | 400mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2990UFO-7BMOSFET N-CH 20V 750MA 3DFN |
10,000 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 750mA (Ta) | 1.5V, 4.5V | 990mOhm @ 100mA, 4.5V | 1V @ 250µA | 0.41 nC @ 4.5 V | ±8V | 31 pF @ 15 V | - | 840mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2070U-7MOSFET BVDSS: 8V~24V SOT23 T&R 3 |
3,000 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.6A (Tc) | 1.8V, 4.5V | 44mOhm @ 2A, 4.5V | 950mV @ 250µA | 8.2 nC @ 10 V | ±8V | 118 pF @ 10 V | - | 830mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMT10H072LFV-7MOSFET N-CH 100V PWRDI3333 |
9,875 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.7A (Ta), 20A (Tc) | 6V, 10V | 62mOhm @ 4.5A, 10V | 2.8V @ 250µA | 4.5 nC @ 10 V | ±20V | 228 pF @ 50 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2024UQ-7MOSFET BVDSS: 8V~24V SOT23 T&R 3 |
390 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.8A (Ta) | 1.8V, 4.5V | 25mOhm @ 6.5A, 4.5V | 900mV @ 250µA | 6.5 nC @ 4.5 V | ±10V | 647 pF @ 10 V | - | 800mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP3008SFG-7MOSFET P-CH 30V 8.6A PWRDI3333-8 |
1,195 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 8.6A (Ta) | 4.5V, 10V | 17mOhm @ 10A, 10V | 2.1V @ 250µA | 47 nC @ 10 V | ±20V | 2230 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP3037LSSQ-13MOSFET BVDSS: 25V~30V SO-8 T&R 2 |
2,500 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.8A (Ta) | 4.5V, 10V | 32mOhm @ 6A, 10V | 2.4V @ 250µA | 17.3 nC @ 10 V | ±20V | 969 pF @ 15 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMS3014SFG-7MOSFET N-CH 30V 9.5A PWRDI3333-8 |
5,925 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta) | 1.8V, 4.5V | 13mOhm @ 10.4A, 10V | 2.2V @ 250µA | 45.7 nC @ 10 V | ±12V | 4310 pF @ 15 V | Schottky Diode (Body) | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN1004UFV-13MOSFET N-CH 12V 70A POWERDI3333 |
3,000 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 70A (Tc) | 2.5V, 4.5V | 3.8mOhm @ 15A, 4.5V | 1V @ 250µA | 47 nC @ 8 V | ±8V | 2385 pF @ 6 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP3011SFVWQ-7MOSFET P-CH 30V 11.5A PWRDI3333 |
2,000 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 19.8A (Ta), 50A (Tc) | 4.5V, 10V | 10mOhm @ 11.5A, 10V | 3V @ 250µA | 46 nC @ 10 V | ±25V | 2380 pF @ 15 V | - | 980mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS84Q-13-FBSS FAMILY SOT23 T&R 10K |
2,490 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 130mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 1mA | 0.59 nC @ 10 V | ±20V | 45 pF @ 25 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP3011SSS-13MOSFET BVDSS: 25V~30V SO-8 T&R 2 |
7,280 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 32A (Tc) | 4.5V, 10V | 10mOhm @ 11.5A, 10V | 3V @ 250µA | 46 nC @ 10 V | ±25V | 2380 pF @ 15 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMT10H009LPS-13MOSFET N-CH 100V PWRDI5060 |
2,160 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 10A (Ta), 90A (Tc) | 4.5V, 10V | 8mOhm @ 20A, 10V | 2.5V @ 250µA | 40.2 nC @ 10 V | ±20V | 2309 pF @ 50 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

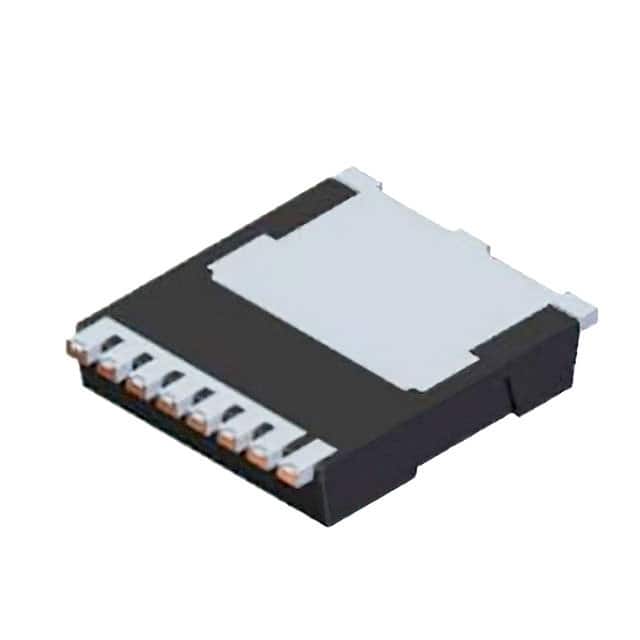

DMTH8001STLWQ-13MOSFET BVDSS: 61V~100V POWERDI10 |
1,488 | 5.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 270A (Tc) | 10V | 1.7mOhm @ 30A, 10V | 4V @ 250µA | 138 nC @ 10 V | ±20V | 8894 pF @ 50 V | - | 6W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
DMP58D0LFB-7MOSFET P-CH 50V 180MA 3DFN |
27,700 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 50 V | 180mA (Ta) | 2.5V, 5V | 8Ohm @ 100mA, 5V | 2.1V @ 250µA | - | ±20V | 27 pF @ 25 V | - | 470mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
