| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

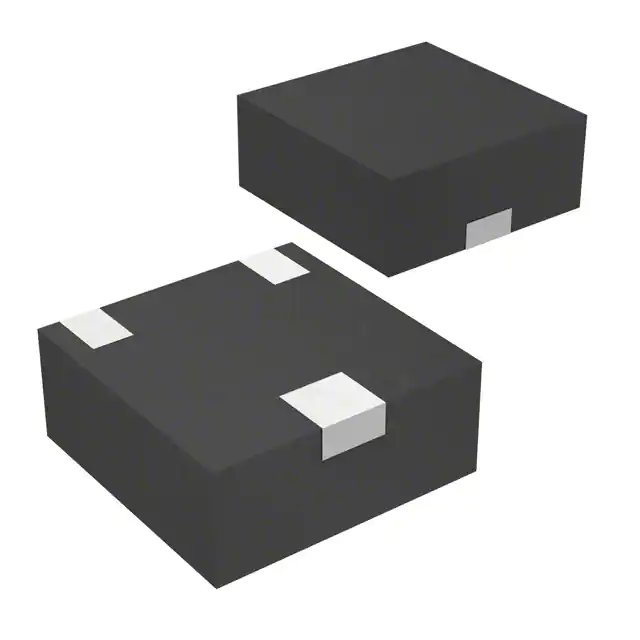

DMP32D9UFZ-7BMOSFET P-CH 30V 200MA 3DFN |
16,470 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 200mA (Ta) | 1.2V, 10V | 5Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.35 nC @ 4.5 V | ±10V | 22.5 pF @ 15 V | - | 390mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN6069SE-13MOSFET N-CH 60V 4.3A/10A SOT223 |
5,000 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 4.3A (Ta), 10A (Tc) | 4.5V, 10V | 69mOhm @ 3A, 10V | 3V @ 250µA | 16 nC @ 10 V | ±20V | 825 pF @ 30 V | - | 2.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3016LSS-13MOSFET N-CH 30V 10.3A 8SO |
5,659 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.3A (Ta) | 4.5V, 10V | 12mOhm @ 12A, 10V | 2.5V @ 250µA | 25.1 nC @ 10 V | ±20V | 1415 pF @ 15 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN65D9L-7MOSFET N-CH 60V 335MA SOT23 |
41,600 | 0.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 335mA (Ta) | 4V, 10V | 4Ohm @ 500mA, 10V | 2.5V @ 250µA | 0.4 nC @ 4.5 V | ±16V | 41 pF @ 25 V | - | 270mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG2301L-13MOSFET P-CH 20V 3A SOT23 |
2,711 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 2.5V, 4.5V | 120mOhm @ 2.8A, 4.5V | 1.2V @ 250µA | 5.5 nC @ 4.5 V | ±8V | 476 pF @ 10 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN53D0LW-7MOSFET N-CH 50V 360MA SOT323 |
116,956 | 0.30 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 360mA (Ta) | 5V, 10V | 2Ohm @ 270mA, 10V | 1.5V @ 100µA | 1.2 nC @ 10 V | ±20V | 45.8 pF @ 25 V | - | 320mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN1260UFA-7BMOSFET N-CH 12V 500MA 3DFN |
97,096 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 500mA (Ta) | 1.5V, 4.5V | 366mOhm @ 200mA, 4.5V | 1V @ 250µA | 0.96 nC @ 4.5 V | ±8V | 60 pF @ 10 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN65D8LFB-7MOSFET N-CH 60V 260MA 3DFN |
18,056 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 260mA (Ta) | 5V, 10V | 3Ohm @ 115mA, 10V | 2V @ 250µA | - | ±20V | 25 pF @ 25 V | - | 430mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BS870-7-FMOSFET N-CH 60V 250MA SOT23-3 |
11,646 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 250mA (Ta) | 10V | 5Ohm @ 200mA, 10V | 3V @ 250µA | - | ±20V | 50 pF @ 10 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2450UFD-7MOSFET N-CH 20V 900MA 3DFN |
40,316 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 900mA (Ta) | 1.5V, 4.5V | 600mOhm @ 200mA, 4.5V | 1V @ 250µA | 0.7 nC @ 4.5 V | ±12V | 52 pF @ 16 V | - | 400mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP510DL-7MOSFET P-CH 50V 180MA SOT23 |
30,822 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 180mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 1mA | - | ±30V | 24.6 pF @ 25 V | - | 310mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP21D6UFD-7MOSFET P-CH 20V 600MA 3DFN |
47,352 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 600mA (Ta) | 1.2V, 4.5V | 1Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.8 nC @ 8 V | ±8V | 46.1 pF @ 10 V | - | 400mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN601WK-7MOSFET N-CH 60V 300MA SOT323 |
53,778 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 4.5V, 10V | 2Ohm @ 500mA, 10V | 2.5V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 200mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
DMN2400UFB4-7MOSFET N-CH 20V 750MA 3DFN |
154,949 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 750mA (Ta) | 1.8V, 4.5V | 550mOhm @ 600mA, 4.5V | 900mV @ 250µA | 0.5 nC @ 4.5 V | ±12V | 36 pF @ 16 V | - | 470mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2058UW-7MOSFET N-CH 20V 3.5A SOT323 |
258,616 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.5A (Ta) | 1.8V, 10V | 42mOhm @ 3A, 10V | 1.2V @ 250µA | 7.7 nC @ 10 V | ±12V | 281 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN601WKQ-7MOSFET N-CH 60V 300MA SOT323 |
11,580 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 4.5V, 10V | 2Ohm @ 500mA, 10V | 2.5V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 200mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
|
2N7002TQ-7-FMOSFET N-CH 60V 115MA SOT523 |
47,784 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Ta) | 5V, 10V | 13.5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 150mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

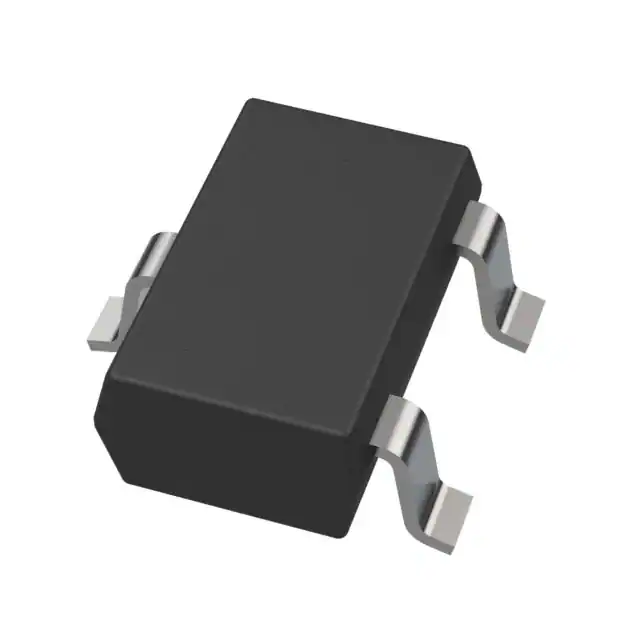

DMN2053UW-7MOSFET N-CH 20V 2.9A SOT323 |
86,429 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.9A (Ta) | 1.5V, 4.5V | 56mOhm @ 2A, 4.5V | 1V @ 250µA | 3.6 nC @ 4.25 V | ±12V | 369 pF @ 10 V | - | 470mW (Ta) | -55°C ~ 150°C (TJ) | - |
|
|
DMN2065UW-7MOSFET N CH 20V 2.8A SOT323 |
4,525 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.8A (Ta) | 1.5V, 4.5V | 56mOhm @ 2A, 4.5V | 1V @ 250µA | 5.4 nC @ 4.5 V | ±12V | 400 pF @ 10 V | - | 430mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN601K-7MOSFET N-CH 60V 300MA SOT23-3 |
97,202 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300mA (Ta) | 5V, 10V | 2Ohm @ 500mA, 10V | 2.5V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 350mW (Ta) | -65°C ~ 150°C (TJ) | Surface Mount |
