| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMG301NU-7MOSFET N-CH 25V 260MA SOT23 |
850 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 260mA (Ta) | 2.7V, 4.5V | 4Ohm @ 400mA, 4.5V | 1.1V @ 250µA | 0.36 nC @ 4.5 V | 8V | 42 pF @ 10 V | - | 320mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3024SFG-7MOSFET N-CH 30V 7.5A PWRDI3333-8 |
1,521 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4.5V, 10V | 23mOhm @ 10A, 10V | 2.4V @ 250µA | 10.5 nC @ 10 V | ±25V | 479 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3024SFG-13MOSFET N-CH 30V 7.5A PWRDI3333-8 |
3,933 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 4.5V, 10V | 23mOhm @ 10A, 10V | 2.4V @ 250µA | 10.5 nC @ 10 V | ±25V | 479 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP3026SFDE-7MOSFET P-CH 30V 10.4A 6UDFN |
3,240 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 10.4A (Ta) | 4V, 10V | 19mOhm @ 4.5A, 10V | 3V @ 250µA | 19.6 nC @ 10 V | ±25V | 1204 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2070UQ-7MOSFET BVDSS: 8V~24V SOT23 T&R 3 |
2,868 | 0.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.6A (Tc) | 1.8V, 4.5V | 44mOhm @ 2A, 4.5V | 950mV @ 250µA | 8.2 nC @ 8 V | ±8V | 118 pF @ 10 V | - | 830mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP21D0UFD-7MOSFET P-CH 20V 820MA 3DFN |
5,920 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 820mA (Ta) | 1.5V, 4.5V | 495mOhm @ 800mA, 4.5V | 1.2V @ 250µA | 3 nC @ 4.5 V | ±8V | 80 pF @ 10 V | - | 490mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZVP3310FTAMOSFET P-CH 100V 75MA SOT23-3 |
14,998 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 75mA (Ta) | 10V | 20Ohm @ 150mA, 10V | 3.5V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 330mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

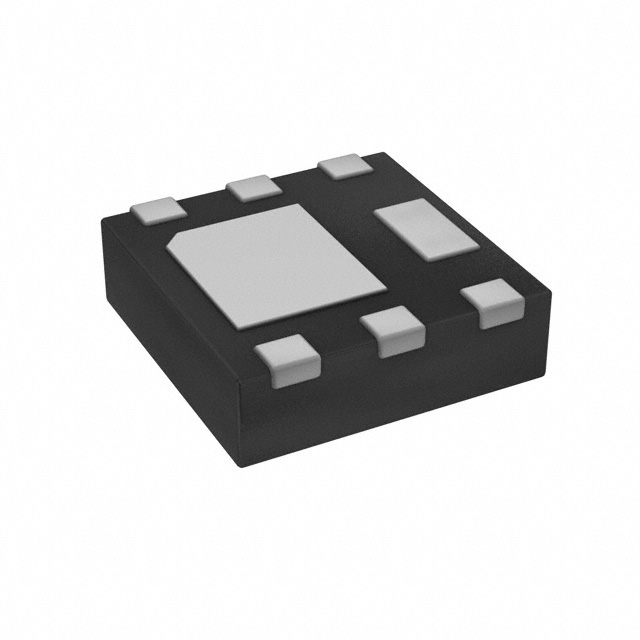

DMN3042LFDF-7MOSFET N-CH 30V 7A 6UDFN |
2,900 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7A (Ta) | 2.5V, 10V | 28mOhm @ 4A, 10V | 1.4V @ 250µA | 13.3 nC @ 10 V | ±12V | 570 pF @ 15 V | - | 2.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2100UDM-7MOSFET N-CH 20V 3.3A SOT-26 |
1,900 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.3A (Ta) | 1.5V, 4.5V | 55mOhm @ 6A, 4.5V | 1V @ 250µA | - | ±8V | 555 pF @ 10 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP3056LSS-13MOSFET P-CH 30V 7.1A 8SOP |
4,185 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 7.1A (Ta) | 4.5V, 10V | 45mOhm @ 6A, 10V | 2.1V @ 250µA | 6.8 nC @ 4.5 V | ±20V | 722 pF @ 25 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2005UFG-7MOSFET N-CH 20V 18.1A PWRDI3333 |
2,512 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 18.1A (Tc) | 2.5V, 4.5V | 4.6mOhm @ 13.5A, 4.5V | 1.2V @ 250µA | 164 nC @ 10 V | ±12V | 6495 pF @ 10 V | - | 1.05W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2028USS-13MOSFET N-CH 20V 7.3A 8SO |
1,153 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.3A (Ta) | 1.5V, 4.5V | 20mOhm @ 9.4A, 4.5V | 1.3V @ 250µA | 11.6 nC @ 4.5 V | ±8V | 1000 pF @ 10 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP3011SFVW-13MOSFET BVDSS: 25V~30V POWERDI333 |
2,985 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 19.8A (Ta), 50A (Tc) | 4.5V, 10V | 10mOhm @ 11.5A, 10V | 3V @ 250µA | 46 nC @ 10 V | ±25V | 2380 pF @ 15 V | - | 980mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP3011SFVW-7MOSFET BVDSS: 25V~30V POWERDI333 |
1,975 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 19.8A (Ta), 50A (Tc) | 4.5V, 10V | 10mOhm @ 11.5A, 10V | 3V @ 250µA | 46 nC @ 10 V | ±25V | 2380 pF @ 15 V | - | 980mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP3021SFVW-13MOSFET BVDSS: 25V~30V POWERDI333 |
2,375 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 42A (Tc) | 5V, 10V | 15mOhm @ 8A, 10V | 2.5V @ 250µA | 34 nC @ 10 V | ±25V | 1799 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN1016UCB6-7MOSFET N-CH 12V 5.5A U-WLB1510-6 |
3,818 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 5.5A (Ta) | 2.5V, 4.5V | 20mOhm @ 1.5A, 4.5V | 1V @ 250µA | 4.2 nC @ 4.5 V | ±8V | 423 pF @ 6 V | - | 920mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BS250FTAMOSFET P-CH 45V 90MA SOT23-3 |
2,230 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 45 V | 90mA (Ta) | 10V | 14Ohm @ 200mA, 10V | 3.5V @ 1mA | - | ±20V | 25 pF @ 10 V | - | 330mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN7022LFG-7MOSFET N-CH 75V 7.8A PWRDI3333-8 |
1,969 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 7.8A (Ta) | 4.5V, 10V | 22mOhm @ 7.2A, 10V | 3V @ 250µA | 56.5 nC @ 10 V | ±20V | 2737 pF @ 35 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMP10A13FQTAMOSFET P-CH 100V 600MA SOT23 |
2,184 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 600mA (Ta) | 6V, 10V | 1Ohm @ 600mA, 10V | 4V @ 250µA | 1.8 nC @ 5 V | ±20V | 141 pF @ 50 V | - | 625mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3009SFG-7MOSFET N-CH 30V 16A PWRDI3333 |
1,500 | 0.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 45A (Tc) | 4.5V, 10V | 5.5mOhm @ 20A, 10V | 2.5V @ 250µA | 42 nC @ 10 V | ±20V | 2000 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
