| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZXMN3A01ZTAMOSFET N-CH 30V 2.2A SOT89 |
245 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 2.2A (Ta) | 4.5V, 10V | 120mOhm @ 2.5A, 10V | 1V @ 250µA | 5 nC @ 10 V | ±20V | 186 pF @ 25 V | - | 970mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP2540UCB9-7MOSFET P-CH 25V 4A U-WLB1515-9 |
134 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 25 V | 4A (Ta) | 1.8V, 4.5V | 40mOhm @ 2A, 4.5V | 1.1V @ 250µA | 6 nC @ 4.5 V | -6V | 450 pF @ 10 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3020UTS-13MOSFET N-CH 30V 15A 8TSSOP |
262 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Tc) | 1.8V, 4.5V | 20mOhm @ 4.5A, 4.5V | 1V @ 250µA | 27 nC @ 8 V | ±12V | 1304 pF @ 15 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2011UTS-13MOSFET N-CH 20V 21A 8TSSOP |
236 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 21A (Tc) | 1.5V, 4.5V | 11mOhm @ 7A, 4.5V | 1V @ 250µA | 56 nC @ 10 V | ±12V | 2248 pF @ 10 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

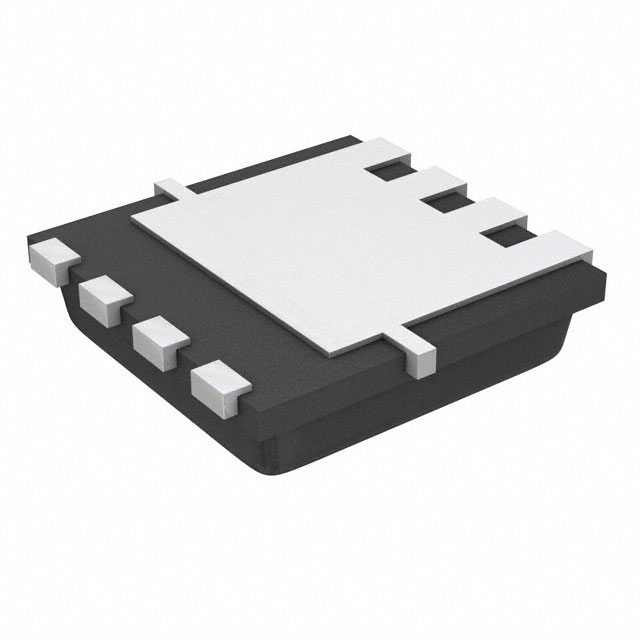

DMP3013SFV-7MOSFET P-CH 30V 12A PWRDI3333 |
2,696 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 35A (Tc) | 4.5V, 10V | 9.5mOhm @ 11.5A, 10V | 3V @ 250µA | 33.7 nC @ 10 V | ±25V | 1674 pF @ 15 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3010LFG-7MOSFET N-CH 30V 11A PWRDI3333 |
840 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 30A (Tc) | 4.5V, 10V | 8.5mOhm @ 18A, 10V | 2.5V @ 250µA | 37 nC @ 10 V | ±20V | 2075 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP6110SVT-7MOSFET P-CH 60V 7.3A TSOT26 |
3,420 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 7.3A (Tc) | 4.5V, 10V | 105mOhm @ 4.5A, 10V | 3V @ 250µA | 17.2 nC @ 10 V | ±20V | 969 pF @ 30 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|

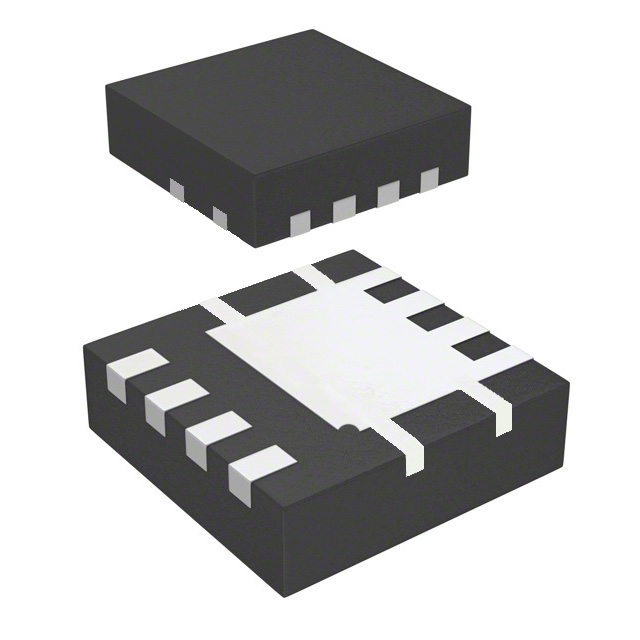

DMG7702SFG-7MOSFET N-CH 30V 12A POWERDI3333 |
291 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 10mOhm @ 13.5A, 10V | 2.5V @ 250µA | 31.6 nC @ 10 V | ±20V | 4310 pF @ 15 V | Schottky Diode (Body) | 890mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMN2B14FHTAMOSFET N-CH 20V 3.5A SOT23-3 |
343 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.5A (Ta) | 1.8V, 4.5V | 55mOhm @ 3.5A, 4.5V | 1V @ 250µA | 11 nC @ 4.5 V | ±8V | 872 pF @ 10 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

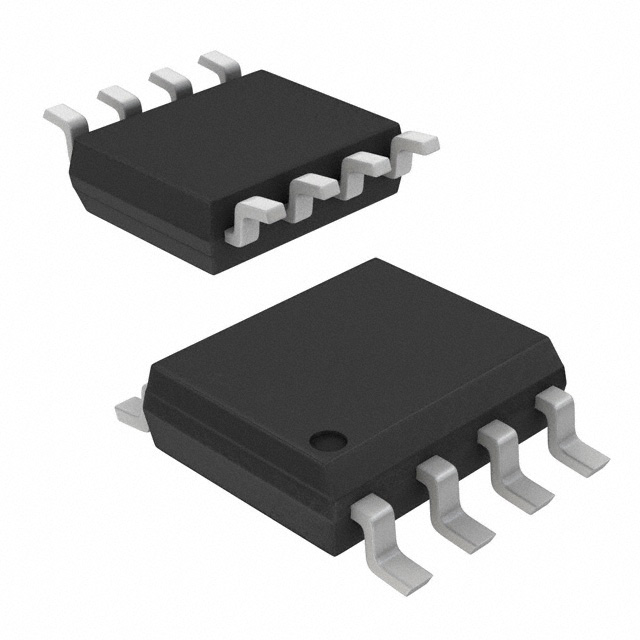

ZXMP3A16N8TAMOSFET P-CH 30V 5.6A 8SO |
691 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.6A (Ta) | 4.5V, 10V | 40mOhm @ 4.2A, 10V | 1V @ 250µA | 29.6 nC @ 10 V | ±20V | 1022 pF @ 15 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMT10H015LFG-7MOSFET N-CH 100V PWRDI3333 |
3,192 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 10A (Ta), 42A (Tc) | 6V, 10V | 13.5mOhm @ 20A, 10V | 3.5V @ 250µA | 33.3 nC @ 10 V | ±20V | 1871 pF @ 50 V | - | 2W (Ta), 35W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMJ7N70SK3-13MOSFET N-CH 700V 3.9A TO252 |
160 | 1.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 3.9A (Tc) | 10V | 1.25Ohm @ 2.5A, 10V | 4V @ 250µA | 13.9 nC @ 10 V | ±30V | 351 pF @ 50 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

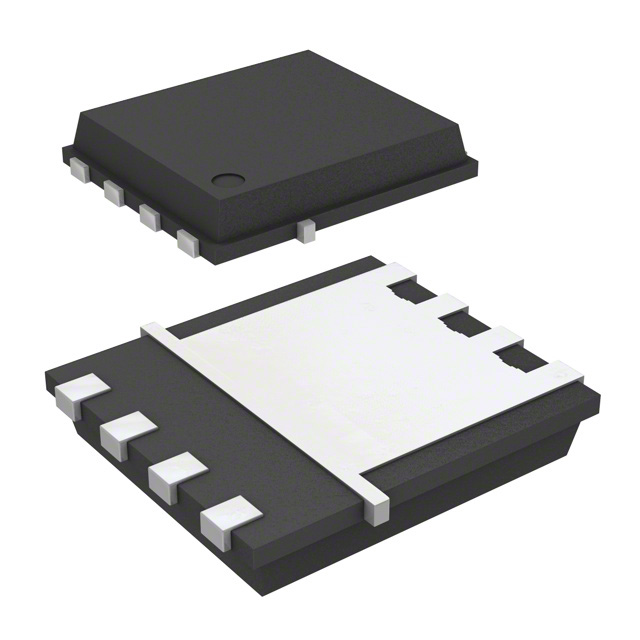

DMNH4006SPSQ-13MOSFET N-CH 40V 110A PWRDI5060-8 |
991 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 10V | 7mOhm @ 50A, 10V | 4V @ 250µA | 50.9 nC @ 10 V | 20V | 2.28 pF @ 25 V | - | 1.6W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|

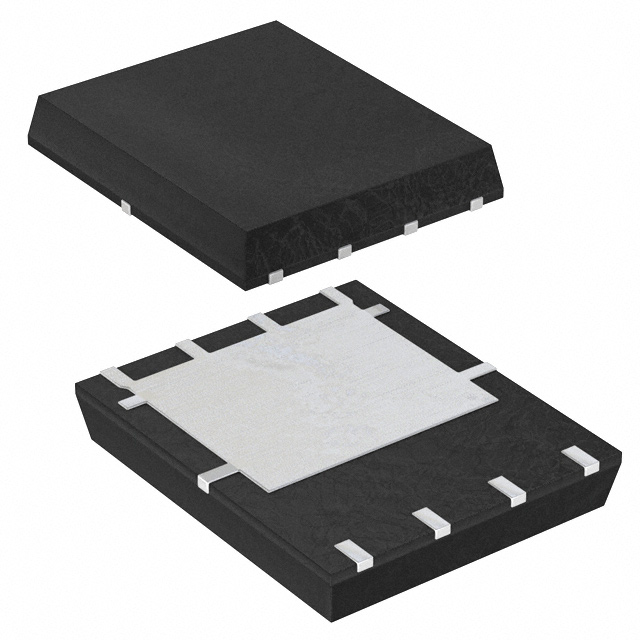

DMP2002UPS-13MOSFET P-CH 20V 60A PWRDI5060-8 |
400 | 2.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 60A (Tc) | 2.5V, 10V | 1.9mOhm @ 25A, 10V | 1.4V @ 250µA | 585 nC @ 10 V | ±12V | 12826 pF @ 10 V | - | 2.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS138K-13MOSFET N-CH 50V 310MA SOT23 |
3,012 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 310mA (Ta) | 10V | 3.5Ohm @ 220mA, 10V | 1.5V @ 250µA | 0.95 nC @ 10 V | ±20V | 23.2 pF @ 25 V | - | 380mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN62D0U-13MOSFET N-CH 60V 380MA SOT23 |
3,357 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 380mA (Ta) | 1.8V, 4.5V | 2Ohm @ 100mA, 4.5V | 1V @ 250µA | 0.5 nC @ 4.5 V | ±20V | 32 pF @ 30 V | - | 380mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS138-7-FMOSFET N-CH 50V 200MA SOT23-3 |
3,748 | 0.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 200mA (Ta) | 10V | 3.5Ohm @ 220mA, 10V | 1.5V @ 250µA | - | ±20V | 50 pF @ 10 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
2N7002K-7MOSFET N-CH 60V 380MA SOT23-3 |
3,947 | 0.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 380mA (Ta) | 5V, 10V | 2Ohm @ 500mA, 10V | 2.5V @ 1mA | 0.3 nC @ 4.5 V | ±20V | 50 pF @ 25 V | - | 370mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS84-7-FMOSFET P-CH 50V 130MA SOT23-3 |
2,492 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 130mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 1mA | - | ±20V | 45 pF @ 25 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3731U-7MOSFET N-CH 30V 900MA SOT23 |
2,619 | 0.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 900mA (Ta) | 1.8V, 4.5V | 460mOhm @ 200mA, 4.5V | 0.95V @ 250µA | 5.5 nC @ 4.5 V | ±8V | 73 pF @ 25 V | - | 400mW | -55°C ~ 150°C (TJ) | Surface Mount |
