| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
G65P06D5P60V,RD(MAX)<18M@-10V,VTH-2V~-3V |
14,815 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 60A (Tc) | 10V | 18mOhm @ 20A, 10V | 3.5V @ 250µA | 75 nC @ 10 V | ±20V | 5814 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
G65P06KP60V,RD(MAX)<18M@-10V,VTH-2V~-3. |
6,649 | 1.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 65A (Tc) | 10V | 18mOhm @ 20A, 10V | 3.5V @ 250µA | 75 nC @ 10 V | ±20V | 5814 pF @ 25 V | - | 130W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
G50N03KN30V,RD(MAX)<7M@10V,RD(MAX)<12M@ |
2,490 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 65A | - | 7mOhm @ 20A, 10V | 2.5V @ 250µA | 16.6 nC @ 10 V | ±20V | 950 pF @ 15 V | - | 48W | -55°C ~ 150°C (TJ) | Surface Mount |
|
G06N06SN60V,RD(MAX)<22M@10V,RD(MAX)<35M |
2,146 | 0.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 8A | - | 22mOhm @ 6A, 10V | 2.4V @ 250µA | 46 nC @ 10 V | ±20V | 1600 pF @ 30 V | - | 2.1W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
G110N06KN60V,RD(MAX)<6.4M@10V,RD(MAX)<8. |
4,159 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 110A (Tc) | 4.5V, 10V | 6.4mOhm @ 4A, 10V | 2.5V @ 250µA | 113 nC @ 10 V | ±20V | 5538 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

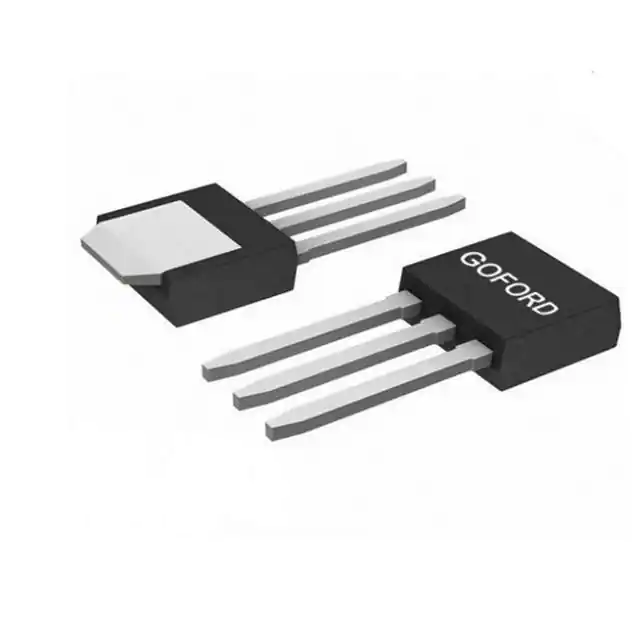

G50N03JN30V,RD(MAX)<7M@10V,RD(MAX)<12M@ |
4,905 | 0.65 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 65A (Tc) | 4.5V, 10V | 7mOhm @ 20A, 10V | 2.5V @ 250µA | 16.6 nC @ 10 V | ±20V | 1255 pF @ 15 V | - | 48W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
G45P02D3P20V,RD(MAX)<9.5M@-4.5V,RD(MAX)< |
4,908 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 45A | - | 9.5mOhm @ 10A, 4.5V | 1V @ 250µA | 55 nC @ 4.5 V | ±12V | 3500 pF @ 10 V | - | 80W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
G15N10CN100V,RD(MAX)<110M@10V,RD(MAX)<1 |
2,473 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 4.5V, 10V | 110mOhm @ 8A, 10V | 3V @ 250µA | 22 nC @ 10 V | ±20V | - | - | 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
G23N06KN60V,RD(MAX)<35M@10V,RD(MAX)<45M |
2,396 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 23A | - | 35mOhm @ 20A, 10V | 2.5V @ 250µA | 25 nC @ 10 V | ±20V | 590 pF @ 15 V | - | 38W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
G15P04KP40V,RD(MAX)<39M@-10V,RD(MAX)<70 |
2,108 | 0.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 15A | - | 39mOhm @ 10A, 10V | 3V @ 250µA | 25 nC @ 10 V | ±20V | 930 pF @ 20 V | - | 50W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
G12P10KP100V,RD(MAX)<200M@-10V,RD(MAX)< |
2,212 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 12A | - | 200mOhm @ 6A, 10V | 3V @ 250µA | 33 nC @ 10 V | ±20V | 1720 pF @ 50 V | - | 57W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
GT52N10D5N100V,RD(MAX)<7.5M@10V,RD(MAX)<1 |
12,635 | 1.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 71A (Tc) | 4.5V, 10V | 7.5mOhm @ 50A, 10V | 2.5V @ 250µA | 44.5 nC @ 10 V | ±20V | 2626 pF @ 50 V | - | 79W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
GT100N12D5N120V,RD(MAX)<10M@10V,VTH2.5V~3. |
10,000 | 1.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 70A | - | 10mOhm @ 35A, 10V | 3.5V @ 250µA | 50 nC @ 10 V | ±20V | 3050 pF @ 60 V | - | 120W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
G08P06D3P60V,RD(MAX)<52M@-10V,VTH-2V~-3. |
2,158 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 8A (Tc) | 10V | 52mOhm @ 6A, 10V | 3.5V @ 250µA | 25 nC @ 10 V | ±20V | 2972 pF @ 30 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
G60N04KN40V,RD(MAX)<7M@10V,RD(MAX)<12M@ |
2,490 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 60A | - | 7mOhm @ 30A, 10V | 2.5V @ 250µA | 29 nC @ 10 V | ±20V | 1800 pF @ 20 V | - | 65W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
18N10N100V,RD(MAX)<53M@10V,RD(MAX)<63 |
2,460 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 25A | - | 53mOhm @ 10A, 10V | 3V @ 250µA | 28 nC @ 10 V | ±20V | 1318 pF @ 50 V | - | 62.5W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
60N06N60V,RD(MAX)<17M@10V,RD(MAX)<21M |
1,832 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A | - | 17mOhm @ 5A, 10V | 2V @ 250µA | 50 nC @ 10 V | ±20V | 2050 pF @ 30 V | - | 85W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
630AN200V,RD(MAX)<280M@10V,VTH1V~3V |
2,483 | 2483.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 11A | 10V | 280mOhm @ 4.5A, 10V | 3V @ 250µA | 11.8 nC @ 10 V | ±20V | 509 pF @ 25 V | - | 83W | -55°C ~ 150°C (TJ) | |
|
|
G20P08KP-80V,RD(MAX)<62M@-10V,RD(MAX)<7 |
1,426 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 80 V | 20A (Tc) | 4.5V, 10V | 62mOhm @ 10A, 10V | 2.5V @ 250µA | 48 nC @ 10 V | ±20V | 3500 pF @ 30 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
GT025N06D5N60V,RD(MAX)<2.7M@10V,RD(MAX)<3. |
10,020 | 1.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 95A (Tc) | 4.5V, 10V | 2.7mOhm @ 20A, 10V | 2.5V @ 250µA | 93 nC @ 10 V | ±20V | 5950 pF @ 25 V | - | 120W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
