| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

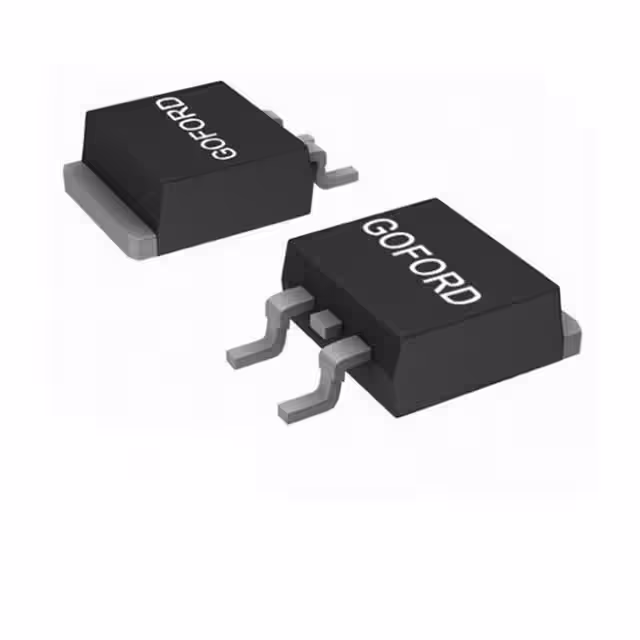

G20P10KEP-CH, -100V, 20A, RD(MAX)<116M@- |
2,320 | 0.94 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 20A (Tc) | 10V | 116mOhm @ 16A, 10V | 3V @ 250µA | 70 nC @ 10 V | ±20V | 3354 pF @ 50 V | - | 69W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
.jpg)
|
GT55N06D5N60V,RD(MAX)<8M@10V,RD(MAX)<13M@ |
2,231 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 53A (Ta) | 4.5V, 10V | 9mOhm @ 14A, 10V | 2.5V @ 250µA | 31 nC @ 10 V | ±20V | 1988 pF @ 30 V | - | 70W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
GT650N15KN150V,RD(MAX)<65M@10V,VTH2.5V~4. |
2,460 | 0.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 20A (Tc) | 10V | 65mOhm @ 10A, 10V | 4.5V @ 250µA | 12 nC @ 10 V | ±20V | 600 pF @ 75 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
G86N06KN60V,RD(MAX)<8.4M@10V,VTH2V~4V |
2,454 | 2454.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 68A | - | 8.4mOhm @ 4A, 10V | 4V @ 250µA | 77 nC @ 10 V | ±20V | 2860 pF @ 25 V | - | 88W | -55°C ~ 175°C (TJ) | |
|
|
GT095N10D5N100V,RD(MAX)<11M@10V,RD(MAX)<15 |
4,908 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 55A (Tc) | 4.5V, 10V | 11mOhm @ 35A, 10V | 2.5V @ 250µA | 54 nC @ 10 V | ±20V | - | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
GC11N65KN650V,RD(MAX)<360M@10V,VTH2.5V~4 |
2,490 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±30V | 901 pF @ 50 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
03N06N60V,RD(MAX)<100M@10V,RD(MAX)<12 |
3,561 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 3A | - | 100mOhm @ 2A, 10V | 1.2V @ 250µA | 14.6 nC @ 30 V | ±20V | 510 pF @ 30 V | - | 1.7W | -55°C ~ 150°C (TJ) | Surface Mount |
|
5P40P40V,RD(MAX)<85M@-10V,RD(MAX)<12 |
2,209 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 5.3A (Ta) | 4.5V, 10V | 85mOhm @ 5A, 10V | 3V @ 250µA | 14 nC @ 10 V | ±20V | 650 pF @ 20 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
G30N02TN20V,RD(MAX)<13M@4.5V,VTH0.5V~1. |
2,159 | 0.62 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 30A (Ta) | 4.5V | 13mOhm @ 20A, 4.5V | 1.2V @ 250µA | 15 nC @ 10 V | ±12V | 900 pF @ 10 V | - | 40W (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
GT100N12MN120V,RD(MAX)<10M@10V,VTH2.5V~3. |
800 | 1.78 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 70A (Tc) | 10V | 10mOhm @ 35A, 10V | 3.5V @ 250µA | 50 nC @ 10 V | ±20V | 3050 pF @ 60 V | - | 120W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
GC11N65MN650V,RD(MAX)<360M@10V,VTH2.5V~4 |
790 | 1.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±30V | 768 pF @ 50 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|

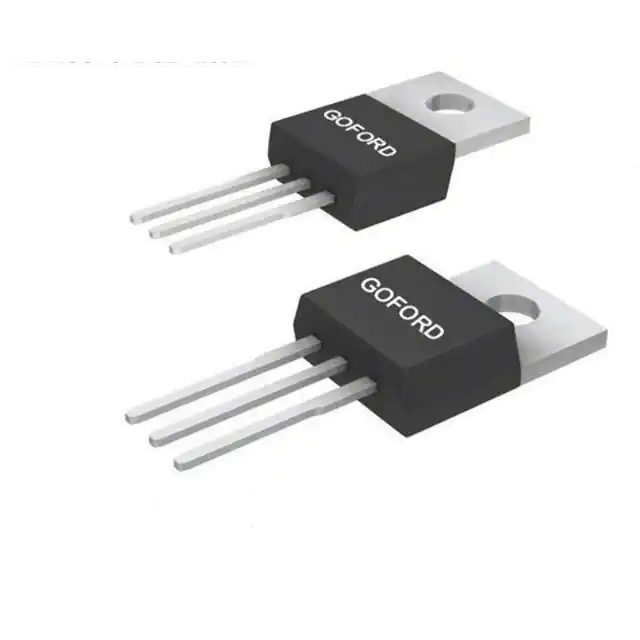

GT105N10TN100V,RD(MAX)<10.5M@10V,RD(MAX)< |
250 | 1.42 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 55A (Tc) | 4.5V, 10V | 10.5mOhm @ 35A, 10V | 2.5V @ 250µA | 54 nC @ 10 V | ±20V | - | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
G60N10TN100V,RD(MAX)<25M@10V,RD(MAX)<30 |
215 | 1.71 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 60A (Tc) | 4.5V, 10V | 25mOhm @ 20A, 10V | 2.5V @ 250µA | 146 nC @ 10 V | ±20V | 3970 pF @ 50 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
GC11N65TN650V,RD(MAX)<360M@10V,VTH2.5V~4 |
2,557 | 1.78 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±30V | 901 pF @ 50 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
GT100N12TN120V,RD(MAX)<10M@10V,VTH2.5V~3. |
3,432 | 1.82 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 70A (Tc) | 10V | 10mOhm @ 35A, 10V | 3.5V @ 250µA | 50 nC @ 10 V | ±20V | 3050 pF @ 60 V | - | 120W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
GT52N10TN100V,RD(MAX)<9M@10V,RD(MAX)<15M |
3,988 | 1.82 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A | - | 9mOhm @ 50A, 10V | 2.5V @ 250µA | 44.5 nC @ 10 V | ±20V | 2626 pF @ 50 V | - | 227W | -55°C ~ 150°C (TJ) | Through Hole |
|

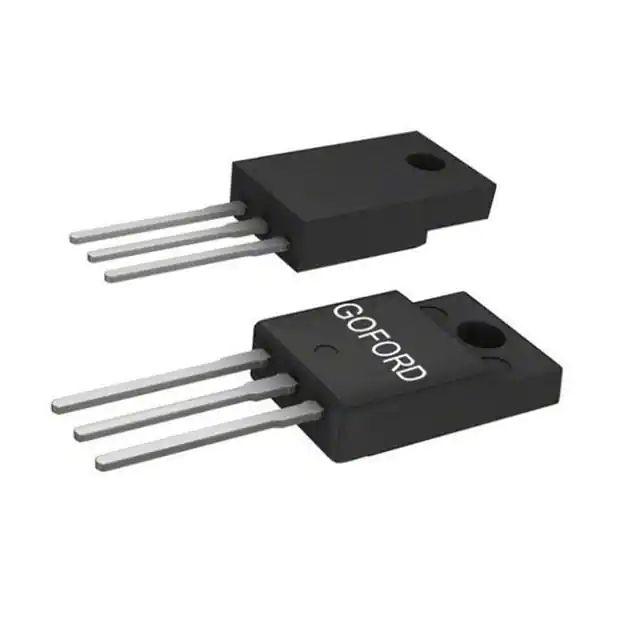

GC11N65FN650V,RD(MAX)<360M@10V,VTH2.5V~4 |
3,284 | 1.95 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A | - | 360mOhm @ 5.5A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±30V | 901 pF @ 50 V | - | 31.3W | -55°C ~ 150°C (TJ) | Through Hole |
|
|
GT035N06TN-CH, 60V,170A, RD(MAX)<3.5M@10V |
187 | 2.11 |
RFQ |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 170A (Tc) | 4.5V, 10V | 3.5mOhm @ 20A, 10V | 2.5V @ 250µA | 70 nC @ 10 V | ±20V | 5064 pF @ 30 V | - | 215W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
GC20N65FN650V,RD(MAX)<170M@10V,VTH2.5V~4 |
2,197 | 2.94 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 170mOhm @ 10A, 10V | 4.5V @ 250µA | 39 nC @ 10 V | ±30V | 1724 pF @ 100 V | - | 34W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
GC20N65TN650V,RD(MAX)<170M@10V,VTH2.5V~4 |
100 | 2.97 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 170mOhm @ 10A, 10V | 4.5V @ 250µA | 39 nC @ 10 V | ±30V | 1724 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
