| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSC060SMA070B4TRANS SJT N-CH 700V 39A TO247-4 |
3,442 | 10.59 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 39A (Tc) | 20V | 75mOhm @ 20A, 20V | 2.4V @ 1mA | 56 nC @ 20 V | +23V, -10V | 1175 pF @ 700 V | - | 143W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
APT13F120BMOSFET N-CH 1200V 14A TO247 |
3,047 | 11.01 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 14A (Tc) | 10V | 1.4Ohm @ 7A, 10V | 5V @ 1mA | 145 nC @ 10 V | ±30V | 4765 pF @ 25 V | - | 625W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
APT56M50LMOSFET N-CH 500V 56A TO264 |
2,876 | 12.02 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 56A (Tc) | 10V | 100mOhm @ 28A, 10V | 5V @ 2.5mA | 220 nC @ 10 V | ±30V | 8800 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
MSC080SMA120B4SICFET N-CH 1200V 37A TO247-4 |
2,474 | 14.09 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 37A (Tc) | 20V | 100mOhm @ 15A, 20V | 2.8V @ 1mA | 64 nC @ 20 V | +23V, -10V | 838 pF @ 1000 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
APT30M70BVRGMOSFET N-CH 300V 48A TO247 |
2,517 | 14.22 |
RFQ |
Datasheet |
Tube | POWER MOS V® | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 48A (Tc) | 10V | 70mOhm @ 500mA, 10V | 4V @ 1mA | 225 nC @ 10 V | ±30V | 5870 pF @ 25 V | - | 370W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

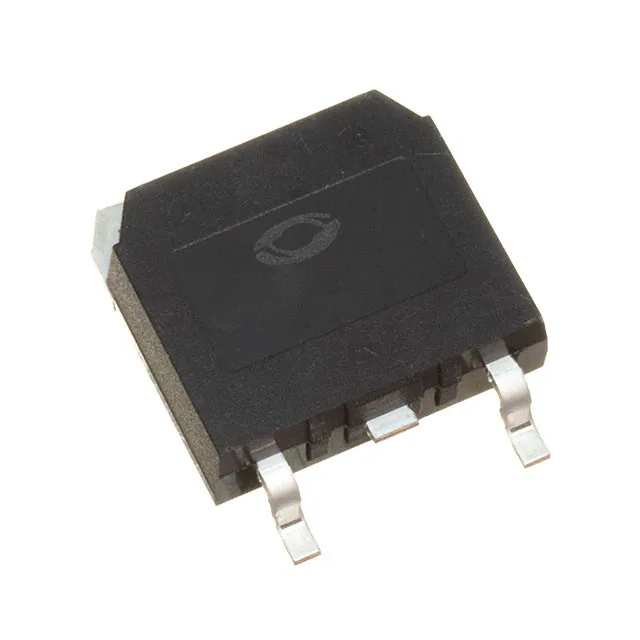

MSC080SMA120SSICFET N-CH 1200V 35A D3PAK |
2,304 | 14.66 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 35A | 20V | 100mOhm @ 15A, 20V | 2.8V @ 1mA | 64 nC @ 20 V | +23V, -10V | 838 pF @ 1000 V | - | 182W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
MSC035SMA070BMOSFET N-CH 700V TO247 |
3,290 | 16.07 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 700 V | 77A (Tc) | 20V | 44mOhm @ 30A, 20V | 2.7V @ 2mA | 99 nC @ 20 V | +25V, -10V | 2010 pF @ 700 V | - | 283W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
VN2210N2MOSFET N-CH 100V 1.7A TO39 |
2,784 | 17.58 |
RFQ |
Datasheet |
Bag | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.7A (Tj) | 5V, 10V | 350mOhm @ 4A, 10V | 2.4V @ 10mA | - | ±20V | 500 pF @ 25 V | - | 360mW (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT5010LLLGMOSFET N-CH 500V 46A TO264 |
2,192 | 17.67 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 46A (Tc) | 10V | 100mOhm @ 23A, 10V | 5V @ 2.5mA | 95 nC @ 10 V | ±30V | 4360 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
APT37M100LMOSFET N-CH 1000V 37A TO264 |
3,928 | 22.75 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 37A (Tc) | 10V | 330mOhm @ 18A, 10V | 5V @ 2.5mA | 305 nC @ 10 V | ±30V | 9835 pF @ 25 V | - | 1135W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
APT28M120B2MOSFET N-CH 1200V 29A T-MAX |
2,777 | 24.63 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 29A (Tc) | 10V | 560mOhm @ 14A, 10V | 5V @ 2.5mA | 300 nC @ 10 V | ±30V | 9670 pF @ 25 V | - | 1135W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
APT17F120JMOSFET N-CH 1200V 18A ISOTOP |
3,849 | 34.07 |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 18A (Tc) | 10V | 580mOhm @ 14A, 10V | 5V @ 2.5mA | 300 nC @ 10 V | ±30V | 9670 pF @ 25 V | - | 545W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT5010JVRU2MOSFET N-CH 500V 44A SOT227 |
3,749 | 34.61 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | 10V | 100mOhm @ 22A, 10V | 4V @ 2.5mA | 312 nC @ 10 V | ±30V | 7410 pF @ 25 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
APT77N60JC3MOSFET N-CH 600V 77A ISOTOP |
3,447 | 38.39 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 77A (Tc) | 10V | 35mOhm @ 60A, 10V | 3.9V @ 5.4mA | 640 nC @ 10 V | ±20V | 13600 pF @ 25 V | - | 568W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
MSC025SMA120SSICFET N-CH 1.2KV 100A D3PAK |
428 | 43.85 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 89A (Tc) | - | - | - | - | - | - | - | - | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
APT10045JLLMOSFET N-CH 1000V 21A ISOTOP |
3,575 | 46.09 |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 21A (Tc) | 10V | 450mOhm @ 11.5A, 10V | 5V @ 2.5mA | 154 nC @ 10 V | ±30V | 4350 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|

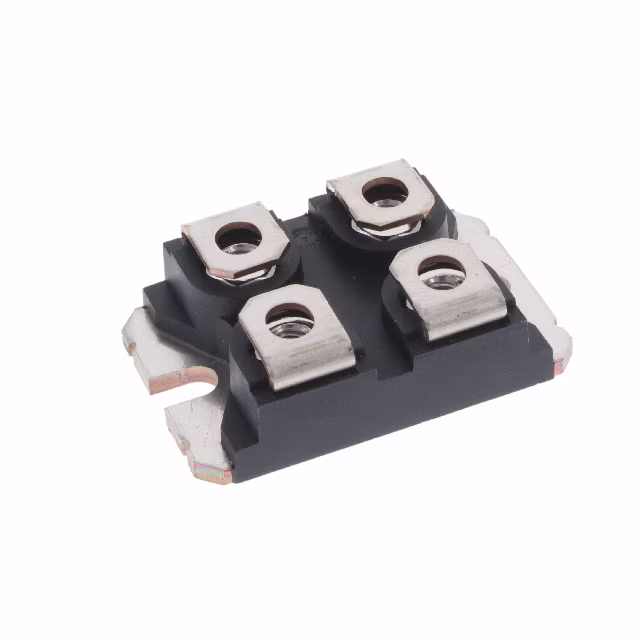

MSC40SM120JCU3SICFET N-CH 1.2KV 55A SOT227 |
3,164 | 47.67 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 55A (Tc) | 20V | 50mOhm @ 40A, 20V | 2.7V @ 1mA | 137 nC @ 20 V | +25V, -10V | 1990 pF @ 1000 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
MSC40SM120JCU2SICFET N-CH 1.2KV 55A SOT227 |
3,040 | 47.67 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 55A (Tc) | 20V | 50mOhm @ 40A, 20V | 2.7V @ 1mA | 137 nC @ 20 V | +25V, -10V | 1990 pF @ 1000 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
MSC040SMA120JSICFET N-CH 1200V 53A SOT227 |
3,500 | 43.51 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 53A (Tc) | 20V | 50mOhm @ 40A, 20V | 2.8V @ 1mA | 137 nC @ 20 V | +25V, -10V | 1990 pF @ 1000 V | - | 208W (Tc) | -55°C ~ 175°C (TJ) | Chassis Mount |
|
LP0701LG-GMOSFET P-CH 16.5V 700MA 8SOIC |
3,379 | 2.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 16.5 V | 700mA (Tj) | 2V, 5V | 1.5Ohm @ 300mA, 5V | 1V @ 1.1mA | - | ±10V | 250 pF @ 15 V | - | 1.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
