| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

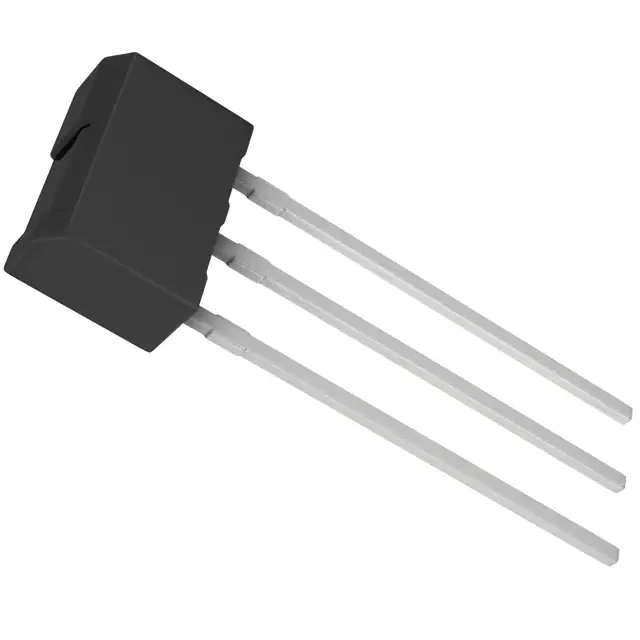

2SC5880TV2RTRANS NPN 60V 2A ATV |
2,109 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 2 A | 60 V | 500mV @ 100mA, 1A | 1µA (ICBO) | 180 @ 100mA, 2V | 1 W | 200MHz | 150°C (TJ) | Through Hole |
|

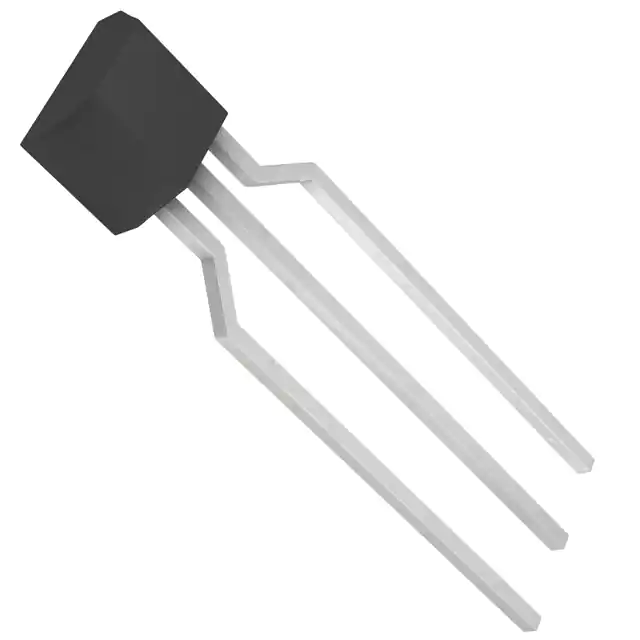

2SD1768STPRTRANS NPN 80V 1A SPT |
3,527 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 1 A | 80 V | 400mV @ 20mA, 500mA | 1µA (ICBO) | 120 @ 500mA, 3V | 300 mW | 100MHz | 150°C (TJ) | Through Hole |
|
|
2SC4115STPSTRANS NPN 20V 2A SPT |
3,306 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 2 A | 20 V | 500mV @ 100mA, 2A | 100nA (ICBO) | 270 @ 100mA, 2V | 400 mW | 290MHz | 150°C (TJ) | Through Hole |
|
|
2SC4115STPQTRANS NPN 20V 2A SPT |
3,952 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 2 A | 20 V | 500mV @ 100mA, 2A | 100nA (ICBO) | 120 @ 100mA, 2V | 400 mW | 290MHz | 150°C (TJ) | Through Hole |
|
|
2SC5826TV2RTRANS NPN 60V 3A ATV |
3,840 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 3 A | 60 V | 500mV @ 200mA, 2A | 1µA (ICBO) | 180 @ 100mA, 2V | 1 W | 200MHz | 150°C (TJ) | Through Hole |
|
|
2SC5826TV2QTRANS NPN 60V 3A ATV |
3,344 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 3 A | 60 V | 500mV @ 200mA, 2A | 1µA (ICBO) | 120 @ 100mA, 2V | 1 W | 200MHz | 150°C (TJ) | Through Hole |
|
|
2SA2093TV2QTRANS PNP 60V 2A ATV |
3,020 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | PNP | 2 A | 60 V | 500mV @ 100mA, 1A | 1µA (ICBO) | 120 @ 100mA, 2V | 1 W | 310MHz | 150°C (TJ) | Through Hole |
|
2SD1733TLPTRANS NPN 80V 1A CPT3 |
2,030 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | NPN | 1 A | 80 V | 400mV @ 20mA, 500mA | 1µA (ICBO) | 120 @ 500mA, 3V | 10 W | 100MHz | 150°C (TJ) | Surface Mount |
|
|
2SC2062STPCTRANS NPN DARL 32V 0.3A SPT |
2,938 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | NPN - Darlington | 300 mA | 32 V | 1.4V @ 200µA, 200mA | 100nA (ICBO) | 10000 @ 100mA, 3V | 300 mW | 200MHz | 150°C (TJ) | Through Hole |
|
2SB1565FU6ETRANS PNP 60V 3A TO220FN |
2,251 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | PNP | 3 A | 60 V | 1.5V @ 200mA, 2A | 10µA (ICBO) | 100 @ 500mA, 5V | 2 W | 15MHz | 150°C (TJ) | Through Hole |
|
2SD2607FU6TRANS NPN DARL 100V 8A TO220FN |
2,489 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | NPN - Darlington | 8 A | 100 V | 1.5V @ 6mA, 3A | 10µA (ICBO) | 1000 @ 2A, 3V | 2 W | 40MHz | 150°C (TJ) | Through Hole |
|
2SCR523V1T2LTRANS NPN 50V 0.1A VML |
3,867 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
2SC4617EBTLSTRANS NPN 50V 0.15A EMT3F |
2,559 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | NPN | 150 mA | 50 V | 400mV @ 5mA, 50mA | 100nA (ICBO) | 120 @ 1mA, 6V | 150 mW | 180MHz | 150°C (TJ) | Surface Mount |
|
BSS4130T116TRANS NPN 30V 1A SST3 |
2,875 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 1 A | 30 V | 350mV @ 25mA, 500mA | 100nA (ICBO) | 270 @ 100mA, 2V | 200 mW | 400MHz | 150°C (TJ) | Surface Mount |
|
|
BSS5130T116TRANS PNP 30V 1A SST3 |
2,861 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PNP | 1 A | 30 V | 380mV @ 25mA, 500mA | 100nA (ICBO) | 270 @ 100mA, 2V | 200 mW | 320MHz | 150°C (TJ) | Surface Mount |
|
|
BSS63T116TRANS PNP 100V 0.1A SST3 |
3,677 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PNP | 100 mA | 100 V | 500mV @ 10mA, 100mA | 100nA (ICBO) | 30 @ 10mA, 1V | 350 mW | 200MHz | 150°C (TJ) | Surface Mount |
|
|
BSS64T116TRANS NPN 100V 0.1A SST3 |
3,804 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 100 mA | 100 V | 300mV @ 10mA, 100mA | 100nA (ICBO) | 30 @ 25mA, 1V | 350 mW | 140MHz | 150°C (TJ) | Surface Mount |
|
|
2SAR523V1T2LTRANS PNP 50V 0.1A VMT3 |
3,381 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
2SC5916TLRTRANS NPN 30V 2A TSMT3 |
3,225 | 0.41 |
RFQ |
Datasheet |
Cut Tape (CT) | * | Active | - | - | - | - | - | - | - | - | - | - |
|
|
DSC2A01T0LTRANS NPN 40V 0.05A MINI3 |
2,764 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | NPN | 50 mA | 40 V | 200mV @ 1mA, 10mA | 1µA | 1000 @ 2mA, 10V | 200 mW | 150MHz | 150°C (TJ) | Surface Mount |
