| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
US6X3TRTRANS NPN 12V 3A TUMT6 |
3,946 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 3 A | 12 V | 250mV @ 30mA, 1.5A | 100nA (ICBO) | 270 @ 500mA, 2V | 400 mW | 360MHz | 150°C (TJ) | Surface Mount |
|
2SC1741STPQTRANS NPN 32V 0.5A SPT |
2,977 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | NPN | 500 mA | 32 V | 600mV @ 50mA, 500mA | 1µA (ICBO) | 120 @ 100mA, 3V | 300 mW | 250MHz | 150°C (TJ) | Through Hole |
|

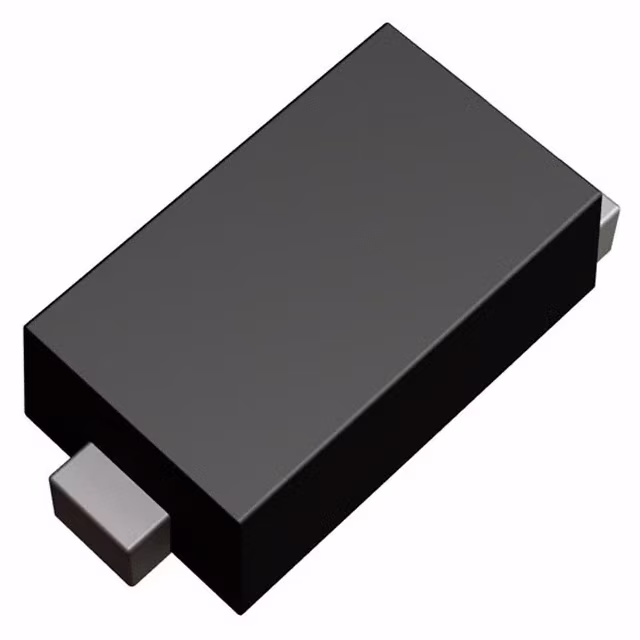

2SC6114T2LRTRANS NPN 50V 0.1A VMN3 |
3,048 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 100 mA | 50 V | 300mV @ 2.5mA, 25mA | 100nA (ICBO) | 180 @ 2mA, 6V | 150 mW | 130MHz | 150°C (TJ) | Surface Mount |
|
|
2SC6114T2LQTRANS NPN 50V 0.1A VMN3 |
2,309 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 100 mA | 50 V | 300mV @ 2.5mA, 25mA | 100nA (ICBO) | 120 @ 2mA, 6V | 150 mW | 130MHz | 150°C (TJ) | Surface Mount |
|
|
2SD1768STPQTRANS NPN 80V 1A SPT |
2,401 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | - | Obsolete | NPN | 1 A | 80 V | 400mV @ 20mA, 500mA | 1µA (ICBO) | 120 @ 500mA, 3V | 300 mW | 100MHz | 150°C (TJ) | Through Hole |
|
|
2SA2199T2LRTRANS PNP 50V 0.1A VMN3 |
3,076 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 100 mA | 50 V | 300mV @ 2.5mA, 25mA | 100nA (ICBO) | 180 @ 2mA, 6V | 150 mW | 110MHz | 150°C (TJ) | Surface Mount |
|
QSX3TRTRANS NPN 30V 5A TSMT6 |
2,177 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 5 A | 30 V | 250mV @ 30mA, 1.5A | 100nA (ICBO) | 270 @ 500mA, 2V | 1.25 W | 360MHz | 150°C (TJ) | Surface Mount |
|
|
QST4TRTRANS PNP 12V 3A TSMT6 |
3,658 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 3 A | 12 V | 250mV @ 30mA, 1.5A | 100nA (ICBO) | 270 @ 500mA, 2V | 1.25 W | 280MHz | 150°C (TJ) | Surface Mount |
|
|
2SC2058STPPTRANS NPN 25V 0.05A SPT |
3,489 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 50 mA | 25 V | 300mV @ 1mA, 10mA | 500nA (ICBO) | 82 @ 1mA, 6V | 300 mW | 300MHz | 150°C (TJ) | Through Hole |
|
|
2SC2389STPSTRANS NPN 120V 0.05A SPT |
2,568 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 50 mA | 120 V | 500mV @ 1mA, 10mA | 500nA (ICBO) | 180 @ 2mA, 6V | 300 mW | 140MHz | 150°C (TJ) | Through Hole |
|
|
2SA1038STPSTRANS PNP 120V 0.05A SPT |
2,372 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 50 mA | 120 V | 500mV @ 1mA, 10mA | 500nA (ICBO) | 180 @ 2mA, 6V | 300 mW | 140MHz | 150°C (TJ) | Through Hole |
|
|
2SC1741ASTPRTRANS NPN 50V 0.5A SPT |
2,155 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 500 mA | 50 V | 400mV @ 15mA, 150mA | 500nA (ICBO) | 120 @ 100mA, 3V | 300 mW | 250MHz | 150°C (TJ) | Through Hole |
|
|
2SD2705STPTRANS NPN 20V 0.3A SPT |
3,658 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 300 mA | 20 V | 100mV @ 3mA, 30mA | 100nA (ICBO) | 820 @ 4ma, 2V | 300 mW | 35MHz | 150°C (TJ) | Through Hole |
|
|
2SD2144STPUTRANS NPN 20V 0.5A SPT |
3,825 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 500 mA | 20 V | 400mV @ 20mA, 500mA | 500nA (ICBO) | 820 @ 10mA, 3V | 300 mW | 350MHz | 150°C (TJ) | Through Hole |
|
|
2SC3415STPNTRANS NPN 300V 0.1A SPT |
2,153 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 100 mA | 300 V | 2V @ 5mA, 50mA | 500nA (ICBO) | 56 @ 10mA, 10V | 300 mW | 100MHz | 150°C (TJ) | Through Hole |
|
|
2SC3415STPPTRANS NPN 300V 0.1A SPT |
3,291 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 100 mA | 300 V | 2V @ 5mA, 50mA | 500nA (ICBO) | 56 @ 10mA, 10V | 300 mW | 100MHz | 150°C (TJ) | Through Hole |
|
|
2SA1515STPRTRANS PNP 32V 1A SPT |
3,995 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | PNP | 1 A | 32 V | 500mV @ 50mA, 500mA | 500nA (ICBO) | 180 @ 100mA, 3V | 300 mW | 150MHz | 150°C (TJ) | Through Hole |
|
|
2SD1468STPRTRANS NPN 15V 1A SPT |
2,103 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 1 A | 15 V | 400mV @ 50mA, 500mA | 500nA (ICBO) | 120 @ 100mA, 3V | 300 mW | 150MHz | 150°C (TJ) | Through Hole |
|
|
2SD1468STPSTRANS NPN 15V 1A SPT |
2,530 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 1 A | 15 V | 400mV @ 50mA, 500mA | 500nA (ICBO) | 120 @ 100mA, 3V | 300 mW | 150MHz | 150°C (TJ) | Through Hole |
|
2SC5880TV2QTRANS NPN 60V 2A ATV |
2,340 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | NPN | 2 A | 60 V | 500mV @ 100mA, 1A | 1µA (ICBO) | 120 @ 100mA, 2V | 1 W | 200MHz | 150°C (TJ) | Through Hole |
