| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SC5916TLQTRANS NPN 30V 2A TSMT3 |
2,728 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | NPN | 2 A | 30 V | 400mV @ 100mA, 1A | 1µA (ICBO) | 120 @ 100mA, 2V | 500 mW | 250MHz | 150°C (TJ) | Surface Mount |
|

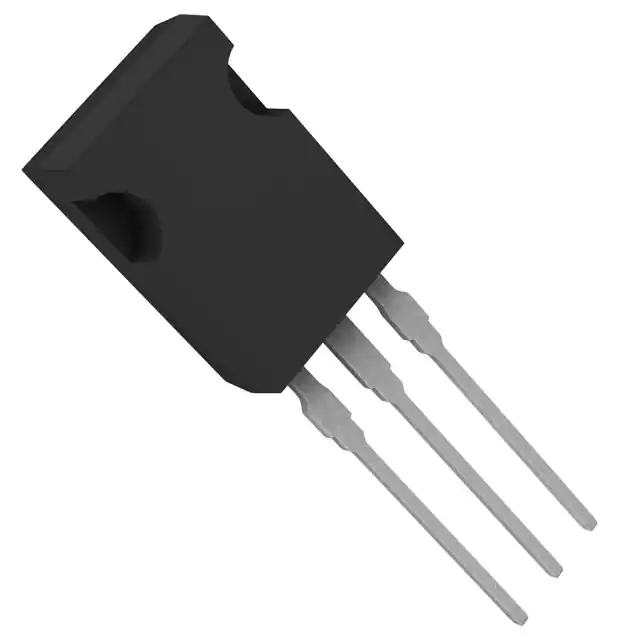

2SD2033AT114ETRANS NPN 160V 1.5A HRT |
3,872 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 1.5 A | 160 V | 2V @ 100mA, 1A | 1µA (ICBO) | 100 @ 100mA, 5V | 1.8 W | 80MHz | 150°C (TJ) | Through Hole |
|
2SD2144STPVTRANS NPN 20V 0.5A SPT |
3,175 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | NPN | 500 mA | 20 V | 400mV @ 20mA, 500mA | 500nA (ICBO) | 820 @ 10mA, 3V | 300 mW | 350MHz | 150°C (TJ) | Through Hole |
|
QSX5TRTRANS NPN 12V 2A TSMT6 |
2,259 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | NPN | 2 A | 12 V | 180mV @ 50mA, 1A | 100nA (ICBO) | 270 @ 200mA, 2V | 1.25 W | 360MHz | 150°C (TJ) | Surface Mount |
|
2SA1776TV2PTRANS PNP 400V 0.5A ATV |
2,070 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 500 mA | 400 V | 1V @ 10mA, 100mA | 1µA (ICBO) | 82 @ 50mA, 5V | 1 W | 12MHz | 150°C (TJ) | Through Hole |
|
|
2SA1776TV2QTRANS PNP 400V 0.5A ATV |
3,041 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 500 mA | 400 V | 1V @ 10mA, 100mA | 1µA (ICBO) | 120 @ 50mA, 5V | 1 W | 12MHz | 150°C (TJ) | Through Hole |
|
|
2SB1238TV2QTRANS PNP 80V 0.7A ATV |
2,995 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 700 mA | 80 V | 400mV @ 50mA, 500mA | 500nA (ICBO) | 120 @ 100mA, 3V | 1 W | 100MHz | 150°C (TJ) | Through Hole |
|
|
2SB1238TV2RTRANS PNP 80V 0.7A ATV |
3,854 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 700 mA | 80 V | 400mV @ 50mA, 500mA | 500nA (ICBO) | 180 @ 100mA, 3V | 1 W | 100MHz | 150°C (TJ) | Through Hole |
|
|
2SB1241TV2QTRANS PNP 80V 1A ATV |
2,284 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 1 A | 80 V | 400mV @ 50mA, 500mA | 1µA (ICBO) | 120 @ 100mA, 3V | 1 W | 100MHz | 150°C (TJ) | Through Hole |
|
|
2SB1241TV2RTRANS PNP 80V 1A ATV |
3,857 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 1 A | 80 V | 400mV @ 50mA, 500mA | 1µA (ICBO) | 180 @ 100mA, 3V | 1 W | 100MHz | 150°C (TJ) | Through Hole |
|
|
2SB1243TV2QTRANS PNP 50V 3A ATV |
2,435 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 3 A | 50 V | 1V @ 200mA, 2A | 1µA (ICBO) | 120 @ 500mA, 3V | 1 W | 70MHz | 150°C (TJ) | Through Hole |
|
|
2SB1243TV2RTRANS PNP 50V 3A ATV |
2,601 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 3 A | 50 V | 1V @ 200mA, 2A | 1µA (ICBO) | 180 @ 500mA, 3V | 1 W | 70MHz | 150°C (TJ) | Through Hole |
|
|
2SB1326TV2QTRANS PNP 20V 5A ATV |
3,702 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 5 A | 20 V | 1V @ 100mA, 4A | 500nA (ICBO) | 120 @ 500mA, 2V | 1 W | 120MHz | 150°C (TJ) | Through Hole |
|
|
2SB1326TV2RTRANS PNP 20V 5A ATV |
2,706 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | PNP | 5 A | 20 V | 1V @ 100mA, 4A | 500nA (ICBO) | 180 @ 500mA, 2V | 1 W | 120MHz | 150°C (TJ) | Through Hole |
|
|
2SD1859TV2QTRANS NPN 80V 0.7A ATV |
2,423 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | NPN | 700 mA | 80 V | 400mV @ 50mA, 500mA | 500nA (ICBO) | 120 @ 100mA, 3V | 1 W | 120MHz | 150°C (TJ) | Through Hole |
|
|
2SD1859TV2RTRANS NPN 80V 0.7A ATV |
3,996 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | NPN | 700 mA | 80 V | 400mV @ 50mA, 500mA | 500nA (ICBO) | 180 @ 100mA, 3V | 1 W | 120MHz | 150°C (TJ) | Through Hole |
|
|
2SD1863TV2QTRANS NPN 80V 1A ATV |
3,991 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | NPN | 1 A | 80 V | 400mV @ 20mA, 500mA | 1µA (ICBO) | 120 @ 500mA, 3V | 1 W | 100MHz | 150°C (TJ) | Through Hole |
|
|
2SD1864TV2QTRANS NPN 50V 3A ATV |
2,723 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | NPN | 3 A | 50 V | 1V @ 200mA, 2A | 1µA (ICBO) | 120 @ 500mA, 3V | 1 W | 90MHz | 150°C (TJ) | Through Hole |
|
|
2SD1864TV2RTRANS NPN 50V 3A ATV |
3,641 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | NPN | 3 A | 50 V | 1V @ 200mA, 2A | 1µA (ICBO) | 180 @ 500mA, 3V | 1 W | 90MHz | 150°C (TJ) | Through Hole |
|
|
2SD2097TV2QTRANS NPN 20V 5A ATV |
2,038 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Obsolete | NPN | 5 A | 20 V | 1V @ 100mA, 4A | 500nA (ICBO) | 120 @ 500mA, 2V | 1 W | 150MHz | 150°C (TJ) | Through Hole |
