Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

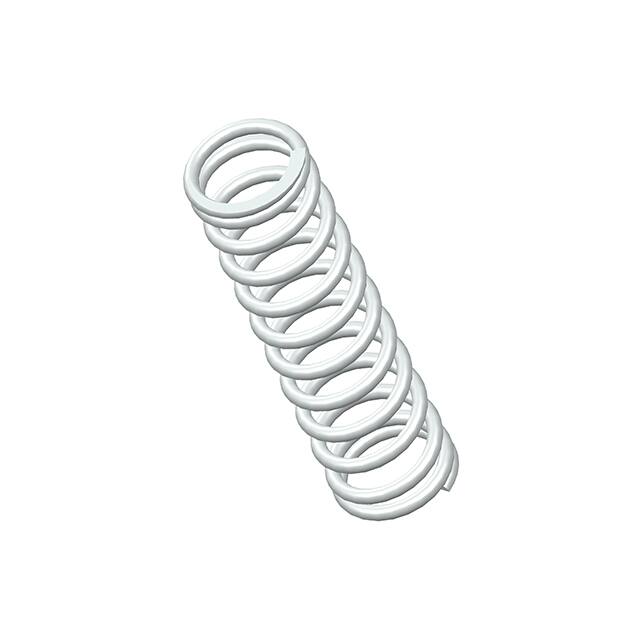

71310SCSCOMP O= .390,L= 1.50,W= .047 |
351 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 1.500 (38.10mm) | - | 15.0 lbs/in | Closed & Ground |
|

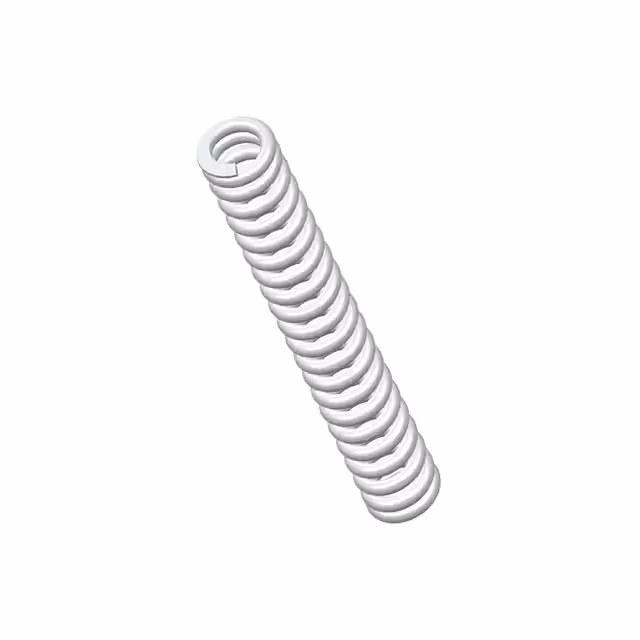

70456SCSCOMP O= .180,L= 1.25,W= .035 |
346 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.180 (4.57mm) | 0.110 (2.79mm) | - | - | 1.250 (31.75mm) | - | 31.0 lbs/in | Closed & Ground |
|

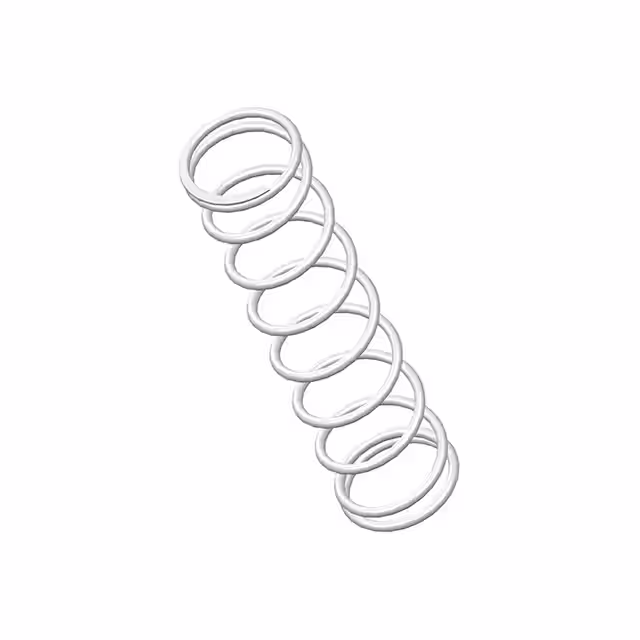

71320SCSCOMP O= .420,L= 1.75,W= .035 |
345 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 1.750 (44.45mm) | - | 4.1 lbs/in | Closed & Ground |
|

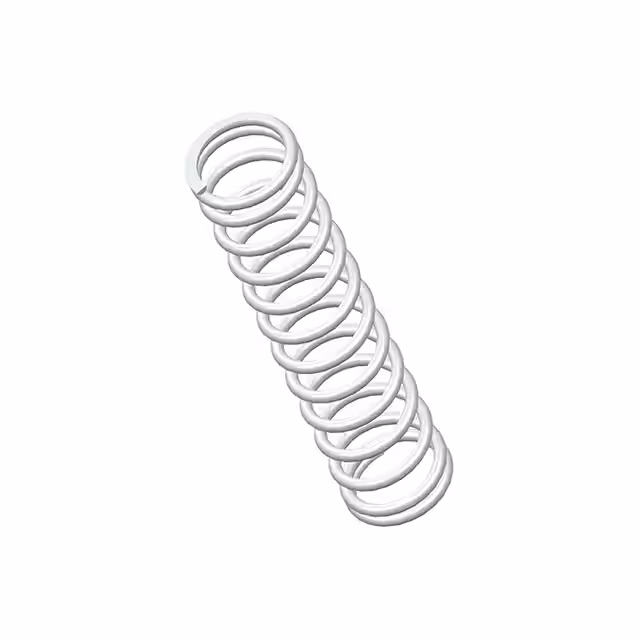

71296SCSCOMP O= .390,L= 1.75,W= .043 |
342 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.043 (1.09mm) | 0.390 (9.91mm) | 0.304 (7.72mm) | - | - | 1.750 (44.45mm) | - | 8.9 lbs/in | Closed & Ground |
|

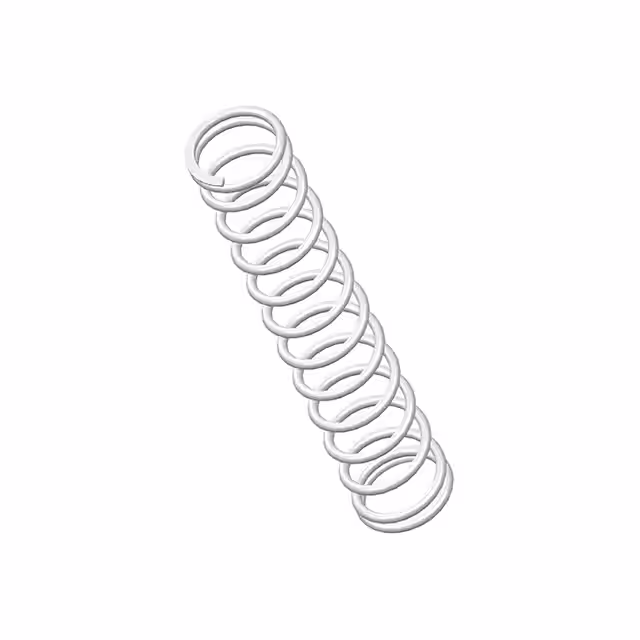

71349SCSCOMP O= .420,L= 2.25,W= .042 |
322 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 2.250 (57.15mm) | - | 6.1 lbs/in | Closed & Ground |
|

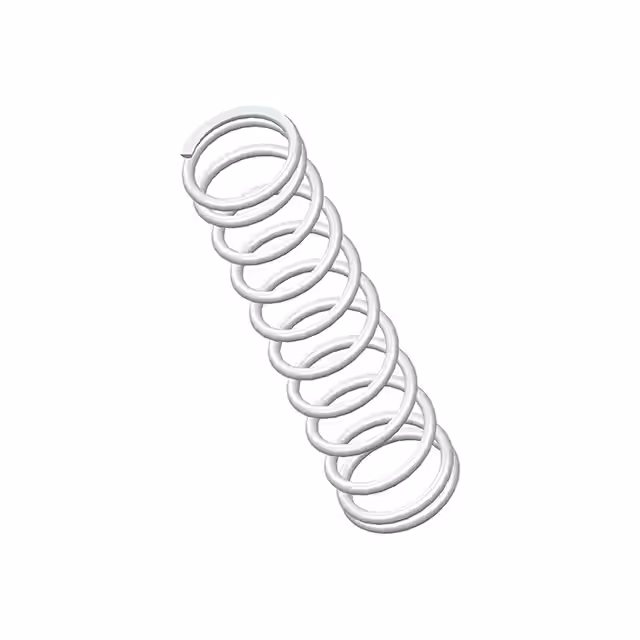

71347SCSCOMP O= .420,L= 1.75,W= .042 |
318 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 1.750 (44.45mm) | - | 7.8 lbs/in | Closed & Ground |
|
71315SCSCOMP O= .420,L= .75,W= .035 |
302 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 0.750 (19.05mm) | - | 10.0 lbs/in | Closed & Ground |
|

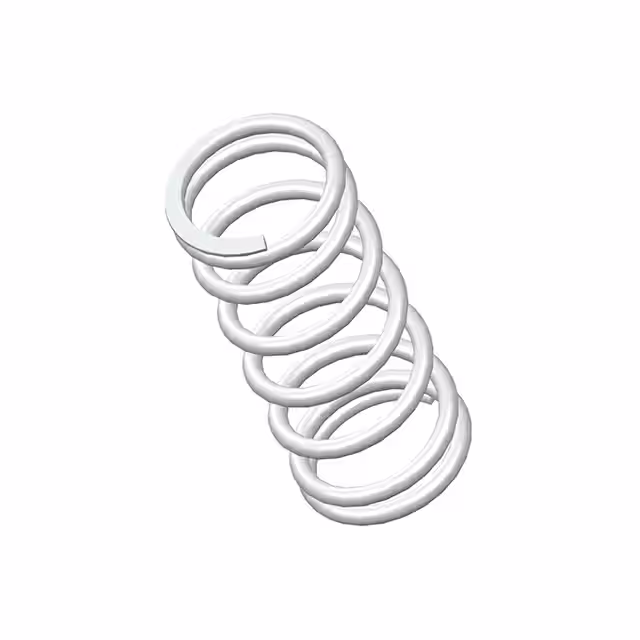

71355SCSCOMP O= .420,L= 1.00,W= .045 |
273 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.045 (1.14mm) | 0.420 (10.67mm) | 0.330 (8.38mm) | - | - | 1.000 (25.40mm) | - | 17.0 lbs/in | Closed & Ground |
|

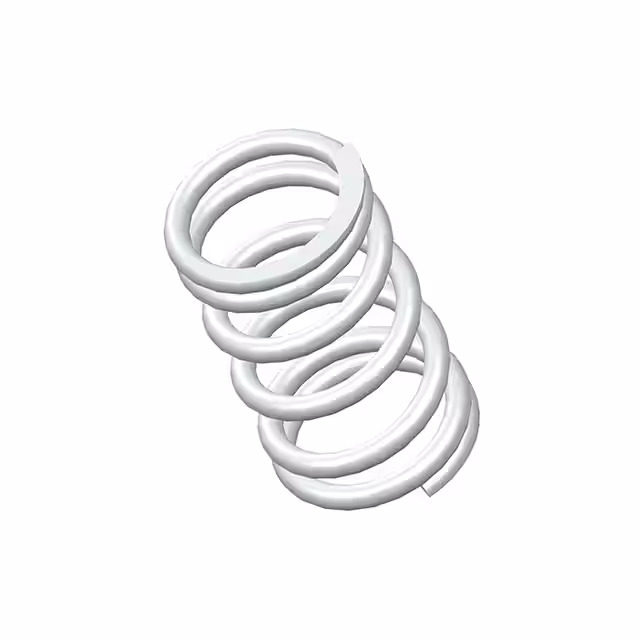

71301SCSCOMP O= .390,L= .69,W= .047 |
257 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 0.690 (17.53mm) | - | 34.0 lbs/in | Closed & Ground |
|

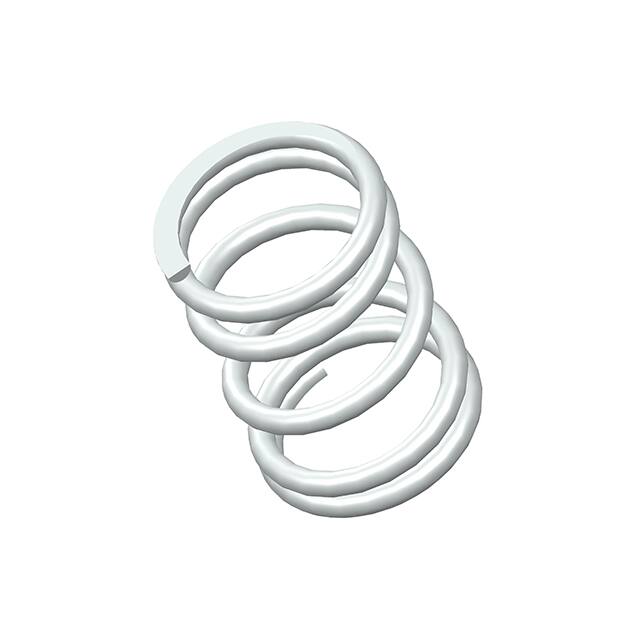

71284SCSCOMP O= .390,L= .56,W= .043 |
237 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.043 (1.09mm) | 0.390 (9.91mm) | 0.304 (7.72mm) | - | - | 0.560 (14.22mm) | - | 31.0 lbs/in | Closed & Ground |
|

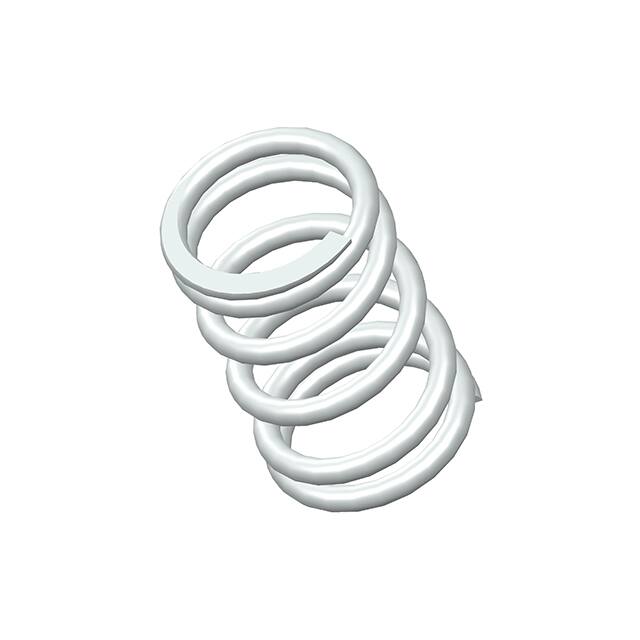

71300SCSCOMP O= .390,L= .63,W= .047 |
231 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 0.630 (16.00mm) | - | 39.0 lbs/in | Closed & Ground |
|

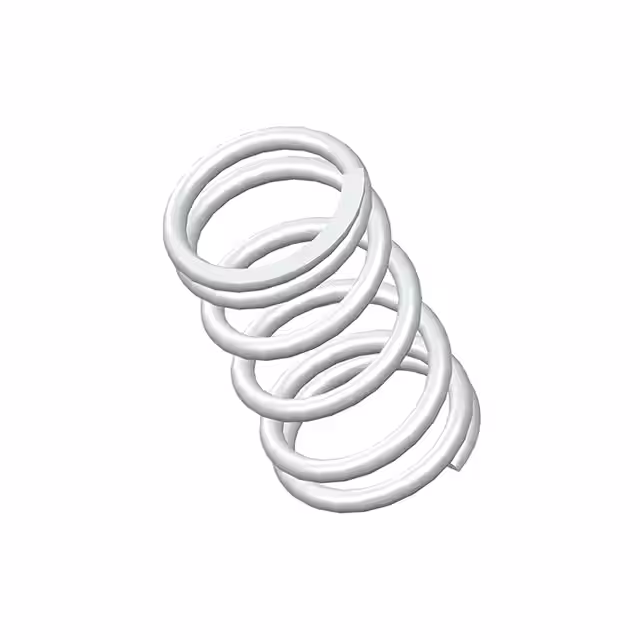

71286SCSCOMP O= .390,L= .69,W= .043 |
221 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.043 (1.09mm) | 0.390 (9.91mm) | 0.304 (7.72mm) | - | - | 0.690 (17.53mm) | - | 24.0 lbs/in | Closed & Ground |
|

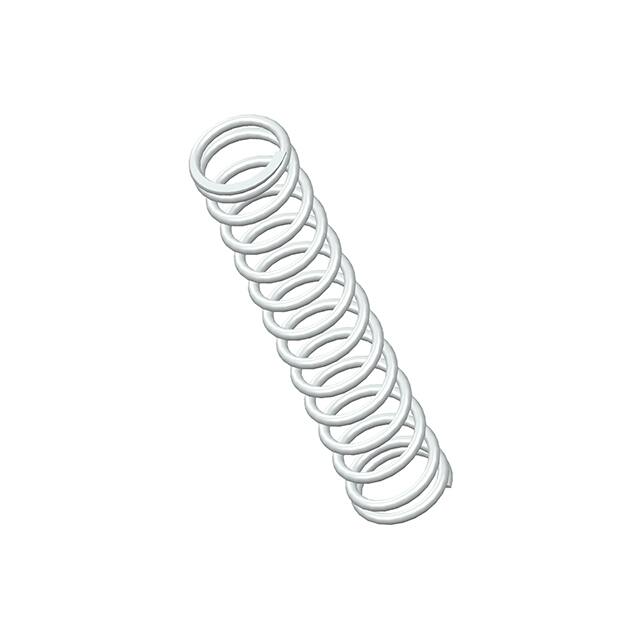

71297SCSCOMP O= .390,L= 2.00,W= .043 |
136 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.043 (1.09mm) | 0.390 (9.91mm) | 0.304 (7.72mm) | - | - | 2.000 (50.80mm) | - | 8.3 lbs/in | Closed & Ground |
|

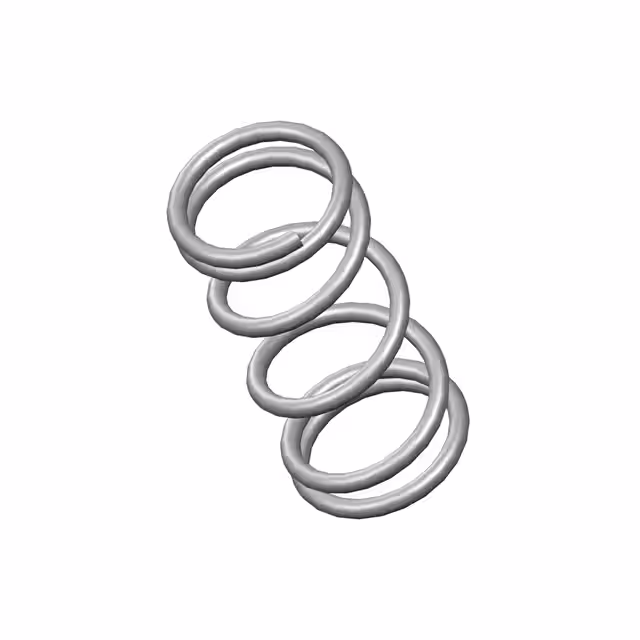

70000CSCOMP O= .057,L= .13,W= .006 |
2,030 | 8.35 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.006 (0.15mm) | 0.057 (1.45mm) | 0.045 (1.14mm) | - | - | 0.130 (3.30mm) | - | 3.7 lbs/in | Closed |
|

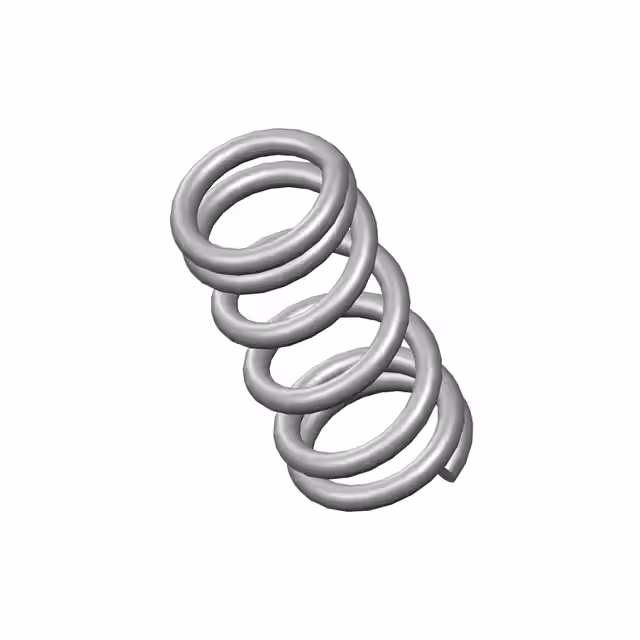

70018CSCOMP O= .057,L= .13,W= .008 |
2,616 | 8.35 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.008 (0.20mm) | 0.057 (1.45mm) | 0.041 (1.04mm) | - | - | 0.130 (3.30mm) | - | 12.0 lbs/in | Closed |
|

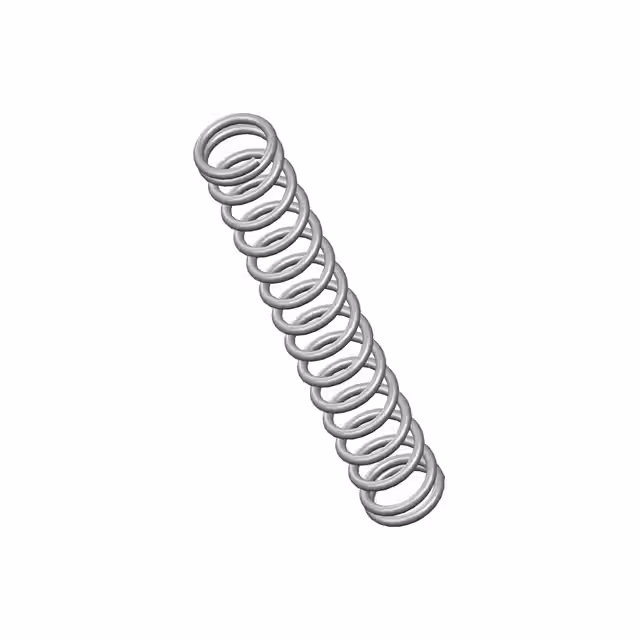

70013CSCOMP O= .057,L= .38,W= .007 |
2,988 | 8.35 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.007 (0.18mm) | 0.057 (1.45mm) | 0.043 (1.09mm) | - | - | 0.380 (9.65mm) | - | 2.0 lbs/in | Closed |
|

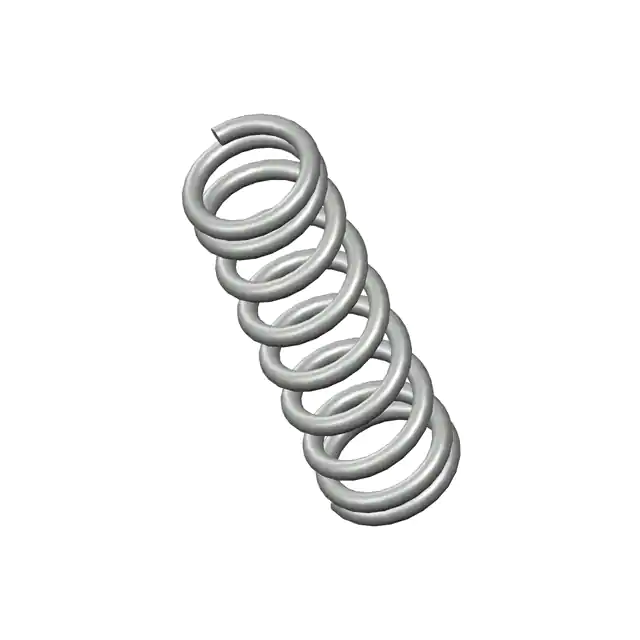

70019CSCOMP O= .057,L= .19,W= .008 |
3,093 | 8.35 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.008 (0.20mm) | 0.057 (1.45mm) | 0.041 (1.04mm) | - | - | 0.190 (4.83mm) | - | 7.4 lbs/in | Closed |
|

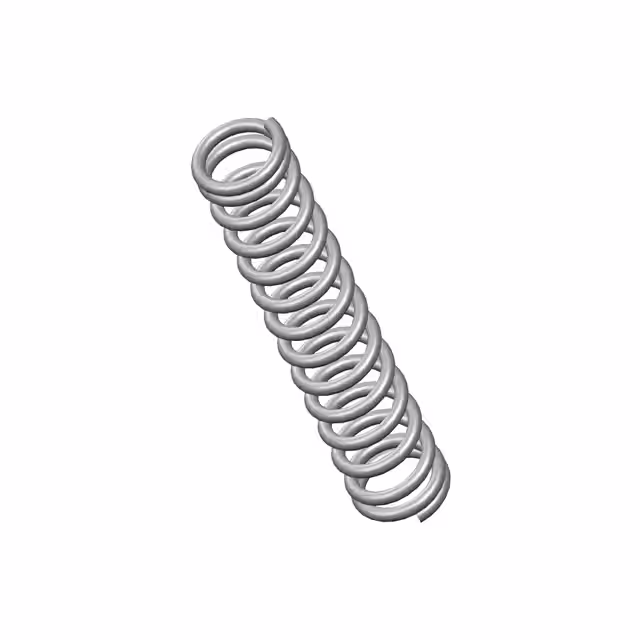

70021CSCOMP O= .057,L= .31,W= .008 |
2,500 | 8.35 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.008 (0.20mm) | 0.057 (1.45mm) | 0.041 (1.04mm) | - | - | 0.310 (7.87mm) | - | 4.1 lbs/in | Closed |
|

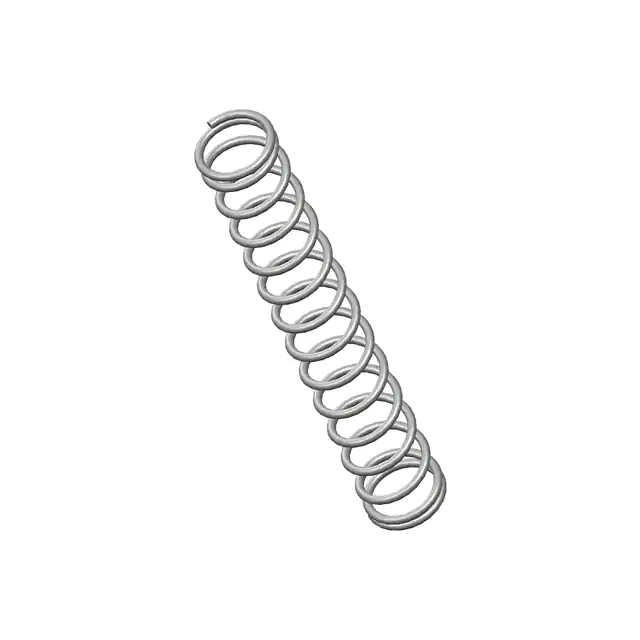

70004CSCOMP O= .057,L= .38,W= .006 |
3,222 | 8.35 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.006 (0.15mm) | 0.057 (1.45mm) | 0.045 (1.14mm) | - | - | 0.380 (9.65mm) | - | 1.1 lbs/in | Closed |
|

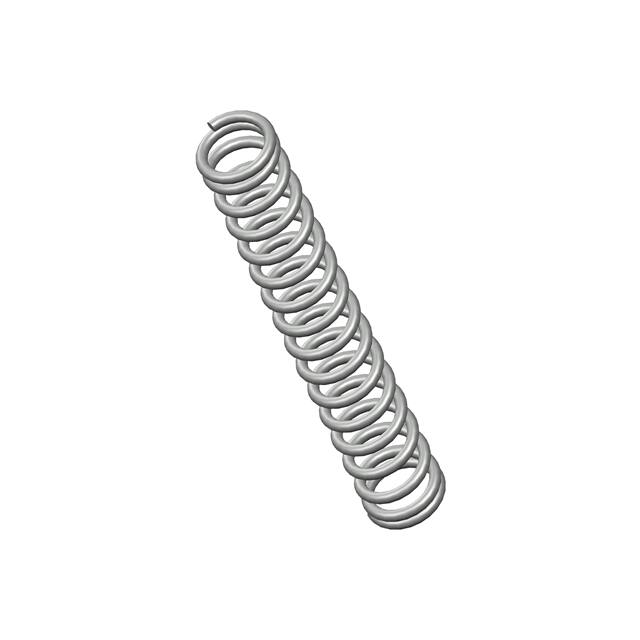

70022CSCOMP O= .057,L= .38,W= .008 |
2,611 | 8.35 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.008 (0.20mm) | 0.057 (1.45mm) | 0.041 (1.04mm) | - | - | 0.380 (9.65mm) | - | 3.4 lbs/in | Closed |
