Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

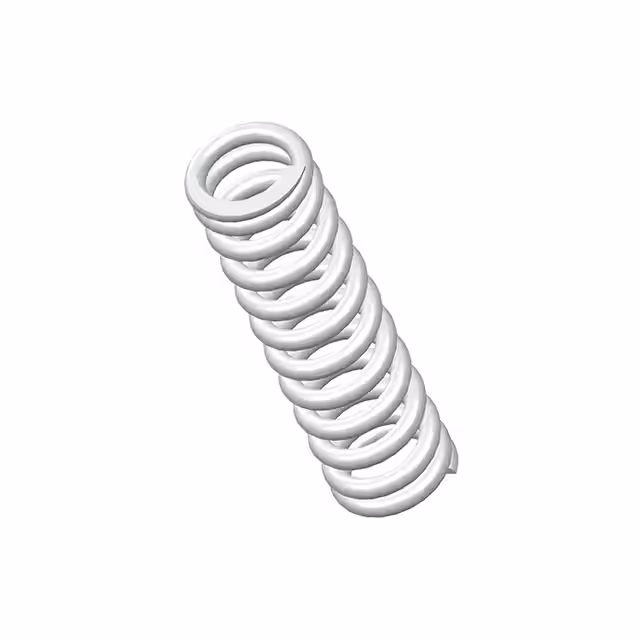

70995SCSCOMP O= .300,L= 1.13,W= .049 |
812 | 8.28 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.049 (1.24mm) | 0.300 (7.62mm) | 0.202 (5.13mm) | - | - | 1.130 (28.70mm) | - | 44.0 lbs/in | Closed & Ground |
|

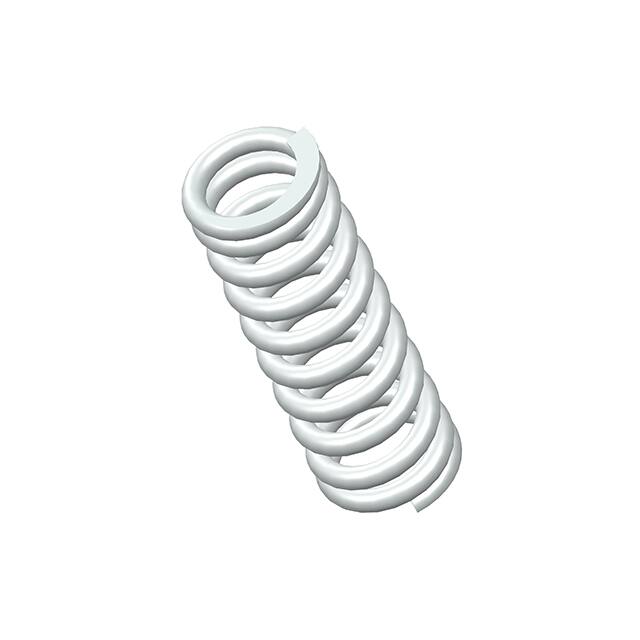

70993SCSCOMP O= .300,L= .94,W= .049 |
768 | 8.28 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.049 (1.24mm) | 0.300 (7.62mm) | 0.202 (5.13mm) | - | - | 0.940 (23.88mm) | - | 54.0 lbs/in | Closed & Ground |
|

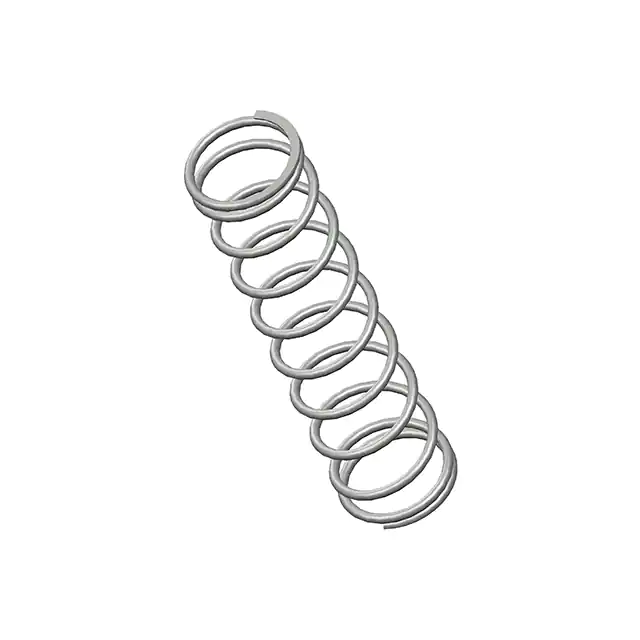

71887CSCOMP O= .660,L= 2.75,W= .055 |
2,204 | 8.29 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.660 (16.76mm) | 0.550 (13.97mm) | - | - | 2.750 (69.85mm) | - | 7.0 lbs/in | Closed & Ground |
|

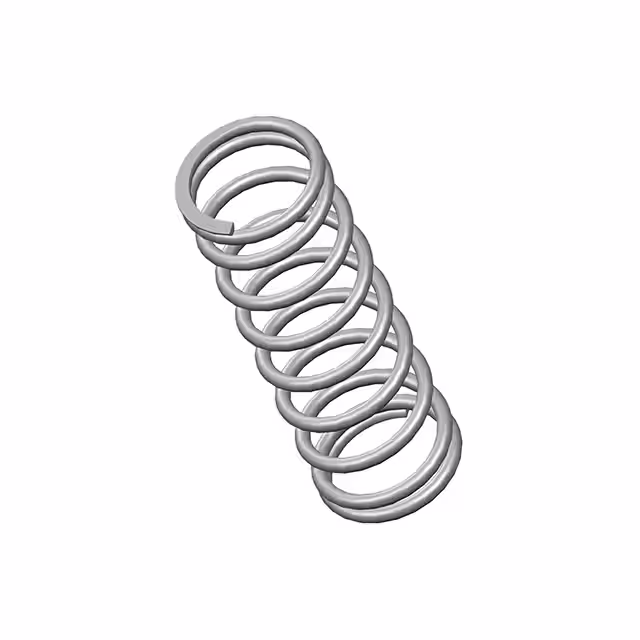

71908CSCOMP O= .660,L= 2.00,W= .067 |
2,783 | 8.29 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.067 (1.70mm) | 0.660 (16.76mm) | 0.526 (13.36mm) | - | - | 2.000 (50.80mm) | - | 19.0 lbs/in | Closed & Ground |
|

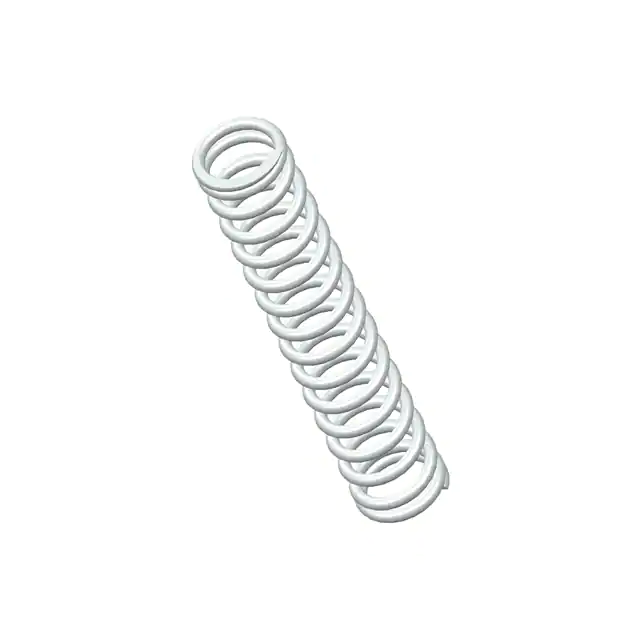

70378SCSCOMP O= .180,L= 1.00,W= .024 |
587 | 8.29 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.180 (4.57mm) | 0.132 (3.35mm) | - | - | 1.000 (25.40mm) | - | 7.7 lbs/in | Closed & Ground |
|

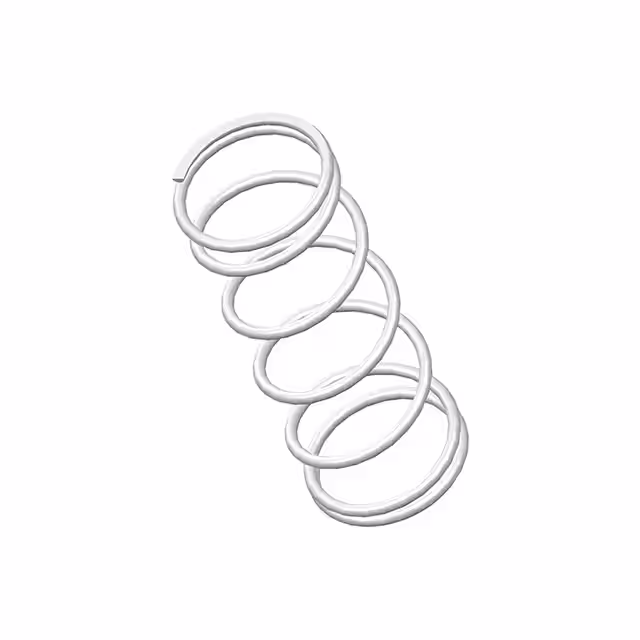

71871SCSCOMP O= .660,L= 1.75,W= .049 |
486 | 8.29 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.049 (1.24mm) | 0.660 (16.76mm) | 0.562 (14.27mm) | - | - | 1.750 (44.45mm) | - | 6.1 lbs/in | Closed & Ground |
|

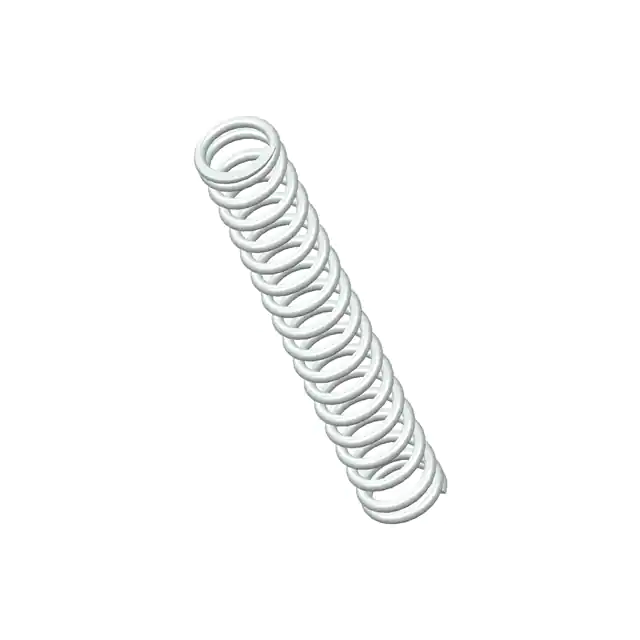

70379SCSCOMP O= .180,L= 1.13,W= .024 |
220 | 8.29 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.180 (4.57mm) | 0.132 (3.35mm) | - | - | 1.130 (28.70mm) | - | 6.7 lbs/in | Closed & Ground |
|

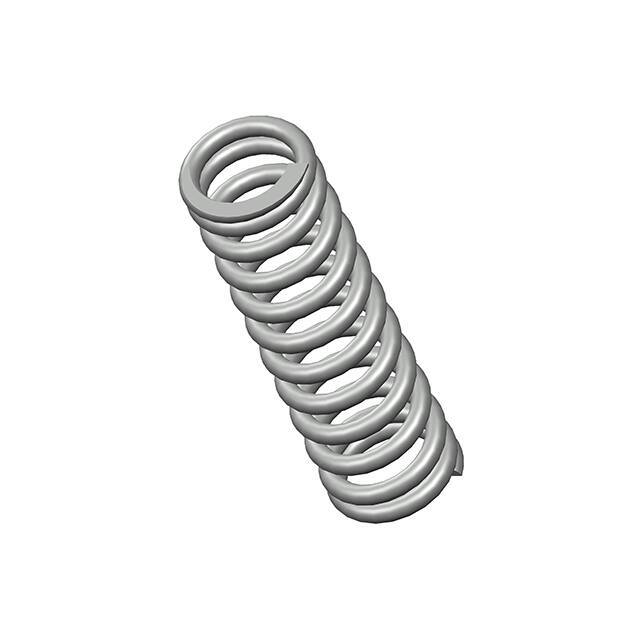

71425CSCOMP O= .420,L= 1.50,W= .063 |
236 | 8.31 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.063 (1.60mm) | 0.420 (10.67mm) | 0.294 (7.47mm) | - | - | 1.500 (38.10mm) | - | 50.0 lbs/in | Closed & Ground |
|

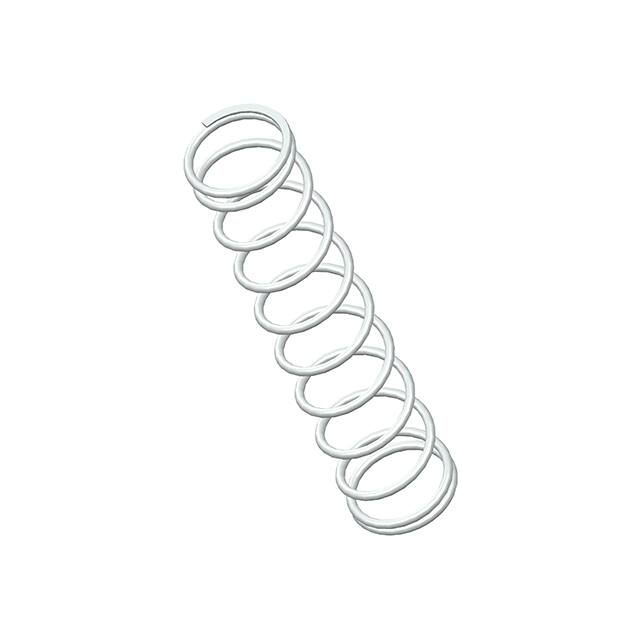

71322SCSCOMP O= .420,L= 2.00,W= .035 |
3,301 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 2.000 (50.80mm) | - | 3.7 lbs/in | Closed & Ground |
|

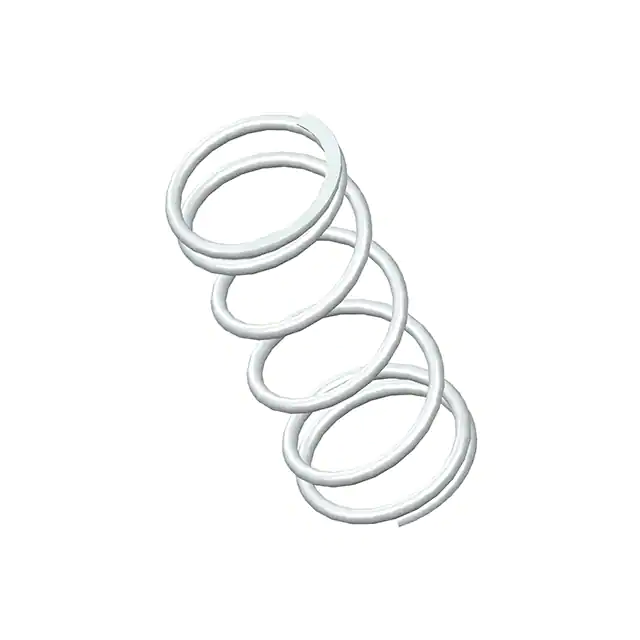

71317SCSCOMP O= .420,L= 1.00,W= .035 |
2,157 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 1.000 (25.40mm) | - | 7.4 lbs/in | Closed & Ground |
|

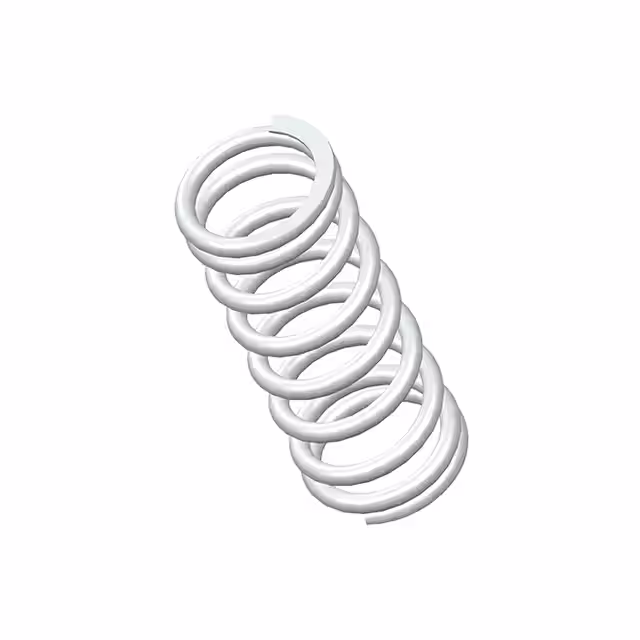

71306SCSCOMP O= .390,L= 1.00,W= .047 |
2,882 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 1.000 (25.40mm) | - | 23.0 lbs/in | Closed & Ground |
|

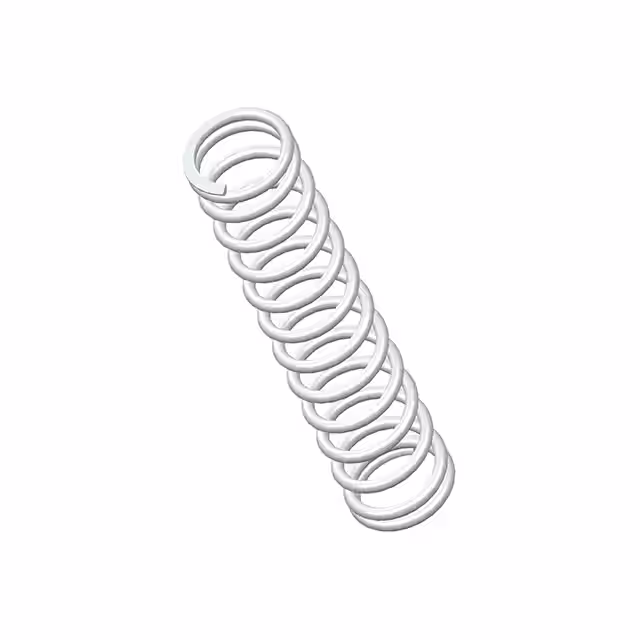

71381SCSCOMP O= .420,L= 2.00,W= .048 |
3,939 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.048 (1.22mm) | 0.420 (10.67mm) | 0.324 (8.23mm) | - | - | 2.000 (50.80mm) | - | 11.0 lbs/in | Closed & Ground |
|

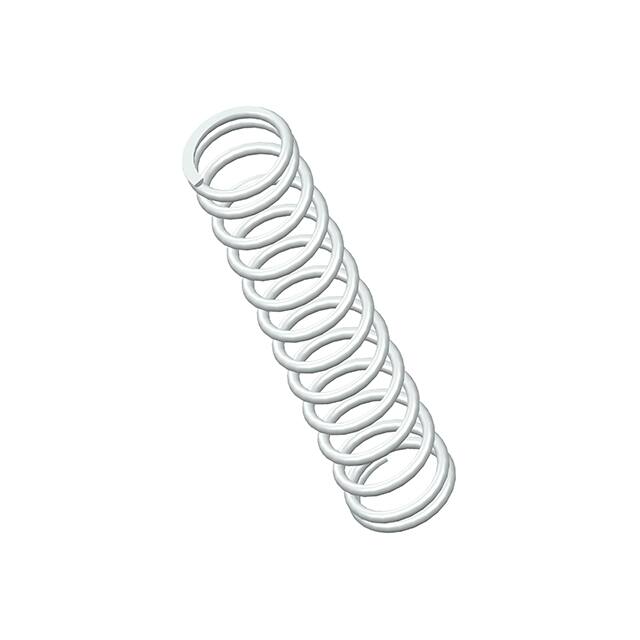

71359SCSCOMP O= .420,L= 2.00,W= .045 |
3,050 | 8.33 |
RFQ |
Box | - | Active | Stainless Steel | 0.045 (1.14mm) | 0.420 (10.67mm) | 0.330 (8.38mm) | - | - | 2.000 (50.80mm) | - | 8.4 lbs/in | Closed & Ground | |
|

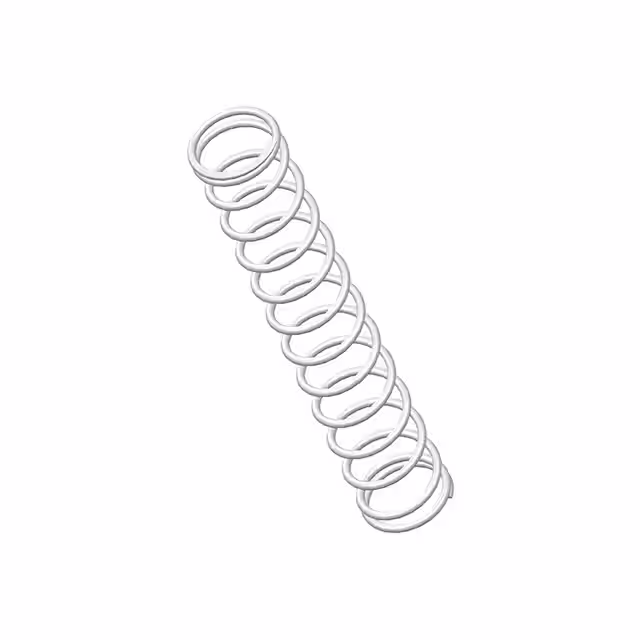

71338SCSCOMP O= .420,L= 2.50,W= .038 |
3,434 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.420 (10.67mm) | 0.344 (8.74mm) | - | - | 2.500 (63.50mm) | - | 3.8 lbs/in | Closed & Ground |
|

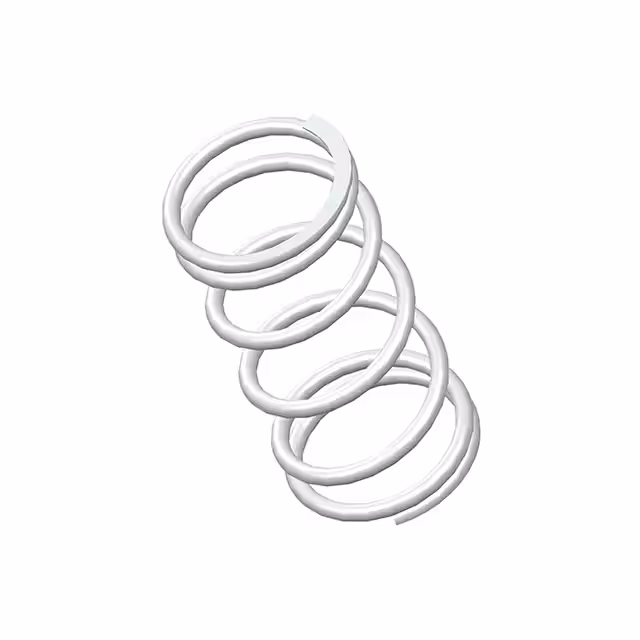

71331SCSCOMP O= .420,L= .88,W= .038 |
2,018 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.420 (10.67mm) | 0.344 (8.74mm) | - | - | 0.880 (22.35mm) | - | 10.0 lbs/in | Closed & Ground |
|

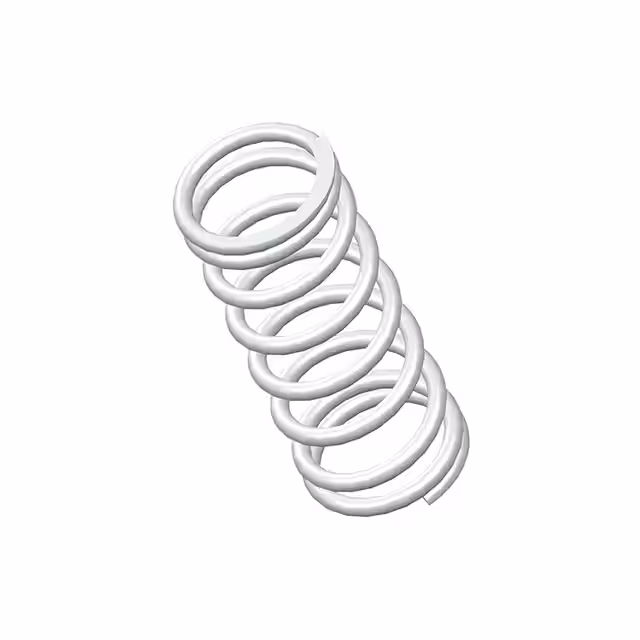

71291SCSCOMP O= .390,L= 1.00,W= .043 |
3,787 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.043 (1.09mm) | 0.390 (9.91mm) | 0.304 (7.72mm) | - | - | 1.000 (25.40mm) | - | 16.0 lbs/in | Closed & Ground |
|

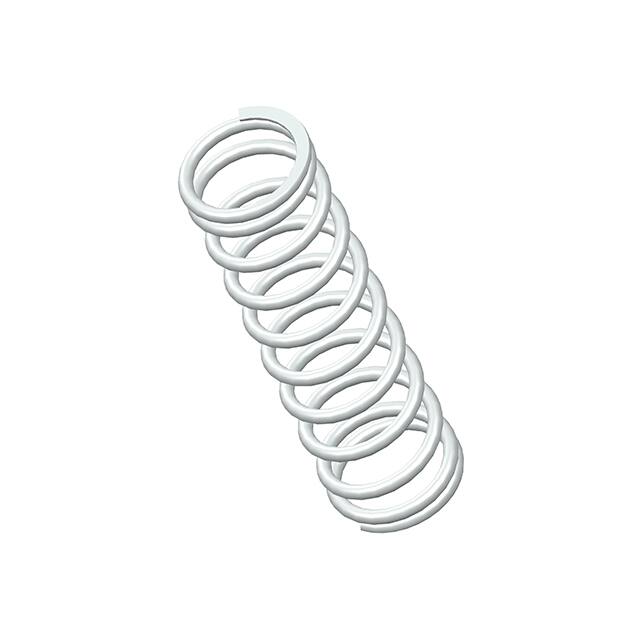

71357SCSCOMP O= .420,L= 1.50,W= .045 |
2,882 | 8.33 |
RFQ |
Box | - | Active | Stainless Steel | 0.045 (1.14mm) | 0.420 (10.67mm) | 0.330 (8.38mm) | - | - | 1.500 (38.10mm) | - | 11.0 lbs/in | Closed & Ground | |
|

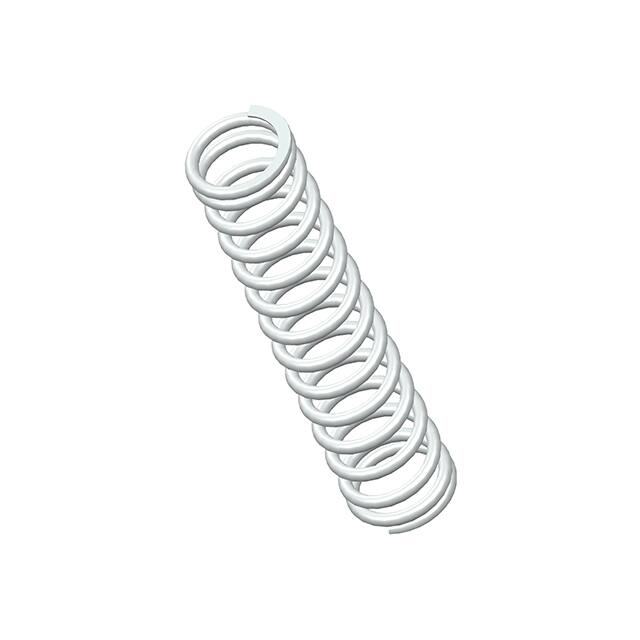

71394SCSCOMP O= .420,L= 2.00,W= .051 |
3,048 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.051 (1.30mm) | 0.420 (10.67mm) | 0.318 (8.08mm) | - | - | 2.000 (50.80mm) | - | 13.0 lbs/in | Closed & Ground |
|

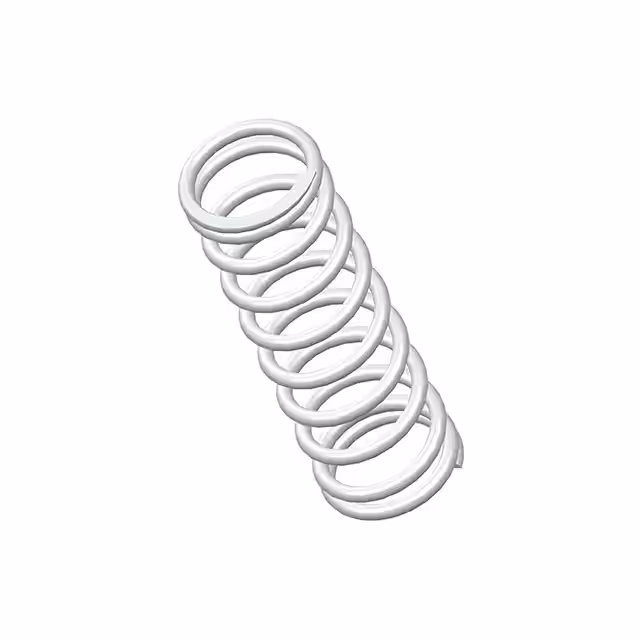

71293SCSCOMP O= .390,L= 1.25,W= .043 |
2,595 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.043 (1.09mm) | 0.390 (9.91mm) | 0.304 (7.72mm) | - | - | 1.250 (31.75mm) | - | 13.0 lbs/in | Closed & Ground |
|

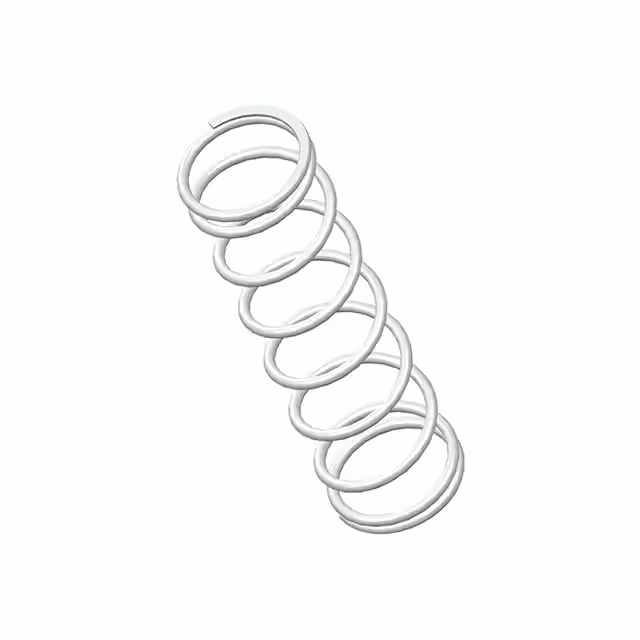

71319SCSCOMP O= .420,L= 1.50,W= .035 |
3,830 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 1.500 (38.10mm) | - | 4.8 lbs/in | Closed & Ground |
