Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

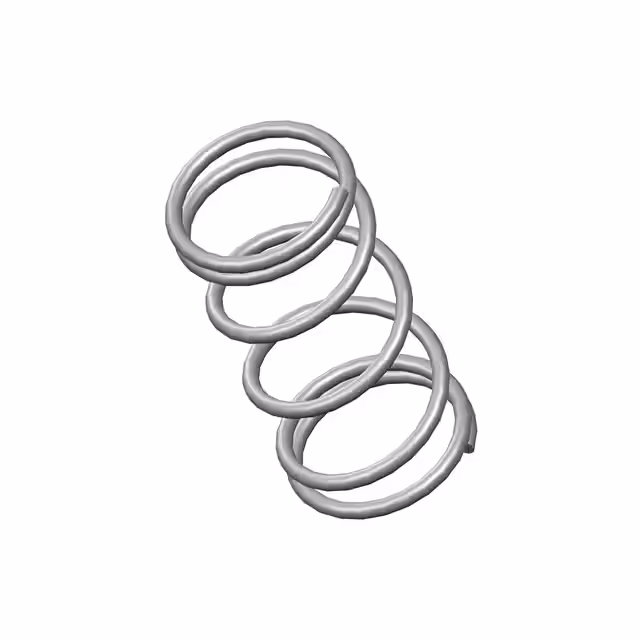

10125CSCOMPRESSION SPRING |
3,354 | 8.24 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.035 (0.89mm) | 0.406 (10.31mm) | 0.336 (8.53mm) | - | - | 0.880 (22.35mm) | - | 11.0 lbs/in | Closed |
|

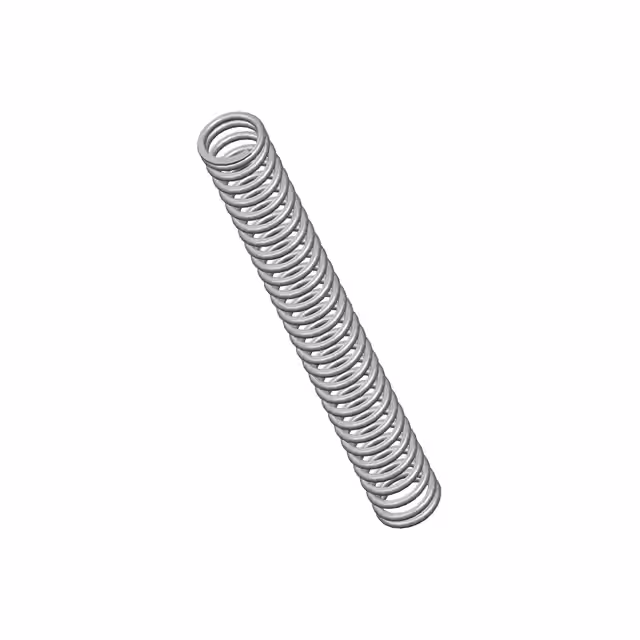

11413CSCOMP O= .750,L= 6.25,W= .091 |
394 | 8.25 |
RFQ |
Datasheet |
Box | - | Active | Hard Drawn | 0.091 (2.31mm) | 0.750 (19.05mm) | 0.568 (14.43mm) | - | - | 6.250 (158.75mm) | - | 12.0 lbs/in | Closed |
|

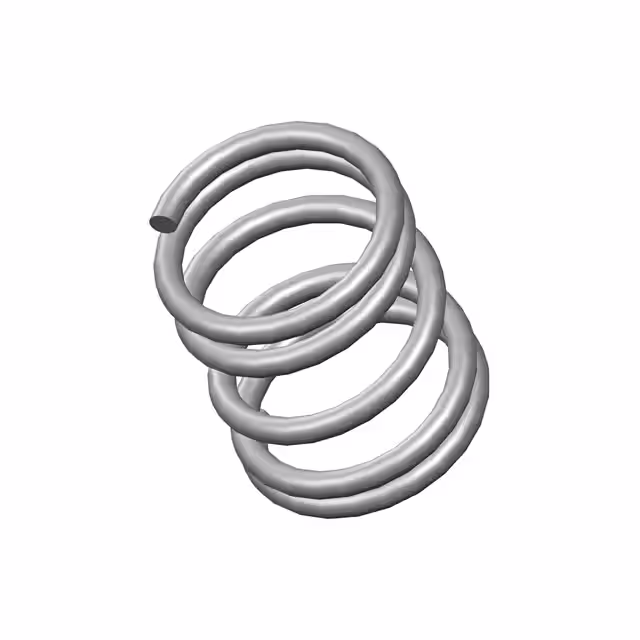

O-61CSCOMP O= .375,L= .47,W= .040 |
691 | 8.26 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.040 (1.02mm) | 0.375 (9.53mm) | 0.295 (7.49mm) | - | - | 0.470 (11.94mm) | - | 33.0 lbs/in | Closed |
|

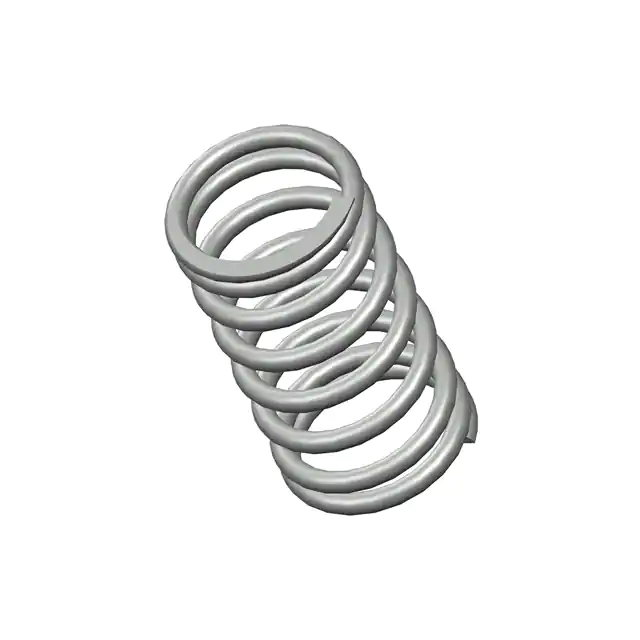

L-78CSCOMP O= .343,L= .66,W= .038 |
477 | 8.26 |
RFQ |
Datasheet |
Box | - | Active | Spring Steel | 0.038 (0.97mm) | 0.343 (8.71mm) | 0.267 (6.78mm) | - | - | 0.660 (16.76mm) | - | 18.0 lbs/in | Closed & Ground |
|

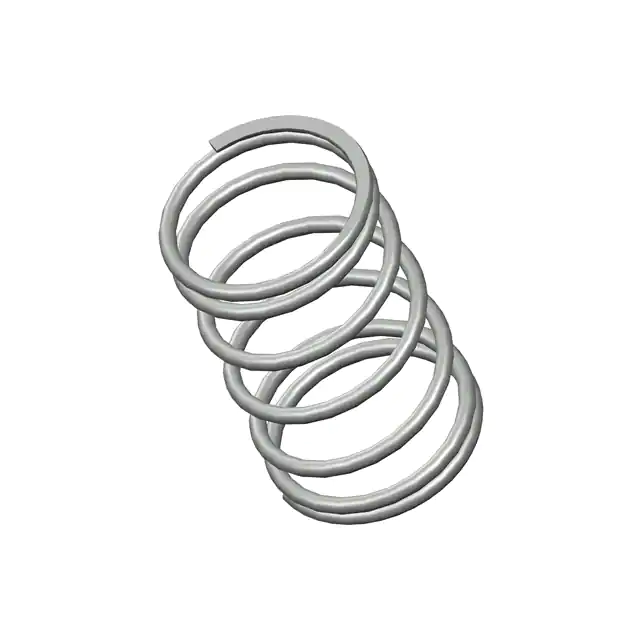

K-71CSCOMP O= .343,L= .56,W= .026 |
197 | 8.26 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.026 (0.66mm) | 0.343 (8.71mm) | 0.291 (7.39mm) | - | - | 0.560 (14.22mm) | - | 4.3 lbs/in | Closed & Ground |
|

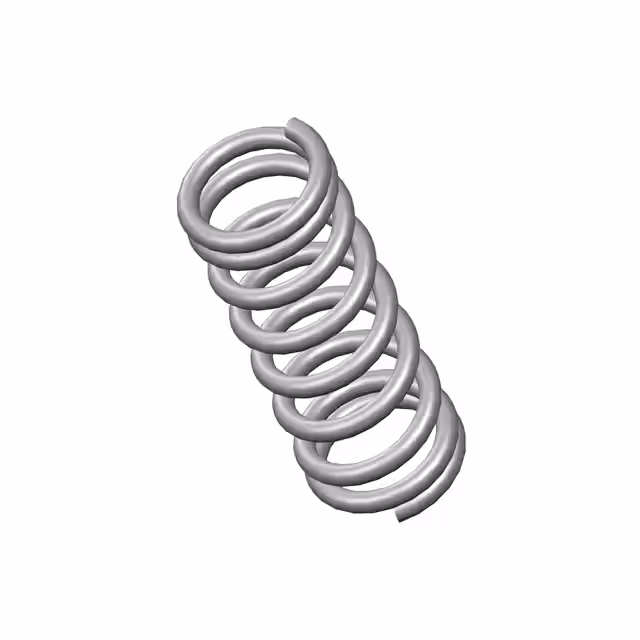

70049CSCOMP O= .088,L= .25,W= .012 |
2,522 | 8.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.088 (2.24mm) | 0.064 (1.63mm) | - | - | 0.250 (6.35mm) | - | 11.0 lbs/in | Closed |
|

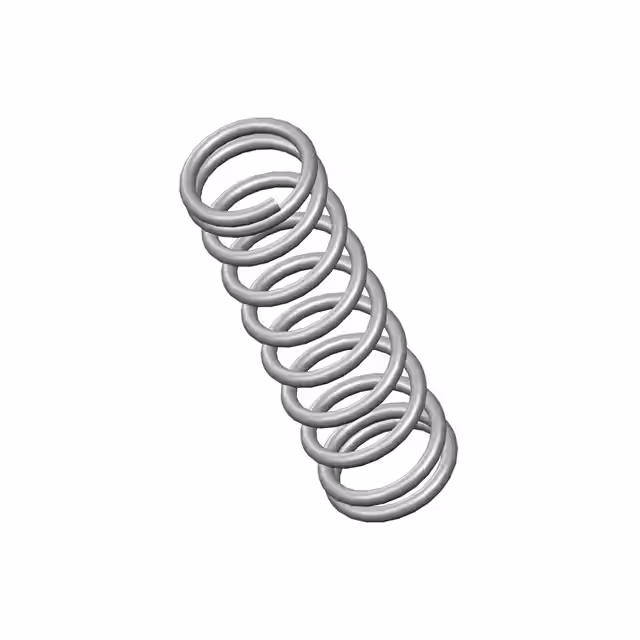

70039CSCOMP O= .088,L= .31,W= .010 |
2,550 | 8.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.010 (0.25mm) | 0.088 (2.24mm) | 0.068 (1.73mm) | - | - | 0.310 (7.87mm) | - | 3.9 lbs/in | Closed |
|

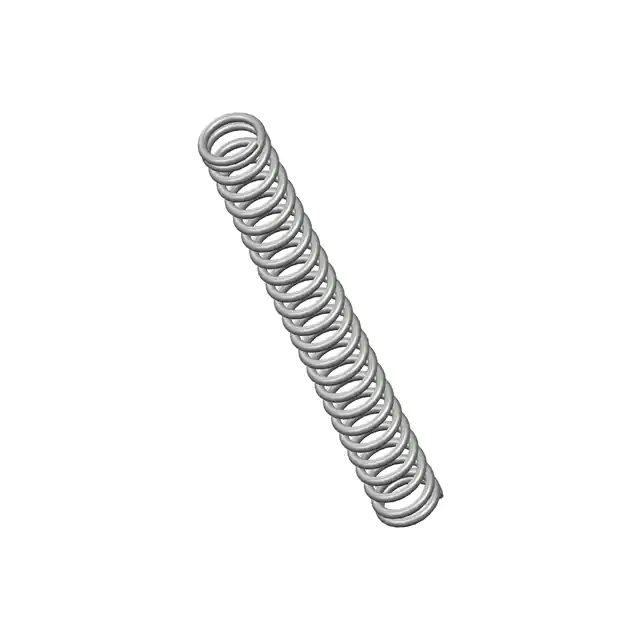

70057CSCOMP O= .088,L= .75,W= .012 |
3,184 | 8.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.088 (2.24mm) | 0.064 (1.63mm) | - | - | 0.750 (19.05mm) | - | 3.1 lbs/in | Closed |
|

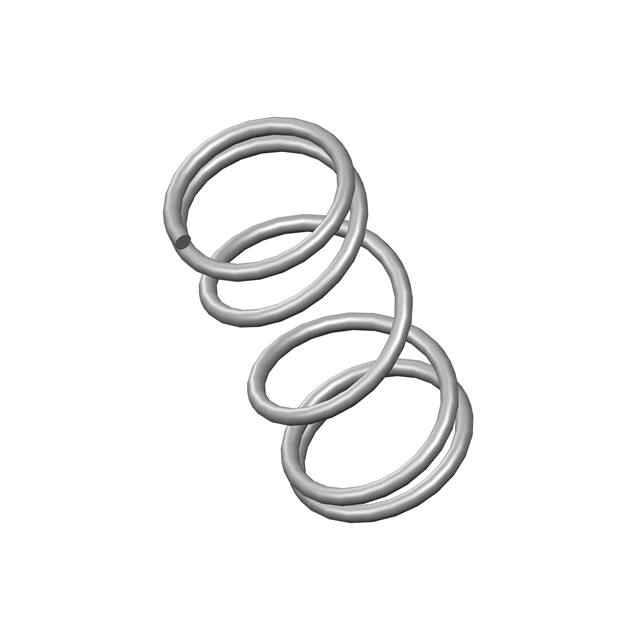

70028CSCOMP O= .088,L= .19,W= .008 |
2,268 | 8.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.008 (0.20mm) | 0.088 (2.24mm) | 0.072 (1.83mm) | - | - | 0.190 (4.83mm) | - | 3.5 lbs/in | Closed |
|

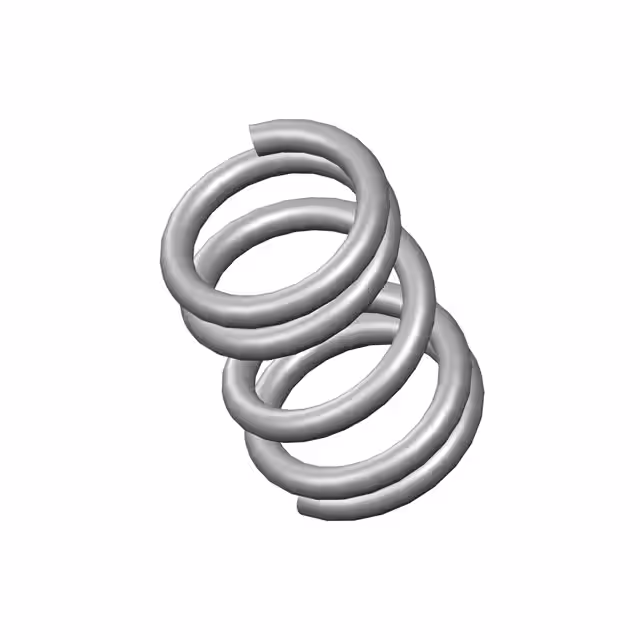

70047CSCOMP O= .088,L= .13,W= .012 |
3,790 | 8.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.088 (2.24mm) | 0.064 (1.63mm) | - | - | 0.130 (3.30mm) | - | 26.0 lbs/in | Closed |
|

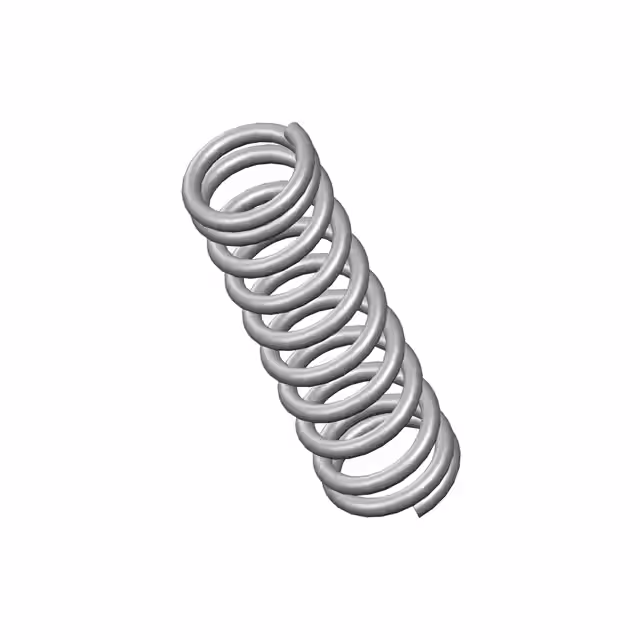

70050CSCOMP O= .088,L= .31,W= .012 |
2,145 | 8.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.088 (2.24mm) | 0.064 (1.63mm) | - | - | 0.310 (7.87mm) | - | 8.2 lbs/in | Closed |
|

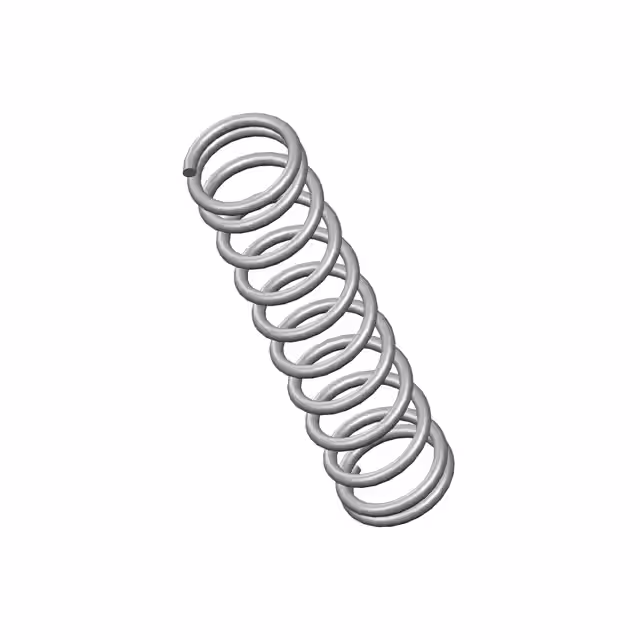

70040CSCOMP O= .088,L= .38,W= .010 |
3,355 | 8.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.010 (0.25mm) | 0.088 (2.24mm) | 0.068 (1.73mm) | - | - | 0.380 (9.65mm) | - | 3.3 lbs/in | Closed |
|

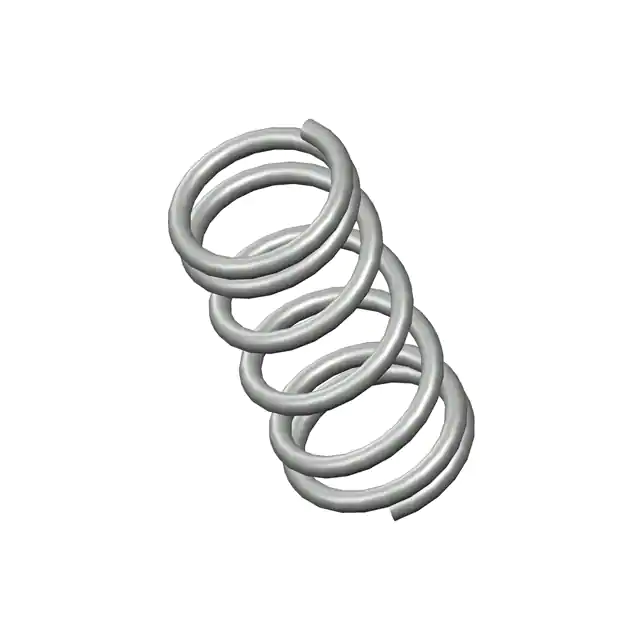

70037CSCOMP O= .088,L= .19,W= .010 |
2,342 | 8.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.010 (0.25mm) | 0.088 (2.24mm) | 0.068 (1.73mm) | - | - | 0.190 (4.83mm) | - | 6.9 lbs/in | Closed |
|

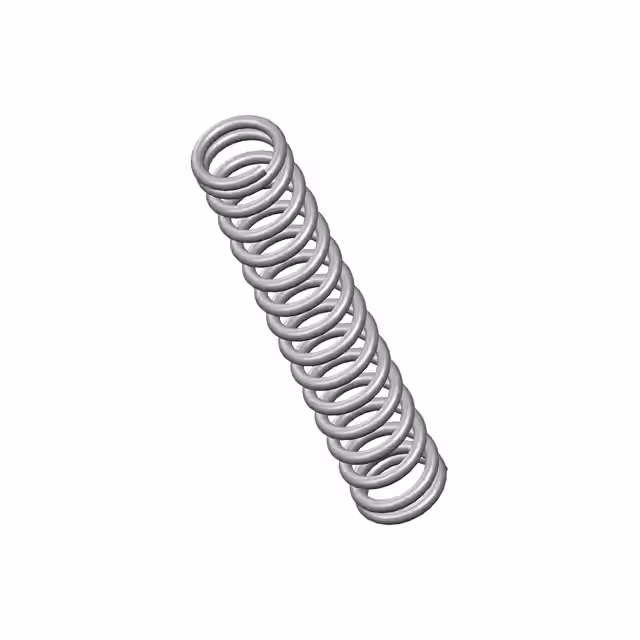

70053CSCOMP O= .088,L= .50,W= .012 |
3,643 | 8.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.088 (2.24mm) | 0.064 (1.63mm) | - | - | 0.500 (12.70mm) | - | 4.9 lbs/in | Closed |
|

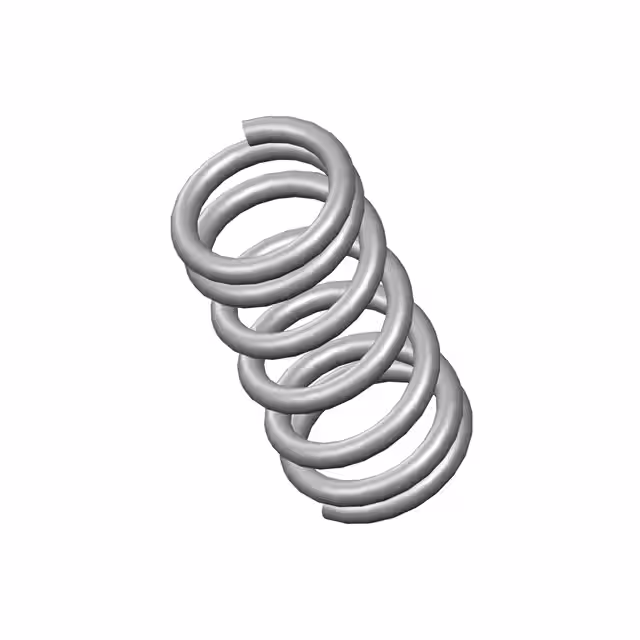

70048CSCOMP O= .088,L= .19,W= .012 |
3,187 | 8.27 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.012 (0.30mm) | 0.088 (2.24mm) | 0.064 (1.63mm) | - | - | 0.190 (4.83mm) | - | 15.0 lbs/in | Closed |
|

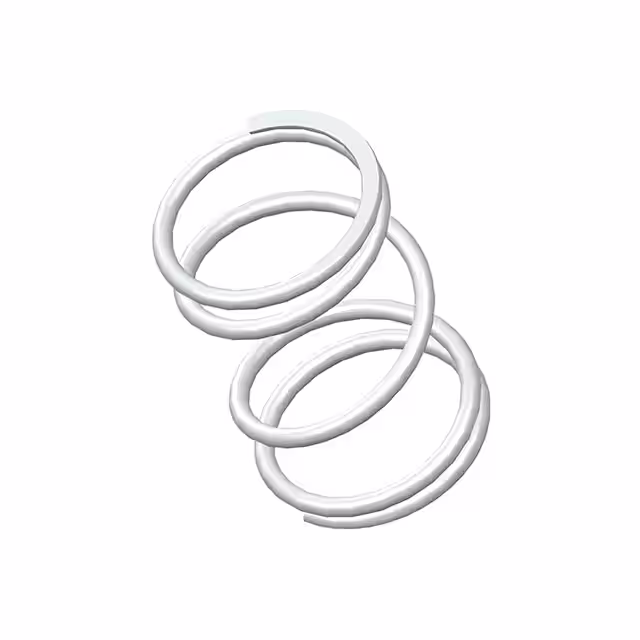

71314SCSCOMP O= .420,L= .63,W= .035 |
3,010 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 0.630 (16.00mm) | - | 12.0 lbs/in | Closed & Ground |
|

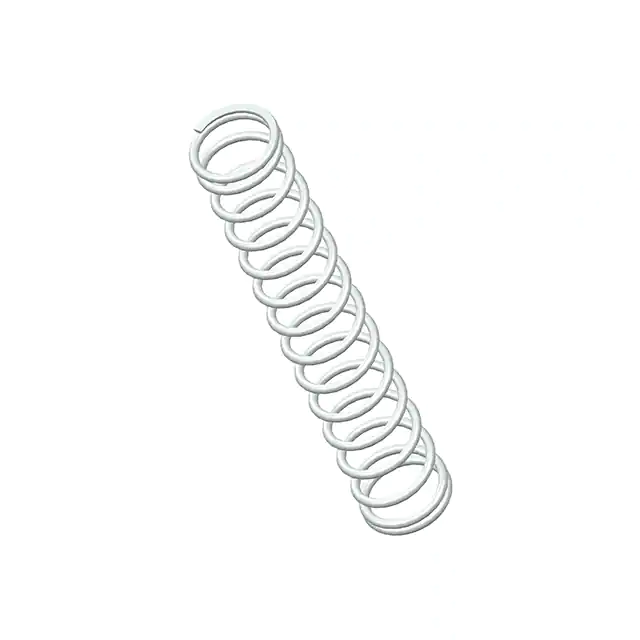

71350SCSCOMP O= .420,L= 2.50,W= .042 |
3,486 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 2.500 (63.50mm) | - | 5.5 lbs/in | Closed & Ground |
|

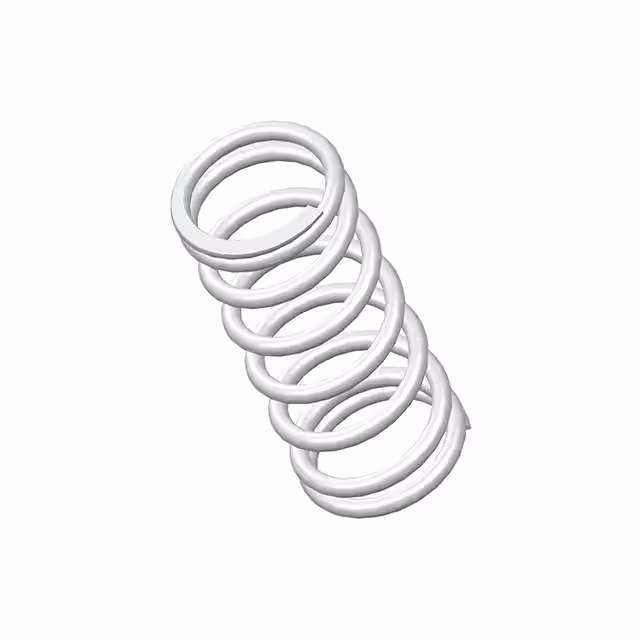

71290SCSCOMP O= .390,L= .94,W= .043 |
2,402 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.043 (1.09mm) | 0.390 (9.91mm) | 0.304 (7.72mm) | - | - | 0.940 (23.88mm) | - | 17.0 lbs/in | Closed & Ground |
|

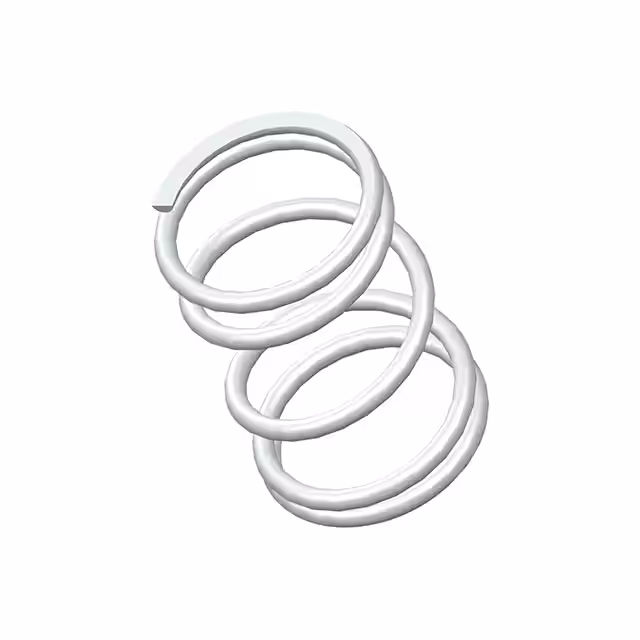

71329SCSCOMP O= .420,L= .63,W= .038 |
3,551 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.420 (10.67mm) | 0.344 (8.74mm) | - | - | 0.630 (16.00mm) | - | 15.0 lbs/in | Closed & Ground |
|

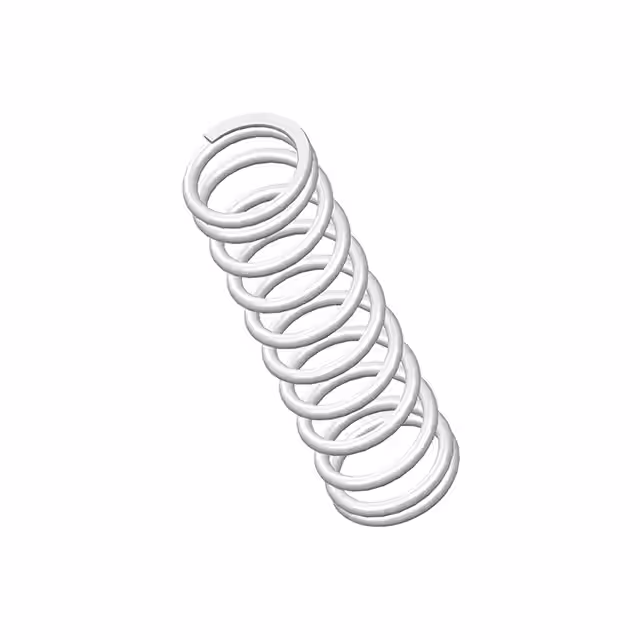

71294SCSCOMP O= .390,L= 1.38,W= .043 |
2,548 | 8.33 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.043 (1.09mm) | 0.390 (9.91mm) | 0.304 (7.72mm) | - | - | 1.380 (35.05mm) | - | 11.0 lbs/in | Closed & Ground |
