Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

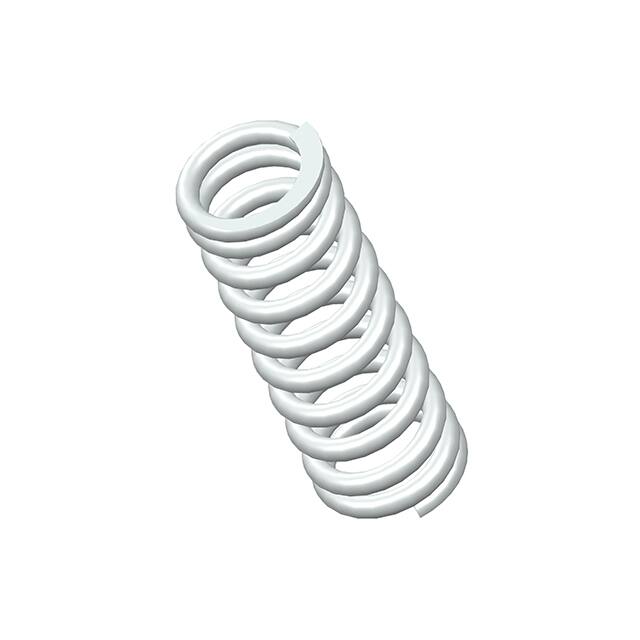

71424SCSCOMP O= .420,L= 1.25,W= .063 |
3,337 | 8.20 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.063 (1.60mm) | 0.420 (10.67mm) | 0.294 (7.47mm) | - | - | 1.250 (31.75mm) | - | 51.0 lbs/in | Closed & Ground |
|

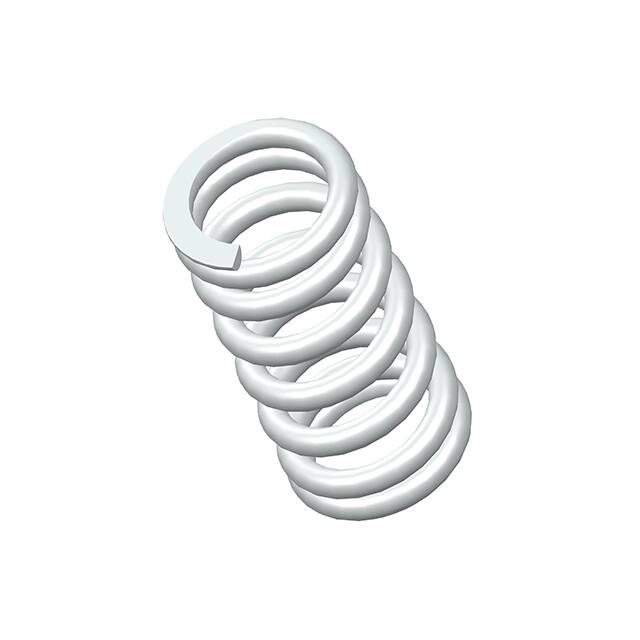

71422SCSCOMP O= .420,L= .88,W= .0625 |
3,171 | 8.20 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.063 (1.60mm) | 0.420 (10.67mm) | 0.294 (7.47mm) | - | - | 0.880 (22.35mm) | - | 77.0 lbs/in | Closed & Ground |
|

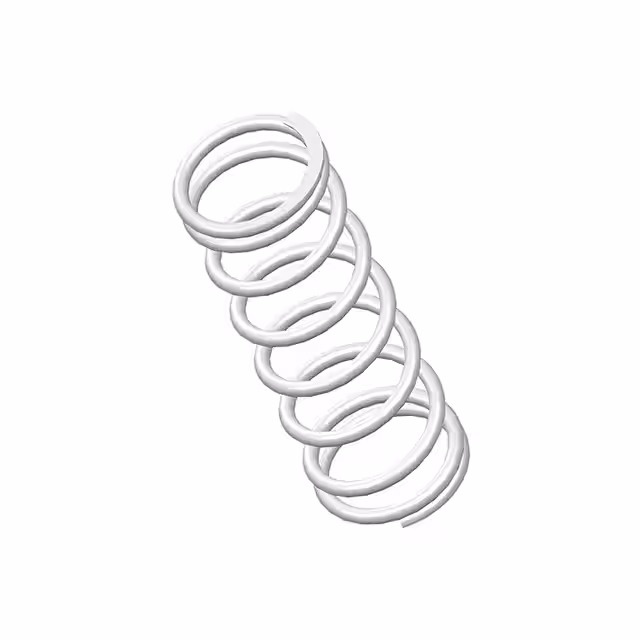

71345SCSCOMP O= .420,L= 1.25,W= .042 |
852 | 8.20 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.042 (1.07mm) | 0.420 (10.67mm) | 0.336 (8.53mm) | - | - | 1.250 (31.75mm) | - | 11.0 lbs/in | Closed & Ground |
|

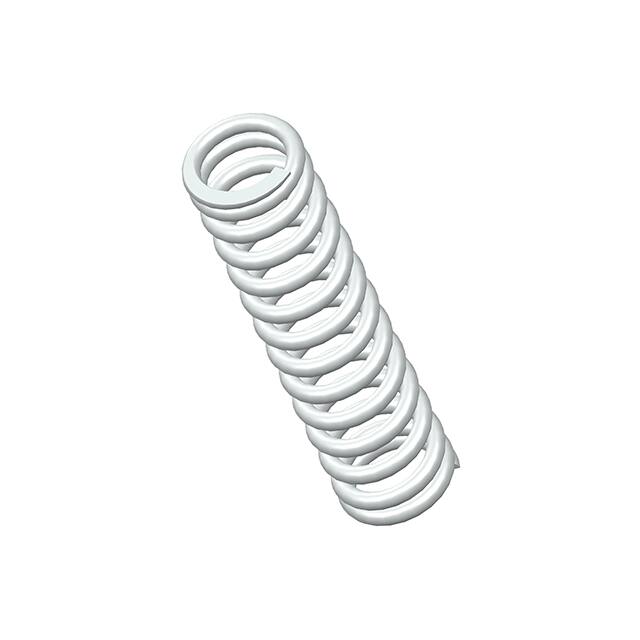

71426SCSCOMP O= .420,L= 1.75,W= .063 |
531 | 8.20 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.063 (1.60mm) | 0.420 (10.67mm) | 0.294 (7.47mm) | - | - | 1.750 (44.45mm) | - | 36.0 lbs/in | Closed & Ground |
|

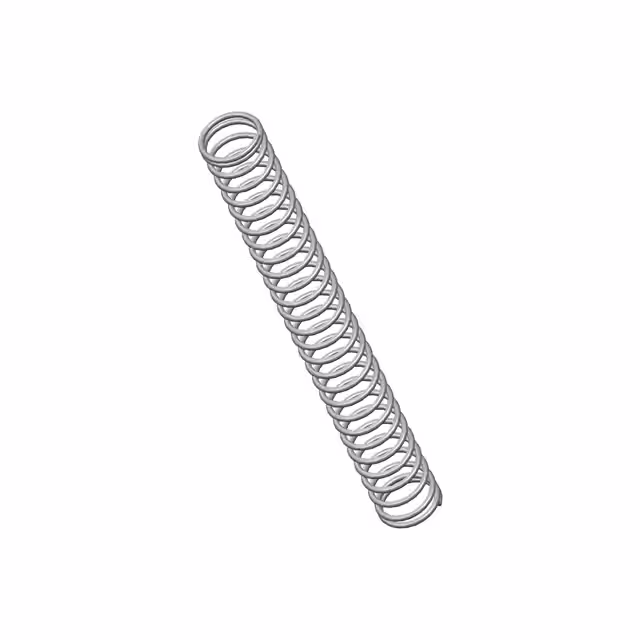

892CSCOMP O= .875,L=7.75,W=.080R HD |
307 | 8.20 |
RFQ |
Datasheet |
Box | - | Active | Hard Drawn | 0.080 (2.03mm) | 0.875 (22.23mm) | 0.715 (18.16mm) | - | - | 7.750 (196.85mm) | - | 4.5 lbs/in | Closed |
|

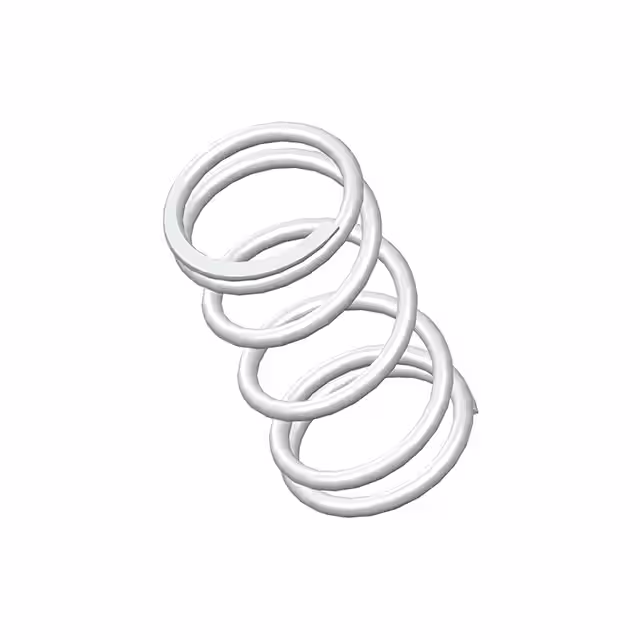

71087SCSCOMP O= .360,L= .69,W= .035 |
3,843 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.360 (9.14mm) | 0.290 (7.37mm) | - | - | 0.690 (17.53mm) | - | 14.0 lbs/in | Closed & Ground |
|

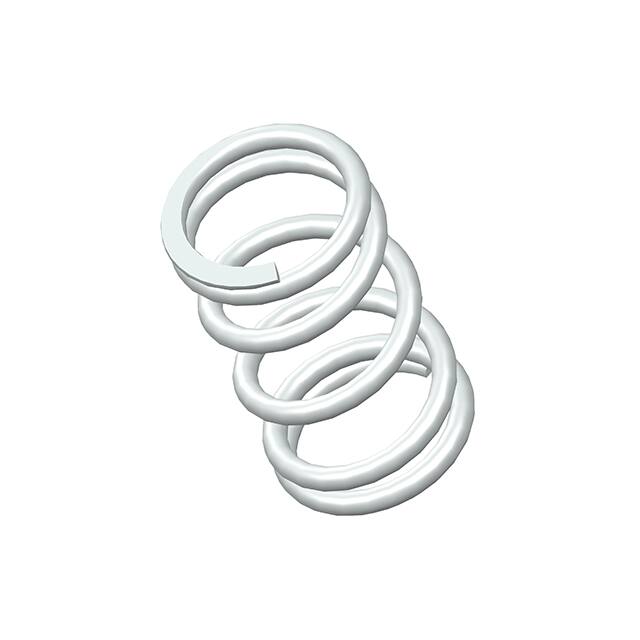

71140SCSCOMP O= .360,L= .63,W= .042 |
3,703 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.042 (1.07mm) | 0.360 (9.14mm) | 0.276 (7.01mm) | - | - | 0.630 (16.00mm) | - | 32.0 lbs/in | Closed & Ground |
|

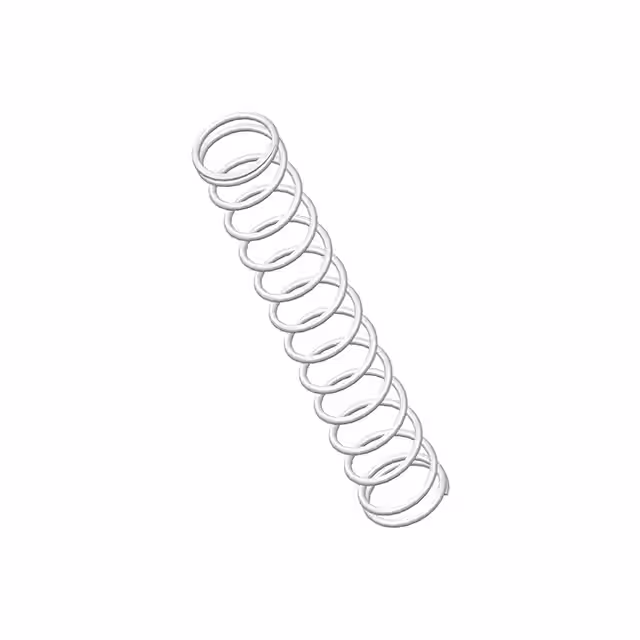

71503SCSCOMP O= .480,L= 3.00,W= .042 |
2,985 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.042 (1.07mm) | 0.480 (12.19mm) | 0.396 (10.06mm) | - | - | 3.000 (76.20mm) | - | 3.2 lbs/in | Closed & Ground |
|

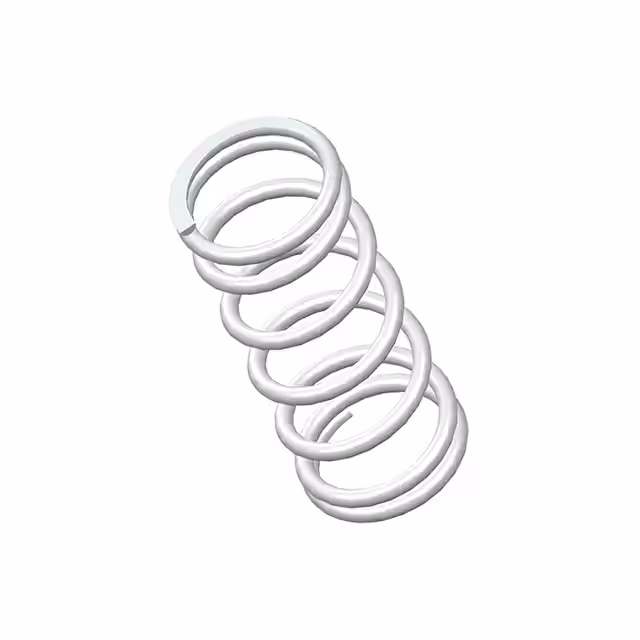

71108SCSCOMP O= .360,L= .88,W= .038 |
3,817 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 0.880 (22.35mm) | - | 14.0 lbs/in | Closed & Ground |
|

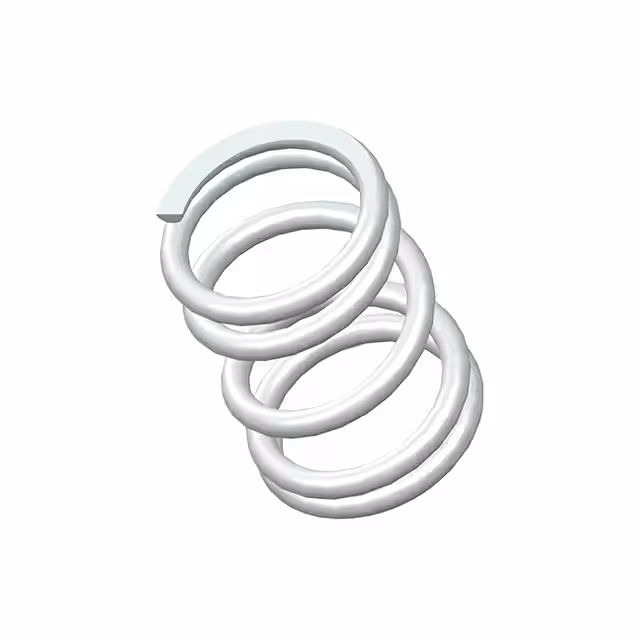

71138SCSCOMP O= .360,L= .50,W= .042 |
2,130 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.042 (1.07mm) | 0.360 (9.14mm) | 0.276 (7.01mm) | - | - | 0.500 (12.70mm) | - | 40.0 lbs/in | Closed & Ground |
|

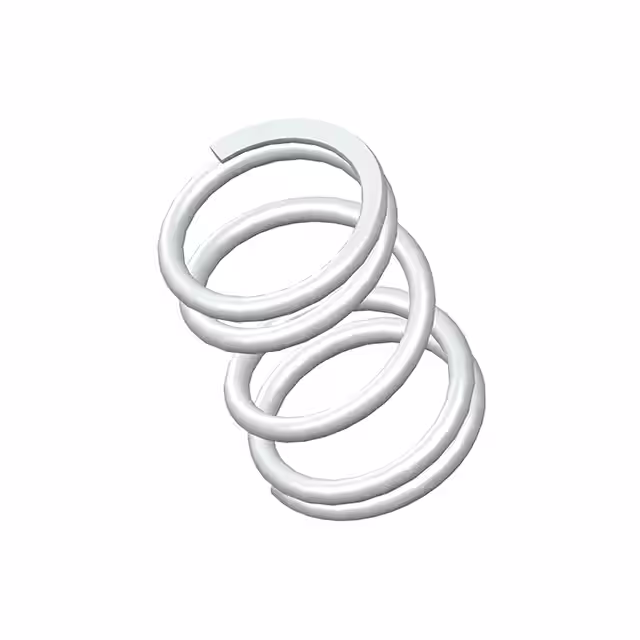

71102SCSCOMP O= .360,L= .50,W= .038 |
3,198 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.038 (0.97mm) | 0.360 (9.14mm) | 0.284 (7.21mm) | - | - | 0.500 (12.70mm) | - | 28.0 lbs/in | Closed & Ground |
|

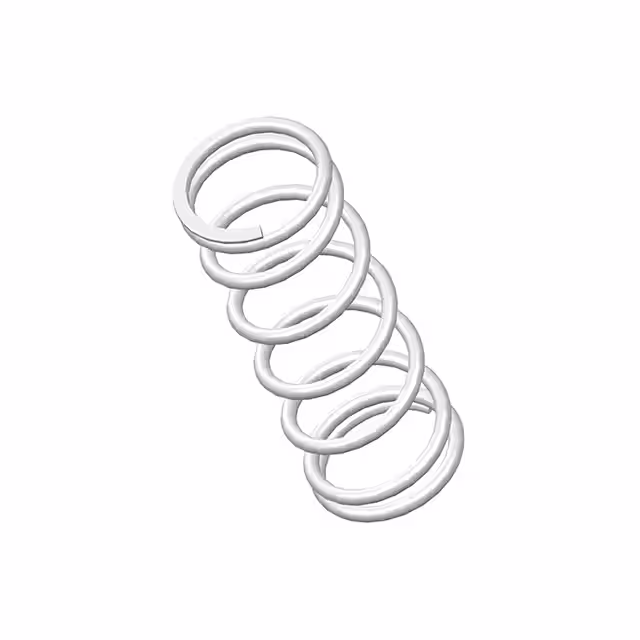

71092SCSCOMP O= .360,L= 1.00,W= .035 |
3,600 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.360 (9.14mm) | 0.290 (7.37mm) | - | - | 1.000 (25.40mm) | - | 9.5 lbs/in | Closed & Ground |
|

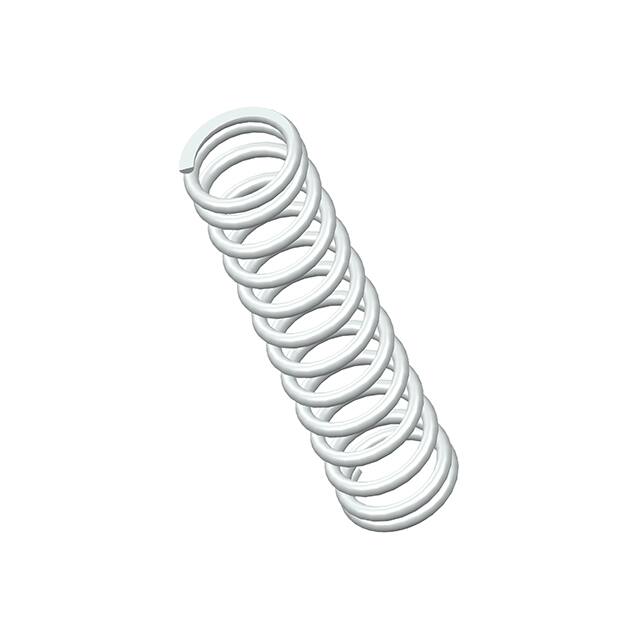

71393SCSCOMP O= .420,L= 1.75,W= .051 |
2,406 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.051 (1.30mm) | 0.420 (10.67mm) | 0.318 (8.08mm) | - | - | 1.750 (44.45mm) | - | 15.0 lbs/in | Closed & Ground |
|

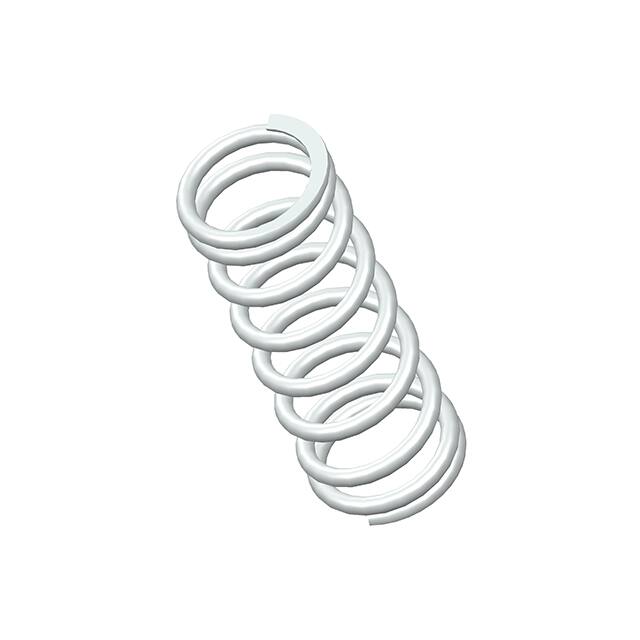

71146SCSCOMP O= .360,L= 1.00,W= .042 |
3,232 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.042 (1.07mm) | 0.360 (9.14mm) | 0.276 (7.01mm) | - | - | 1.000 (25.40mm) | - | 18.0 lbs/in | Closed & Ground |
|

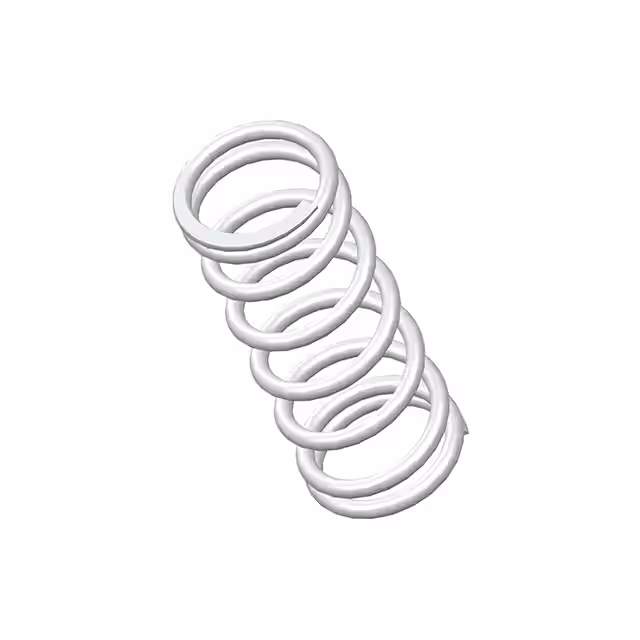

71127SCSCOMP O= .360,L= .94,W= .040 |
2,941 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.040 (1.02mm) | 0.360 (9.14mm) | 0.280 (7.11mm) | - | - | 0.940 (23.88mm) | - | 16.0 lbs/in | Closed & Ground |
|

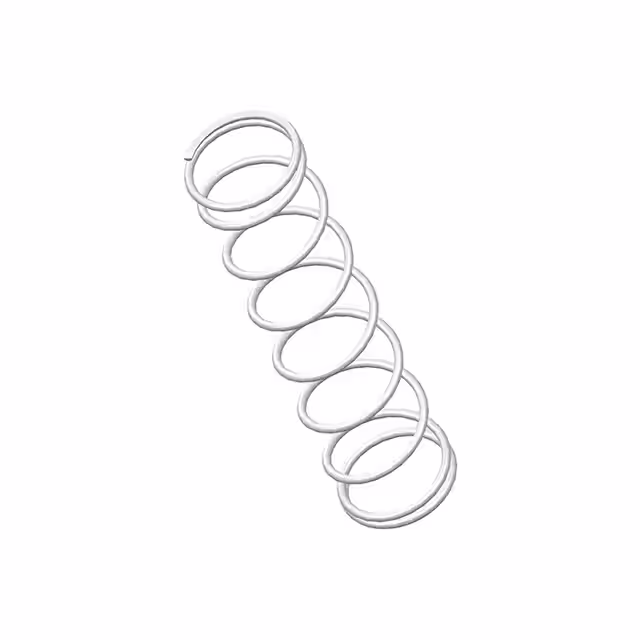

71473SCSCOMP O= .480,L= 2.00,W= .035 |
3,010 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.035 (0.89mm) | 0.480 (12.19mm) | 0.410 (10.41mm) | - | - | 2.000 (50.80mm) | - | 3.0 lbs/in | Closed & Ground |
|

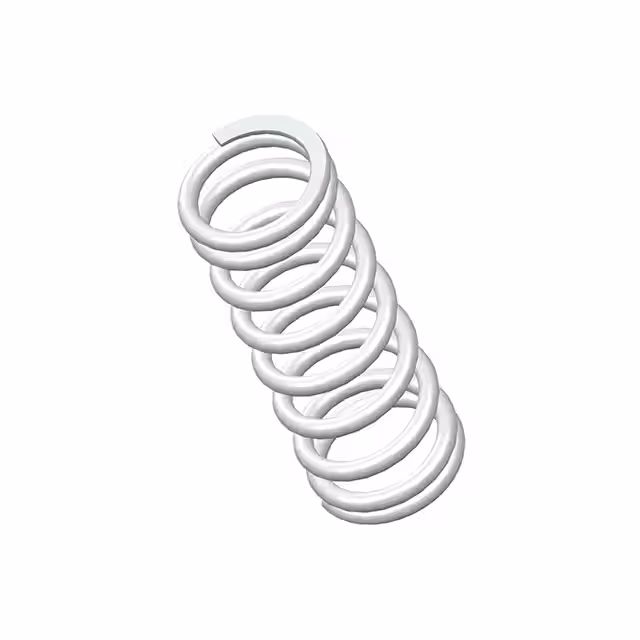

71164SCSCOMP O= .360,L= 1.00,W= .045 |
2,226 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.045 (1.14mm) | 0.360 (9.14mm) | 0.270 (6.86mm) | - | - | 1.000 (25.40mm) | - | 24.0 lbs/in | Closed & Ground |
|

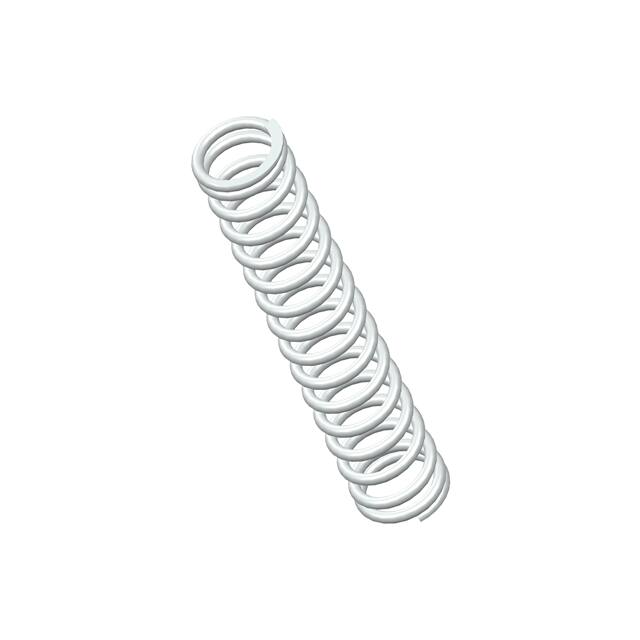

71170SCSCOMP O= .360,L= 2.00,W= .045 |
2,099 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.045 (1.14mm) | 0.360 (9.14mm) | 0.270 (6.86mm) | - | - | 2.000 (50.80mm) | - | 11.0 lbs/in | Closed & Ground |
|

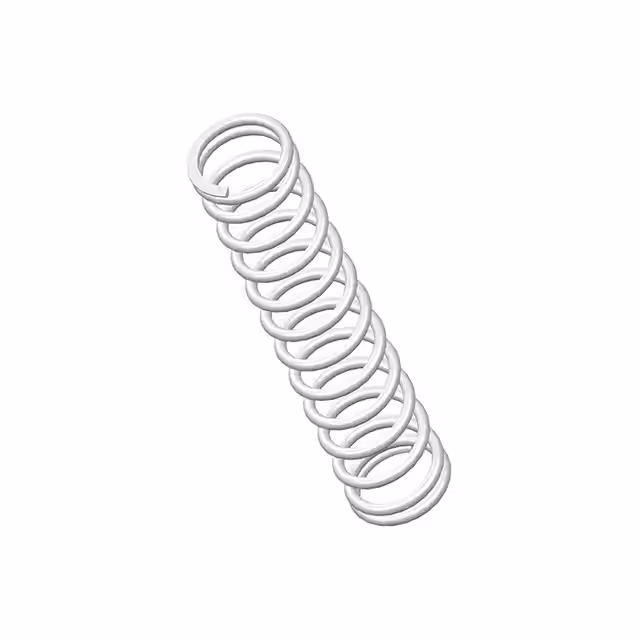

71133SCSCOMP O= .360,L= 1.75,W= .040 |
3,817 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.040 (1.02mm) | 0.360 (9.14mm) | 0.280 (7.11mm) | - | - | 1.750 (44.45mm) | - | 8.3 lbs/in | Closed & Ground |
|

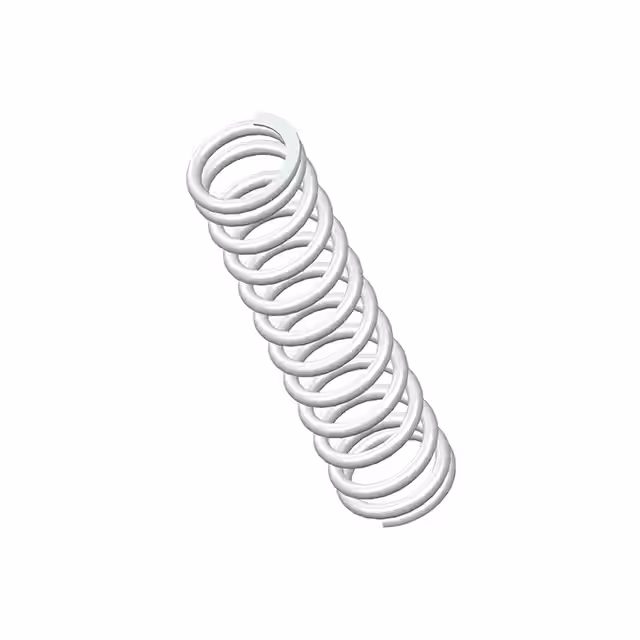

71168SCSCOMP O= .360,L= 1.50,W= .045 |
2,790 | 8.21 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.045 (1.14mm) | 0.360 (9.14mm) | 0.270 (6.86mm) | - | - | 1.500 (38.10mm) | - | 15.0 lbs/in | Closed & Ground |
