Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

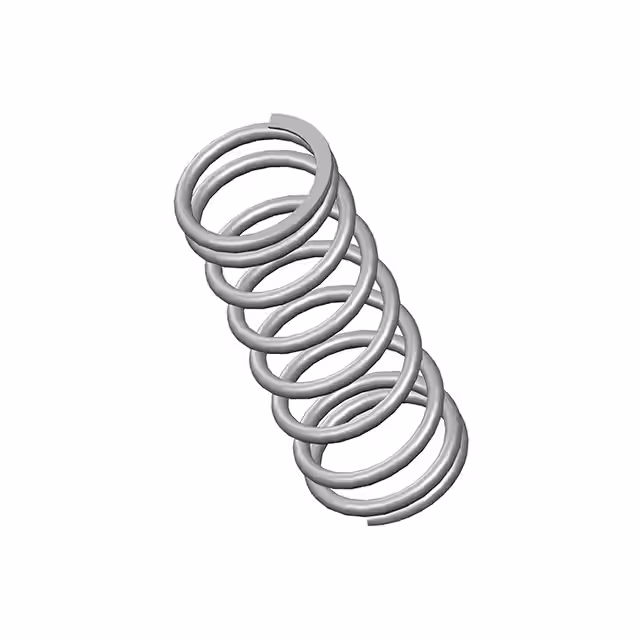

71907CSCOMP O= .660,L= 1.75,W= .067 |
3,484 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.067 (1.70mm) | 0.660 (16.76mm) | 0.526 (13.36mm) | - | - | 1.750 (44.45mm) | - | 22.0 lbs/in | Closed & Ground |
|

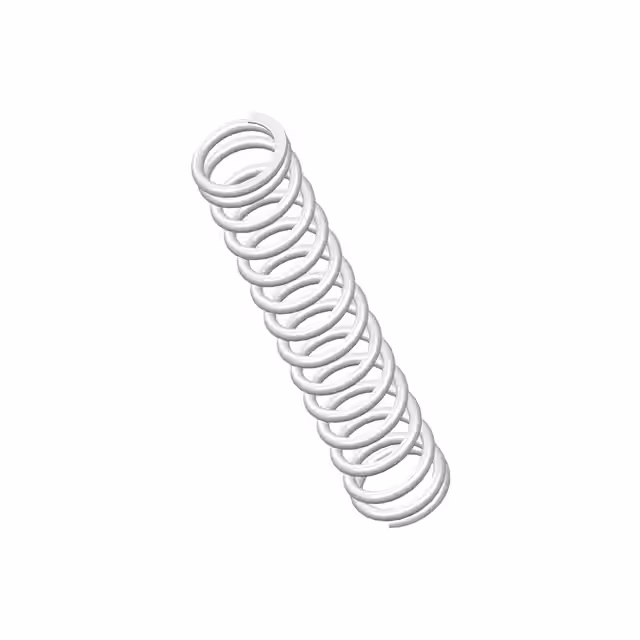

70355SCSCOMP O= .180,L= .94,W= .022 |
3,188 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.180 (4.57mm) | 0.136 (3.45mm) | - | - | 0.940 (23.88mm) | - | 5.8 lbs/in | Closed & Ground |
|

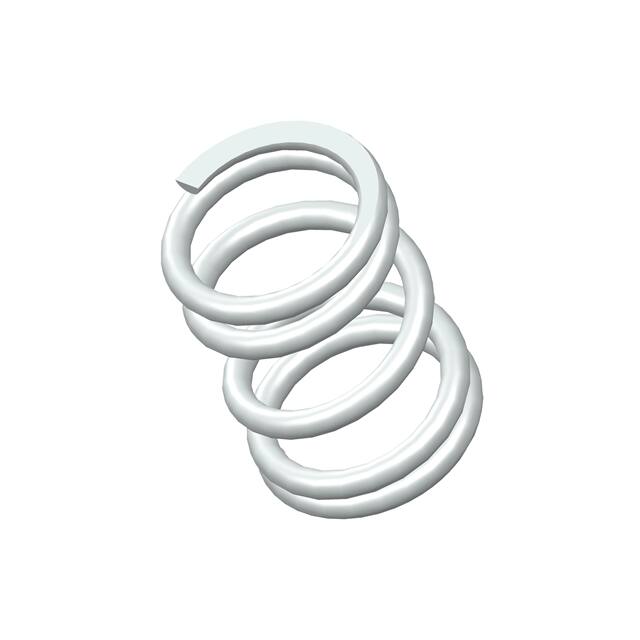

70343SCSCOMP O= .180,L= .25,W= .022 |
3,487 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.180 (4.57mm) | 0.136 (3.45mm) | - | - | 0.250 (6.35mm) | - | 25.0 lbs/in | Closed & Ground |
|
70405SCSCOMP O= .180,L= 1.75,W= .026 |
3,874 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.180 (4.57mm) | 0.128 (3.25mm) | - | - | 1.750 (44.45mm) | - | 5.8 lbs/in | Closed & Ground |
|

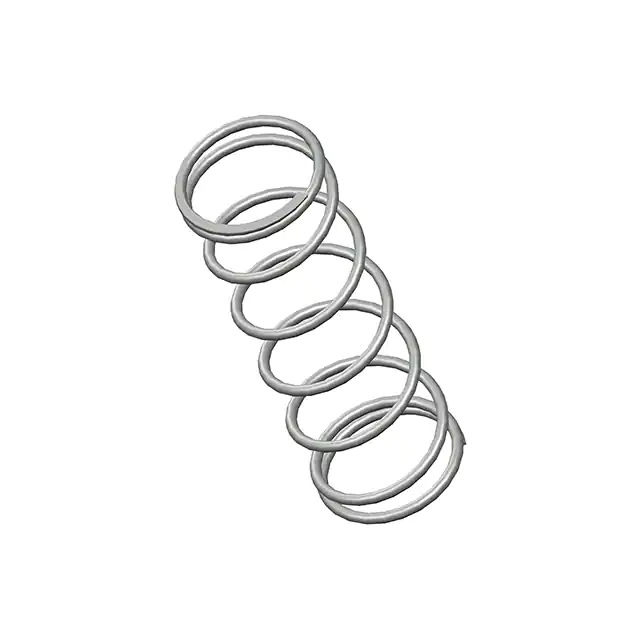

71872CSCOMP O= .660,L= 2.00,W= .049 |
2,906 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.049 (1.24mm) | 0.660 (16.76mm) | 0.562 (14.27mm) | - | - | 2.000 (50.80mm) | - | 6.3 lbs/in | Closed & Ground |
|

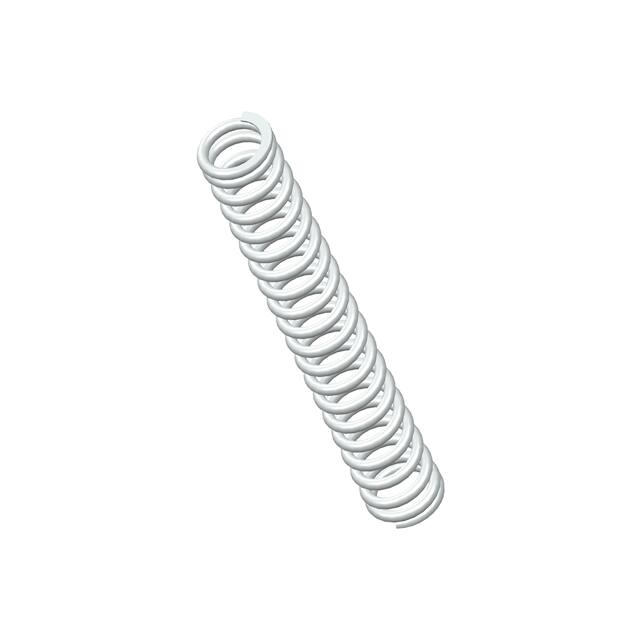

70401SCSCOMP O= .180,L= 1.25,W= .026 |
2,908 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.180 (4.57mm) | 0.128 (3.25mm) | - | - | 1.250 (31.75mm) | - | 8.2 lbs/in | Closed & Ground |
|

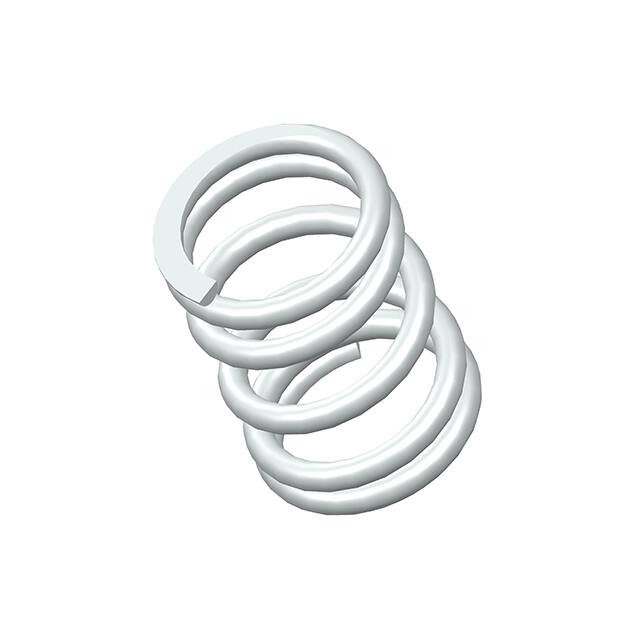

71700SCSCOMP O= .540,L= .75,W= .067 |
3,824 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.067 (1.70mm) | 0.540 (13.72mm) | 0.406 (10.31mm) | - | - | 0.750 (19.05mm) | - | 69.0 lbs/in | Closed & Ground |
|

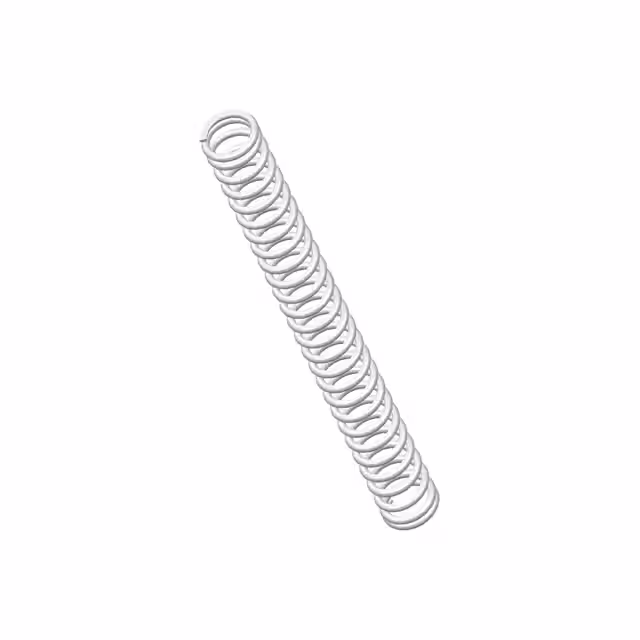

70384SCSCOMP O= .180,L= 1.75,W= .024 |
926 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.180 (4.57mm) | 0.132 (3.35mm) | - | - | 1.750 (44.45mm) | - | 4.3 lbs/in | Closed & Ground |
|

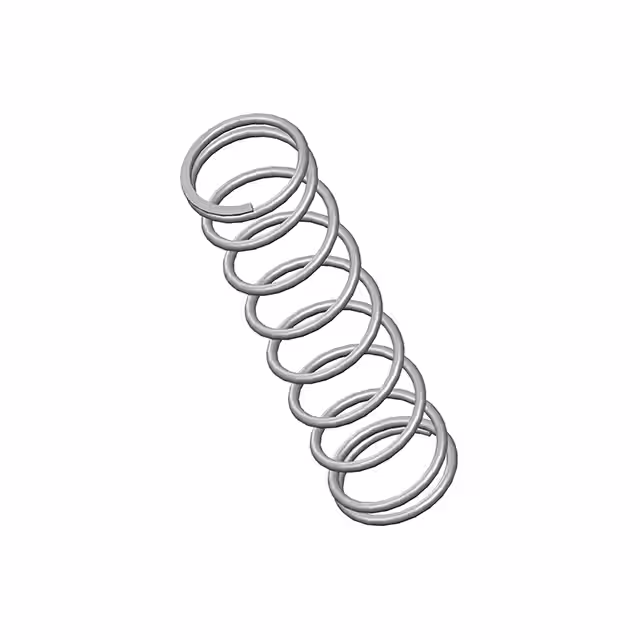

71886CSCOMP O= .660,L= 2.50,W= .055 |
913 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.660 (16.76mm) | 0.550 (13.97mm) | - | - | 2.500 (63.50mm) | - | 7.8 lbs/in | Closed & Ground |
|

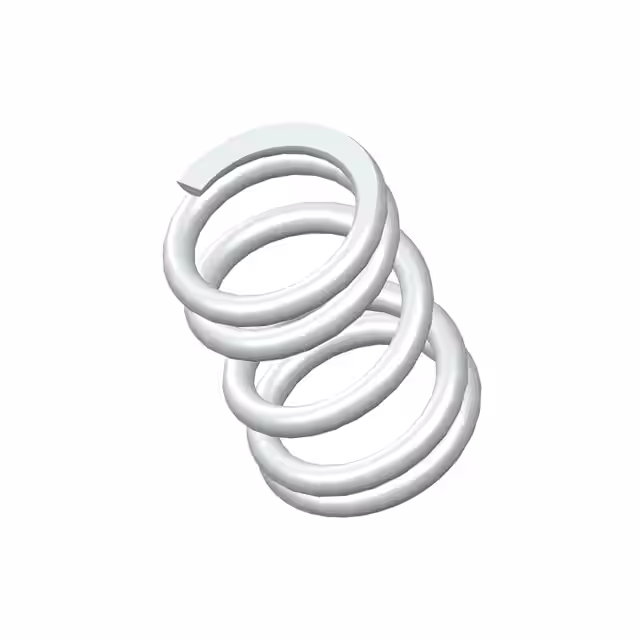

70363SCSCOMP O= .180,L= .25,W= .024 |
880 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.180 (4.57mm) | 0.132 (3.35mm) | - | - | 0.250 (6.35mm) | - | 37.0 lbs/in | Closed & Ground |
|

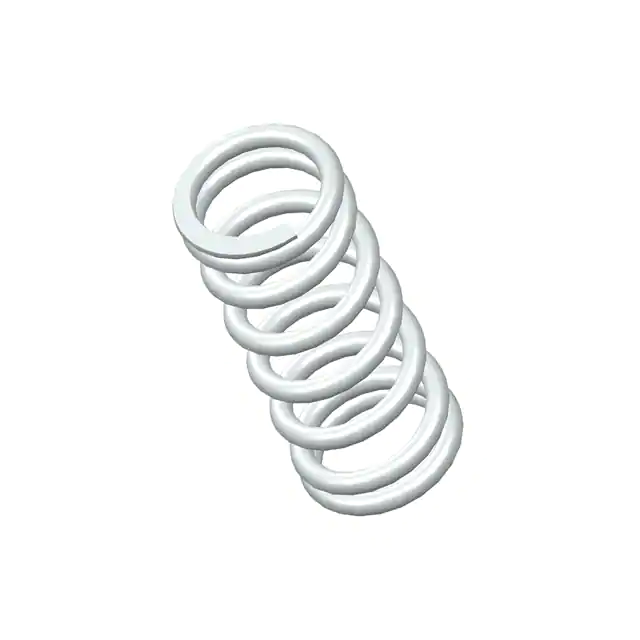

70366SCSCOMP O= .180,L= .44,W= .024 |
819 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.180 (4.57mm) | 0.132 (3.35mm) | - | - | 0.440 (11.18mm) | - | 19.0 lbs/in | Closed & Ground |
|

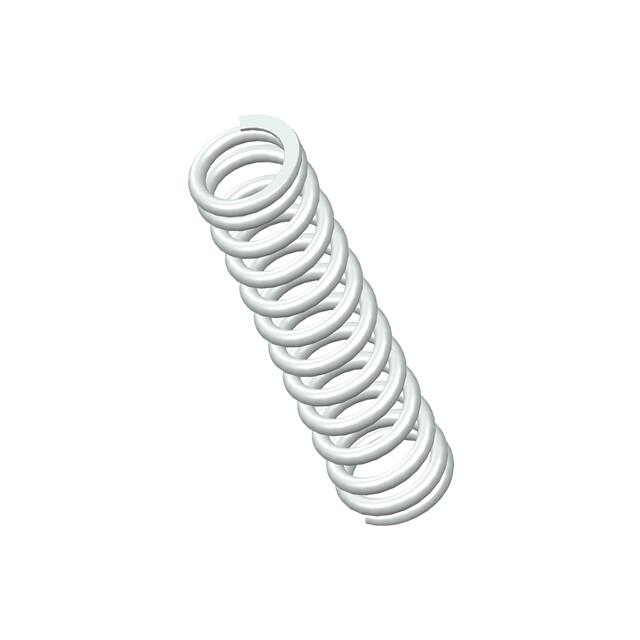

70394SCSCOMP O= .180,L= .75,W= .026 |
784 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.180 (4.57mm) | 0.128 (3.25mm) | - | - | 0.750 (19.05mm) | - | 14.0 lbs/in | Closed & Ground |
|

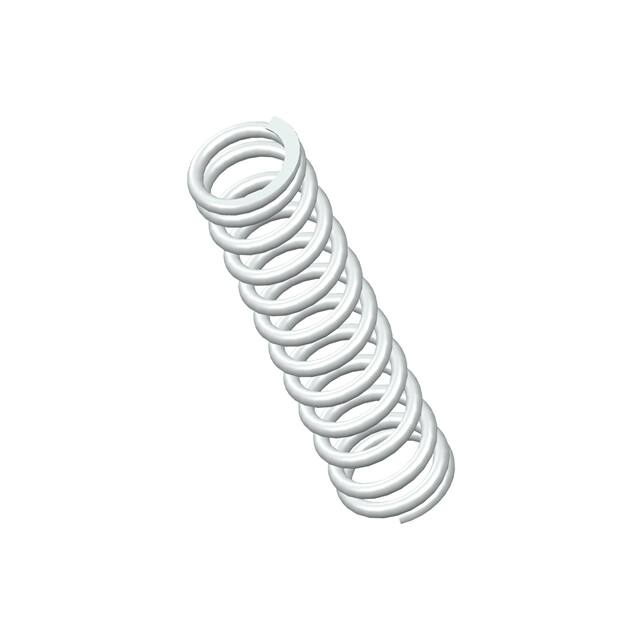

70372SCSCOMP O= .180,L= .75,W= .024 |
597 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.024 (0.61mm) | 0.180 (4.57mm) | 0.132 (3.35mm) | - | - | 0.750 (19.05mm) | - | 10.0 lbs/in | Closed & Ground |
|

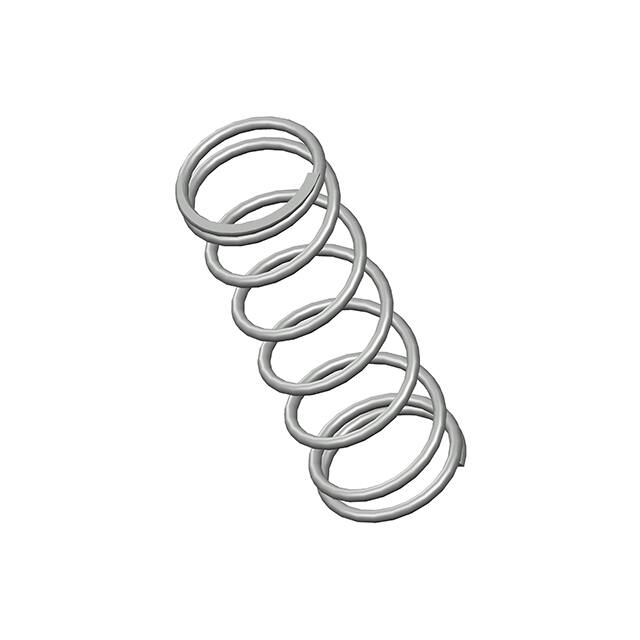

71884CSCOMP O= .660,L= 2.00,W= .055 |
542 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.660 (16.76mm) | 0.550 (13.97mm) | - | - | 2.000 (50.80mm) | - | 9.8 lbs/in | Closed & Ground |
|
70406SCSCOMP O= .180,L= 2.00,W= .026 |
540 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.026 (0.66mm) | 0.180 (4.57mm) | 0.128 (3.25mm) | - | - | 2.000 (50.80mm) | - | 5.1 lbs/in | Closed & Ground |
|

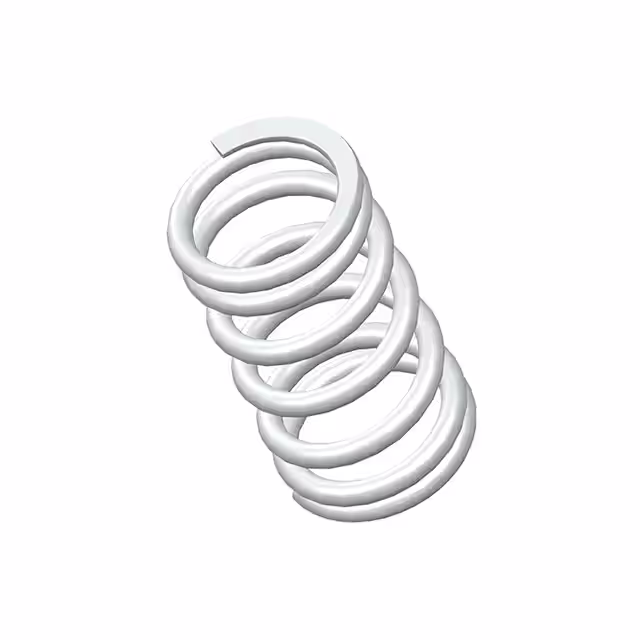

71702SCSCOMP O= .540,L= 1.00,W= .067 |
528 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.067 (1.70mm) | 0.540 (13.72mm) | 0.406 (10.31mm) | - | - | 1.000 (25.40mm) | - | 49.0 lbs/in | Closed & Ground |
|

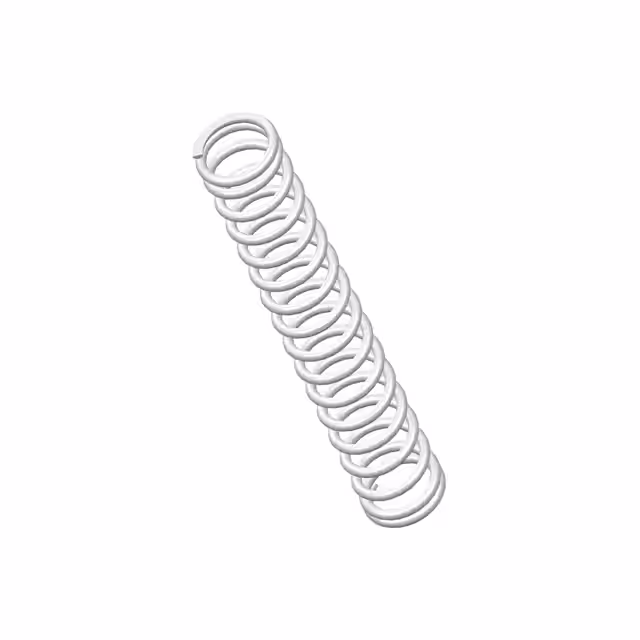

70357SCSCOMP O= .180,L= 1.13,W= .022 |
510 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.022 (0.56mm) | 0.180 (4.57mm) | 0.136 (3.45mm) | - | - | 1.130 (28.70mm) | - | 4.8 lbs/in | Closed & Ground |
|

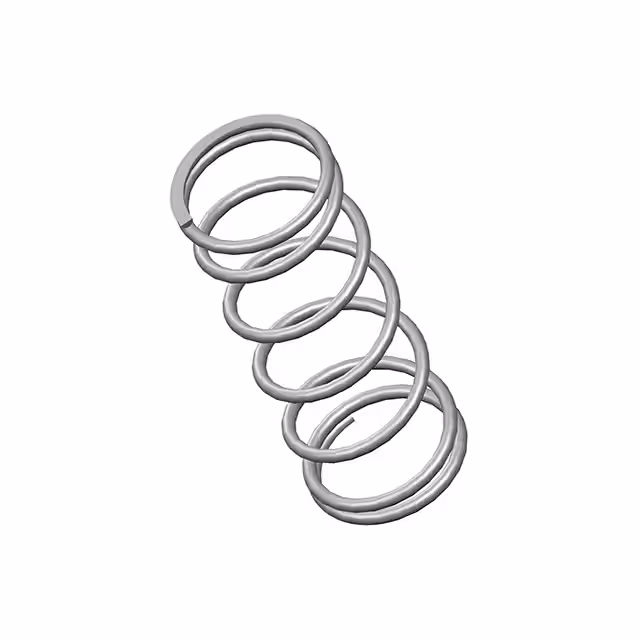

71883CSCOMP O= .660,L= 1.75,W= .055 |
499 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.660 (16.76mm) | 0.550 (13.97mm) | - | - | 1.750 (44.45mm) | - | 11.0 lbs/in | Closed & Ground |
|

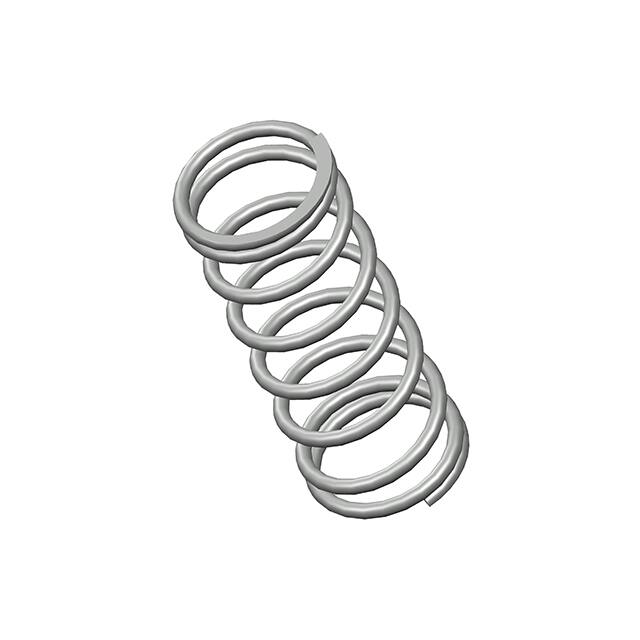

71895CSCOMP O= .660,L= 1.75,W= .063 |
488 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.063 (1.60mm) | 0.660 (16.76mm) | 0.534 (13.56mm) | - | - | 1.750 (44.45mm) | - | 17.0 lbs/in | Closed & Ground |
|

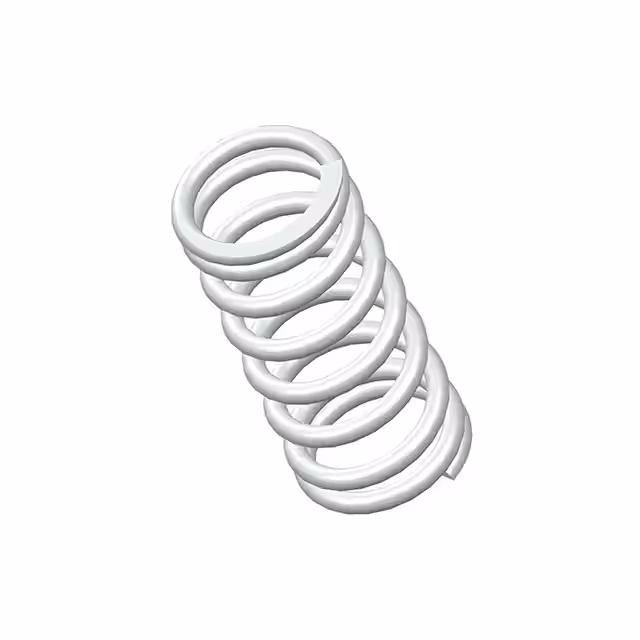

71703SCSCOMP O= .540,L= 1.25,W= .067 |
482 | 8.14 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.067 (1.70mm) | 0.540 (13.72mm) | 0.406 (10.31mm) | - | - | 1.250 (31.75mm) | - | 38.0 lbs/in | Closed & Ground |
