Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

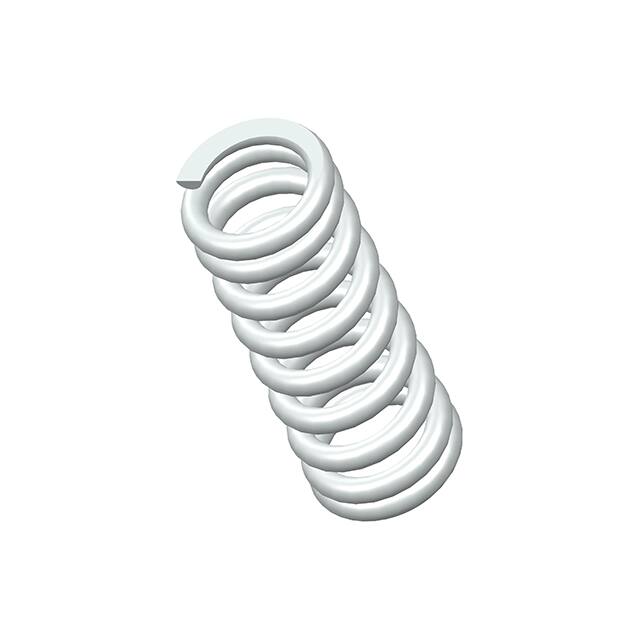

70991SCSCOMP O= .300,L= .81,W= .049 |
615 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.049 (1.24mm) | 0.300 (7.62mm) | 0.202 (5.13mm) | - | - | 0.810 (20.57mm) | - | 64.0 lbs/in | Closed & Ground |
|

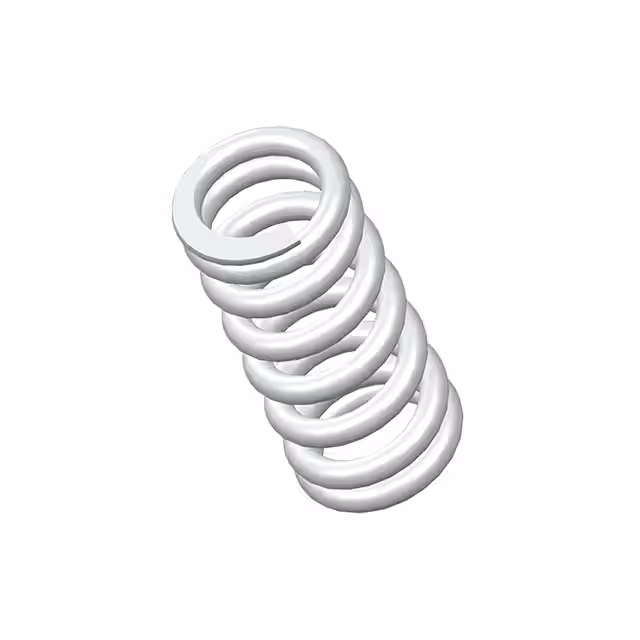

70989SCSCOMP O= .300,L= .69,W= .049 |
591 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.049 (1.24mm) | 0.300 (7.62mm) | 0.202 (5.13mm) | - | - | 0.690 (17.53mm) | - | 77.0 lbs/in | Closed & Ground |
|

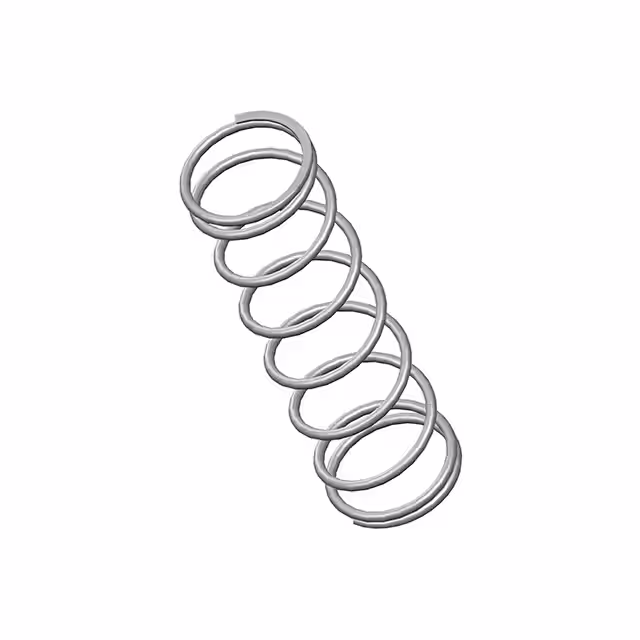

71935CSCOMP O= .720,L= 2.50,W= .055 |
587 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.720 (18.29mm) | 0.610 (15.49mm) | - | - | 2.500 (63.50mm) | - | 6.8 lbs/in | Closed & Ground |
|

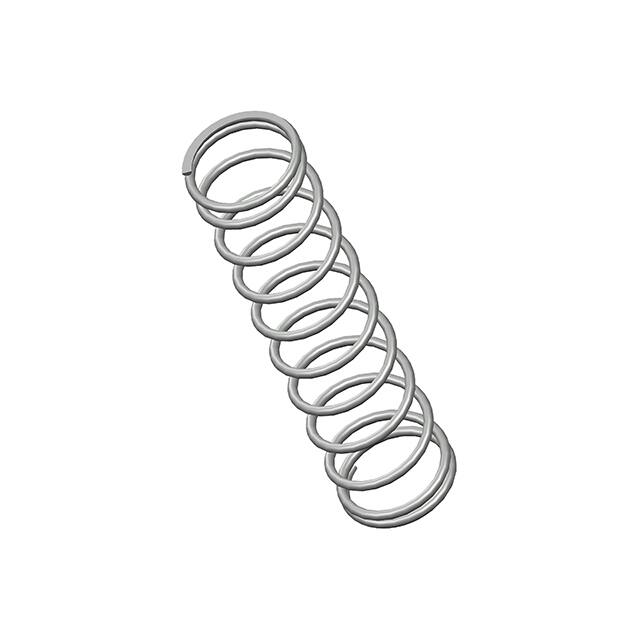

71950CSCOMP O= .720,L= 3.00,W= .059 |
587 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.059 (1.50mm) | 0.720 (18.29mm) | 0.602 (15.29mm) | - | - | 3.000 (76.20mm) | - | 6.6 lbs/in | Closed & Ground |
|

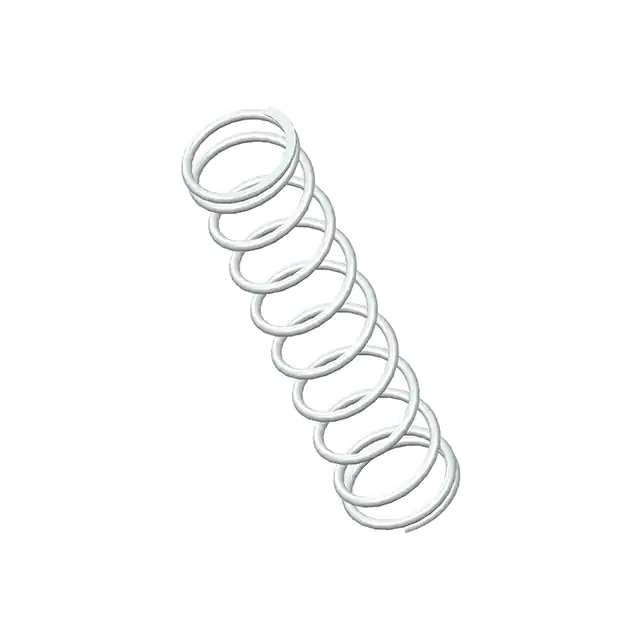

71454SCSCOMP O= .455,L= 2.00,W= .039 |
565 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.039 (0.99mm) | 0.455 (11.56mm) | 0.377 (9.58mm) | - | - | 2.000 (50.80mm) | - | 4.7 lbs/in | Closed & Ground |
|

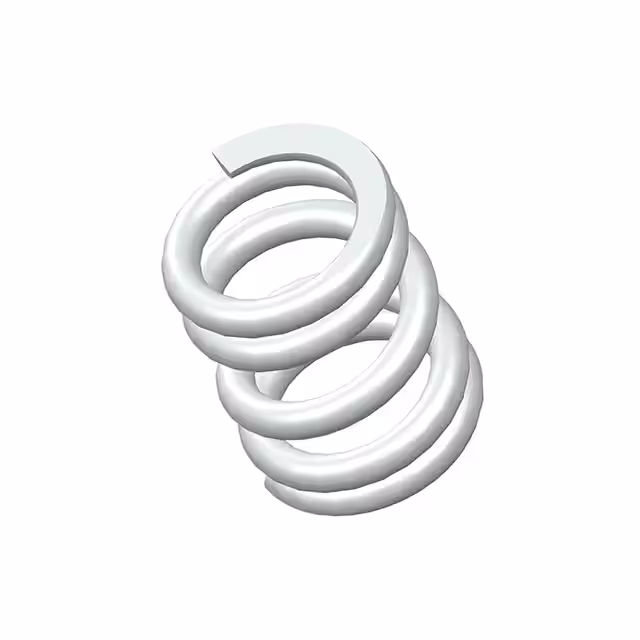

70963SCSCOMP O= .300,L= .38,W= .047 |
486 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 0.380 (9.65mm) | - | 135.0 lbs/in | Closed & Ground |
|

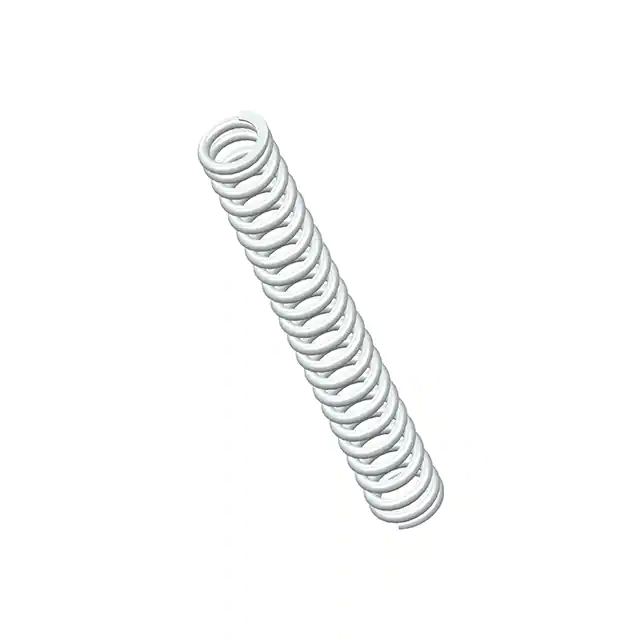

70980SCSCOMP O= .300,L= 2.25,W= .047 |
472 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 2.250 (57.15mm) | - | 18.0 lbs/in | Closed & Ground |
|

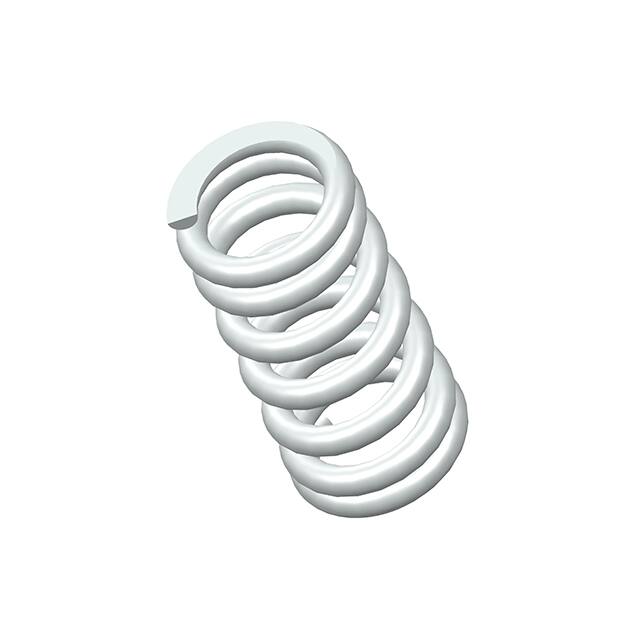

70988SCSCOMP O= .300,L= .63,W= .049 |
459 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.049 (1.24mm) | 0.300 (7.62mm) | 0.202 (5.13mm) | - | - | 0.630 (16.00mm) | - | 87.0 lbs/in | Closed & Ground |
|

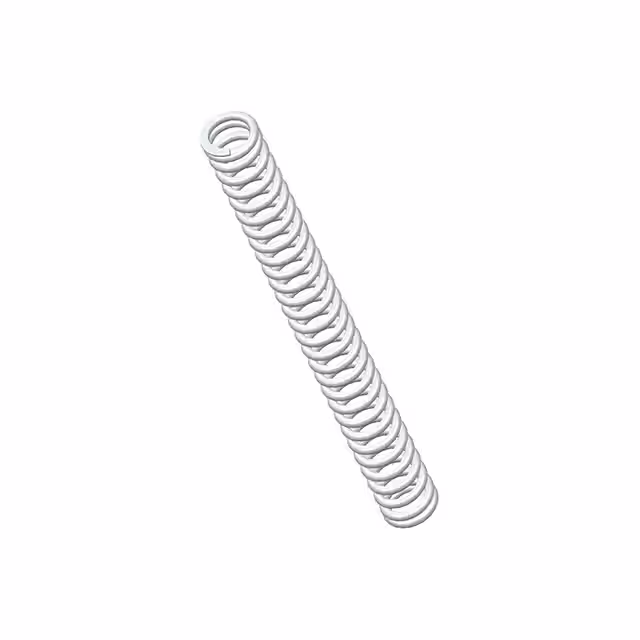

70983SCSCOMP O= .300,L= 3.00,W= .047 |
445 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 3.000 (76.20mm) | - | 13.0 lbs/in | Closed & Ground |
|

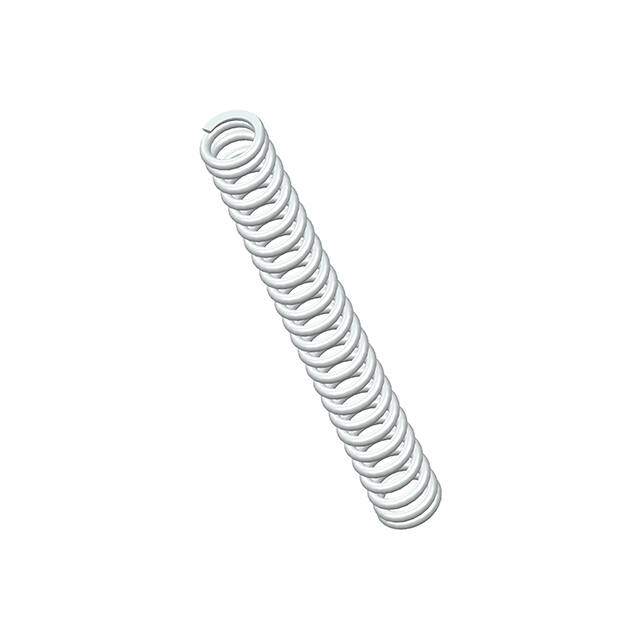

70981SCSCOMP O= .300,L= 2.50,W= .0475 |
445 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 2.500 (63.50mm) | - | 16.0 lbs/in | Closed & Ground |
|

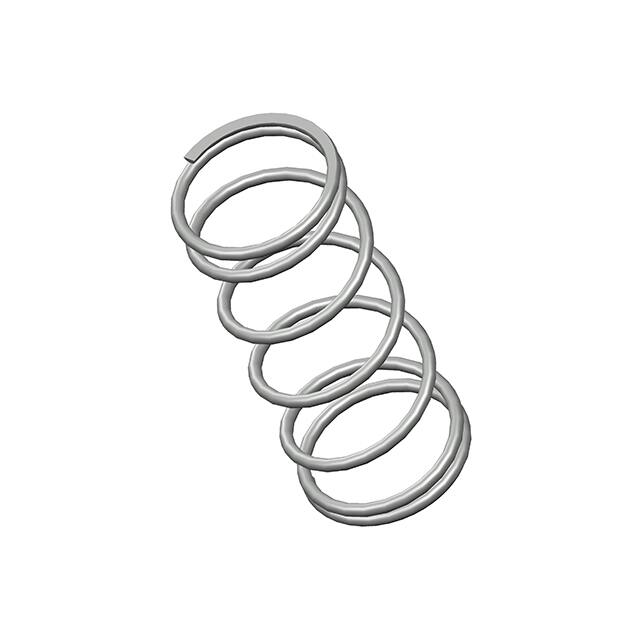

71932CSCOMP O= .720,L= 1.75,W= .055 |
438 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.720 (18.29mm) | 0.610 (15.49mm) | - | - | 1.750 (44.45mm) | - | 9.1 lbs/in | Closed & Ground |
|

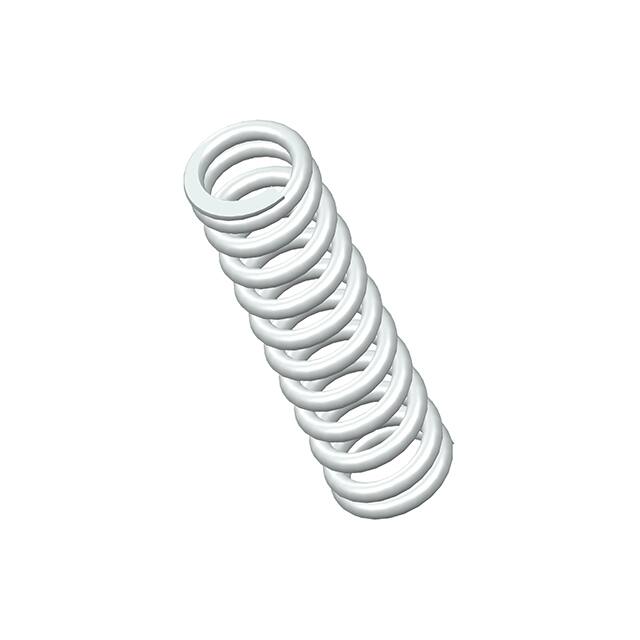

70974SCSCOMP O= .300,L= 1.13,W= .047 |
408 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 1.130 (28.70mm) | - | 38.0 lbs/in | Closed & Ground |
|

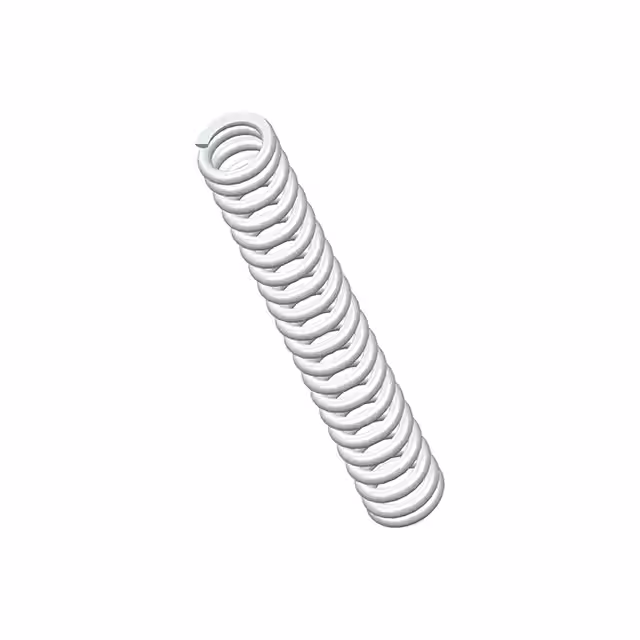

71021SCSCOMP O= .300,L= 2.00,W= .051 |
402 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.051 (1.30mm) | 0.300 (7.62mm) | 0.198 (5.03mm) | - | - | 2.000 (50.80mm) | - | 28.0 lbs/in | Closed & Ground |
|

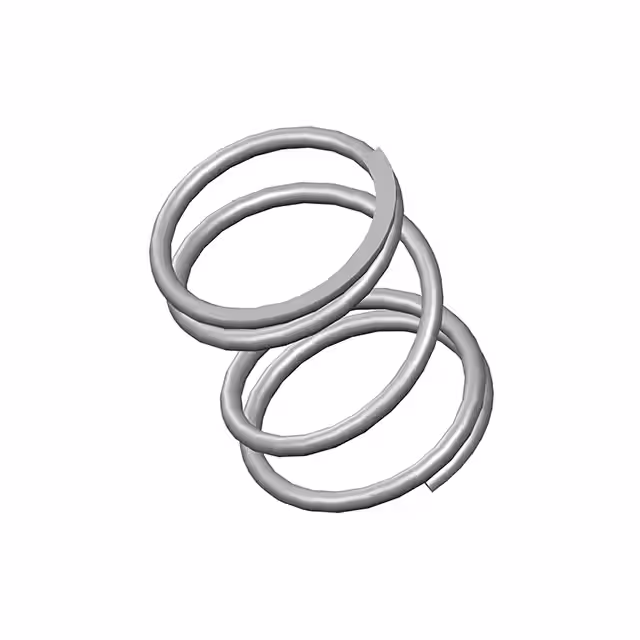

71939CSCOMP O= .720,L= .88,W= .059 |
390 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.059 (1.50mm) | 0.720 (18.29mm) | 0.602 (15.29mm) | - | - | 0.880 (22.35mm) | - | 27.0 lbs/in | Closed & Ground |
|

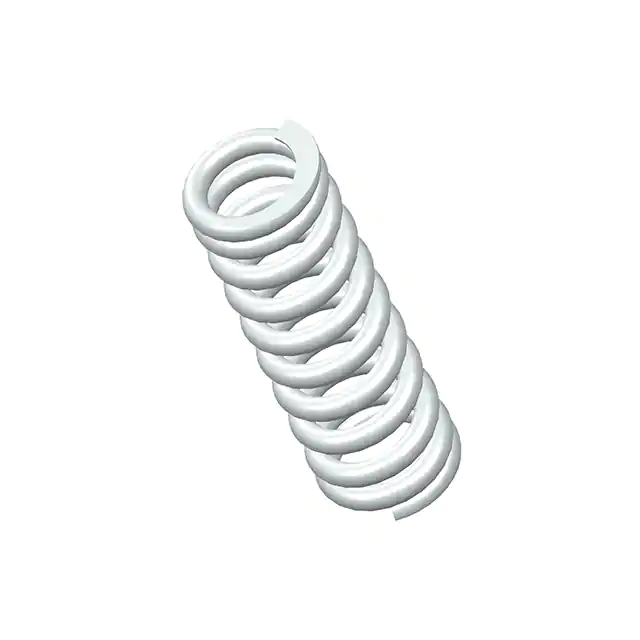

71014SCSCOMP O= .300,L= .94,W= .051 |
381 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.051 (1.30mm) | 0.300 (7.62mm) | 0.198 (5.03mm) | - | - | 0.940 (23.88mm) | - | 64.0 lbs/in | Closed & Ground |
|

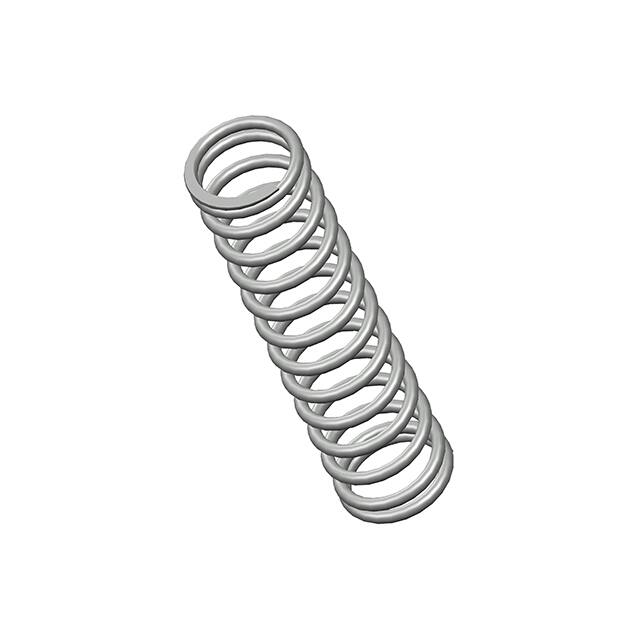

72052CSCOMP O= .720,L= 3.00,W= .080 |
342 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.080 (2.03mm) | 0.720 (18.29mm) | 0.560 (14.22mm) | - | - | 3.000 (76.20mm) | - | 19.0 lbs/in | Closed & Ground |
|

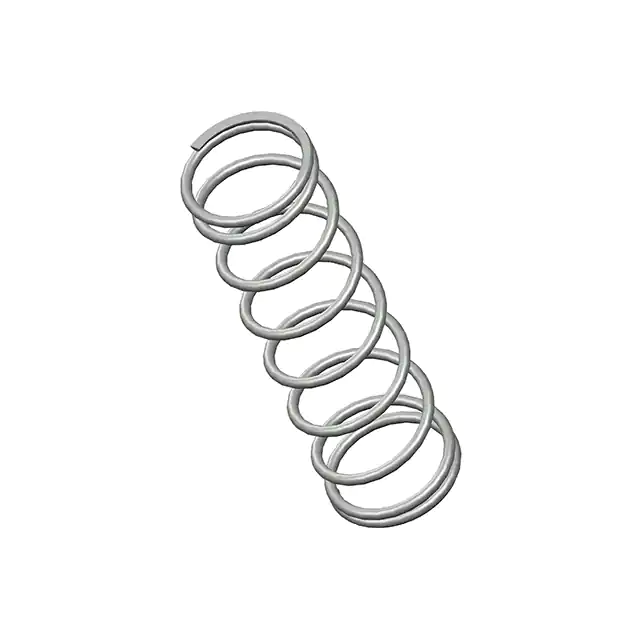

71946CSCOMP O= .720,L= 2.50,W= .059 |
326 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.059 (1.50mm) | 0.720 (18.29mm) | 0.602 (15.29mm) | - | - | 2.500 (63.50mm) | - | 8.7 lbs/in | Closed & Ground |
|

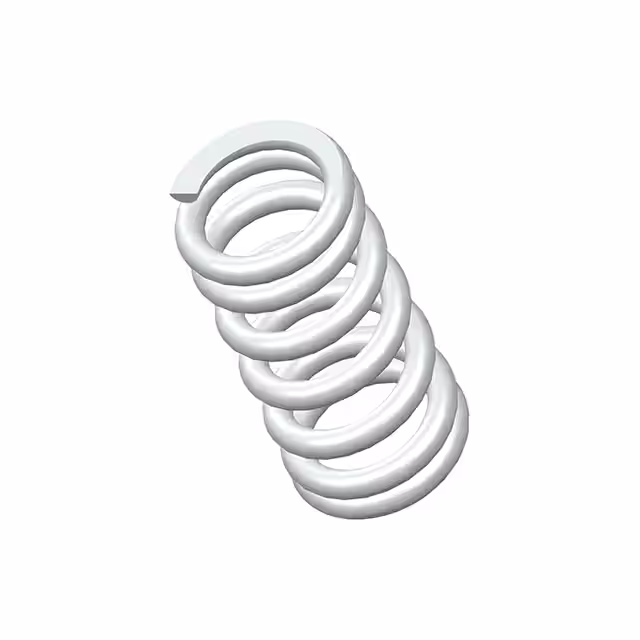

70967SCSCOMP O= .300,L= .63,W= .047 |
323 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Stainless Steel | 0.047 (1.19mm) | 0.300 (7.62mm) | 0.206 (5.23mm) | - | - | 0.630 (16.00mm) | - | 73.0 lbs/in | Closed & Ground |
|

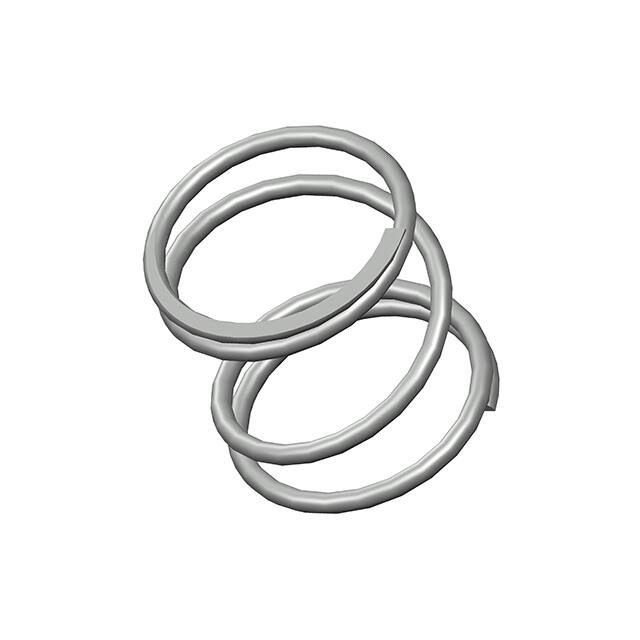

71927CSCOMP O= .720,L= .75,W= .055 |
313 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.055 (1.40mm) | 0.720 (18.29mm) | 0.610 (15.49mm) | - | - | 0.750 (19.05mm) | - | 23.0 lbs/in | Closed & Ground |
|

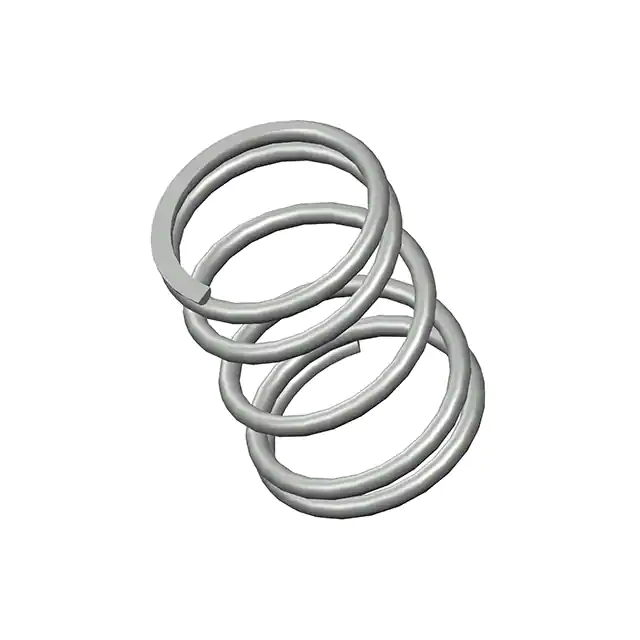

71954CSCOMP O= .720,L= 1.00,W= .063 |
243 | 8.13 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.063 (1.60mm) | 0.720 (18.29mm) | 0.594 (15.09mm) | - | - | 1.000 (25.40mm) | - | 24.0 lbs/in | Closed & Ground |
