Springs - Compression, Tapered(12077)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Material | WireDiameter | Diameter-Outside | Diameter-Inside | Diameter-SmallOutside | Diameter-LargeOutside | FreeLength | MaxLoad | Rate | EndStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

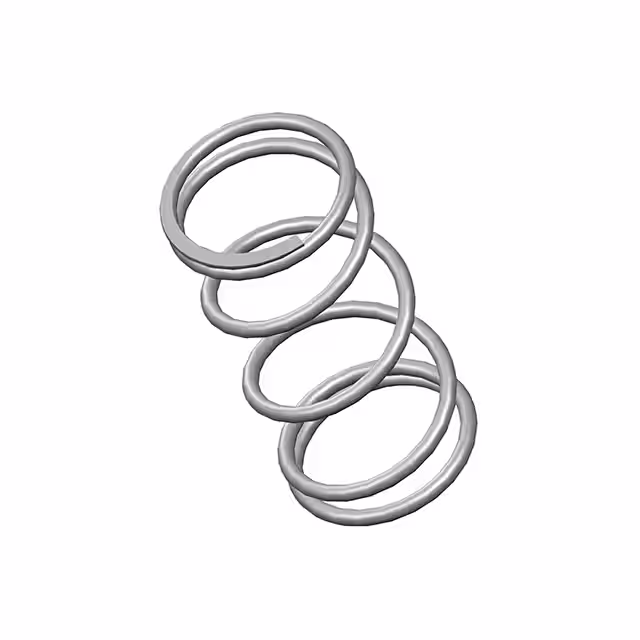

71316CSCOMP O= .420,L= .88,W= .035 |
189 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.420 (10.67mm) | 0.350 (8.89mm) | - | - | 0.880 (22.35mm) | - | 10.0 lbs/in | Closed & Ground |
|

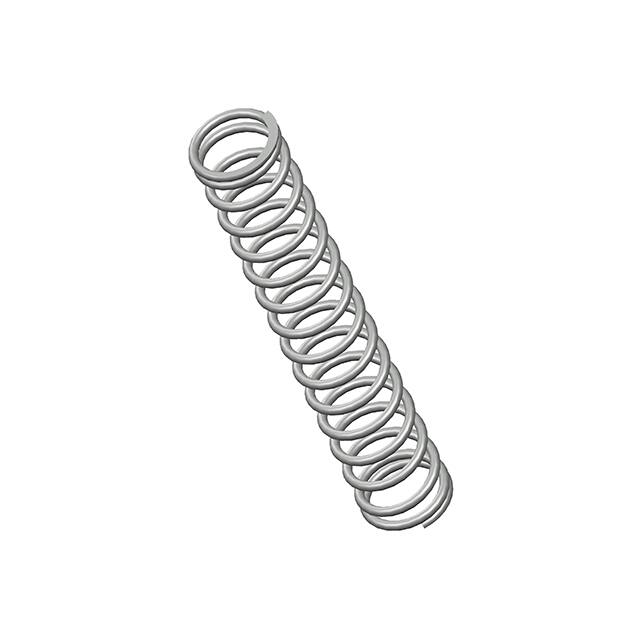

71361CSCOMP O= .420,L= 2.50,W= .045 |
186 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.045 (1.14mm) | 0.420 (10.67mm) | 0.330 (8.38mm) | - | - | 2.500 (63.50mm) | - | 7.9 lbs/in | Closed & Ground |
|

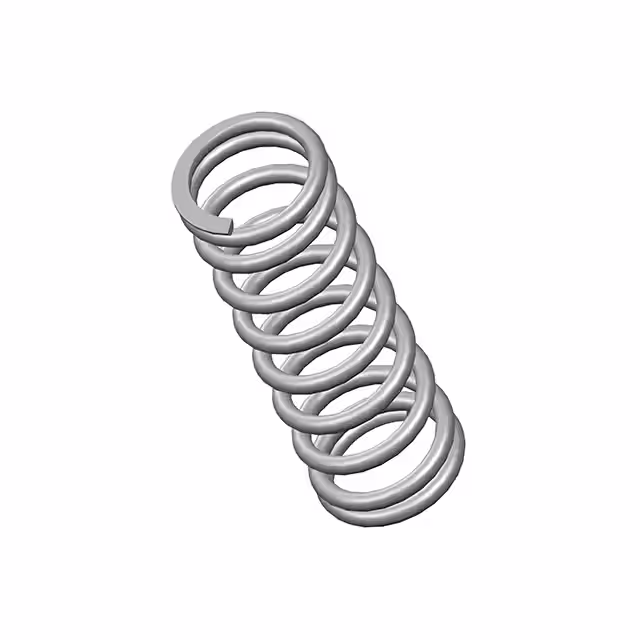

71391CSCOMP O= .420,L= 1.25,W= .051 |
171 | 7.16 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.051 (1.30mm) | 0.420 (10.67mm) | 0.318 (8.08mm) | - | - | 1.250 (31.75mm) | - | 26.0 lbs/in | Closed & Ground |
|

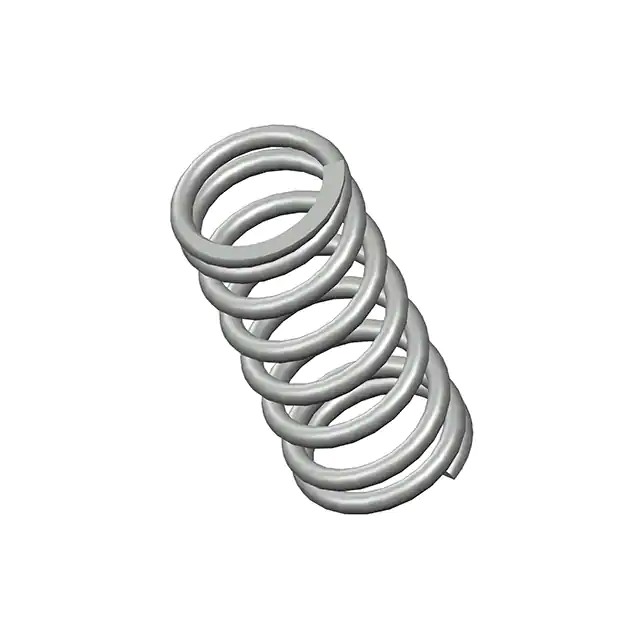

71304CSCOMP O= .390,L= .88,W= .0475 |
3,436 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 0.880 (22.35mm) | - | 29.0 lbs/in | Closed & Ground |
|

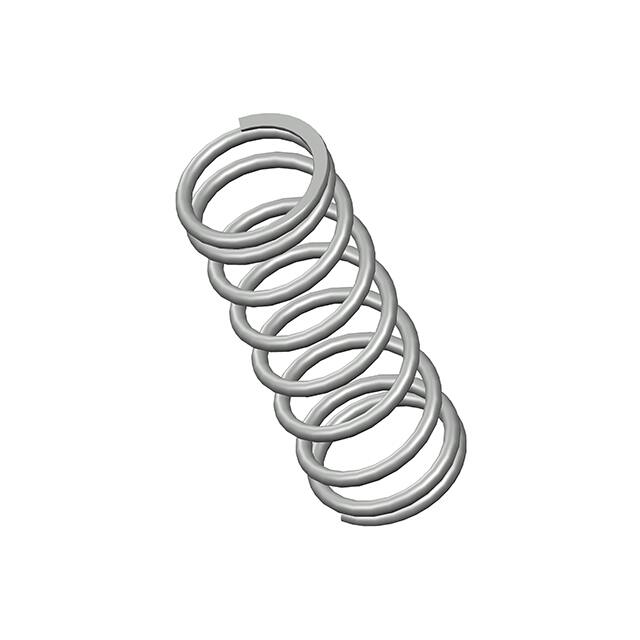

71665CSCOMP O= .540,L= 1.50,W= .054 |
2,961 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.054 (1.37mm) | 0.540 (13.72mm) | 0.432 (10.97mm) | - | - | 1.500 (38.10mm) | - | 16.0 lbs/in | Closed & Ground |
|

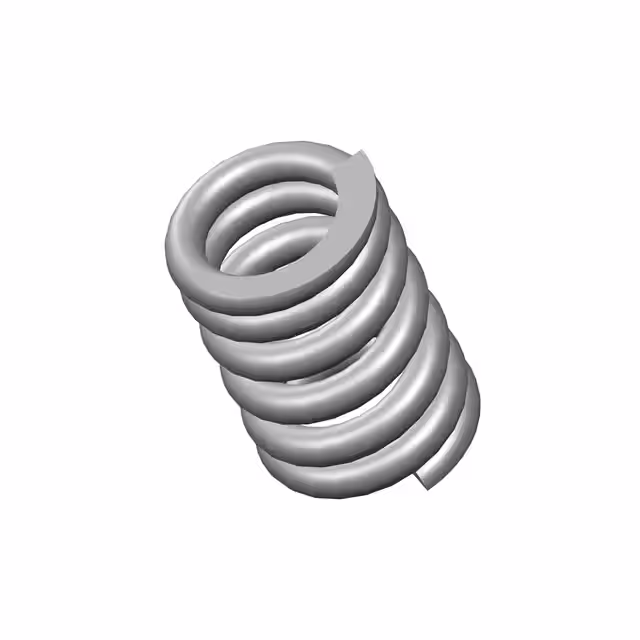

10969CSCOMP O=1.000,L= 1.50,W= .177 |
2,496 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Hard Drawn | 0.177 (4.50mm) | 1.000 (25.40mm) | 0.646 (16.41mm) | - | - | 1.500 (38.10mm) | - | 595.0 lbs/in | Closed & Ground |
|

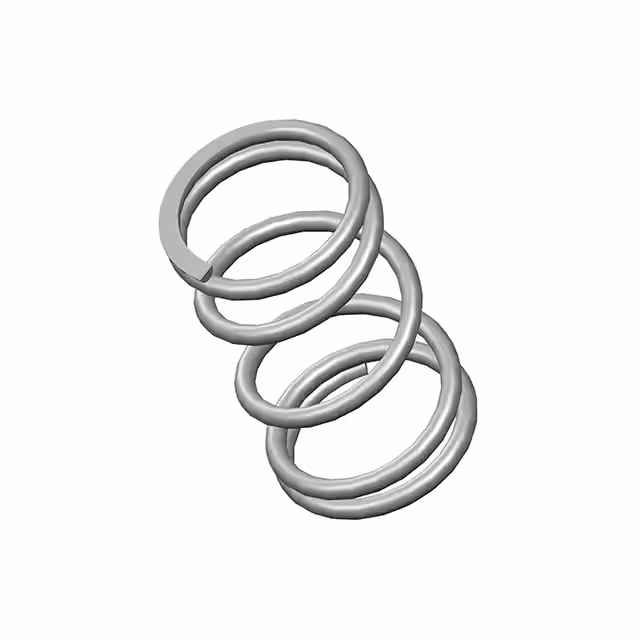

71086CSCOMP O= .360,L= .63,W= .035 |
3,598 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.035 (0.89mm) | 0.360 (9.14mm) | 0.290 (7.37mm) | - | - | 0.630 (16.00mm) | - | 19.0 lbs/in | Closed & Ground |
|

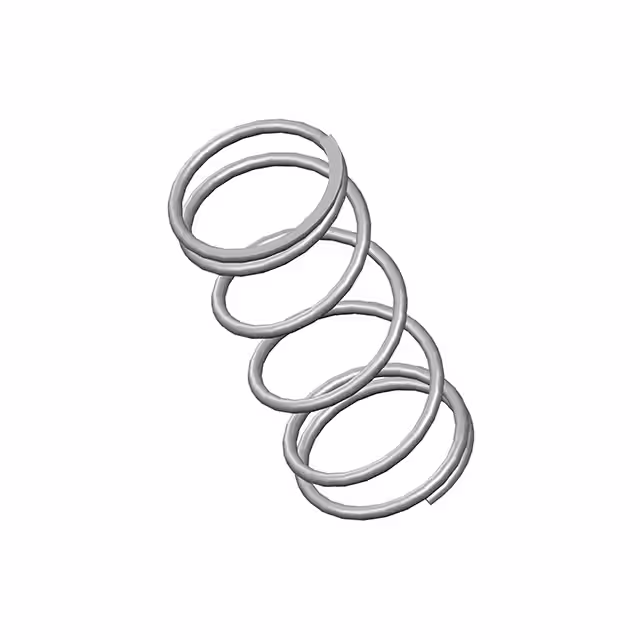

71638CSCOMP O= .540,L= 1.25,W= .041 |
2,501 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.041 (1.04mm) | 0.540 (13.72mm) | 0.458 (11.63mm) | - | - | 1.250 (31.75mm) | - | 7.6 lbs/in | Closed & Ground |
|
71868CSCOMP O= .660,L= 1.00,W= .049 |
3,713 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.049 (1.24mm) | 0.660 (16.76mm) | 0.562 (14.27mm) | - | - | 1.000 (25.40mm) | - | 13.0 lbs/in | Closed & Ground |
|
71641CSCOMP O= .540,L= 2.00,W= .041 |
847 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.041 (1.04mm) | 0.540 (13.72mm) | 0.458 (11.63mm) | - | - | 2.000 (50.80mm) | - | 4.6 lbs/in | Closed & Ground |
|

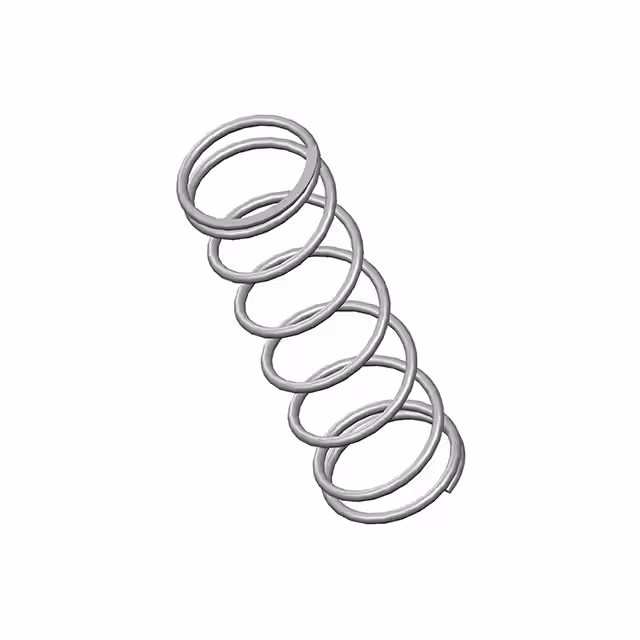

71640CSCOMP O= .540,L= 1.75,W= .041 |
686 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.041 (1.04mm) | 0.540 (13.72mm) | 0.458 (11.63mm) | - | - | 1.750 (44.45mm) | - | 5.3 lbs/in | Closed & Ground |
|

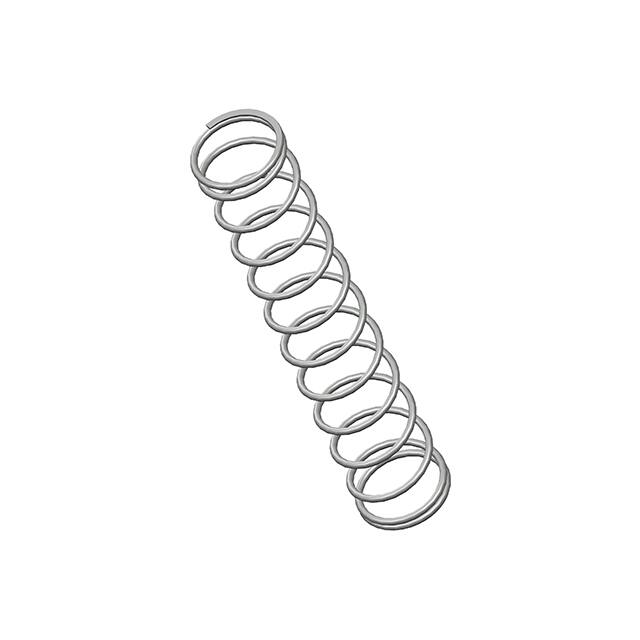

71645CSCOMP O= .540,L= 3.00,W= .041 |
577 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.041 (1.04mm) | 0.540 (13.72mm) | 0.458 (11.63mm) | - | - | 3.000 (76.20mm) | - | 3.0 lbs/in | Closed & Ground |
|

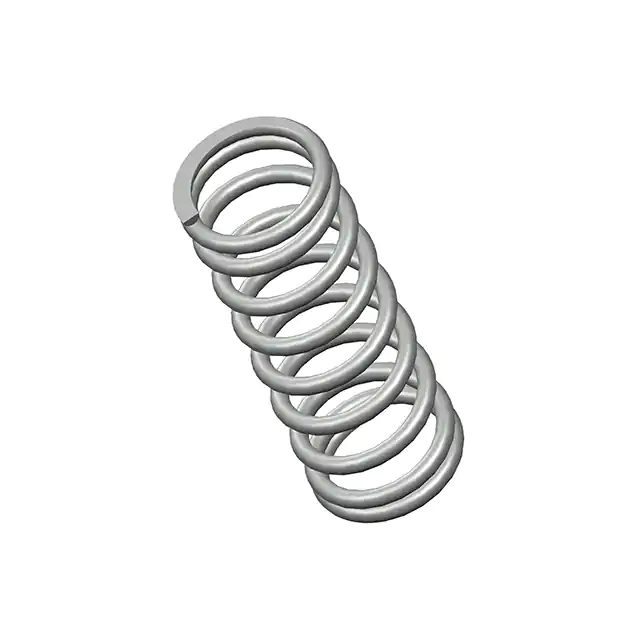

71691CSCOMP O= .540,L= 1.50,W= .063 |
522 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.063 (1.60mm) | 0.540 (13.72mm) | 0.414 (10.52mm) | - | - | 1.500 (38.10mm) | - | 29.0 lbs/in | Closed & Ground |
|

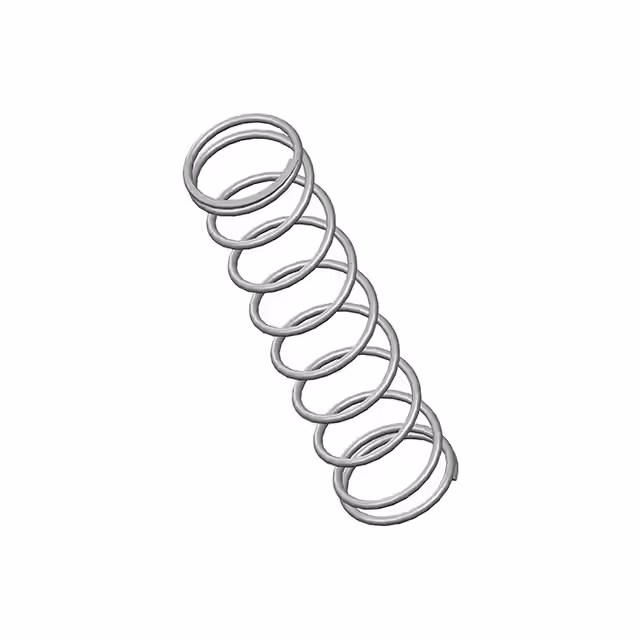

71642CSCOMP O= .540,L= 2.25,W= .041 |
428 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.041 (1.04mm) | 0.540 (13.72mm) | 0.458 (11.63mm) | - | - | 2.250 (57.15mm) | - | 4.1 lbs/in | Closed & Ground |
|

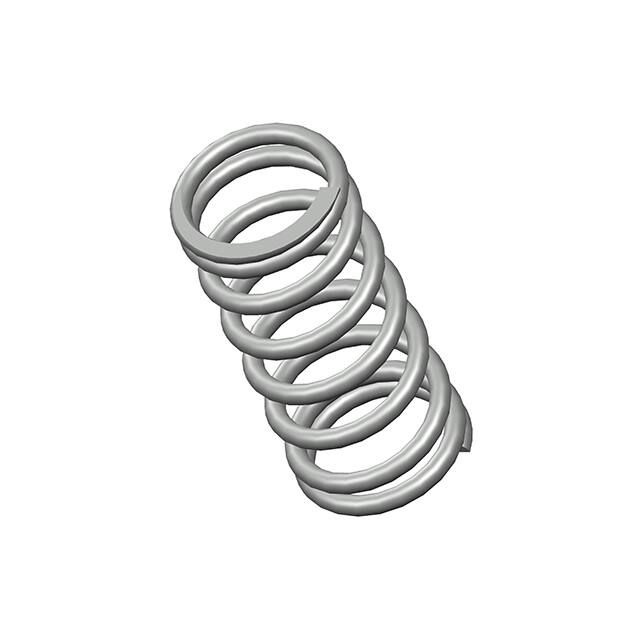

71690CSCOMP O= .540,L= 1.25,W= .063 |
420 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.063 (1.60mm) | 0.540 (13.72mm) | 0.414 (10.52mm) | - | - | 1.250 (31.75mm) | - | 35.0 lbs/in | Closed & Ground |
|

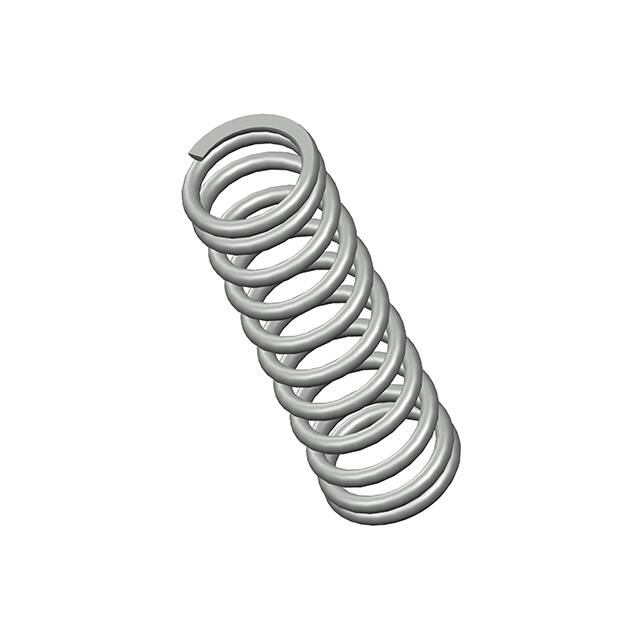

71705CSCOMP O= .540,L= 1.75,W= .067 |
403 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.067 (1.70mm) | 0.540 (13.72mm) | 0.406 (10.31mm) | - | - | 1.750 (44.45mm) | - | 31.0 lbs/in | Closed & Ground |
|

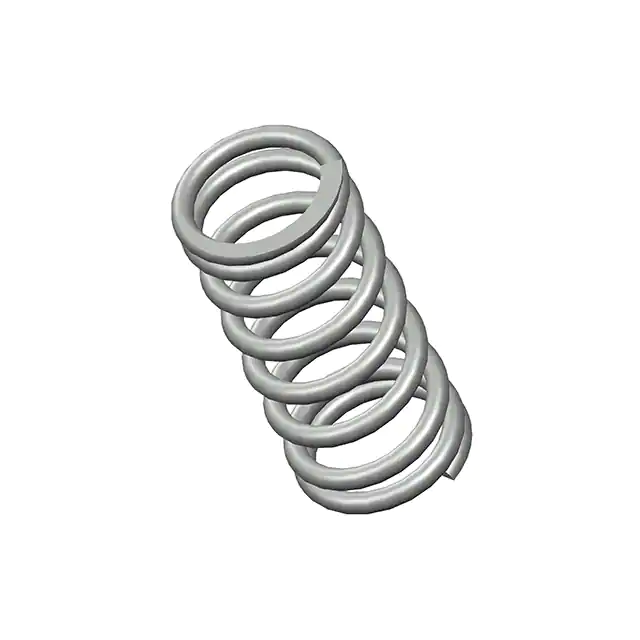

71703CSCOMP O= .540,L= 1.25,W= .067 |
359 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.067 (1.70mm) | 0.540 (13.72mm) | 0.406 (10.31mm) | - | - | 1.250 (31.75mm) | - | 45.0 lbs/in | Closed & Ground |
|

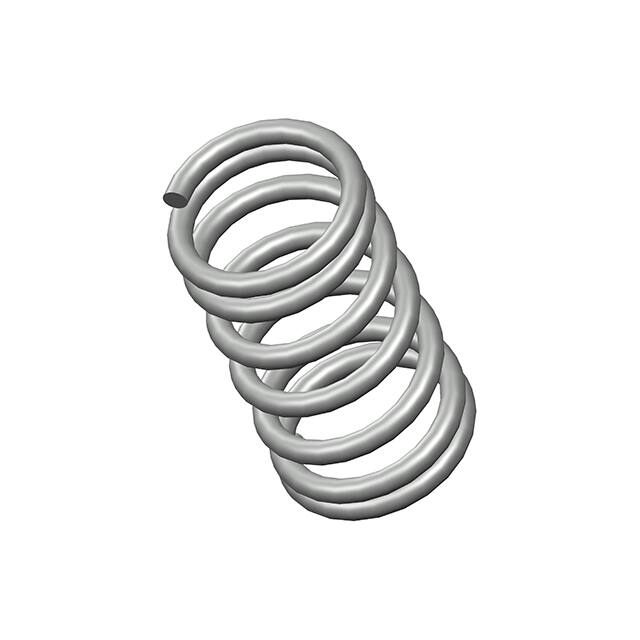

71302CSCOMP O= .390,L= .75,W= .047 |
207 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.047 (1.19mm) | 0.390 (9.91mm) | 0.296 (7.52mm) | - | - | 0.750 (19.05mm) | - | 35.0 lbs/in | Closed & Ground |
|

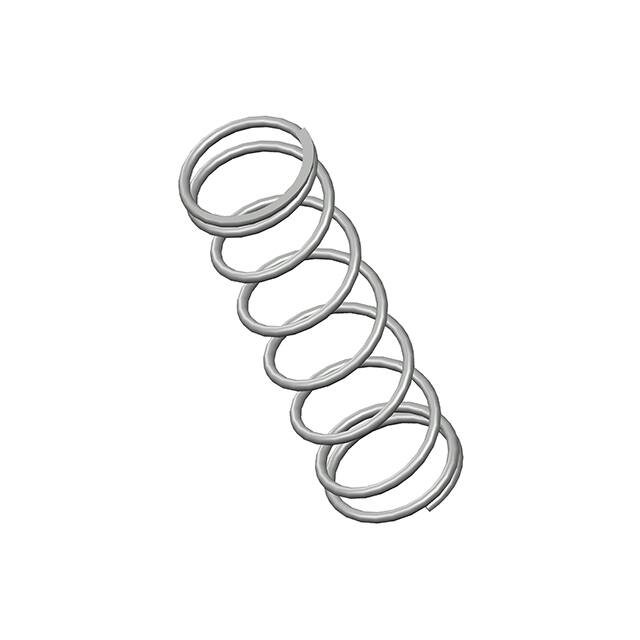

71483CSCOMP O= .480,L= 1.63,W= .038 |
203 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.038 (0.97mm) | 0.480 (12.19mm) | 0.404 (10.26mm) | - | - | 1.630 (41.40mm) | - | 5.5 lbs/in | Closed & Ground |
|
71869CSCOMP O= .660,L= 1.25,W= .049 |
183 | 7.17 |
RFQ |
Datasheet |
Box | - | Active | Music Wire | 0.049 (1.24mm) | 0.660 (16.76mm) | 0.562 (14.27mm) | - | - | 1.250 (31.75mm) | - | 10.0 lbs/in | Closed & Ground |
